Plan 2162DR Weekend Getaway

1,285 2 2 2
Print
Compare
...

Weekend Getaway

Plan 2162DR

  • 1,285

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Stories

  • A wonderful four seasons getaway, this cottage design features an expansive angled deck with both covered and open portions.
  • The spacious family room has direct access to the deck via a sliding glass door. The family room adjoins the good-sized eat-in kitchen. A storage room and a shower room with laundry facilities complete the main level.
  • On the second level, both bedrooms open to the full bathroom and both contain walk-in closets. A mezzanine near the stairway serves as a cozy sitting area.
  • Ceilings: 8' standard.
  • Foundation: basement.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

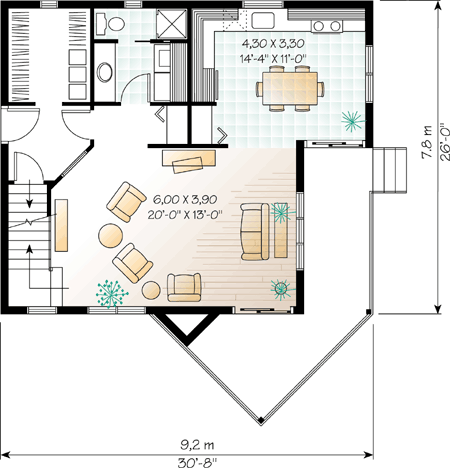

Weekend Getaway - 2162DR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

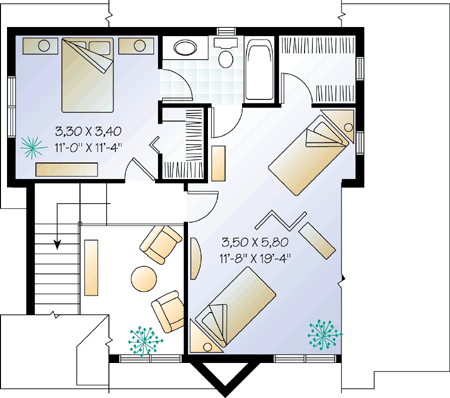

Weekend Getaway - 2162DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,285 sq. ft.
  • 1st Floor: 715 sq. ft.
  • 2nd Floor: 570 sq. ft.
  • Entry: 22 sq. ft.
  • Porch, Front: 160 sq. ft.
  • Basement Unfinished: 715 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 8"
  • Depth: 26' 0"
  • Max ridge height: 25' 10"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Weekend Getaway

  • 1,285

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • Reproducible Set $1,055
  • PDF - Single-Build $1,055
  • 5 Sets + PDF $1,180
  • CAD - Single-Build $1,655
  • View all purchase option online

About This Plan

  • A wonderful four seasons getaway, this cottage design features an expansive angled deck with both covered and open portions.
  • The spacious family room has direct access to the deck via a sliding glass door. The family room adjoins the good-sized eat-in kitchen. A storage room and a shower room with laundry facilities complete the main level.
  • On the second level, both bedrooms open to the full bathroom and both contain walk-in closets. A mezzanine near the stairway serves as a cozy sitting area.
  • Ceilings: 8' standard.
  • Foundation: basement.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,285 sq. ft.
  • 1st Floor: 715 sq. ft.
  • 2nd Floor: 570 sq. ft.
  • Entry: 22 sq. ft.
  • Porch, Front: 160 sq. ft.
  • Basement Unfinished: 715 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 8"
  • Depth: 26' 0"
  • Max ridge height: 25' 10"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss
Plan 2162DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/2162DR
|
Need Help? 800-854-7852
|
Plan 2162DR
