Wrap-Around Rear Decks

Plan 9520RW

  • 6,963

    Heated s.f.

  • 5

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 4

    Cars

  • Four decks on the rear of this spectacular luxury home plan encourage plenty of outdoor activities.
  • Designed for entertaining on a grand scale, a large wet bar lies close to the formal dining room with tray ceiling.
  • Step down into the two-story great room with a magnificent fireplace as the focal point.
  • Enjoy your informal meals in the hearth room.
  • The gourmet kitchen is enormous with a huge island that gives you plenty of room to spread out while you cook.
  • For a quiet spot to read or work, the study lies on a landing to the side of the foyer.
  • On the second floor, an open rail overlooks the great room below.
  • Each bedroom has its own bath and a laundry room on this level adds convenience.
  • Boasting its own deck and a bayed sitting area, the master suite will make a welcome retreat at the end of the day.
  • A spacious lower level adds a rec room, an office and an exercise area as well as guest quarters.
  • Related Plan: Save money and eliminate the lower level with house plan 9537RW (3,979 sq. ft.).

  • Cover Page

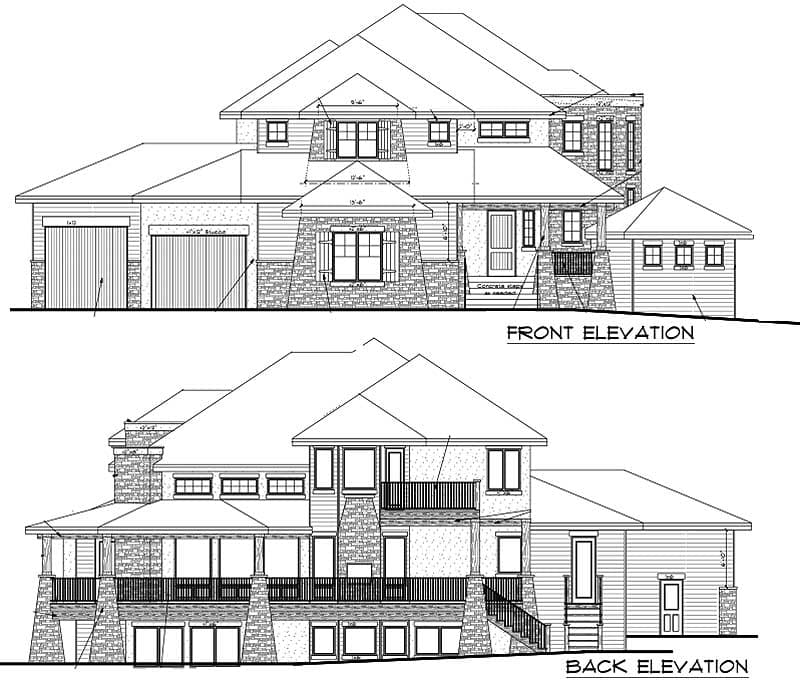

  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan

What is NOT included:

  • Architectural or Engineering stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

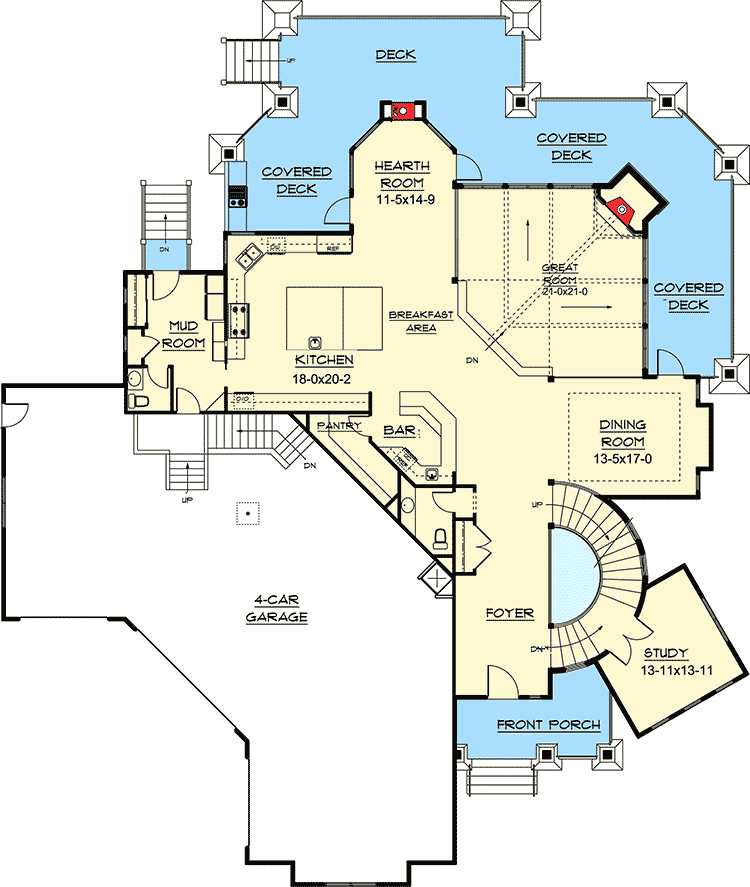

Wrap-Around Rear Decks - 9520RW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

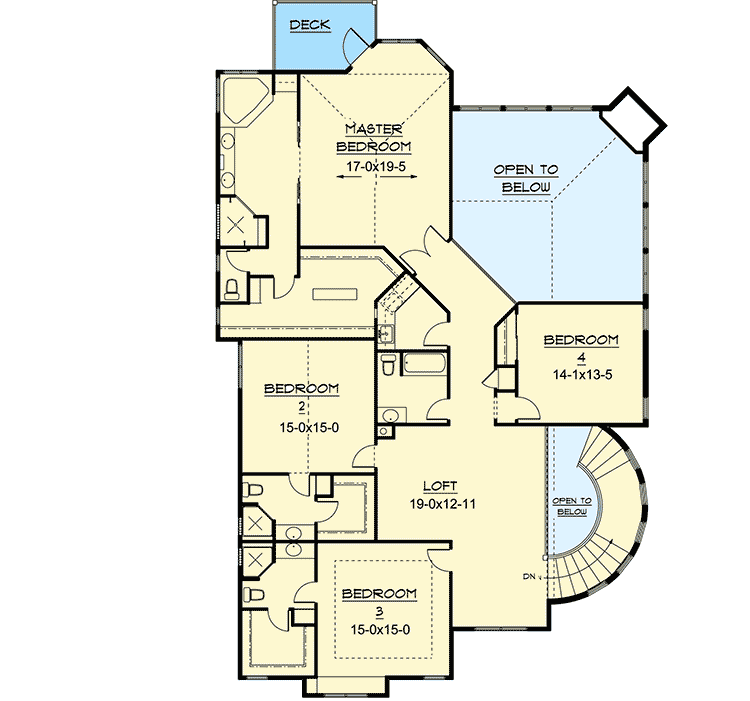

Wrap-Around Rear Decks - 9520RW floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

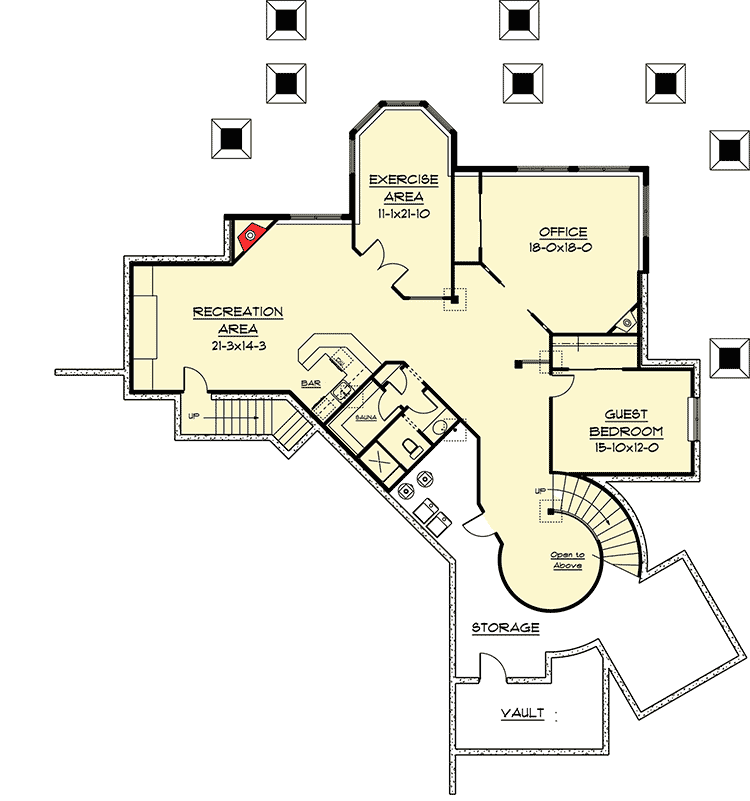

Wrap-Around Rear Decks - 9520RW floor plan - Basement

Plan details



Wrap-Around Rear Decks

  • 6,963

    Heated s.f.

  • 5

    Beds

  • 7

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $4,600
  • CAD - Single-Build $5,850
  • View all purchase option online

About This Plan

  • Four decks on the rear of this spectacular luxury home plan encourage plenty of outdoor activities.
  • Designed for entertaining on a grand scale, a large wet bar lies close to the formal dining room with tray ceiling.
  • Step down into the two-story great room with a magnificent fireplace as the focal point.
  • Enjoy your informal meals in the hearth room.
  • The gourmet kitchen is enormous with a huge island that gives you plenty of room to spread out while you cook.
  • For a quiet spot to read or work, the study lies on a landing to the side of the foyer.
  • On the second floor, an open rail overlooks the great room below.
  • Each bedroom has its own bath and a laundry room on this level adds convenience.
  • Boasting its own deck and a bayed sitting area, the master suite will make a welcome retreat at the end of the day.
  • A spacious lower level adds a rec room, an office and an exercise area as well as guest quarters.
  • Related Plan: Save money and eliminate the lower level with house plan 9537RW (3,979 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,963 sq. ft.
  • Lower Level: 1,991 sq. ft.
  • 1st Floor: 2,604 sq. ft.
  • 2nd Floor: 2,368 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Basement, Daylight

Exterior Walls

  • Standard Type(s): 2x4 or 2x6

Dimensions

  • Width: 85' 6"
  • Depth: 100' 0"
  • Max ridge height: 36' 4"

Garage

  • Type: Attached
  • Area: 1915 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
