Plan: 80446PM

Wrapping Corner Porch

3,196 4 4 2 2
Pageloader

Wrapping Corner Porch

Plan 80446PM

  • 3,196

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

Plan sets include the following:

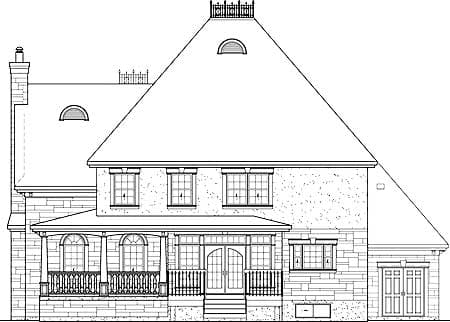

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.
  • **Plans DO NOT include electrical, HVAC or plumbing details (other than the location of plumbing fixtures)**


Plan details



Wrapping Corner Porch

  • 3,196

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,535
  • 8 Sets $1,580
  • Reproducible Set $1,620
  • PDF - single-use $1,620
  • CAD $2,195
  • View all purchase option online

About This Plan

Floor Plans

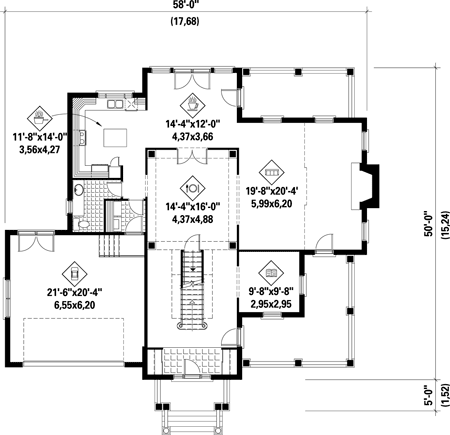

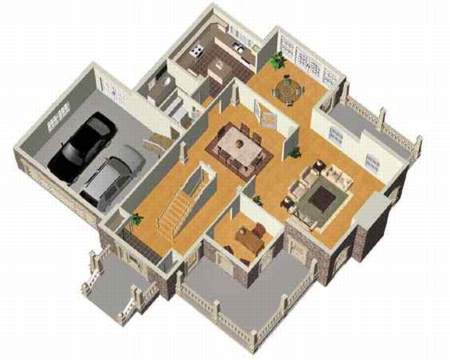

  • Main Level

  • Main Level

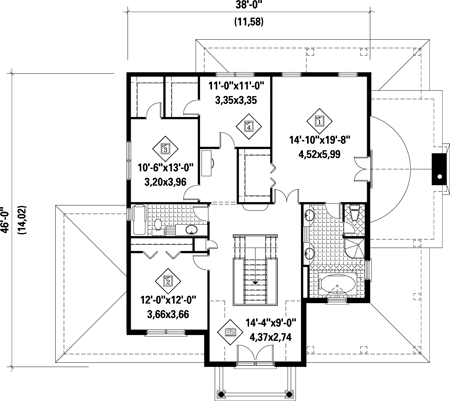

  • 2nd Floor

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,196 sq. ft.
  • 1st Floor: 1,608 sq. ft.
  • 2nd Floor: 1,588 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 58' 0"
  • Depth: 50' 0"
  • Max ridge height: 42' 8"

Garage

  • Type: Attached
  • Area: 480 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss

Architectural Style

  • Country
  • Farmhouse

Special features

  • 2nd Floor Master Suite
  • CAD Available
  • Den-Office-Library-Study
  • Loft
  • PDF

Plan Collections

  • Canadian
  • Metric
  • Photo Gallery
