Plan 21486DR
Attractive Duplex with Covered Entry
Heated S.F.
3,188
Units
2
Width
44'
Depth
48'
Cars
2
Plan Details
  • A covered entry welcomes you to both units of the attractive duplex house plan. Each unit features 679 sq. ft. of living space on the main floor and 915 sq. ft. on the second floor.
  • Both units feature an original kitchen with bar-style dinette seating.

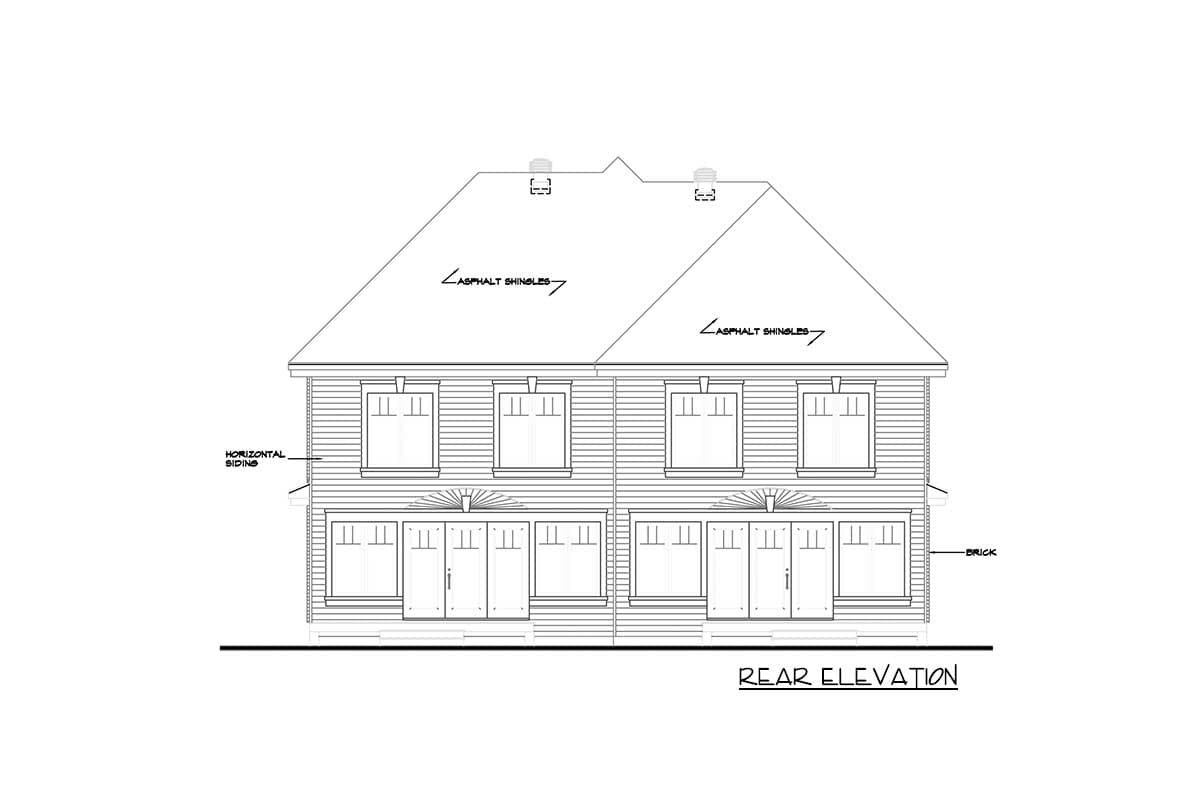

  • There are abundant windows at the rear in both the dining and family rooms.
  • Upstairs you'll find three bedrooms. The master features a walk-in closet and dual vanities.
  • Related Plan: For an alternate exterior, see duplex house plan 21936DR.
Unit A
1,594 Sq. Ft.
679 Sq. Ft. 1st Floor
915 Sq. Ft. 2nd Floor
3 Beds
1 Full Bath
1 Half Bath
1 Vehicle
Attached
264 Sq. Ft.
22' w 48' d 34' 2" h
Unit B
1,594 Sq. Ft.
679 Sq. Ft. 1st Floor
915 Sq. Ft. 2nd Floor
3 Beds
1 Full Bath
1 Half Bath
1 Vehicle
Attached
264 Sq. Ft.
22' w 48' d 34' 2" h
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Attractive Duplex with Covered Entry

  • 3,188

    Heated s.f.

  • 2

    Units

  • 44'

    Width

  • 48'

    Depth

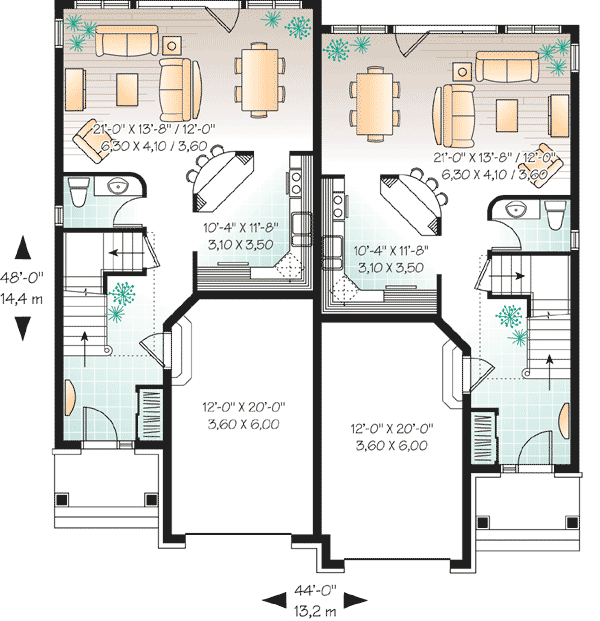

Floor Plan

  • Main Level

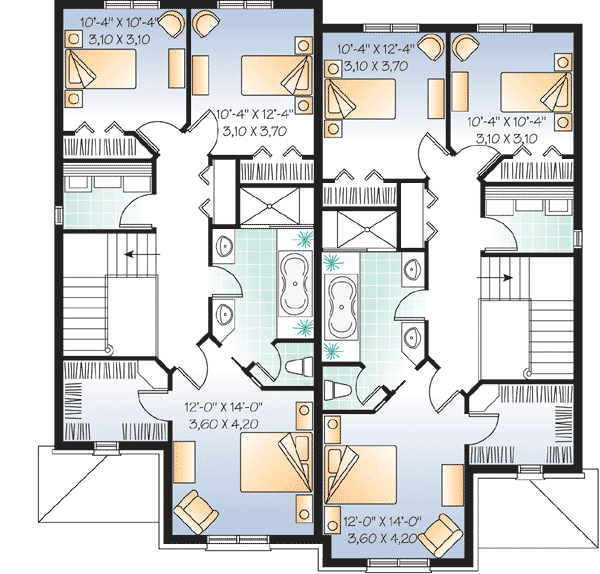

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,188 sq. ft.
  • 1st Floor: 1,358 sq. ft.
  • 2nd Floor: 1,830 sq. ft.

Dimensions

  • Width: 44' 0"
  • Depth: 48' 0"
  • Max ridge height: 34' 2"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 2
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 528 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout, Daylight

Exterior Walls

  • Standard Type(s): 2x6
