Plan 68811VR 1,604 Square Foot House Plan with Vaulted Interior and a 4-Season Room

1,604 Square Foot House Plan with Vaulted Interior and a 4-Season Room

Plan 68811VR

  • 1,604

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • This one-story 2-bed house plan has a vaulted covered entry porch with the vault continuing inside across the kitchen and great room.
  • The kitchen is located in front and is open to the vaulted great room. A pair of French doors on the back wall takes you to the rear porch which has a vaulted section in the center and two non-vaulted sections to either side.
  • A 4-season room has two walls of windows giving you views to the back and side while keeping you in a temperature-controlled room.
  • The master bedroom has a large walk-in closet and private bath. Across the home, a second bedrooms has its own bath and convenient access to the laundry room.
  • Related Plans: Get a smaller version with house plans 68758VR (1,541 sq. ft.), 68536VR (1,273 sq. ft.), 68756VR and 68641VR (both 1,357 sq. ft.). Get an alternate version with house plan 68738VR (1,586 sq. ft.). Get 3 bedrooms with house plan 68691VR

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

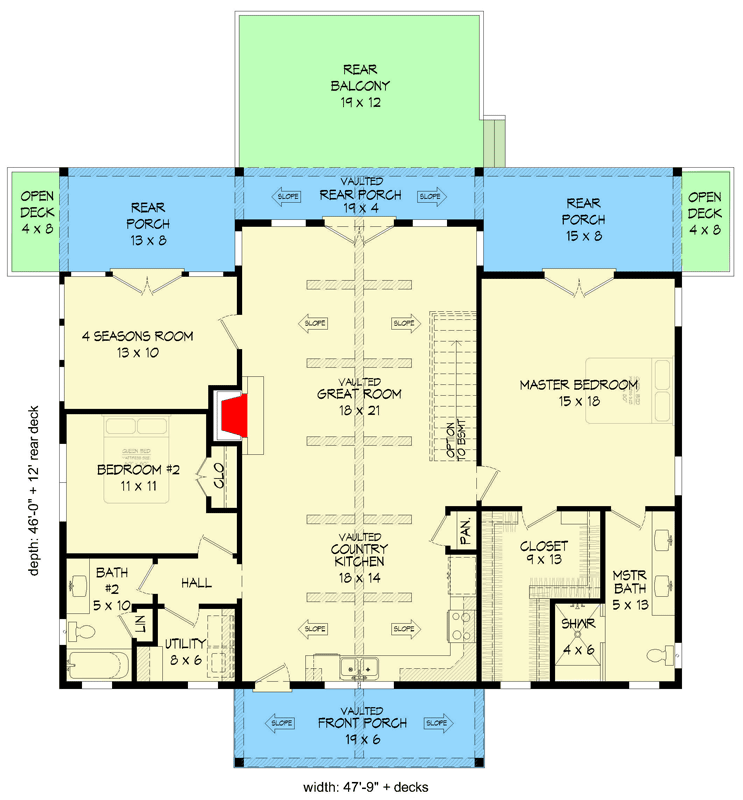

1,604 Square Foot House Plan with Vaulted Interior and a 4-Season Room - 68811VR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

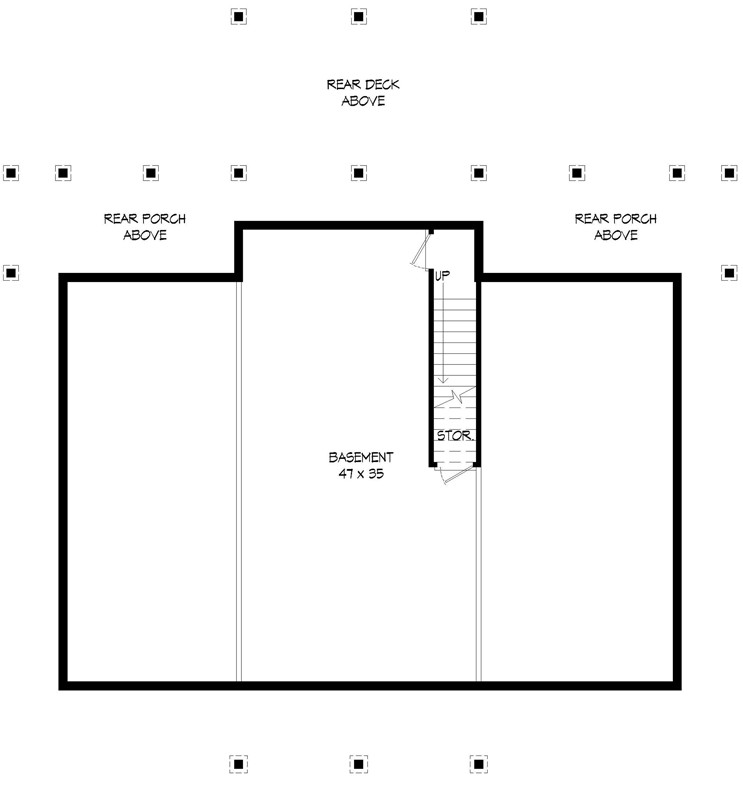

1,604 Square Foot House Plan with Vaulted Interior and a 4-Season Room - 68811VR floor plan - Lower Level

Plan details

1,604 Square Foot House Plan with Vaulted Interior and a 4-Season Room

  • 1,604

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $995
  • 5 Sets $1,160
  • 5 Sets + PDF $1,204
  • CAD + PDF - Single-Build $1,495
  • View all purchase option online

About This Plan

  • This one-story 2-bed house plan has a vaulted covered entry porch with the vault continuing inside across the kitchen and great room.
  • The kitchen is located in front and is open to the vaulted great room. A pair of French doors on the back wall takes you to the rear porch which has a vaulted section in the center and two non-vaulted sections to either side.
  • A 4-season room has two walls of windows giving you views to the back and side while keeping you in a temperature-controlled room.
  • The master bedroom has a large walk-in closet and private bath. Across the home, a second bedrooms has its own bath and convenient access to the laundry room.
  • Related Plans: Get a smaller version with house plans 68758VR (1,541 sq. ft.), 68536VR (1,273 sq. ft.), 68756VR and 68641VR (both 1,357 sq. ft.). Get an alternate version with house plan 68738VR (1,586 sq. ft.). Get 3 bedrooms with house plan 68691VR

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,604 sq. ft.
  • 1st Floor: 1,604 sq. ft.
  • Deck: 295 sq. ft.
  • Porch, Combined: 345 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 47' 9"
  • Depth: 58' 0"
  • Max ridge height: 19' 1"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
