Plan 11706HZ
1600 Sq Ft Open Floor Home Design with Options
Heated S.F.
1,600
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This home plan has a great open floor plan with everything a family needs to call this home. An added bonus - it comes in multiple sizes and exteriors.
  • A large great room with built in shelves and a gas log fireplace. To the right you'll find a hall closet for your guests and the utility/laundry room.
  • The kitchen with eating bar is conveniently located to the open dining room. Steps away is your rear covered porch for outdoor dining and entertainment.
  • The master suite has partitioned his-and-hers closets and a master bath with dual sinks, private toilet and jacuzzi tub and shower. Across the home, two more bedrooms share a common bath.
  • A two-car garage with storage completes this home plan.
  • Related Plans: Get a modern farmhouse exterior with house plan 51829HZ.  Get a version in reverse layout with house plan 11707HZ. Get a smaller version with house plan 11704HZ (1,500 sq. ft.). Get more room with house plans 11708HZ (1,700 sq. ft.), 11710HZ (2,400 sq. ft.) and 11713HZ (2,500 sq. ft.).
What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

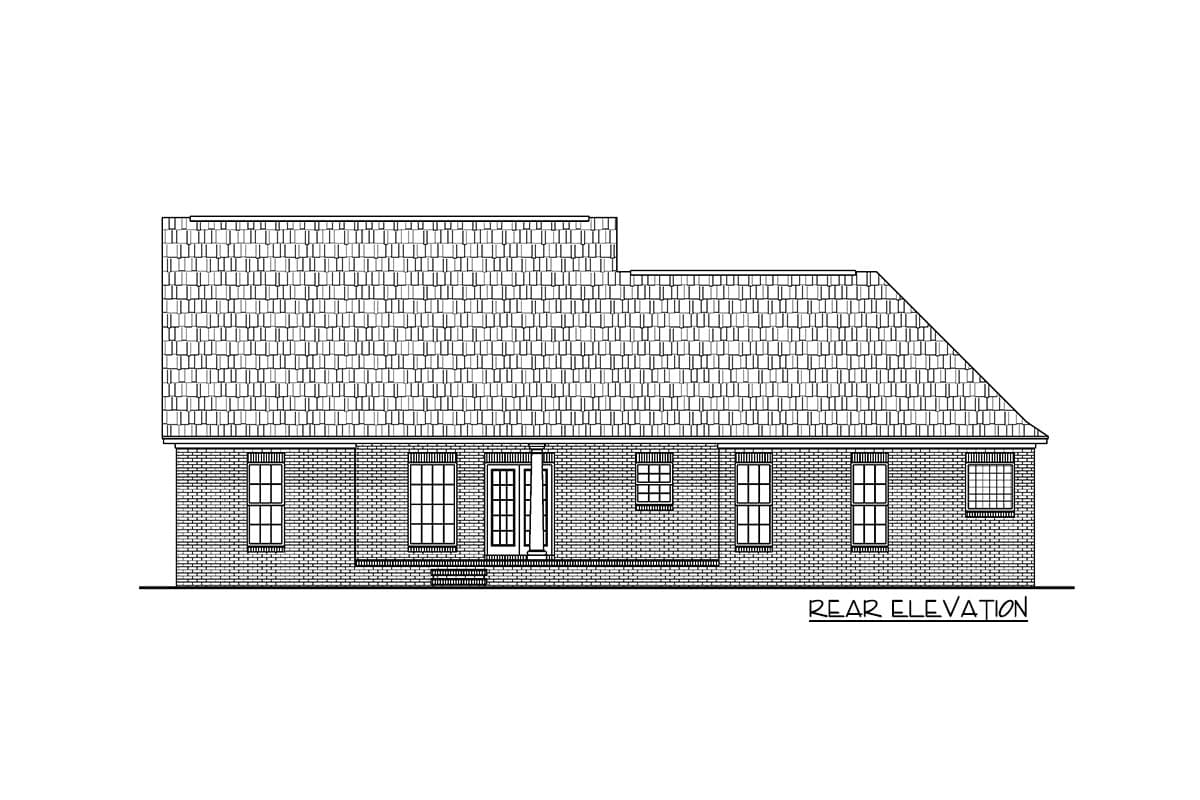

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1600 Sq Ft Open Floor Home Design with Options

  • 1,600

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

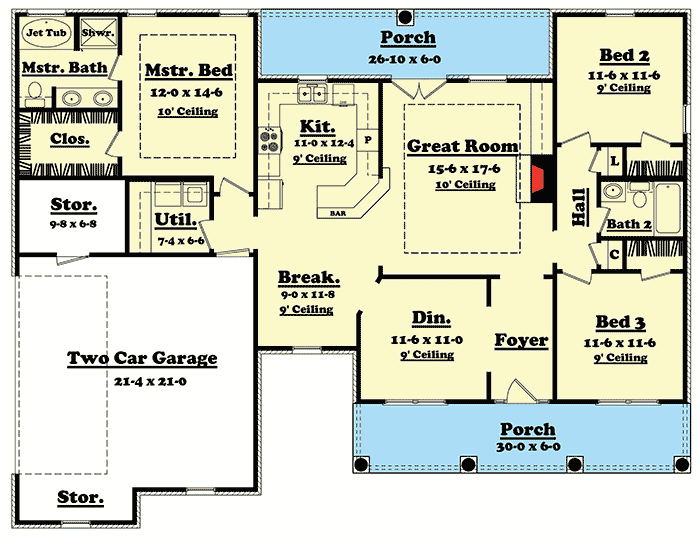

Floor Plan

  • Main Level

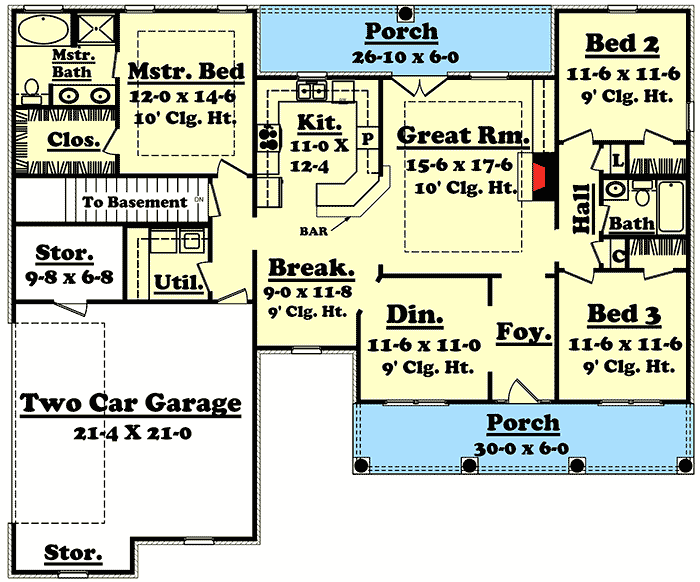

  • With Basement

Plan Details

Square Footage Breakdown

  • Total: 1,600 sq. ft.
  • 1st Floor: 1,600 sq. ft.

Dimensions

  • Width: 61' 0"
  • Depth: 46' 6"
  • Max ridge height: 24' 3"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 467 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
