Plan 421513CHD
19-Foot-Wide Transitional Tudor House Plan with Detached Garage with ADU Apartment Above
Heated S.F.
1,551
Beds
3-4
Baths
2.5 - 3.5
Stories
2
Cars
2
What's Included
Plan Details

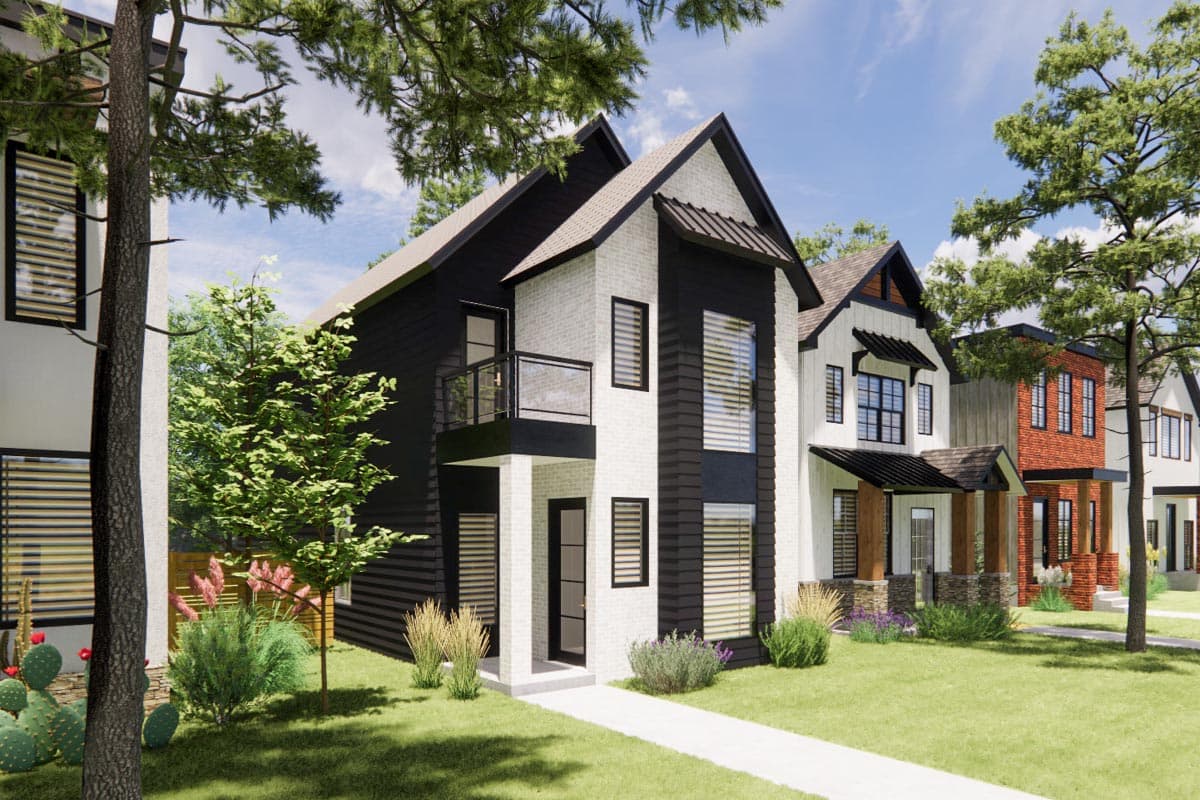

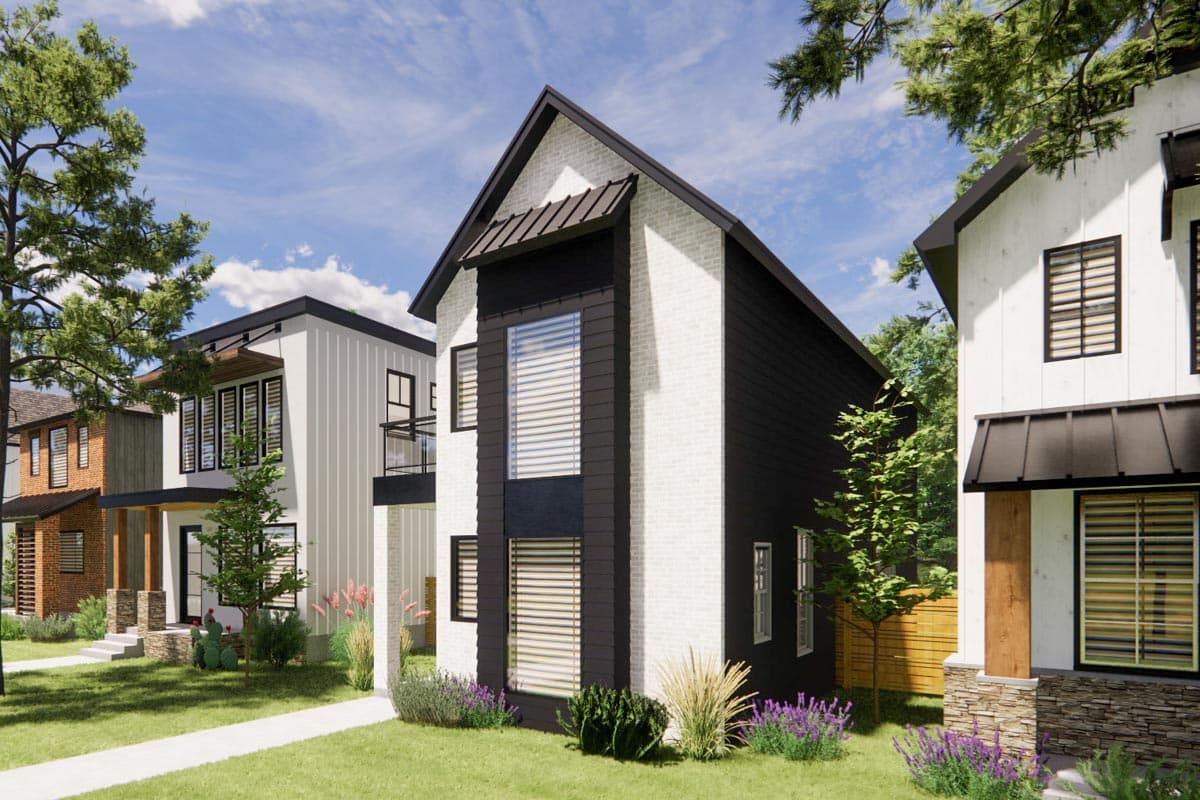

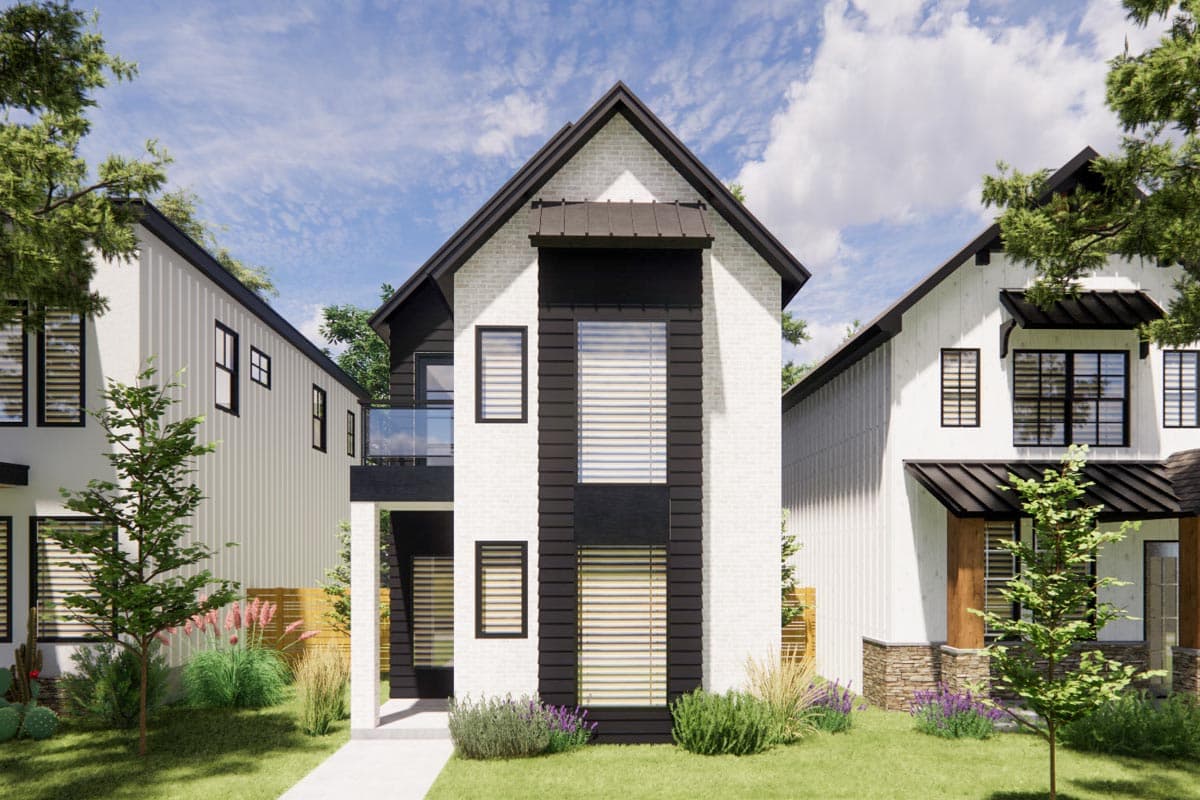

  • This 19'-wide Transitional Tudor-style house plan is great for your narrow lot. It gives you 3 beds and 2.5 baths and 1,324 square feet of heated living plus a 2-car gar alley-access garage with an ADU apartment above.
  • The main floor is open concept with the living room with fireplace in front open to the C-shaped kitchen with peninsula seating and a dining booth. Sliding doors open to the covered patio in back.
  • A powder room and a pocket office are tucked into the right corners, back and front respectively.
  • Upstairs, the master suite with walk-in closet located in back. Beds 2 and 3 each have access to an open balcony. A stackable washer/dryer is located in a hall closet.

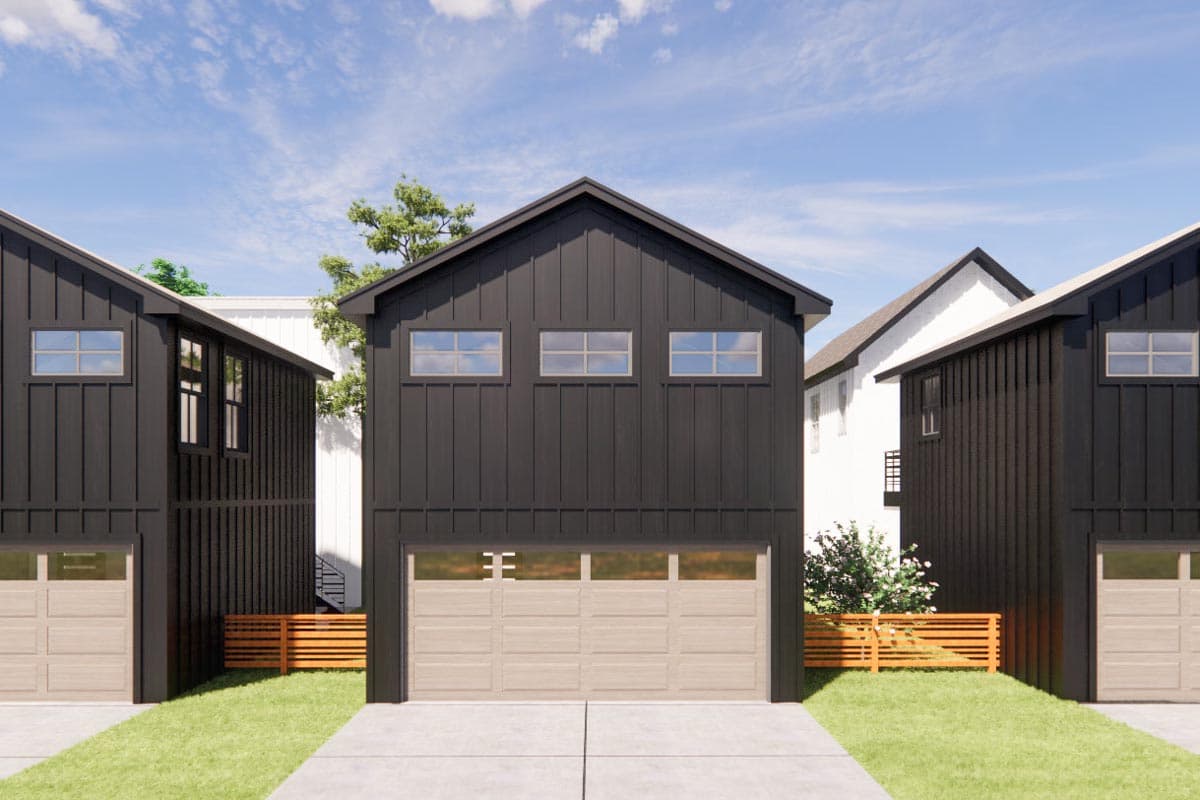

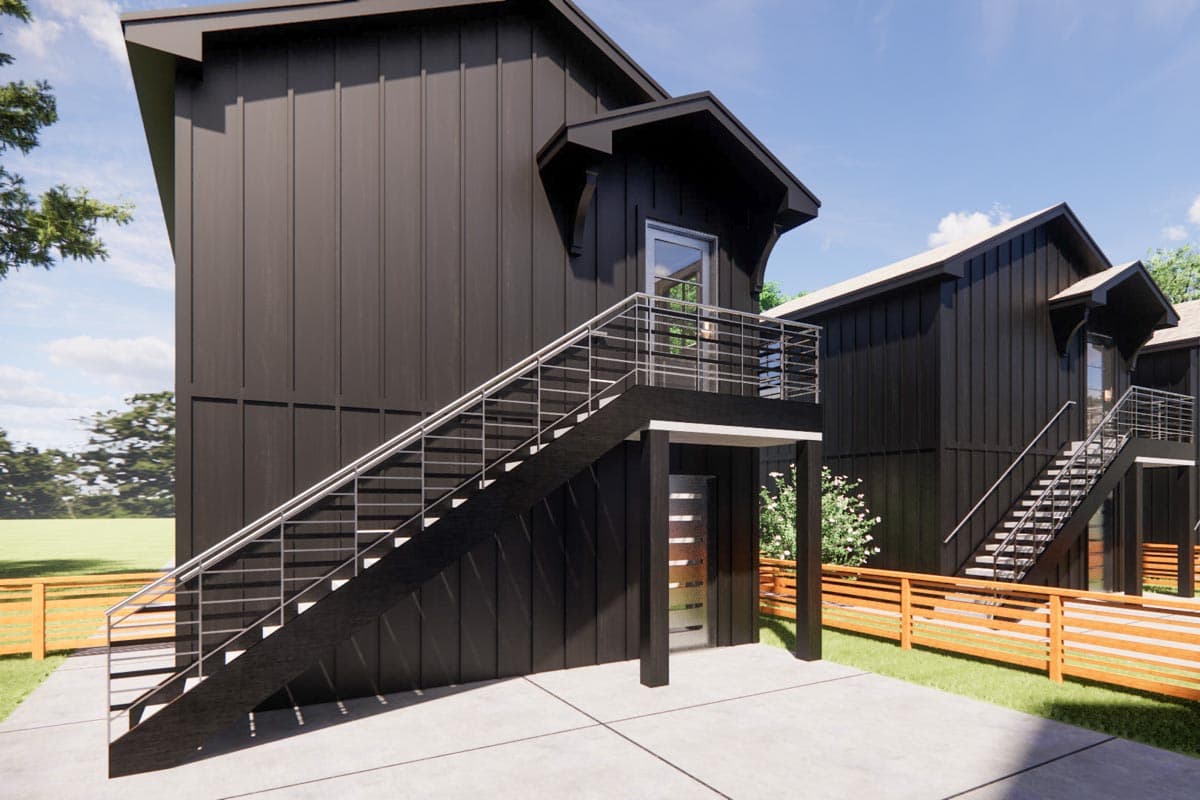

  • An external staircase runs in back of the rear-facing 2-car detached garage and takes you to the apartment, perfect for us as a rental, an ADU, in-law or nanny space.
  • Related Plans: Get an alternate 19'-wide house plan with 421505CHD (1,630 sq. ft.) and 421514CHD (1,457 sq. ft.).
What's Included
  • Cover Page
  • Foundation Plan with Notes and Footing Details
  • Dimensioned Floor Plans with Notes
  • Exterior Elevations and Roof Plan with Notes
  • Electrical Layout Plans with Legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

19-Foot-Wide Transitional Tudor House Plan with Detached Garage with ADU Apartment Above

  • 1,551

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,551 sq. ft.
  • 1st Floor: 729 sq. ft.
  • 2nd Floor: 822 sq. ft.

Dimensions

  • Width: 19' 0"
  • Depth: 85' 5"
  • Max ridge height: 31' 9"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Detached
  • Area: 418 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

19-Foot-Wide Transitional Tudor House Plan with Detached Garage with ADU Apartment Above

  • 1,551

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

19-Foot-Wide Transitional Tudor House Plan with Detached Garage with ADU Apartment Above

  • 1,551

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 1,551 sq. ft.
  • 1st Floor: 729 sq. ft.
  • 2nd Floor: 822 sq. ft.

Dimensions

  • Width: 19' 0"
  • Depth: 85' 5"
  • Max ridge height: 31' 9"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Detached
  • Area: 418 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick

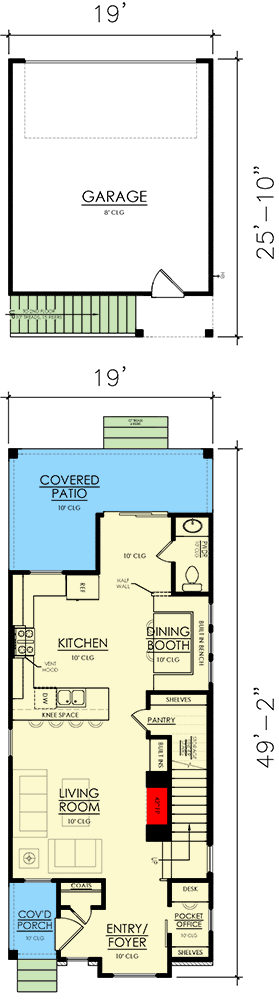

    Main Level

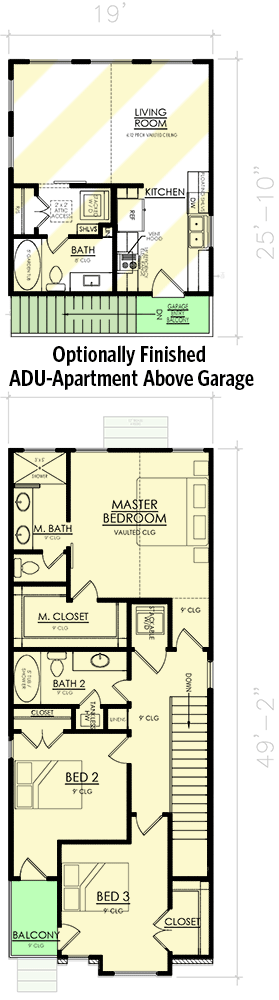

    2nd Floor
