Plan 270094AF
2-Bed Modern A-Frame House Plan with Two Story Great Room - 1388 Sq Ft
Heated S.F.
1,388
Beds
2
Baths
2
Stories
2
Plan Details
  • This 2 bedroom, 2 bath modern A-frame house plan gives you 1388 square feet of heated living space .
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related: Get alternate versions with house plan 270046AF, 270047AF and 270048AF
What's Included
This plan set includes the following:
  • Foundation Plan - Footing sizes, slab thickness, floor framing notes, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof framing notes, roof pitch, attic venting, overhangs, roof finish materials, etc.

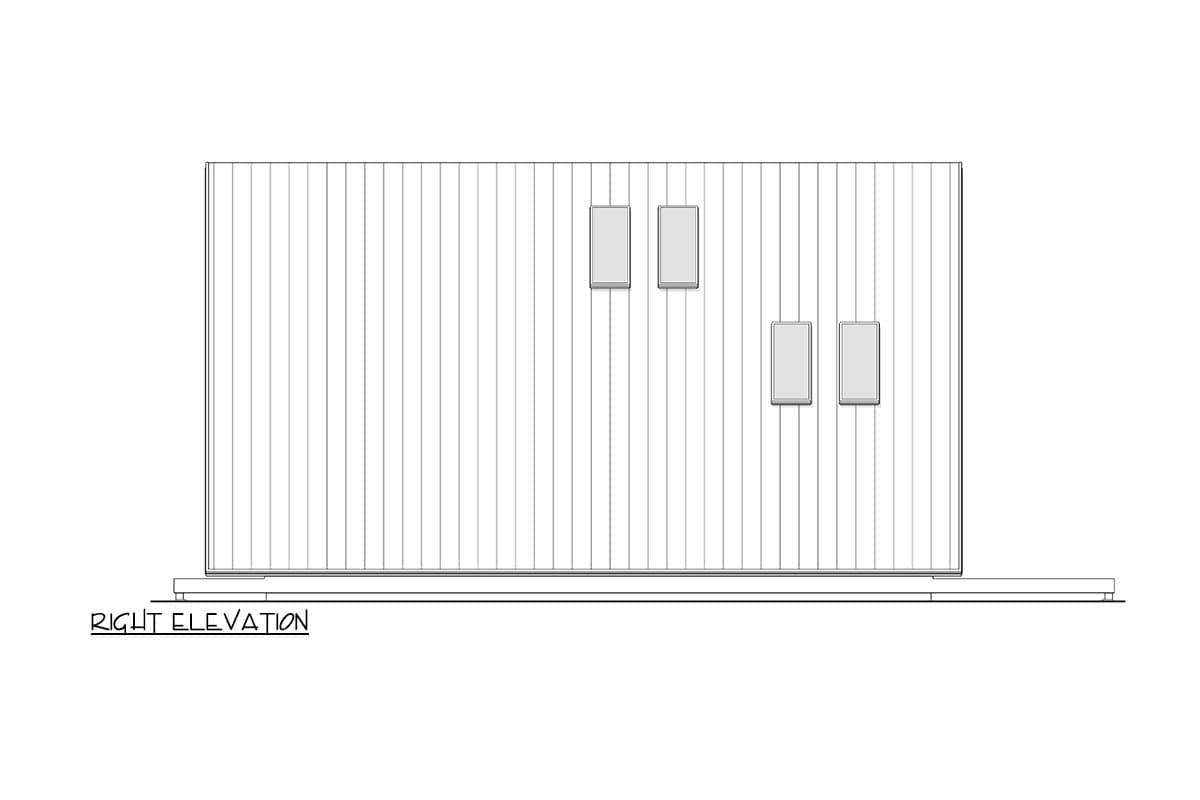

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Sections and Notes - Cut through views of the home
  • Details - Dissected drawings of typical construction details
What is NOT included in the plans:

  •           Architectural or Engineering Stamp - handled locally if required
  •           Site Plan - handled locally when required
  •           Electrical plan
  •           Mechanical Drawings (location of heating and air equipment and duct work) — your subcontractors handle this
  •           Framing layouts with beam sizes and locations
  •           Material lists
  •           Energy calculations - handled locally when required
  •   Renderings, photography, or marketing imagery

Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2-Bed Modern A-Frame House Plan with Two Story Great Room - 1388 Sq Ft

  • 1,388

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

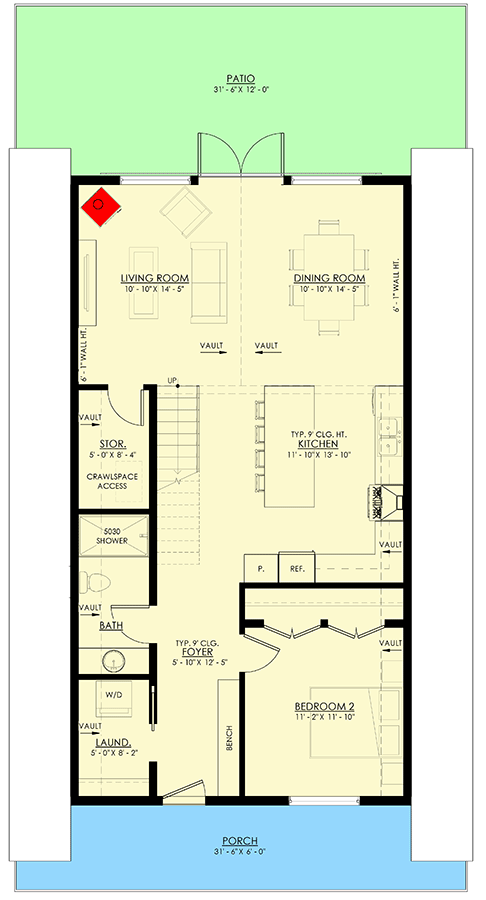

  • Main Level

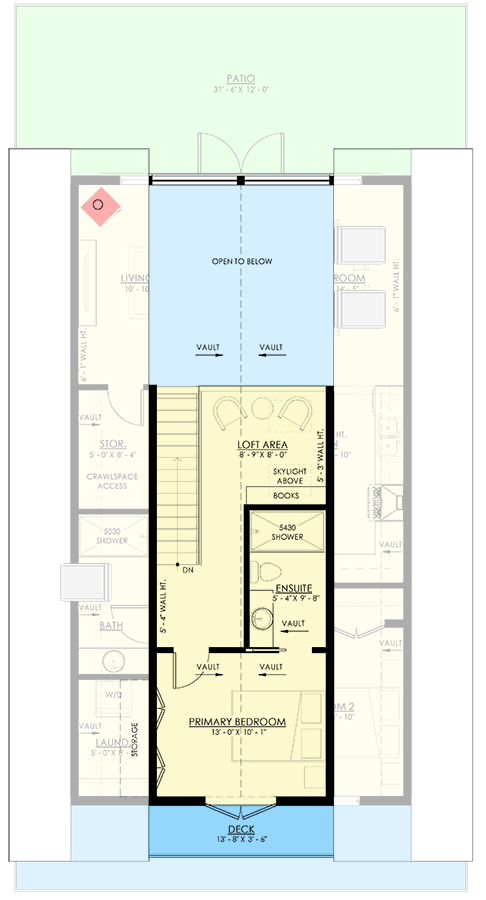

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,388 sq. ft.
  • 1st Floor: 1,052 sq. ft.
  • 2nd Floor: 336 sq. ft.

Dimensions

  • Width: 31' 6"
  • Depth: 62' 0"
  • Max ridge height: 29' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 20 on 12
  • Framing Type: Stick
