Plan 38029LB
2 Bed Triplex House Plan
Heated S.F.
4,368
Units
3
Width
60'
Depth
48'
Cars
3
What's Included
Plan Details
  • This triplex house plan gives you three identically-sized units with slightly varied exteriors. Each unit is just 20' wide.
  • The units gives you 1,456 square feet with 609 square feet on the first floor and 847 square feet on the upper floor. The garage is 247 square feet.
  • The main floor has an open floor plan with a corner fireplace and rear patio accessed from the living room through sliding doors.
  • Upstairs you'll find two bedrooms with walk-in closets and their own baths plus laundry conveniently located off the landing.
  • Related Plan: Get two beds three beds upstairs with triplex house plan 38028LB (1,634 sq. ft. per unit).
Unit A
1,456 Sq. Ft.

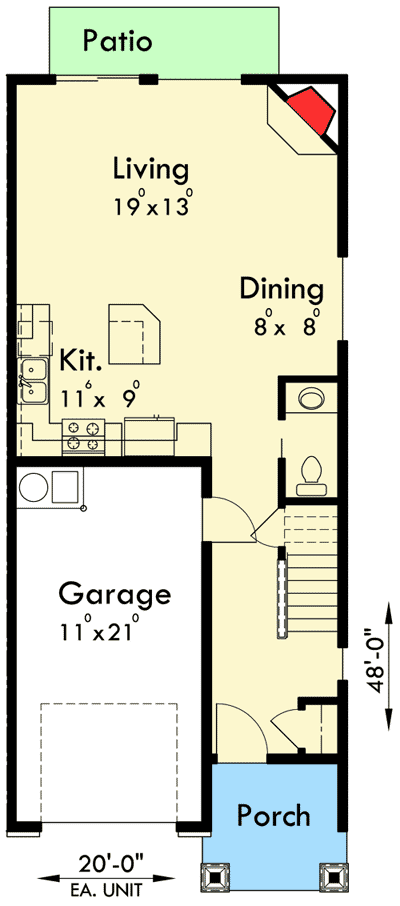

609 Sq. Ft. 1st Floor

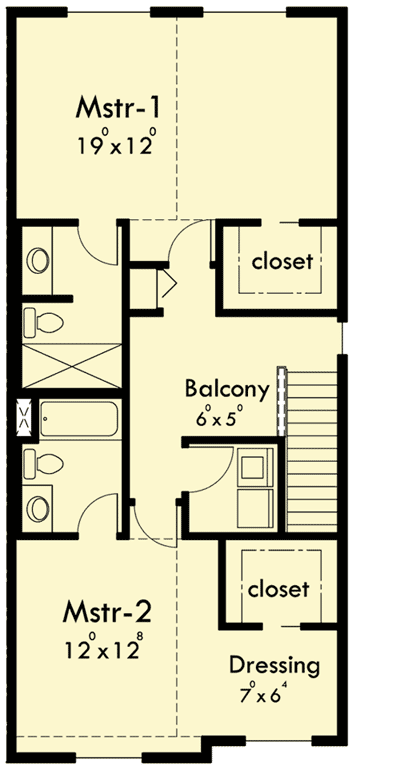

847 Sq. Ft. 2nd Floor
2 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
231 Sq. Ft.
20' w 48' d 26' 5" h
Unit B
1,456 Sq. Ft.
609 Sq. Ft. 1st Floor
847 Sq. Ft. 2nd Floor
2 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
231 Sq. Ft.
20' w 48' d 26' 5" h
Unit C
1,456 Sq. Ft.
609 Sq. Ft. 1st Floor
847 Sq. Ft. 2nd Floor
2 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
231 Sq. Ft.
20' w 48' d 26' 5" h
What's Included

What is Included in Our Plans?

We work with hundreds of designers and architects who work in a variety of styles.  It is important to note. Their plan packages may contain different details.

We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below are examples of sheets that may be included in plan sets - please be aware that not every plan includes every one of these pages:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

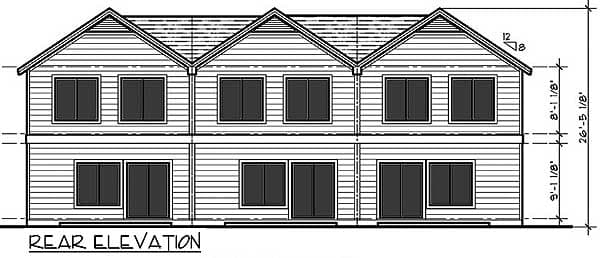

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable Reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.
