Plan 81768AB

2-Story Modern Home Plan with Private Homeowner Level

Name: Plan 81768AB: 2-Story Modern Home Plan with Private Homeowner Level
Brand: Architectural Designs
SKU: 81768AB
Price: 1661.75 USD
Availability: InStock

Heated S.F.

4,467

Beds

3 - 4

Baths

2.5+

Stories

Floor Plan

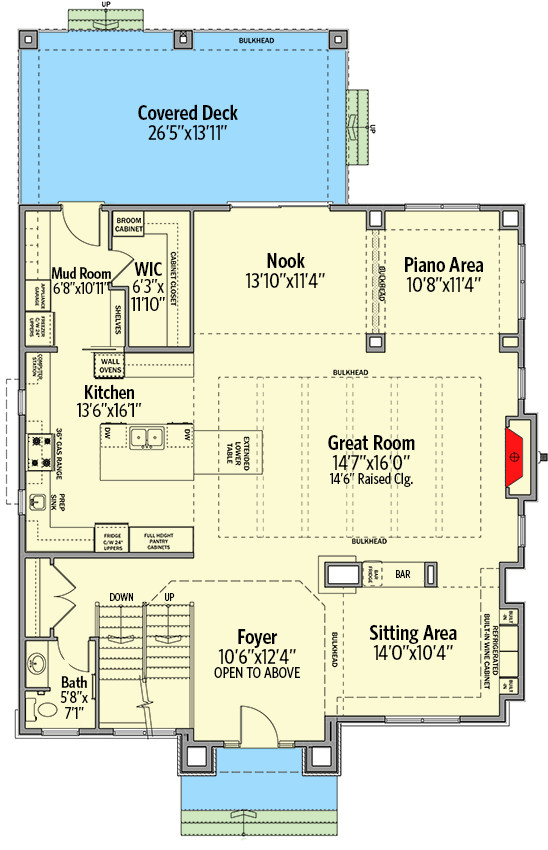

Main Level

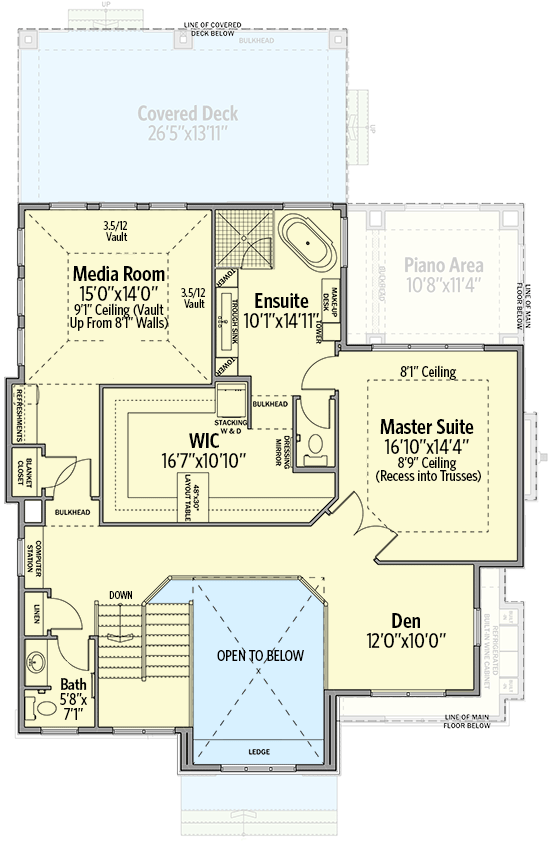

2nd Floor

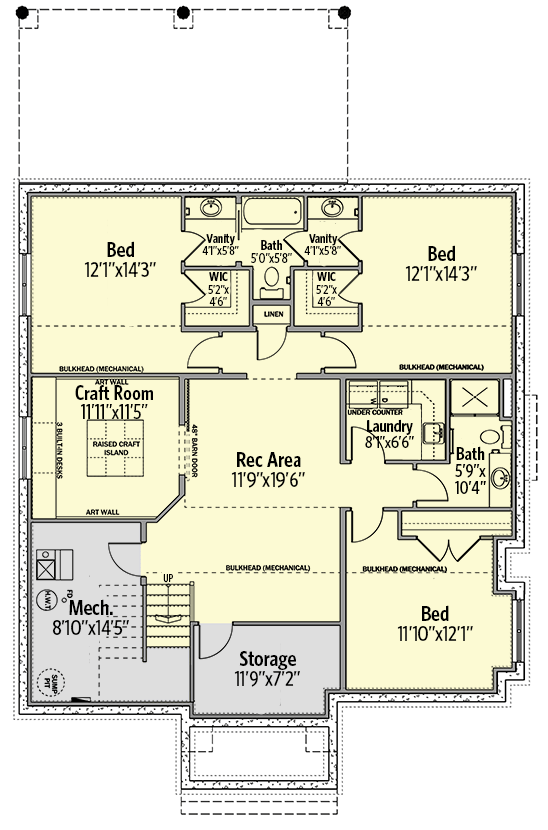

Lower Level

Plan Details

This 2-story Modern home plan features a second level designed for the homeowner with a sizable master suite, spa-like ensuite with enormous closet, a den, and media room; a true private oasis for the homeowner.

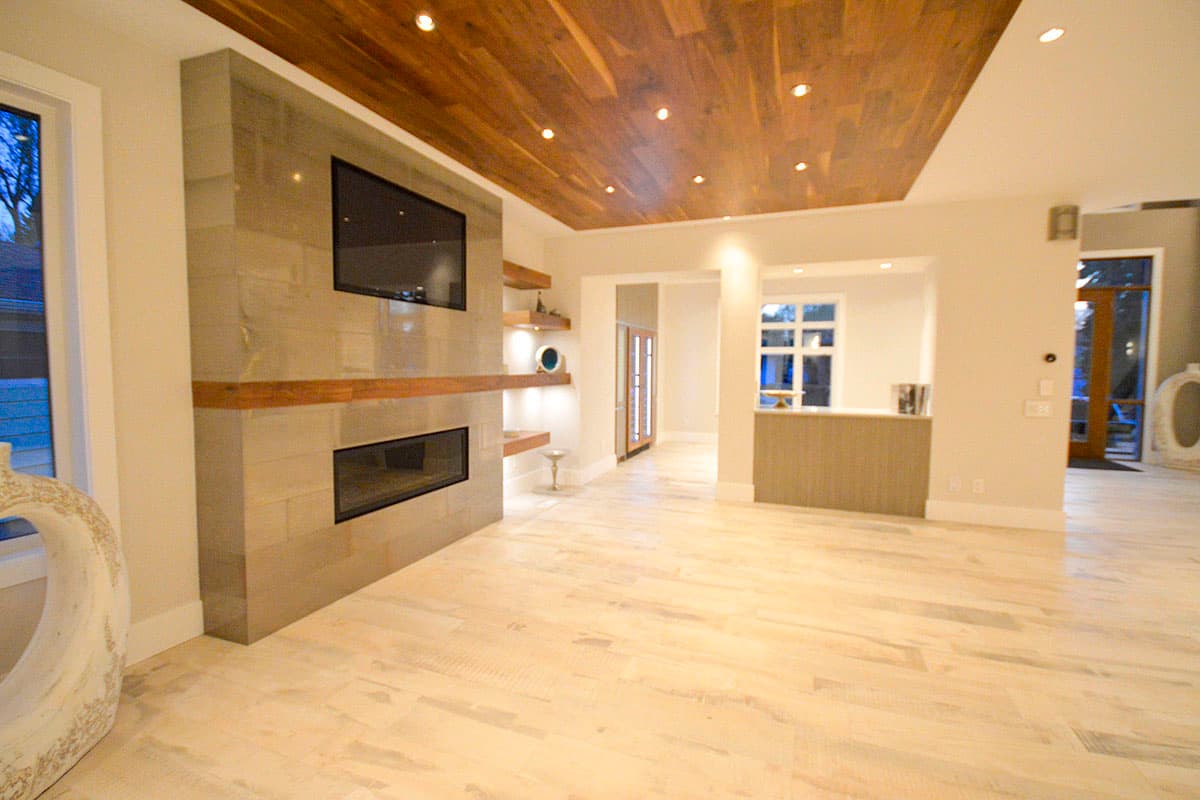

The main level is perfect for entertaining and presents a wet bar that serves the sitting area off the foyer and the great room.

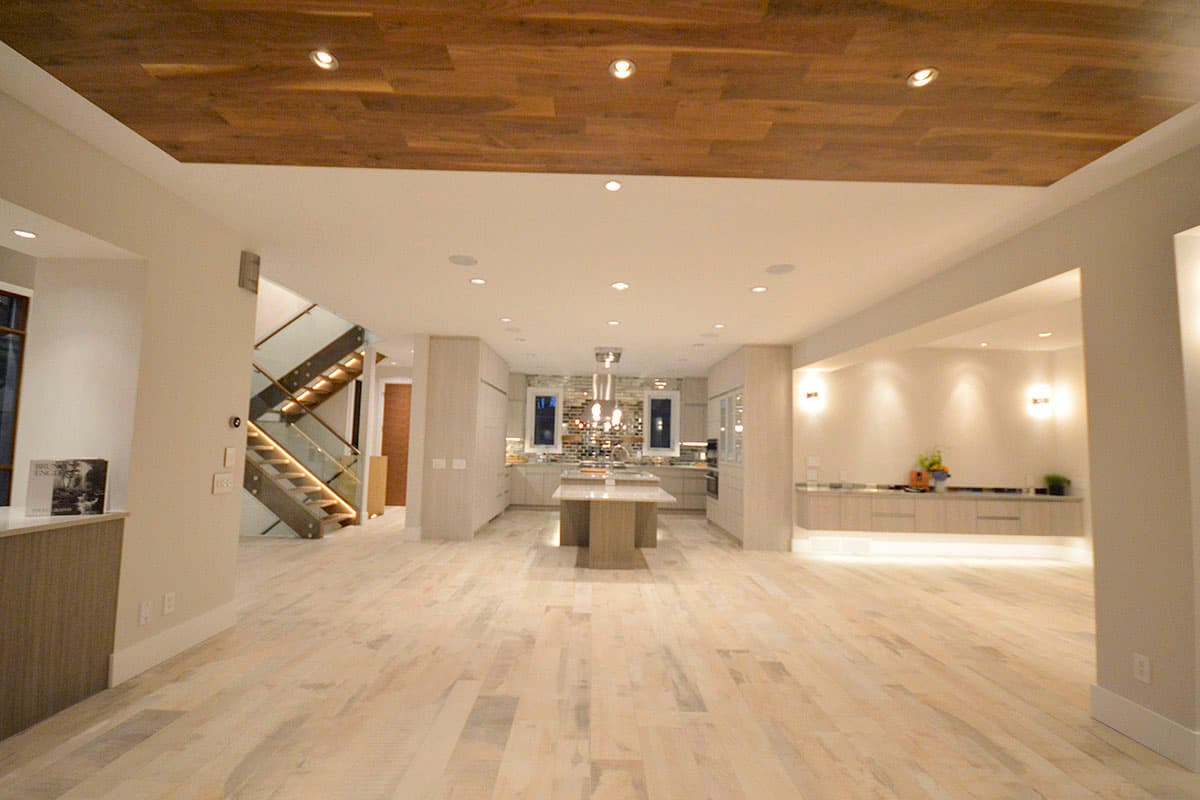

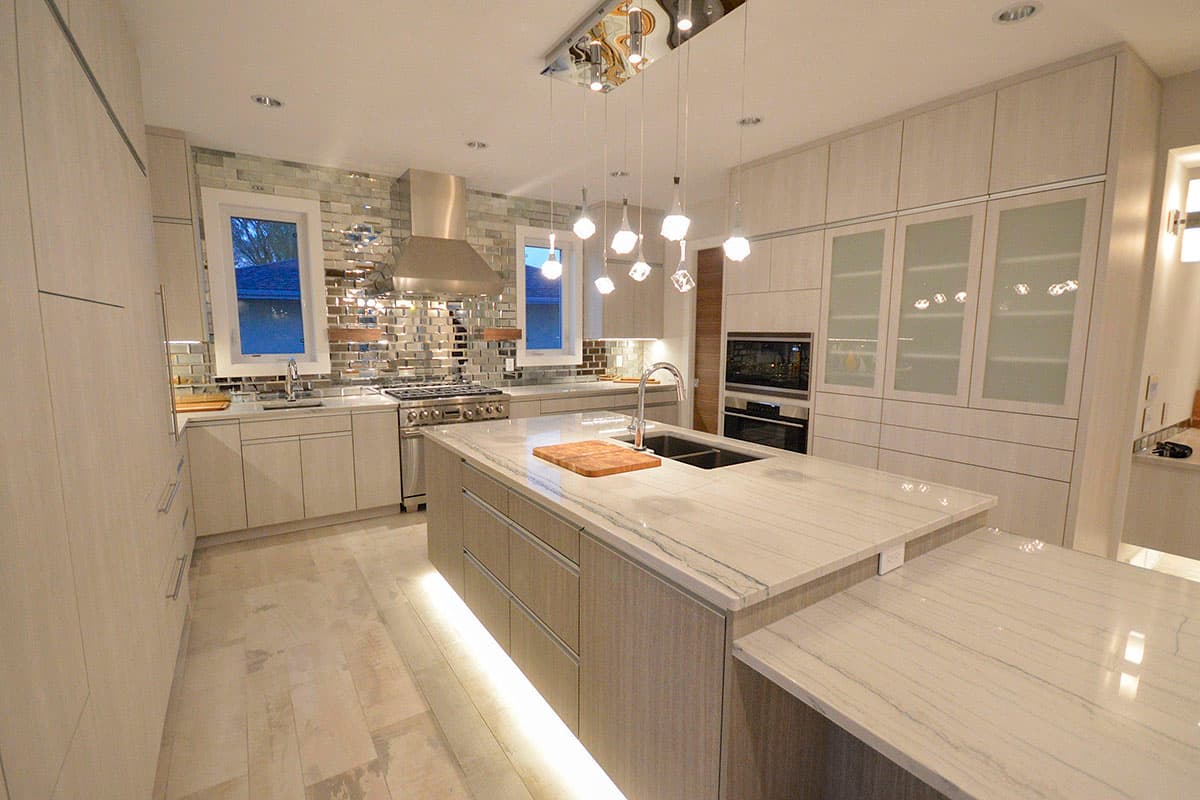

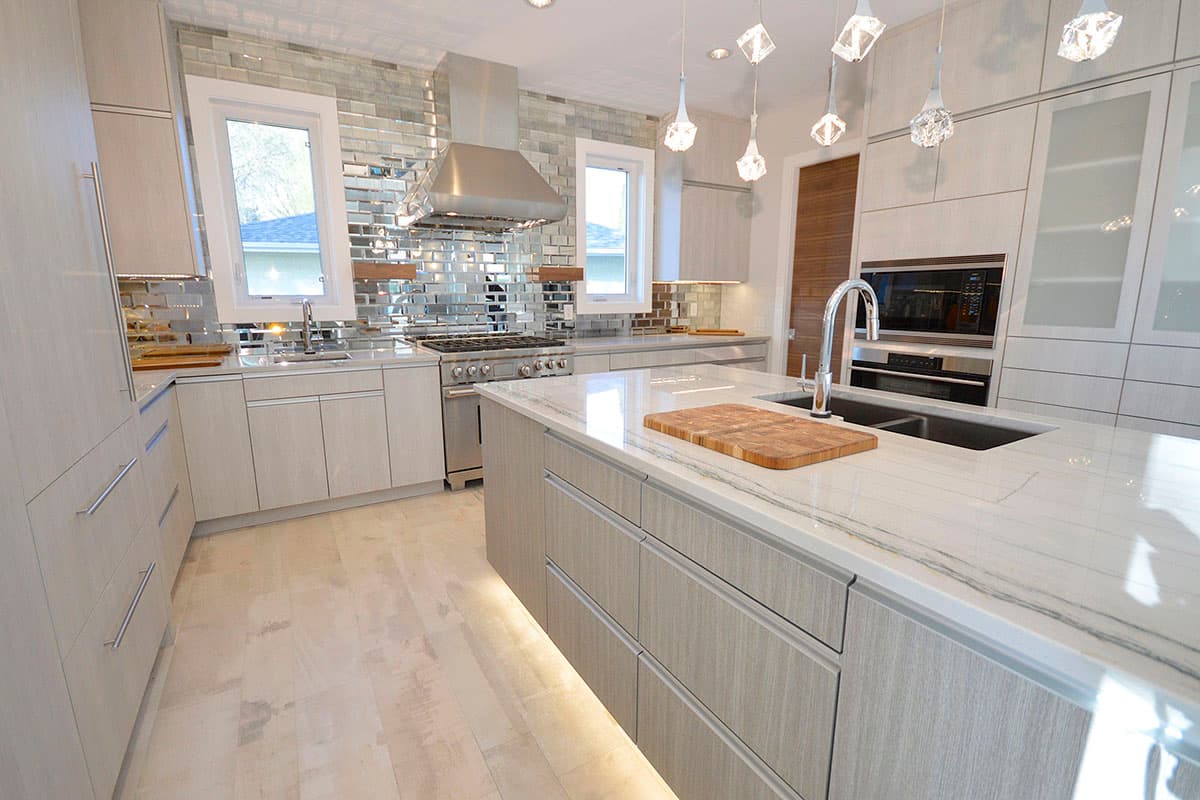

A central island anchors the kitchen, complete with an attached table for casual meals. The dining nook nearby offers access to the rear deck and a music area is defined by pillars.
A pocket door in the kitchen reveals a mudroom with access to the pantry and covered deck.

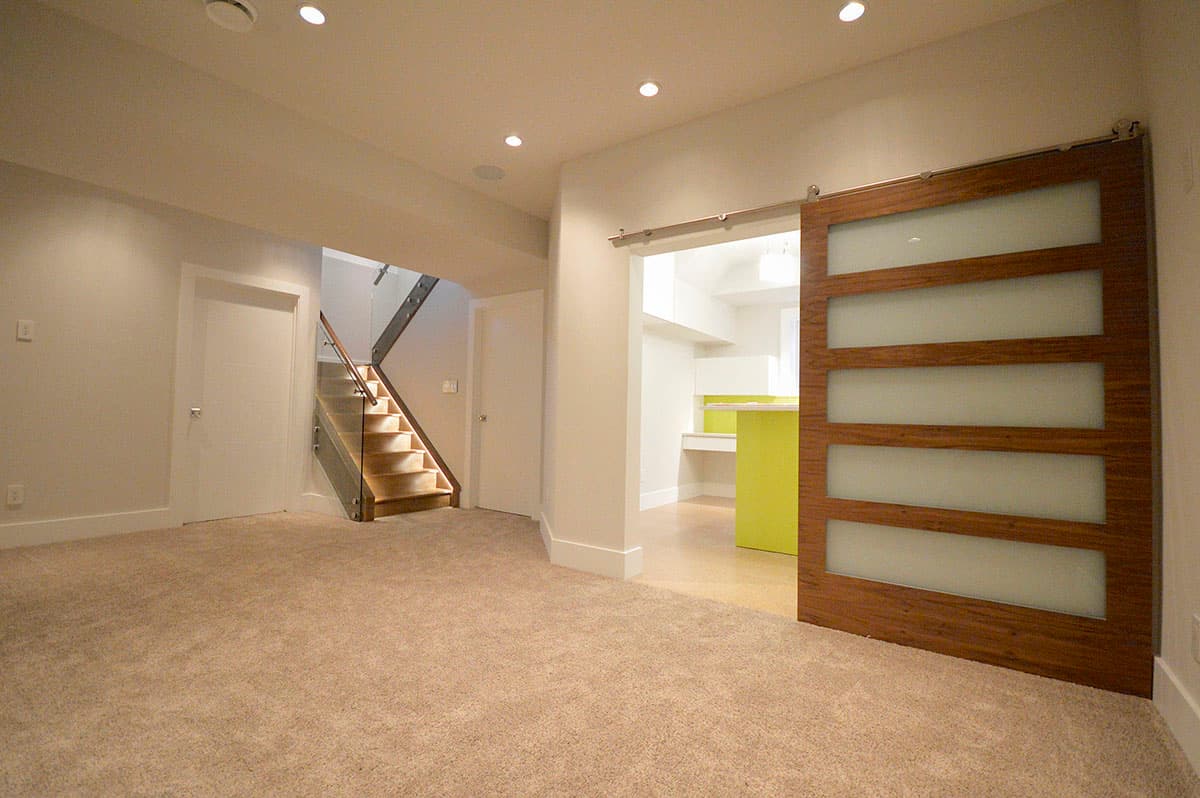

The secondary bedrooms can be found on the lower level, along with the craft and laundry rooms. Two of the bedrooms share a Jack-and-Jill bathroom.

What's Included

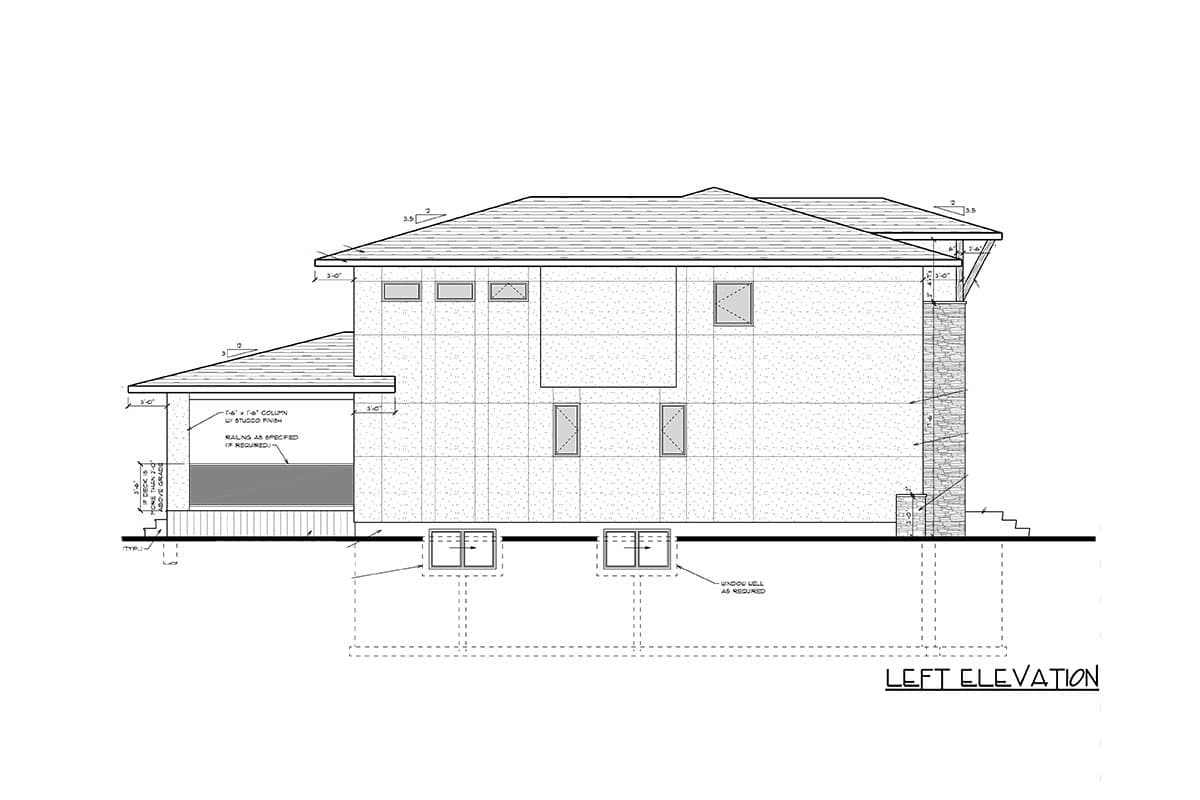

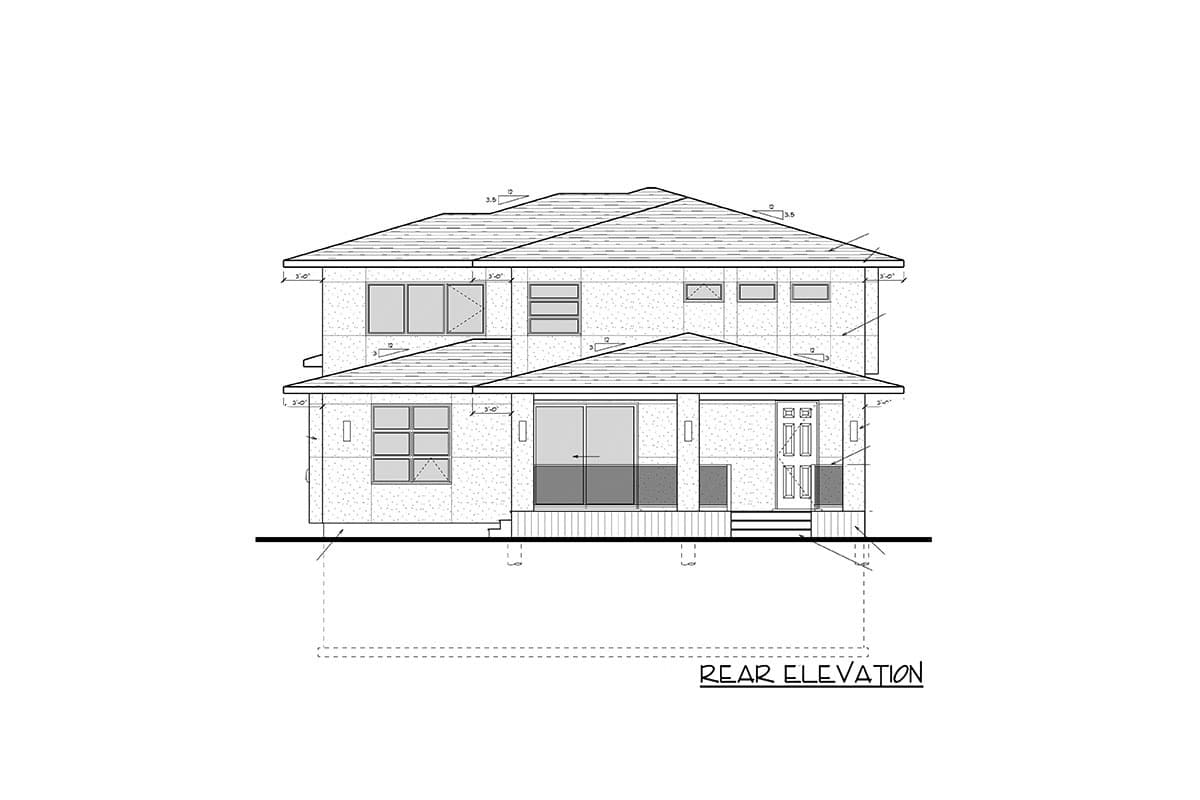

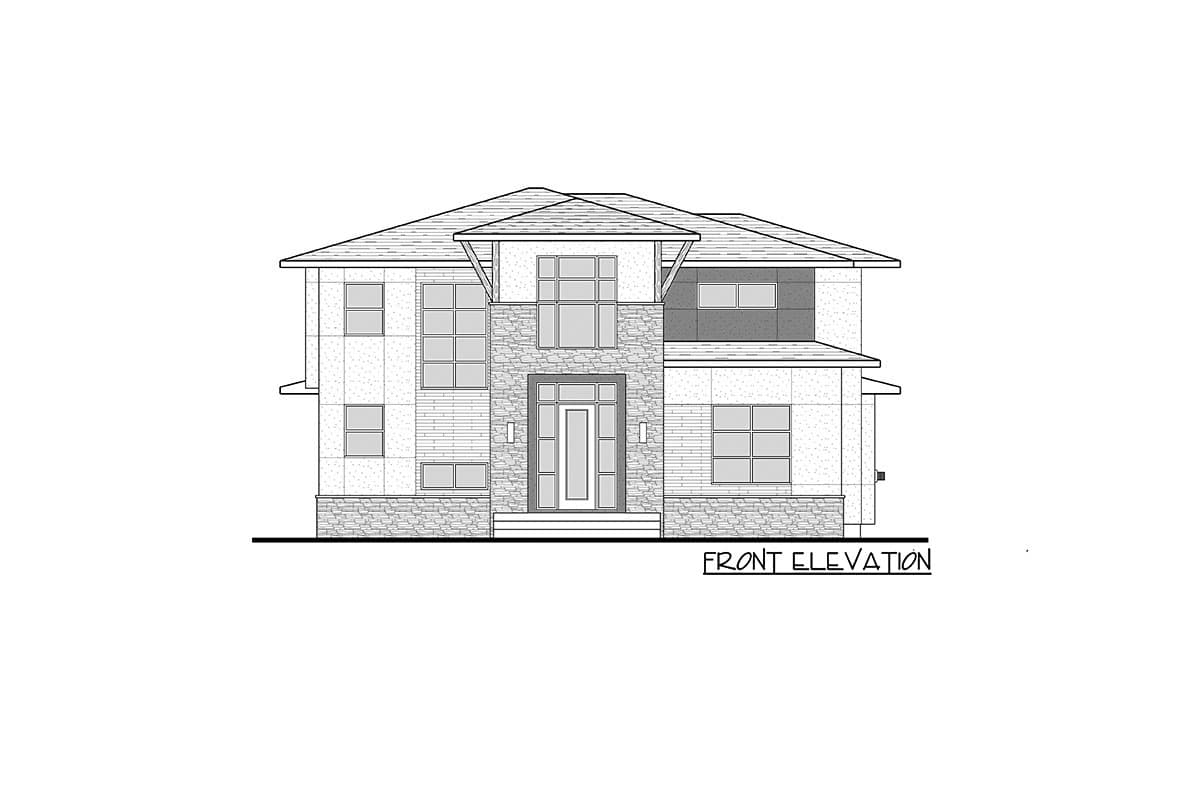

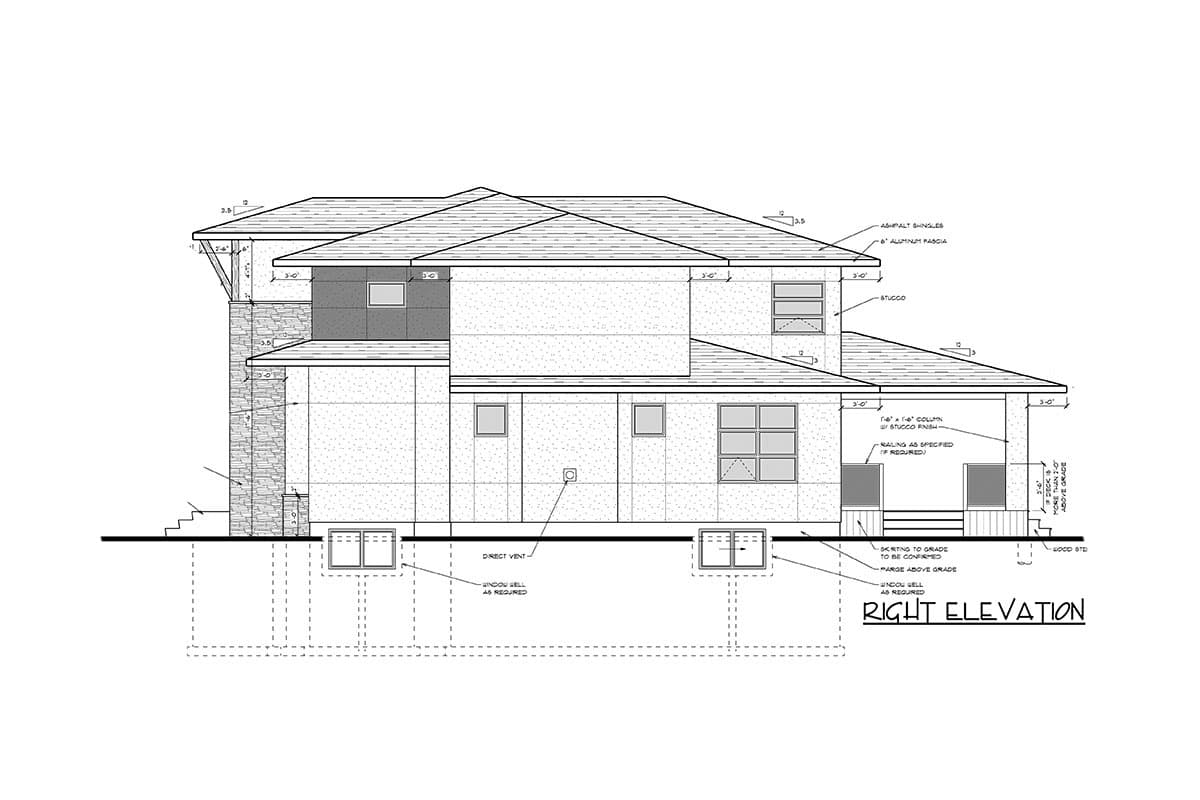

Elevations (Front, Rear, Left and Right)
Floor plans
Foundation plan
Cross section
Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan

What's Not Included

Electrical plan
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
