Plan 81741AB 2-Story Modern Home Plan with Rear Stacked Decks and Private Owner's Suite

4,043 2-4 3.5 - 5.5 2 4-5
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2-Story Modern Home Plan with Rear Stacked Decks and Private Owner's Suite

Plan 81741AB

  • 4,043

    Heated s.f.

  • 2-4

    Beds

  • 3.5 - 5.5

    Baths

  • 2

    Stories

  • 4-5

    Cars

  • This gorgeous two-story Modern home plan features luxurious finishes throughout the design. A tall ceiling soars above the foyer and great room that is drenched in natural light due to the walls made of oversized windows.
  • The open kitchen and dining area extends onto a partially-covered / screened deck with a built-in grill, and a generous pass-through pantry connects with the mudroom and deck, while supplying additional cold storage and a second sink.
  • Retreat to the quieter spaces, home gym or den, for self care. The angled garage provides enough space for 4 cars and offers a dedicated storage room.
  • The second level is a homeowner's oasis and boasts a sitting room off the bedroom, massive balcony, deluxe ensuite, and a wardrobe that leads to the laundry room.
  • The walkout basement is an entertainer's dream with its golf simulator, wine room, wet bar in the game room, and covered patio. Bedrooms 3 and 4 complete the basement.

Plans include the following:

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

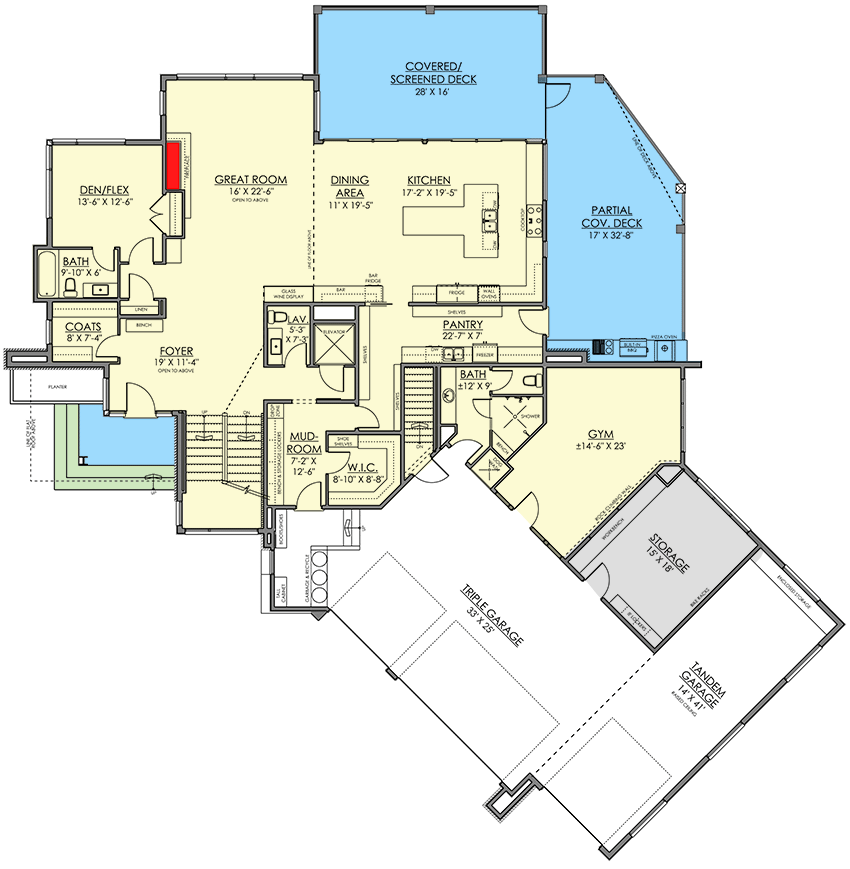

2-Story Modern Home Plan with Rear Stacked Decks and Private Owner's Suite - 81741AB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

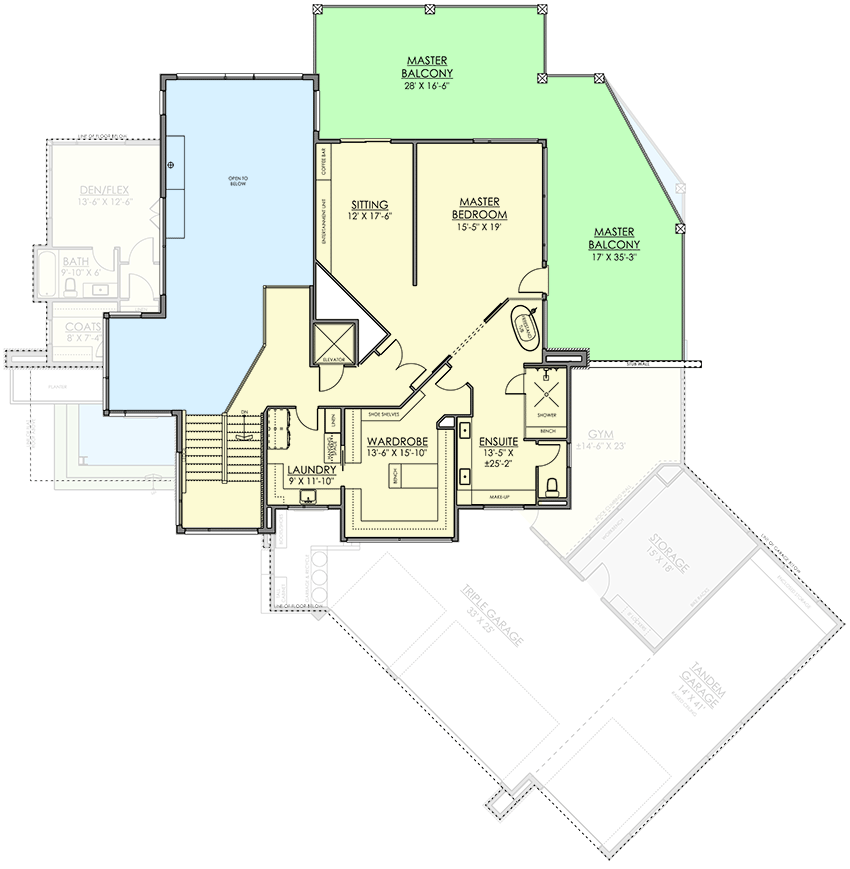

2-Story Modern Home Plan with Rear Stacked Decks and Private Owner's Suite - 81741AB floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

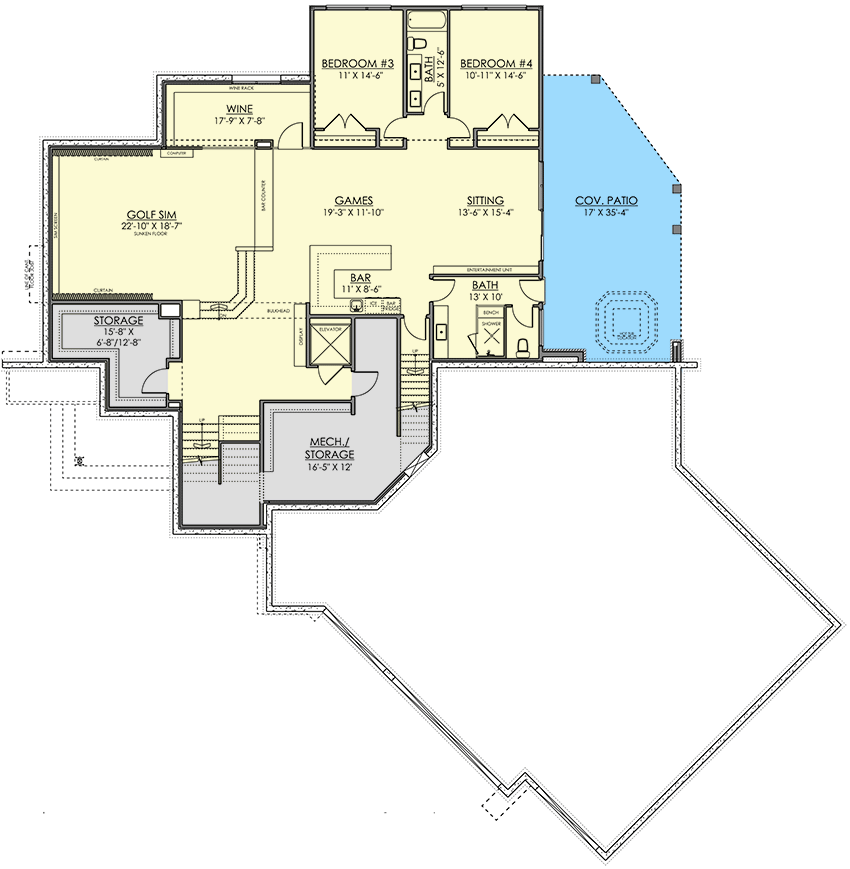

2-Story Modern Home Plan with Rear Stacked Decks and Private Owner's Suite - 81741AB floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,043 sq. ft.
  • Lower Level: 2,167 sq. ft.
  • 1st Floor: 2,466 sq. ft.
  • 2nd Floor: 1,577 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 3, 4, or 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 98' 6"
  • Depth: 105' 0"
  • Max ridge height: 30' 7"

Garage

  • Area: 2401 sq. ft.
  • Count: 4 or 5 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 10' 1" Second Floor / 9' 1"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

2-Story Modern Home Plan with Rear Stacked Decks and Private Owner's Suite

  • 4,043

    Heated s.f.

  • 2-4

    Beds

  • 3.5 - 5.5

    Baths

  • 2

    Floors

  • 4 - 5

    Car garage

Buy This Plan
  • PDF - Single-Build $2,300
  • CAD + PDF - Single Build $3,000
  • CAD Unlimited + PDF $3,500
  • View all purchase option online

About This Plan

  • This gorgeous two-story Modern home plan features luxurious finishes throughout the design. A tall ceiling soars above the foyer and great room that is drenched in natural light due to the walls made of oversized windows.
  • The open kitchen and dining area extends onto a partially-covered / screened deck with a built-in grill, and a generous pass-through pantry connects with the mudroom and deck, while supplying additional cold storage and a second sink.
  • Retreat to the quieter spaces, home gym or den, for self care. The angled garage provides enough space for 4 cars and offers a dedicated storage room.
  • The second level is a homeowner's oasis and boasts a sitting room off the bedroom, massive balcony, deluxe ensuite, and a wardrobe that leads to the laundry room.
  • The walkout basement is an entertainer's dream with its golf simulator, wine room, wet bar in the game room, and covered patio. Bedrooms 3 and 4 complete the basement.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,043 sq. ft.
  • Lower Level: 2,167 sq. ft.
  • 1st Floor: 2,466 sq. ft.
  • 2nd Floor: 1,577 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 3, 4, or 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 98' 6"
  • Depth: 105' 0"
  • Max ridge height: 30' 7"

Garage

  • Area: 2401 sq. ft.
  • Count: 4 or 5 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 10' 1" Second Floor / 9' 1"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
Plan 81741AB
View this and more for this plan by visiting www.architechtecturaldesigns.com/81741AB
|
Need Help? 800-854-7852
|
Plan 81741AB
