Plan 801122PM 2-Unit Contemporary Craftsman House Plan that Totals 3,420 Square Feet

3,420 2 52' 0" 40' 0" 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2-Unit Contemporary Craftsman House Plan that Totals 3,420 Square Feet

Plan 801122PM

  • 3,420

    Heated s.f.

  • 2

    Units

  • 52' 0"

    Width

  • 40' 0"

    Depth

  • Each of these 3 bed Country Craftsman units provide 1,723 square feet (735 sq. ft. on the main floor and 975 sq. ft. on the second floor) of living space with a 253 square foot garage.
  • The ground floor delivers a dining room, living room, powder bathroom, and kitchen with a four-person island, as well as a walk-in pantry.
  • A mudroom resides between the formal and family entrance to easily store shoes, bags, and outerwear.
  • On the second floor, there are three bedrooms, one of which is the master bedroom with a walk-in closet and private bathroom with a double sink.
  • The other two bedrooms share a second bathroom. A reading corner and laundry room complete the second level.

Plan sets include the following:

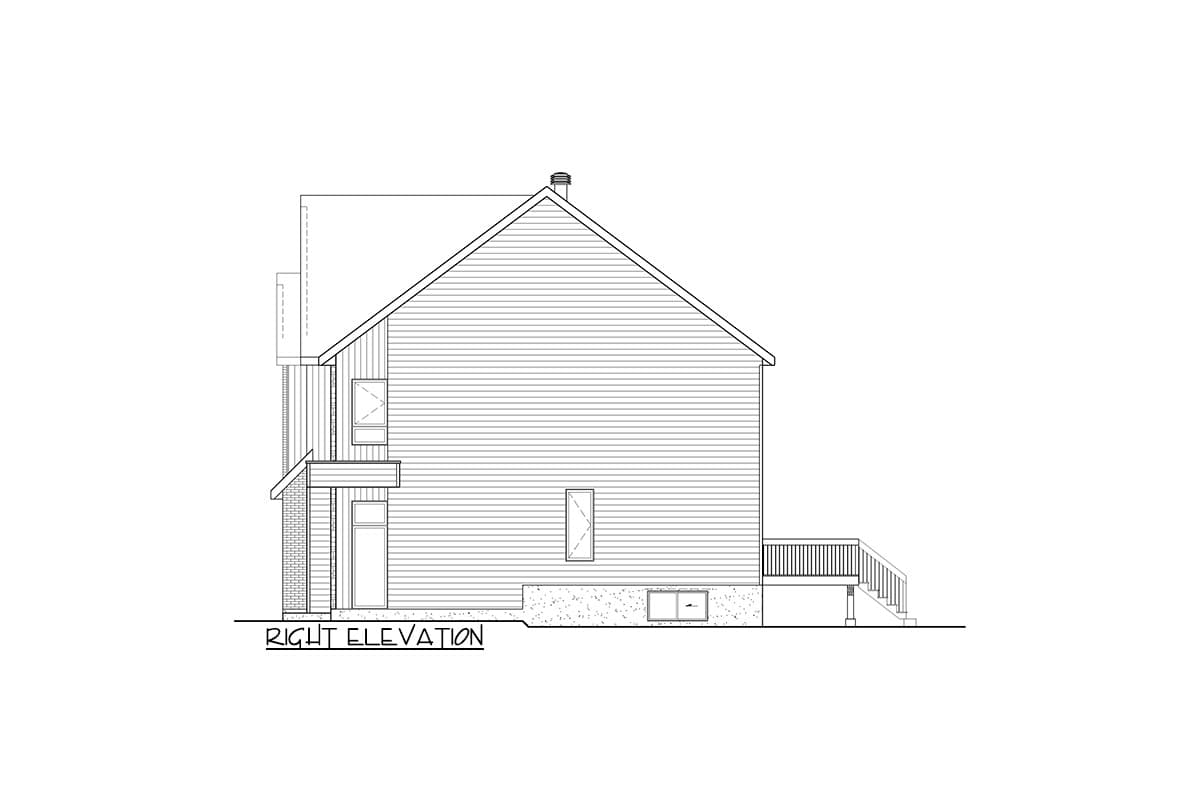

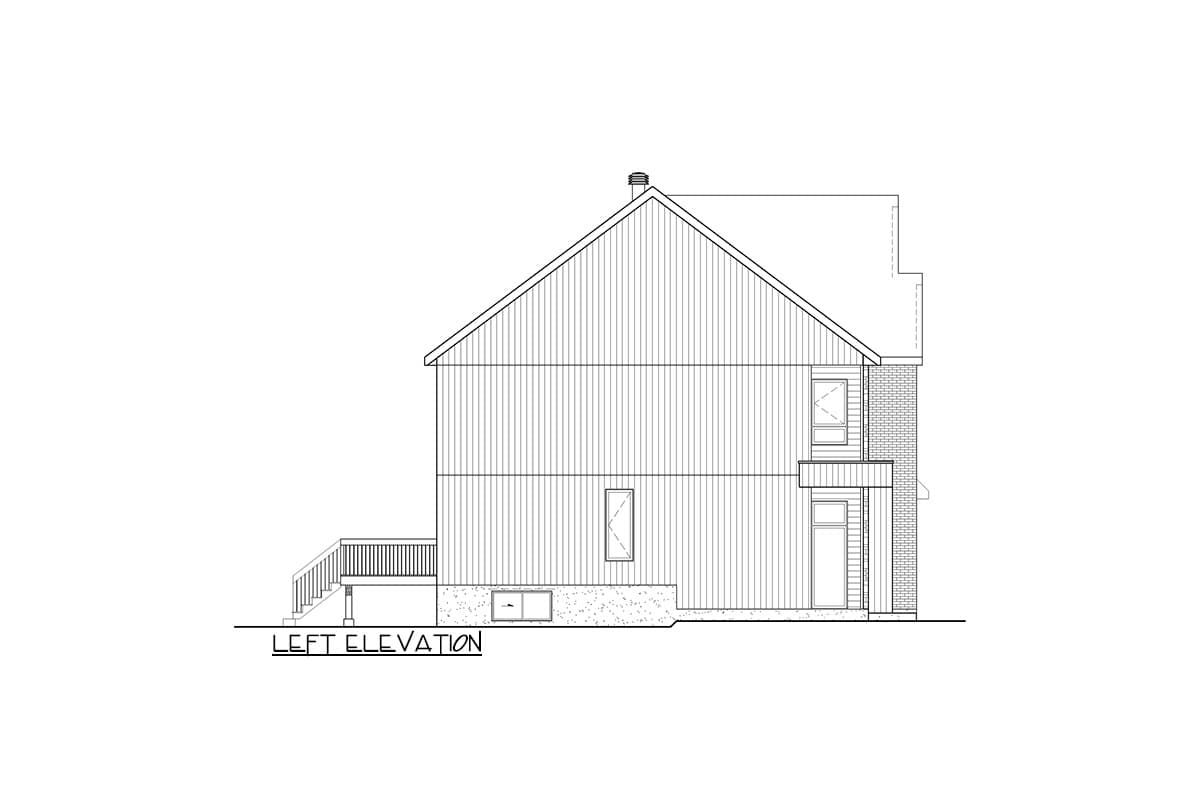

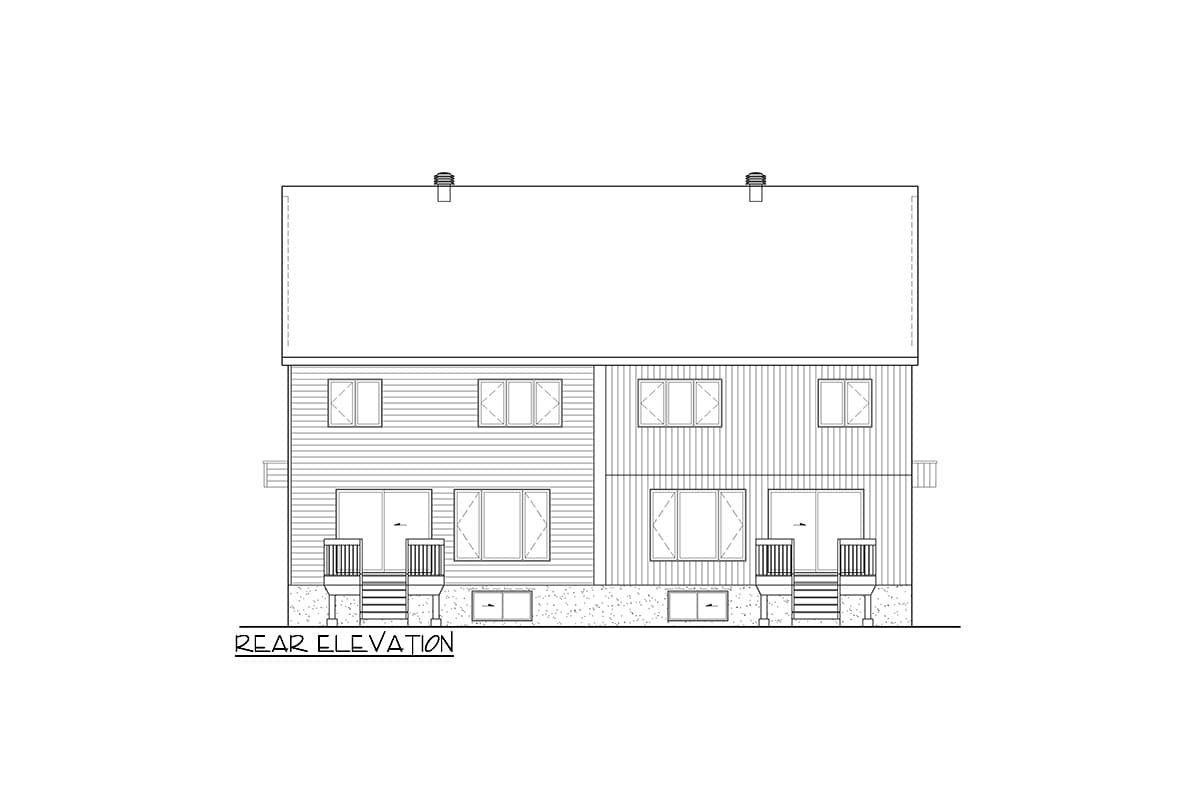

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

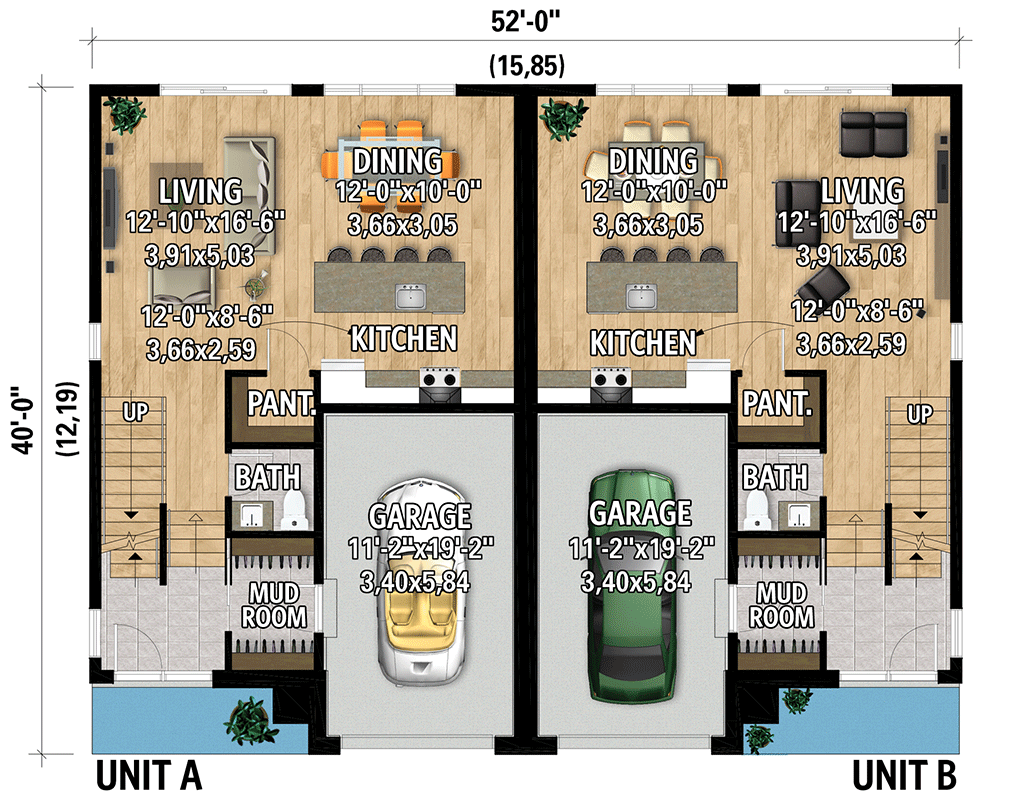

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Unit Contemporary Craftsman House Plan that Totals 3,420 Square Feet - 801122PM floor plan - Main Level

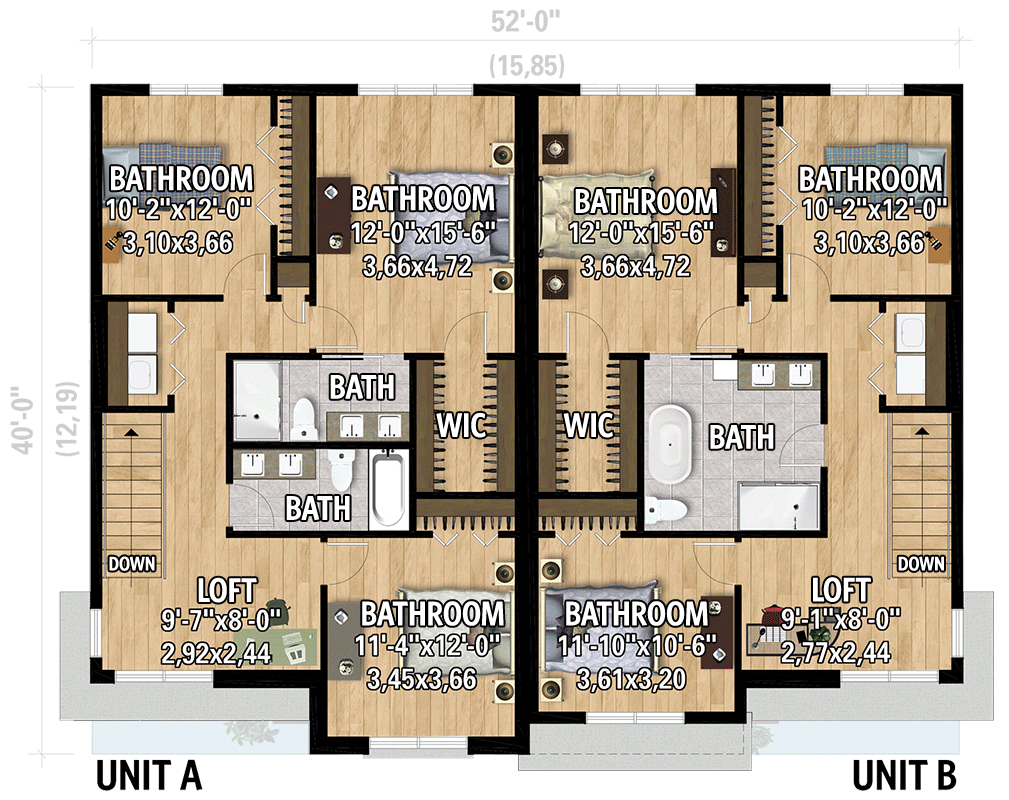

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Unit Contemporary Craftsman House Plan that Totals 3,420 Square Feet - 801122PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,420 sq. ft.
  • 1st Floor: 1,470 sq. ft.
  • 2nd Floor: 1,950 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 3
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 40' 0"
  • Max ridge height: 36' 9"

Garage

  • Type: Attached
  • Area: 253 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12

Architectural Style

Special features

Plan Collections

2-Unit Contemporary Craftsman House Plan that Totals 3,420 Square Feet

  • 3,420

    Heated s.f.

  • 2

    Units

  • 52' 0"

    Width

  • 40' 0"

    Depth

Buy This Plan
  • PDF - Single-Build $1,350
  • 5 Sets $1,395
  • 5 Sets + PDF $1,540
  • 5 Set + PDF + Materials List $1,680
  • CAD + PDF - Single-Build $2,370
  • View all purchase option online

About This Plan

  • Each of these 3 bed Country Craftsman units provide 1,723 square feet (735 sq. ft. on the main floor and 975 sq. ft. on the second floor) of living space with a 253 square foot garage.
  • The ground floor delivers a dining room, living room, powder bathroom, and kitchen with a four-person island, as well as a walk-in pantry.
  • A mudroom resides between the formal and family entrance to easily store shoes, bags, and outerwear.
  • On the second floor, there are three bedrooms, one of which is the master bedroom with a walk-in closet and private bathroom with a double sink.
  • The other two bedrooms share a second bathroom. A reading corner and laundry room complete the second level.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,420 sq. ft.
  • 1st Floor: 1,470 sq. ft.
  • 2nd Floor: 1,950 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 3
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 40' 0"
  • Max ridge height: 36' 9"

Garage

  • Type: Attached
  • Area: 253 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
Plan 801122PM
View this and more for this plan by visiting www.architechtecturaldesigns.com/801122PM
|
