Plan 68431VR 3 Bed Cottage with Basement Expansion

3 Bed Cottage with Basement Expansion

Plan 68431VR

  • 1,850

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • This 3 bed house plan has two master suites and is perfectly suited for your back woods lot. The exterior has blend of board and batten siding and stone and has a rugged standing seam metal roof.
  • The main entry is off the front porch and takes you into the open floor plan. The kitchen has unimpeded views across the vaulted great room with corner fireplace and to the covered back porch beyond.
  • The dining room is vaulted and has views on all three walls.
  • The main floor master has back porch access through sliding doors. And the upstairs masters has its own private balcony. Upstairs, a loft area overlooks the vaulted great room below.
  • Get a future bedroom and bath in the basement plus an open space great for a rec or game room.
  • Related Plans: Get alternate versions with house plans 68401VR68539VR, 68401VR68625VR and 68755VR..

This plan set has the following details:

Cover Page

At least 4 exterior elevations

Floor plans

Foundation Plan (with no specifications of structural elements)

Roof Plan (with no specifications of structural elements)

Electrical plans for each floor plan

Typical Wall sections

Floor framing plans (It shows the framing information, regarding size and directions.  There is not a framing diagram)

Cross Sections

‘Some’ interior details/ elevations, such as cabinet elevations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

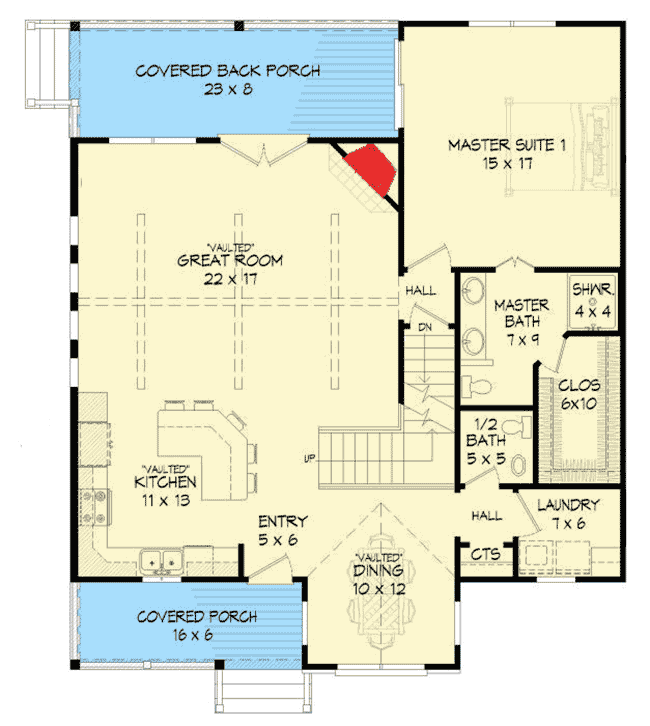

3 Bed Cottage with Basement Expansion - 68431VR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

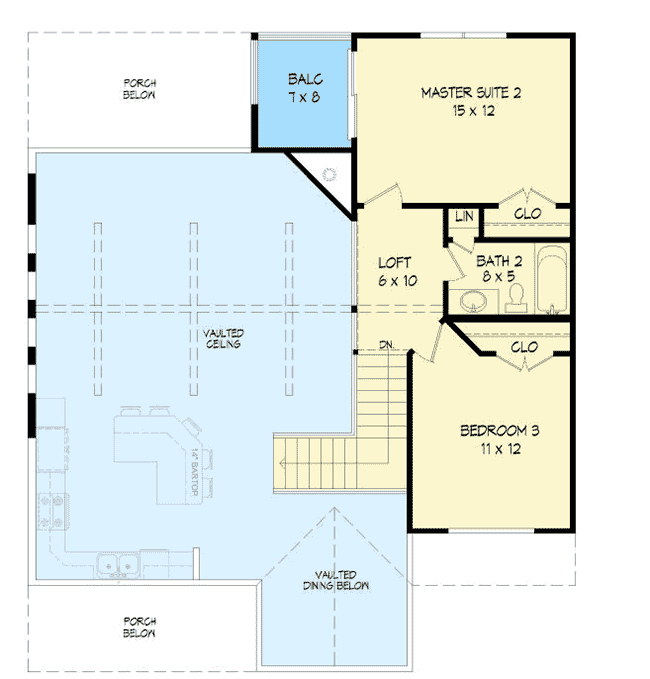

3 Bed Cottage with Basement Expansion - 68431VR floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

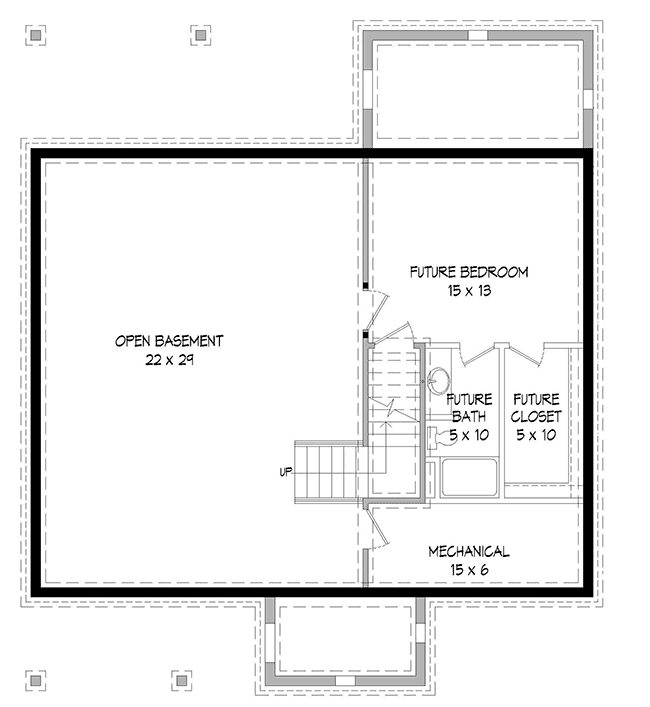

3 Bed Cottage with Basement Expansion - 68431VR floor plan - Lower Level

Plan details

3 Bed Cottage with Basement Expansion

  • 1,850

    Heated s.f.

  • 3 - 4

    Beds

  • 3 +

    Baths

  • 2

    Floors

Buy This Plan
  • Study Set – Digital $750
  • PDF - Single-Build $995
  • 5 Sets $1,095
  • 5 Sets + PDF $1,120
  • CAD + PDF - Single-Build $1,545
  • View all purchase option online

About This Plan

  • This 3 bed house plan has two master suites and is perfectly suited for your back woods lot. The exterior has blend of board and batten siding and stone and has a rugged standing seam metal roof.
  • The main entry is off the front porch and takes you into the open floor plan. The kitchen has unimpeded views across the vaulted great room with corner fireplace and to the covered back porch beyond.
  • The dining room is vaulted and has views on all three walls.
  • The main floor master has back porch access through sliding doors. And the upstairs masters has its own private balcony. Upstairs, a loft area overlooks the vaulted great room below.
  • Get a future bedroom and bath in the basement plus an open space great for a rec or game room.
  • Related Plans: Get alternate versions with house plans 68401VR68539VR, 68401VR68625VR and 68755VR..

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,850 sq. ft.
  • 1st Floor: 1,354 sq. ft.
  • 2nd Floor: 496 sq. ft.
  • Balcony / Veranda: 56 sq. ft.
  • Porch, Rear: 182 sq. ft.
  • Porch, Front: 96 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 38' 2"
  • Depth: 44' 6"
  • Max ridge height: 25' 10"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
