Plan 21786DR 3-Bed House Plan with Solarium-Like Kitchen

3-Bed House Plan with Solarium-Like Kitchen

Plan 21786DR

  • 1,218

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Stories

  • A three-sided bumpout by the kitchen and dining room makes for a solarium-like feeling in this three-bedroom house plan.
  • A coat closet off the covered entry reduces clutter.
  • There is an island that provides seating for three in the kitchen which is open to the living room in front.
  • Three bedrooms and laundry space are on the main floor.
  • Expand in the basement or use it for storage. Alternate foundations are available.
  • Related Plans: Get an alternate version in reverse layout with see house plan 21036DR. Get more room with house plan 22332DR (1,315 sq. ft.).

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

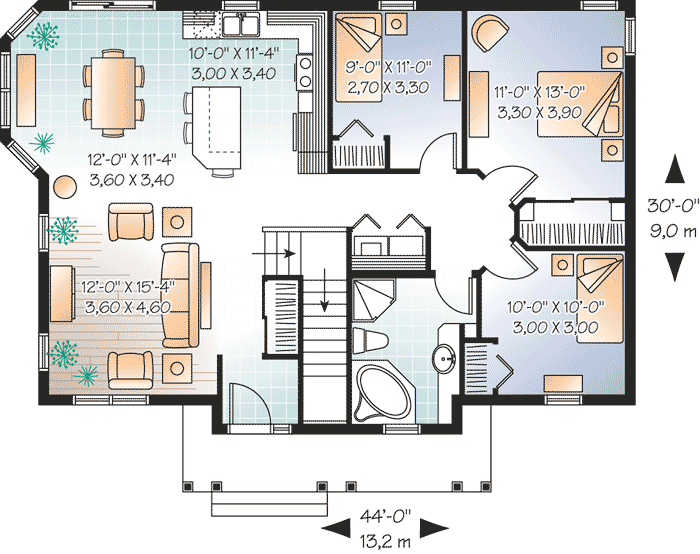

3-Bed House Plan with Solarium-Like Kitchen - 21786DR floor plan - Main Level

Plan details

Architectural Style

Plan Collections

3-Bed House Plan with Solarium-Like Kitchen

  • 1,218

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • Reproducible Set $1,055
  • PDF - Single-Build $1,055
  • 5 Sets + PDF $1,180
  • CAD + PDF - Single-Build $1,655
  • View all purchase option online

About This Plan

  • A three-sided bumpout by the kitchen and dining room makes for a solarium-like feeling in this three-bedroom house plan.
  • A coat closet off the covered entry reduces clutter.
  • There is an island that provides seating for three in the kitchen which is open to the living room in front.
  • Three bedrooms and laundry space are on the main floor.
  • Expand in the basement or use it for storage. Alternate foundations are available.
  • Related Plans: Get an alternate version in reverse layout with see house plan 21036DR. Get more room with house plan 22332DR (1,315 sq. ft.).

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,218 sq. ft.
  • 1st Floor: 1,218 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 30' 0"
  • Max ridge height: 20' 6"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"
