3-Bed Mediterranean-Style House Plan Under 4000 Square Feet with Private Bedroom Balcony

Heated S.F.
3,835
Beds
3 - 6
Baths
2.5 - 4.5
Stories
2
Cars
2

Floor Plan

Plan 490103NAH

Main Level
Main Level
2nd Floor
2nd Floor
Optional Lower Level
Optional Lower Level
Optional Walkout Level
Optional Walkout Level

Plan 490103NAH

M-F 9am-5pm EST |

1-203-761-8500

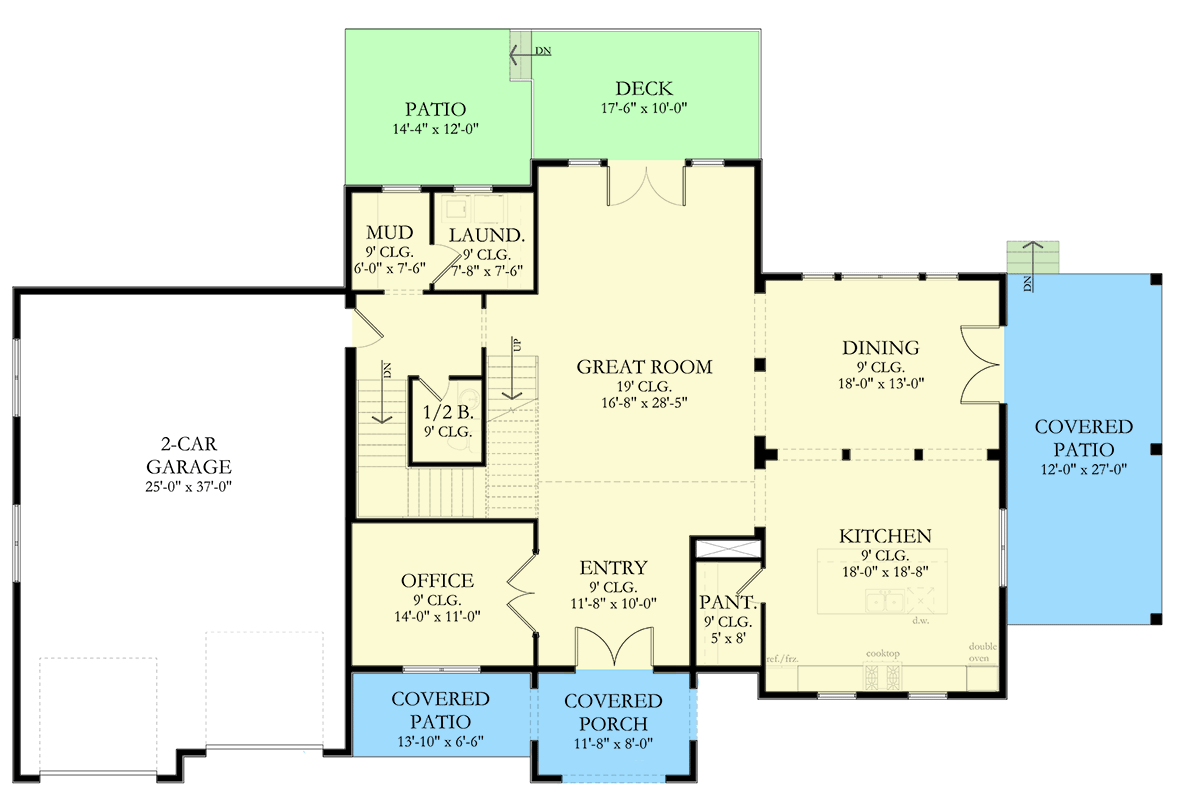

Main Level

Plan 490103NAH: 3-Bed Mediterranean-Style House Plan Under 4000 Square Feet with Private Bedroom Balcony - Floor Plan - Main Level - Coastal, European, Mediterranean, Southern, Transitional

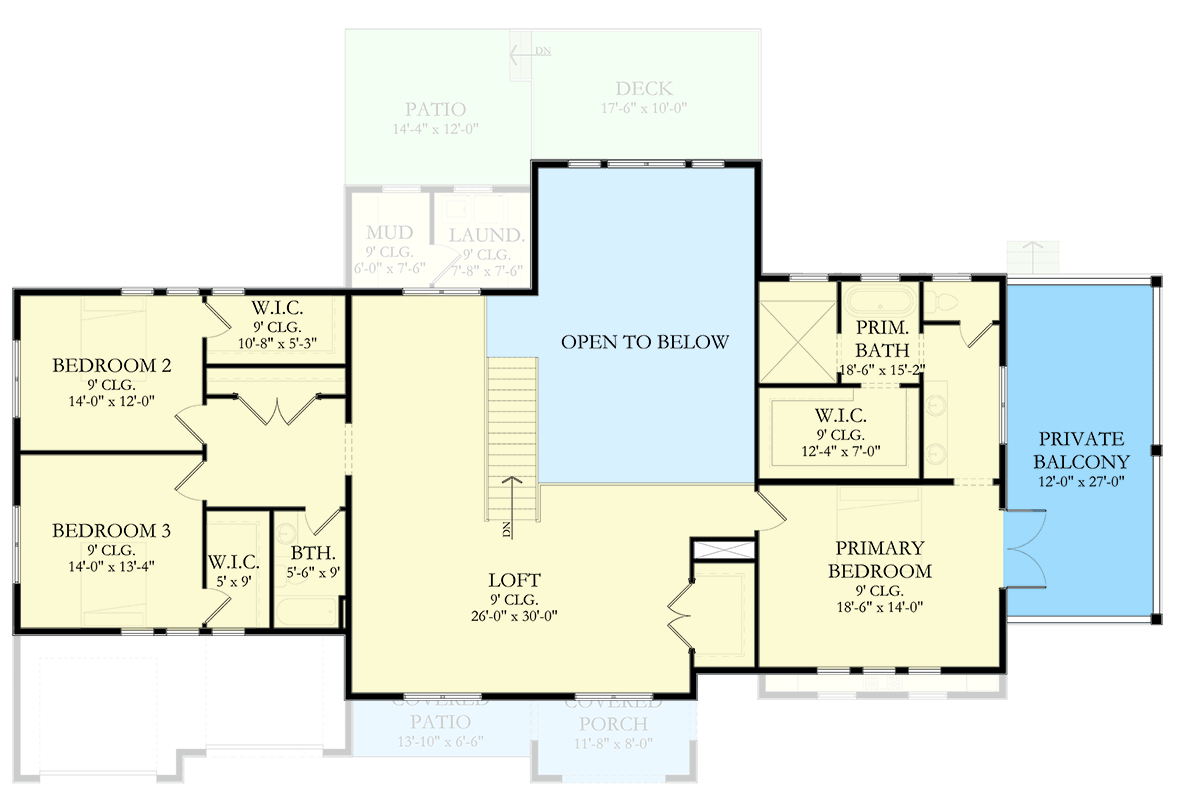

2nd Floor

Plan 490103NAH: 3-Bed Mediterranean-Style House Plan Under 4000 Square Feet with Private Bedroom Balcony - Floor Plan - 2nd Floor - Coastal, European, Mediterranean, Southern, Transitional

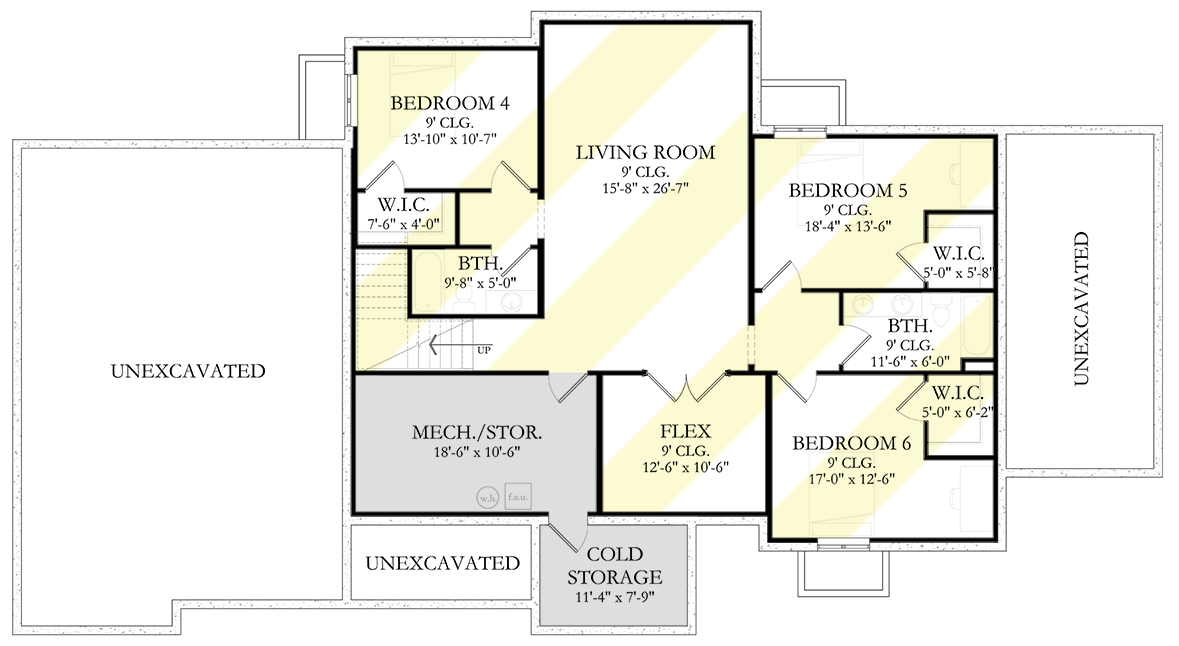

Optional Lower Level

Plan 490103NAH: 3-Bed Mediterranean-Style House Plan Under 4000 Square Feet with Private Bedroom Balcony - Floor Plan - Optional Lower Level - Coastal, European, Mediterranean, Southern, Transitional

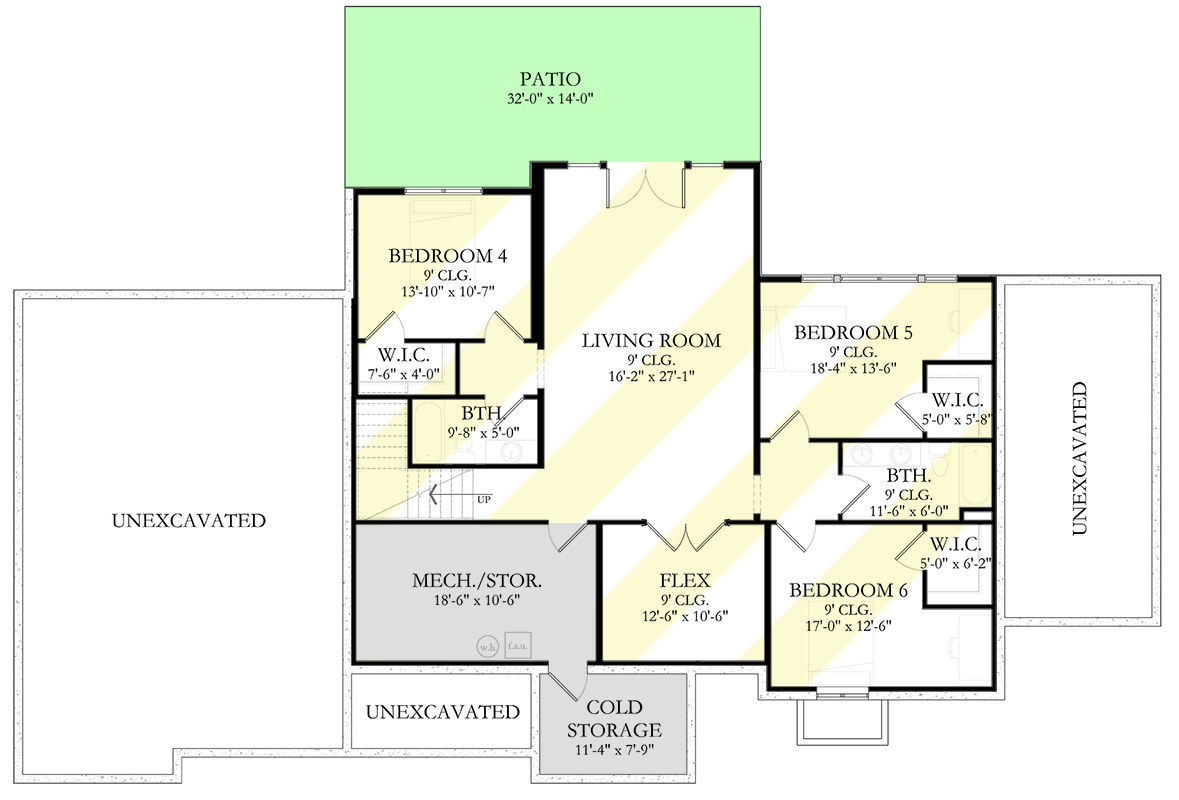

Optional Walkout Level

Plan 490103NAH: 3-Bed Mediterranean-Style House Plan Under 4000 Square Feet with Private Bedroom Balcony - Floor Plan - Optional Walkout Level - Coastal, European, Mediterranean, Southern, Transitional

Plan Details

  • This 2-story Mediterranean offers covered patios in the front and on the right side with stucco and decorative fascia that add to the winning curb appeal.
  • Step in off the covered porch and you find yourself in the great room with it's gallery of windows from which to look to the backyard. A semi-open concept design, the kitchen and dining rooms each have views out back and side of the home. The kitchen has an island with casual seating and a small walk-in pantry, making the kitchen a prime area for casual conversation.
  • Upstairs, you'll find 2 bedrooms and the primary bedroom with access to a private balcony and accompanying bathroom and walk-in closet, standing shower, double vanities, and full size tub.
  • This home offers basement expansion (1,480 square feet when finished as shown) with a living room, a flex room, 3 more bedrooms with walk-in closets, and plenty of storage areas.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,835 sq. ft.

1st Floor

1,848 sq. ft.

2nd Floor

1,987 sq. ft.

Optional Lower Level

1,480 sq. ft.

Porch, Front

92 sq. ft.

Deck

351 sq. ft.

Balcony / Veranda

324 sq. ft.

Covered Patio

414 sq. ft.

Beds/Baths

Bedrooms

3, 4, 5, or 6

Full bathrooms

2, 3, or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

88' 4"

Depth

57' 11"

Garage

Type

Attached

Area

899 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Architectural Style

Coastal

European

Mediterranean

Southern

Transitional

Special Features

Bedrooms - Split

Flex Room

Formal Dining

Home Office

Loft

Master Suite - Upstairs

Mudroom

Stacked Porches

Two Story Great Room

Square Footage Breakdown

Total Heated Area

3,835 sq. ft.

1st Floor

1,848 sq. ft.

2nd Floor

1,987 sq. ft.

Optional Lower Level

1,480 sq. ft.

Porch, Front

92 sq. ft.

Deck

351 sq. ft.

Balcony / Veranda

324 sq. ft.

Covered Patio

414 sq. ft.

Beds/Baths

Bedrooms

3, 4, 5, or 6

Full bathrooms

2, 3, or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

88' 4"

Depth

57' 11"

Garage

Type

Attached

Area

899 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Architectural Style

Coastal

European

Mediterranean

Southern

Transitional

Special Features

Bedrooms - Split

Flex Room

Formal Dining

Home Office

Loft

Master Suite - Upstairs

Mudroom

Stacked Porches

Two Story Great Room
