Plan 833006WAT

Exclusive

3-Bedroom Contemporary Ranch House Plan with Attached Casita - 2931 Square Feet

Name: Plan 833006WAT: 3-Bedroom Contemporary Ranch House Plan with Attached Casita - 2931 Square Feet
Brand: Architectural Designs
SKU: 833006WAT
Price: 1440.75 USD
Availability: InStock

Heated S.F.

2,931

Beds

2 - 3

Baths

3.5

Stories

Cars

Tour

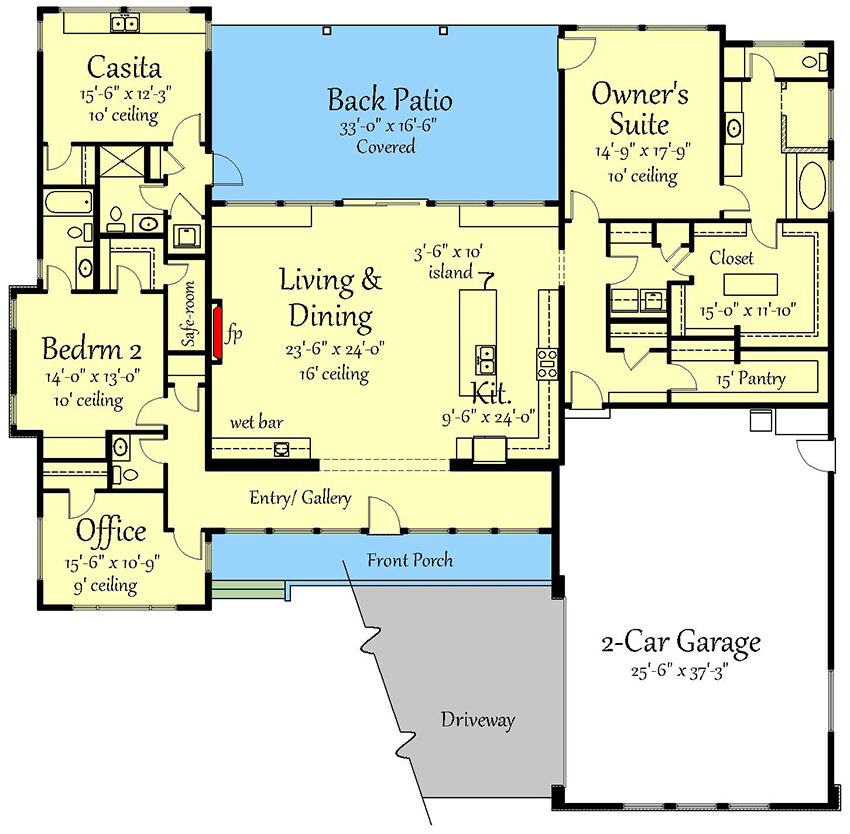

Floor Plan

Main Level

Plan Details

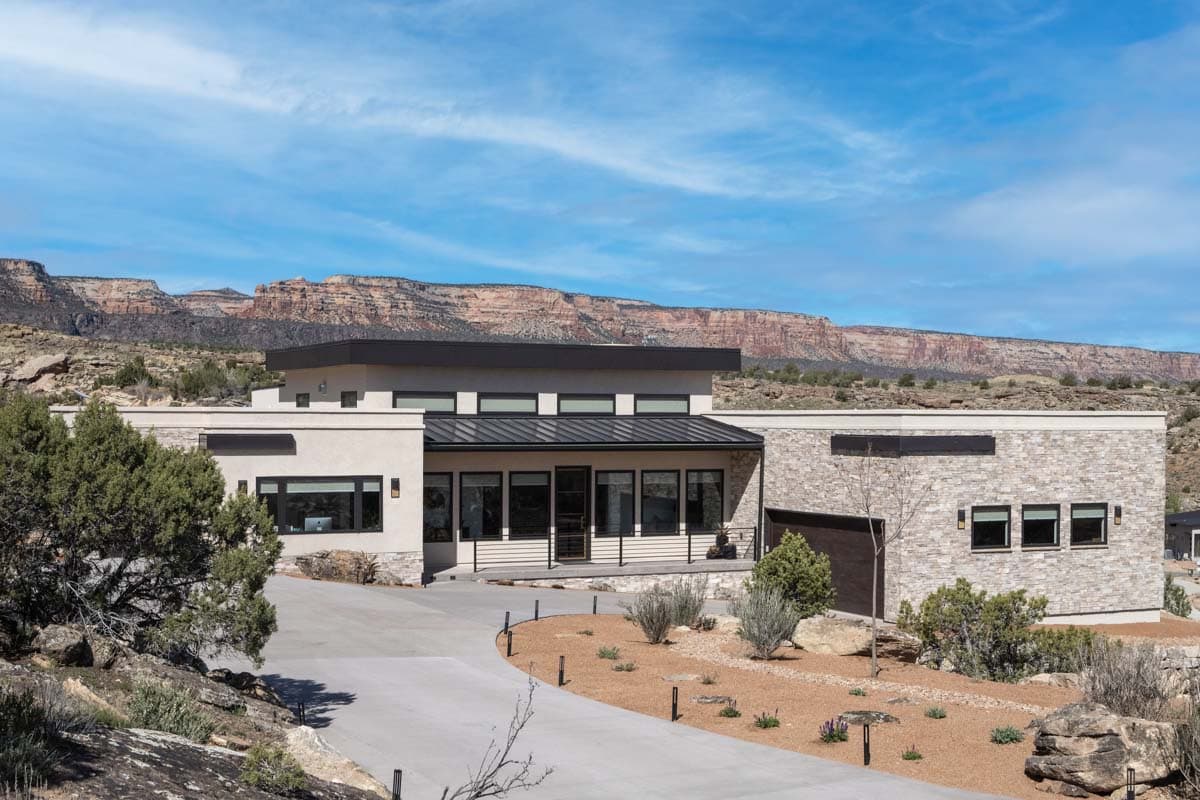

This plan has 2,931 sq. ft. of finished space, 3 beds, 3.5 baths, attached 2-car garage (992 sq. ft.); Contemporary ranch exterior with Mountain and Southwest influences and 10' first-floor ceilings.

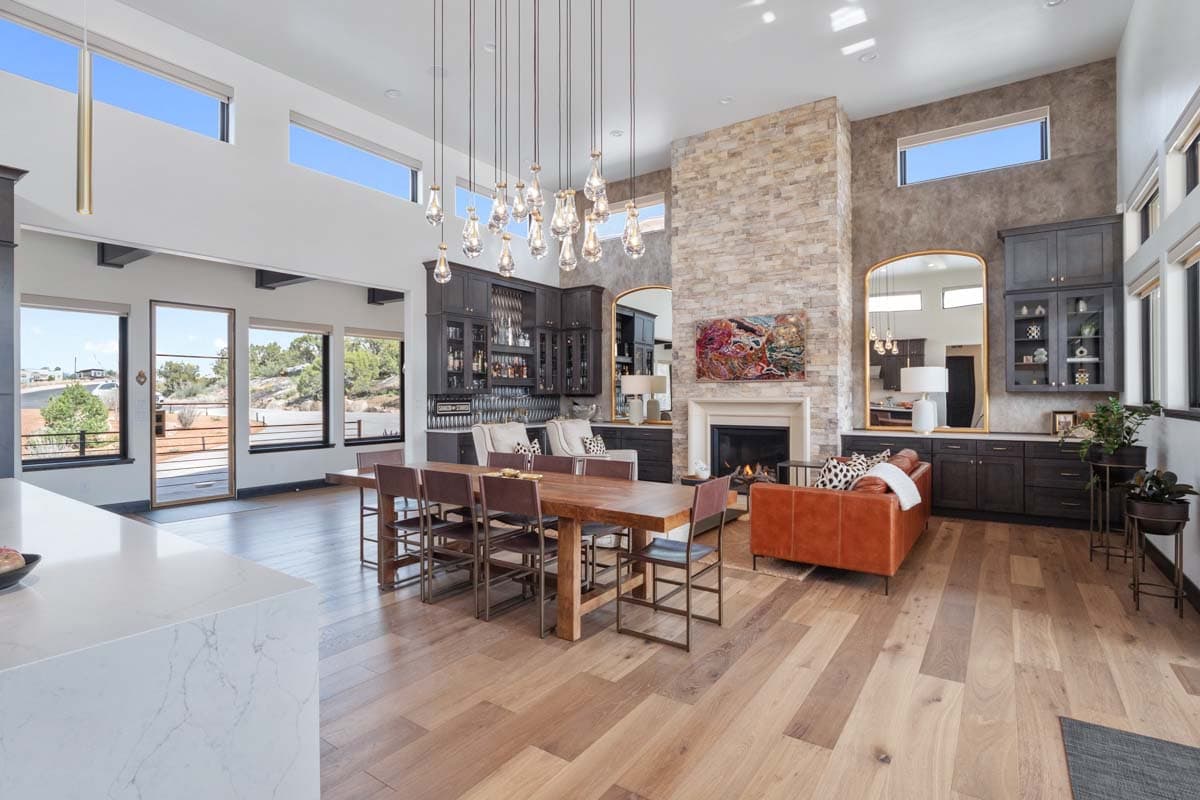

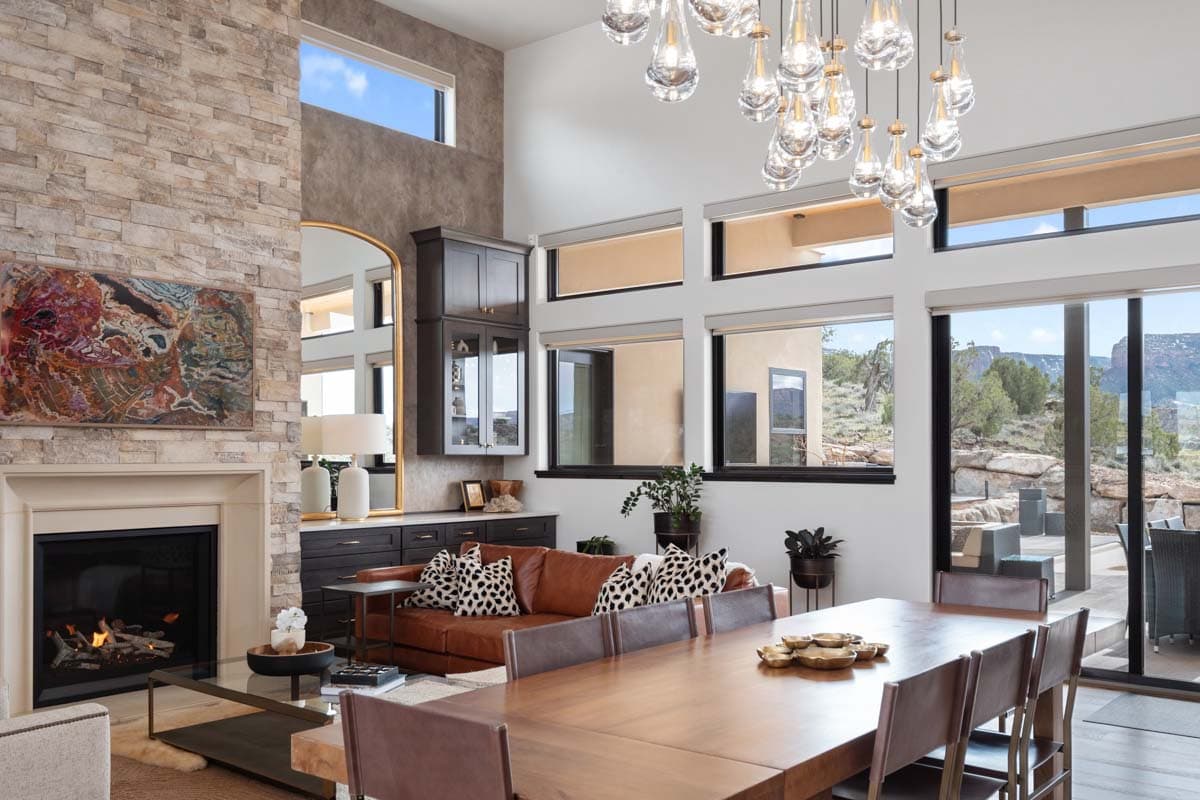

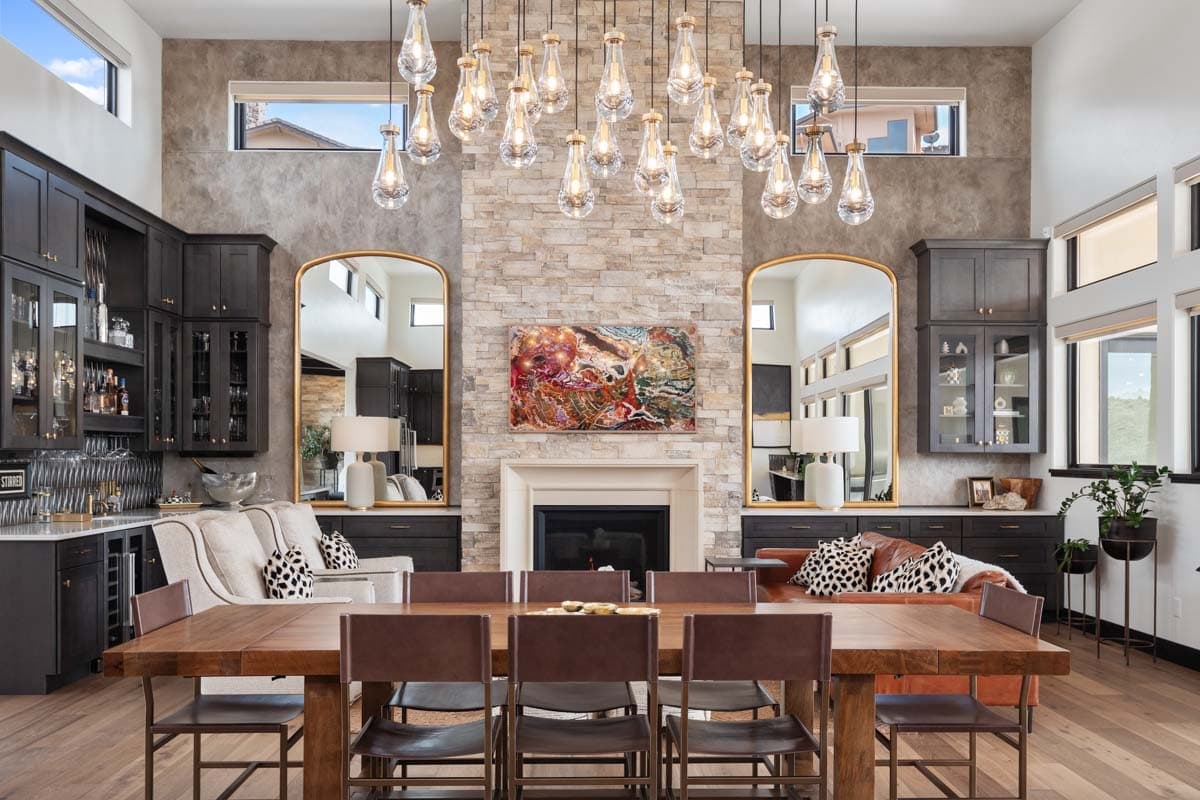

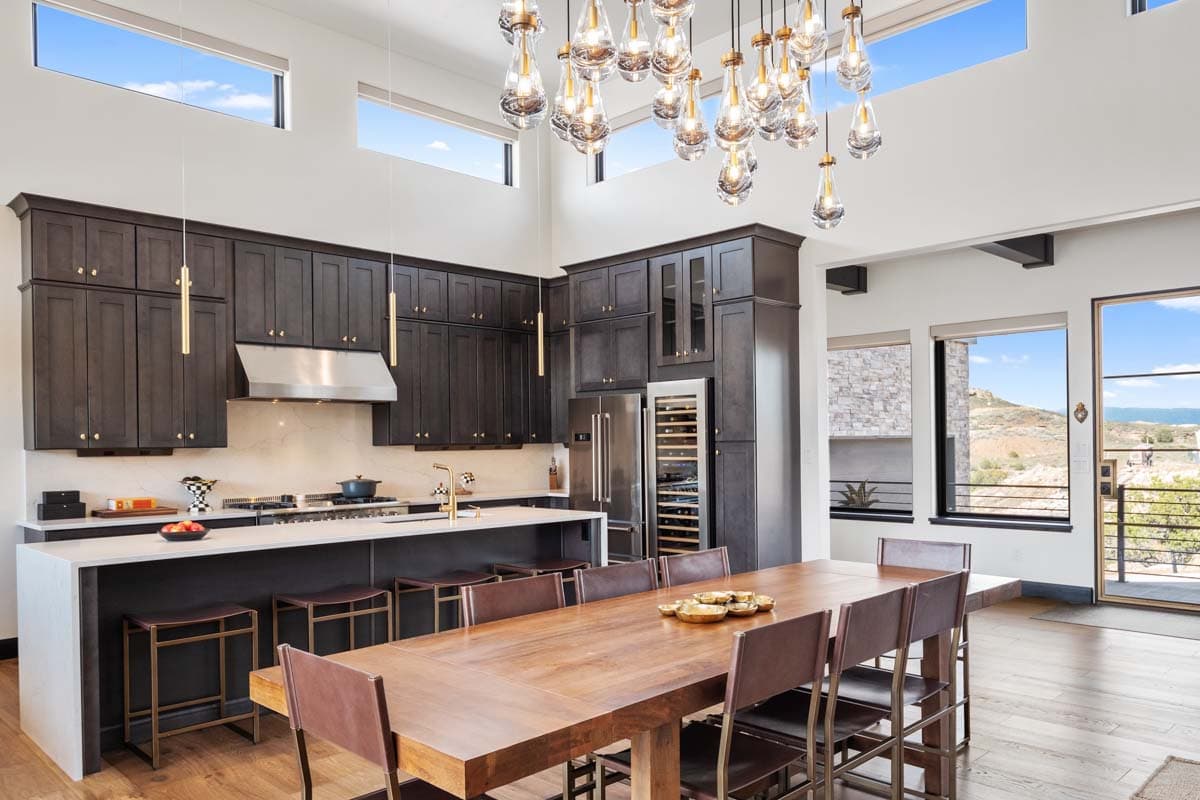

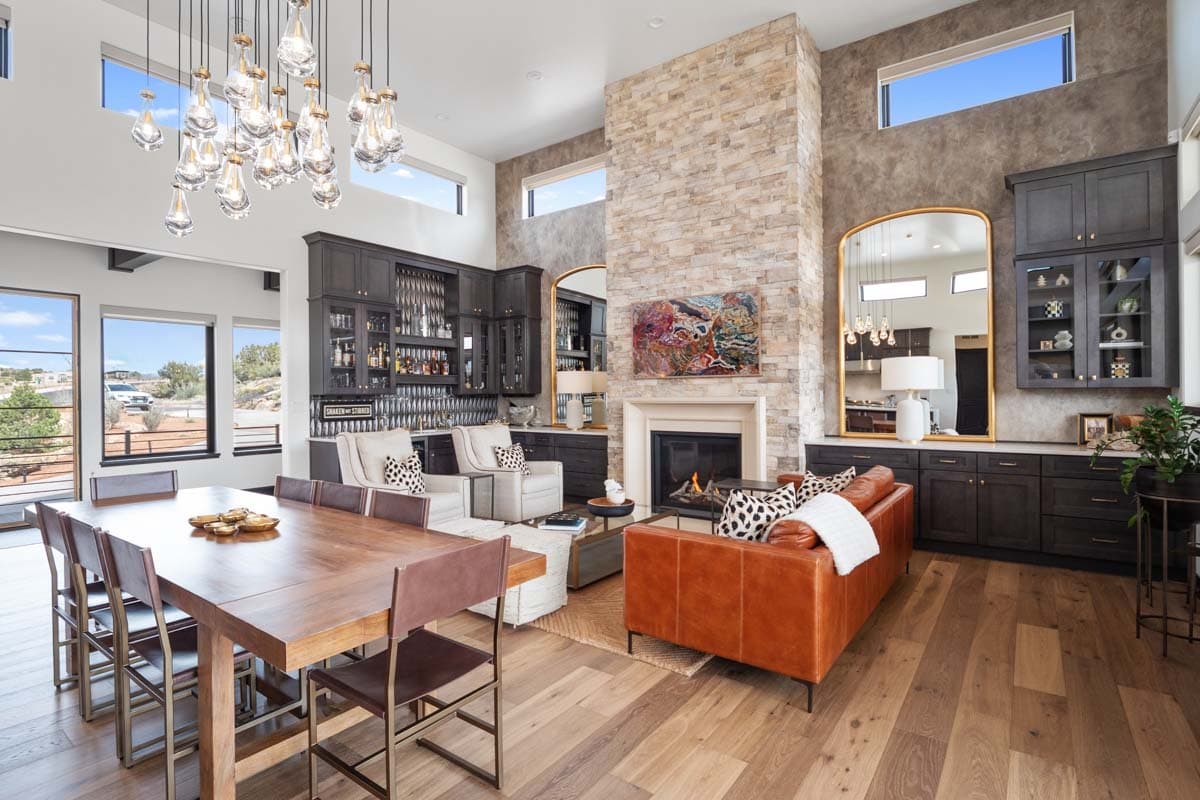

A welcoming entry gallery and covered front porch lead into an expansive two-story living and dining room with a dramatic 16' ceiling — an open-concept layout that centers family life and frames views to the covered back patio. A dedicated home office sits at the front of the plan for private work or study.

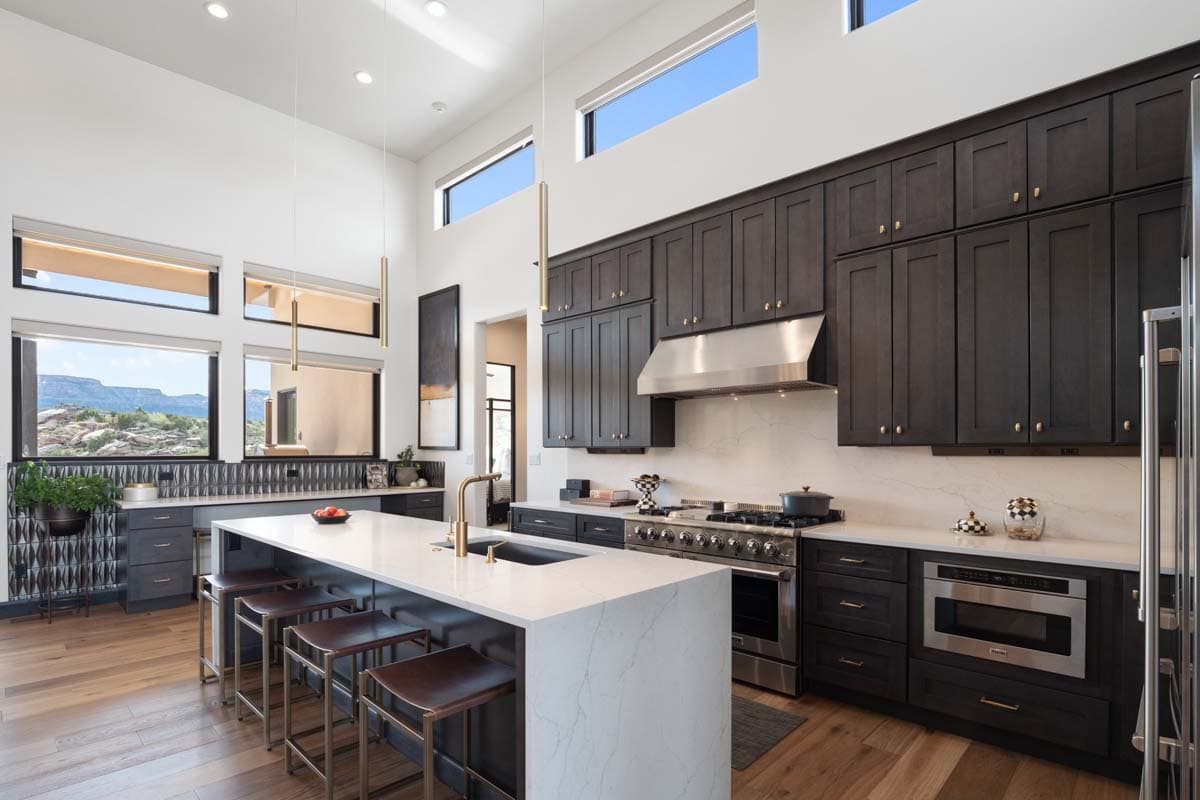

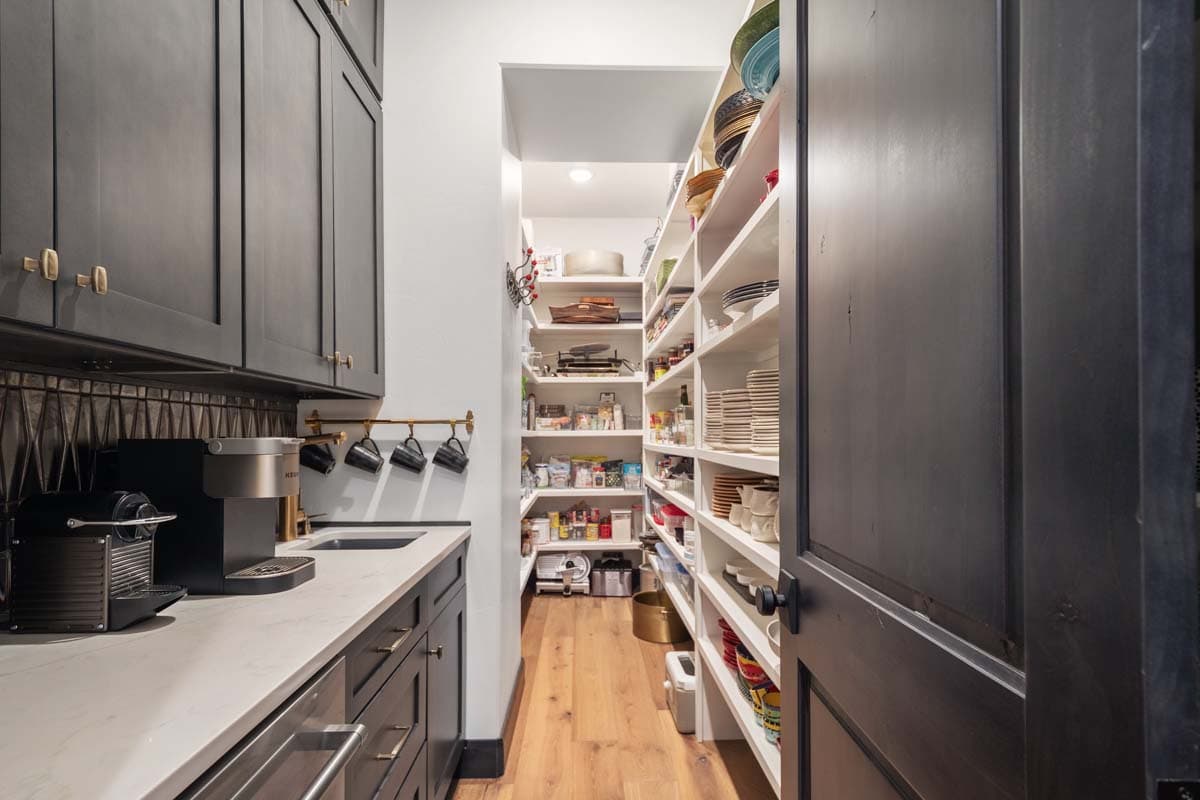

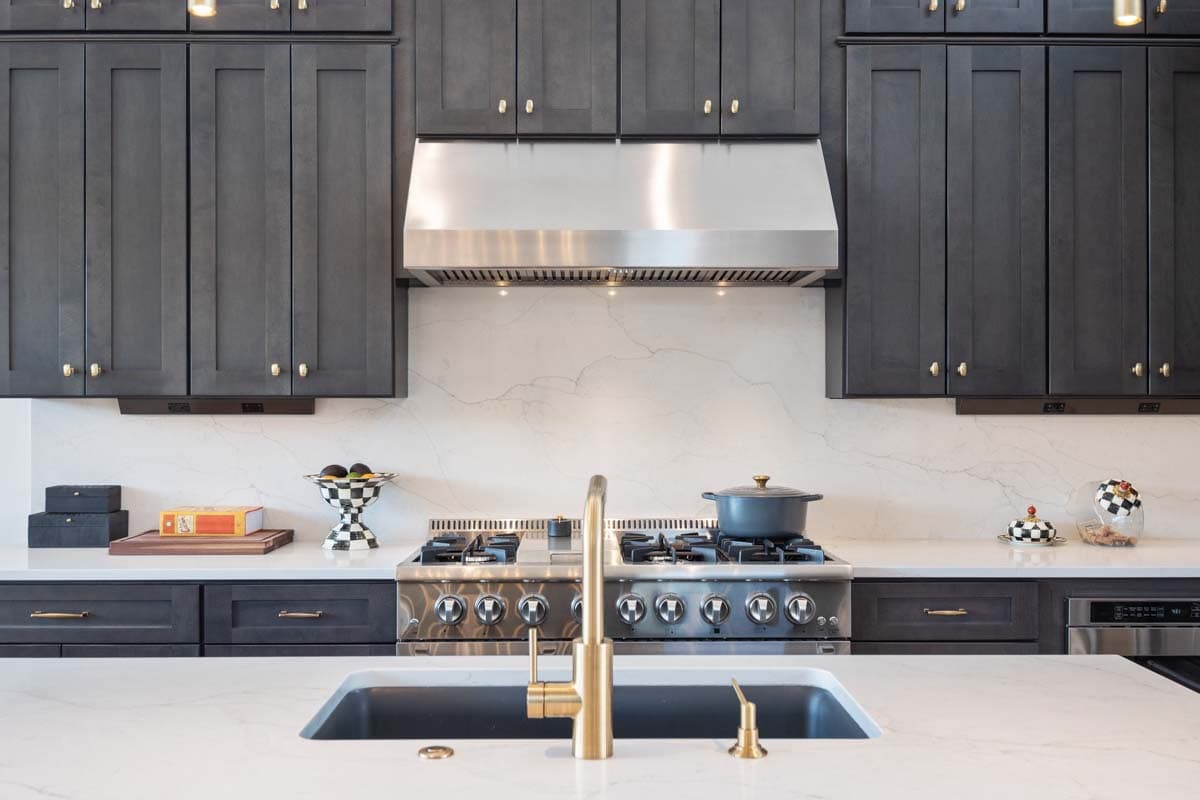

The chef-ready kitchen opens to the great room with a large island (3'6" x 10'), wet bar, and generous butler/walk-in pantry (15' deep). Large openings connect the main living zone to the covered back patio for easy indoor-outdoor entertaining and everyday flow.

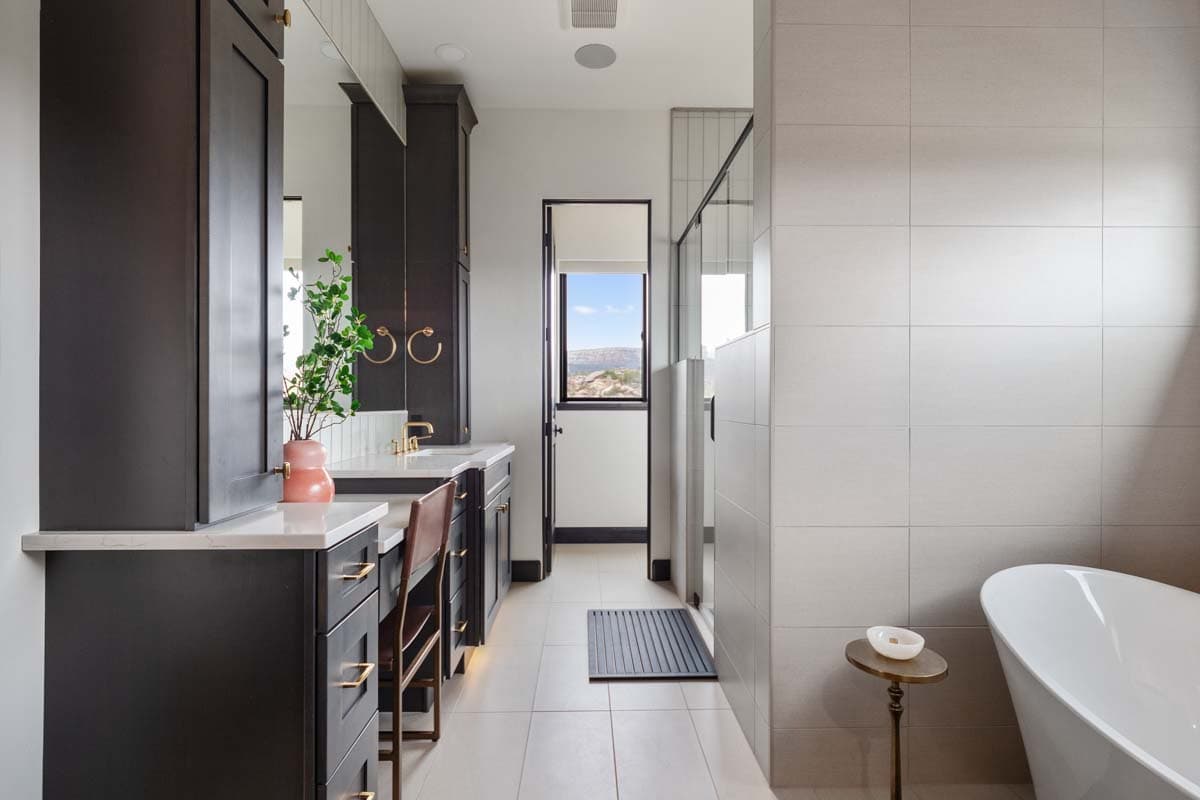

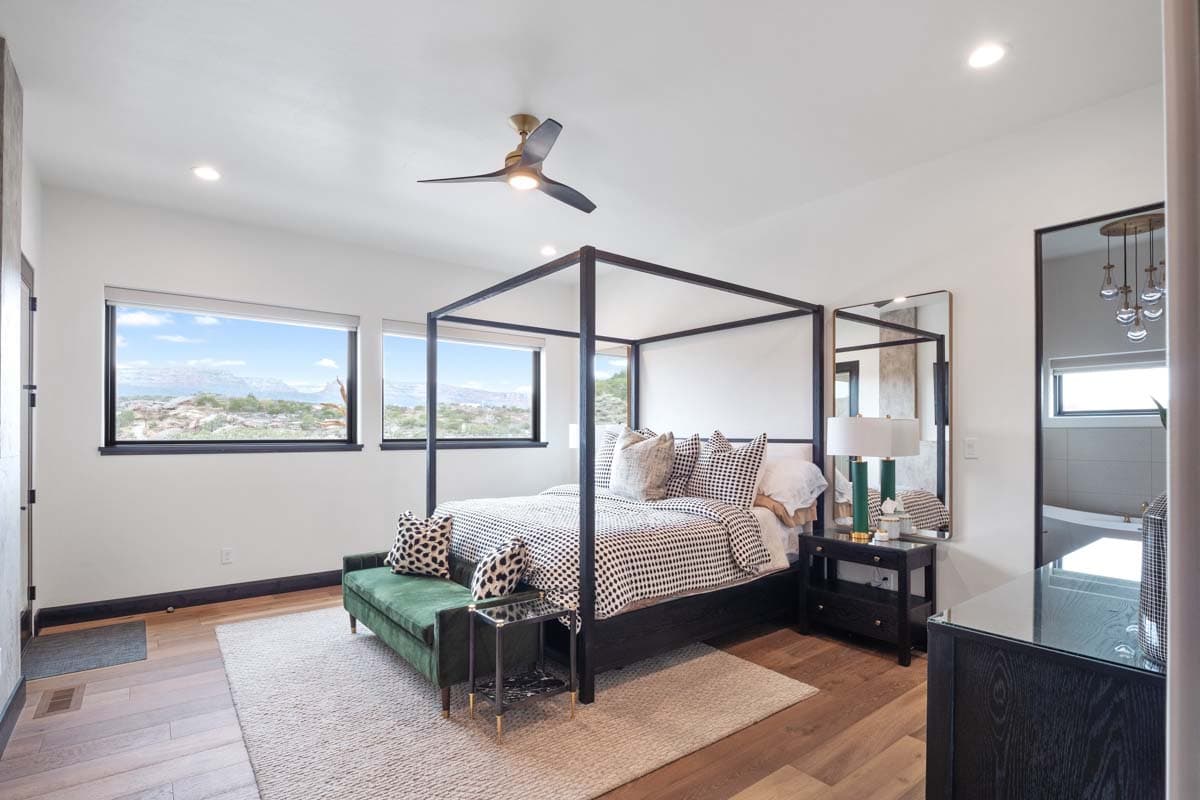

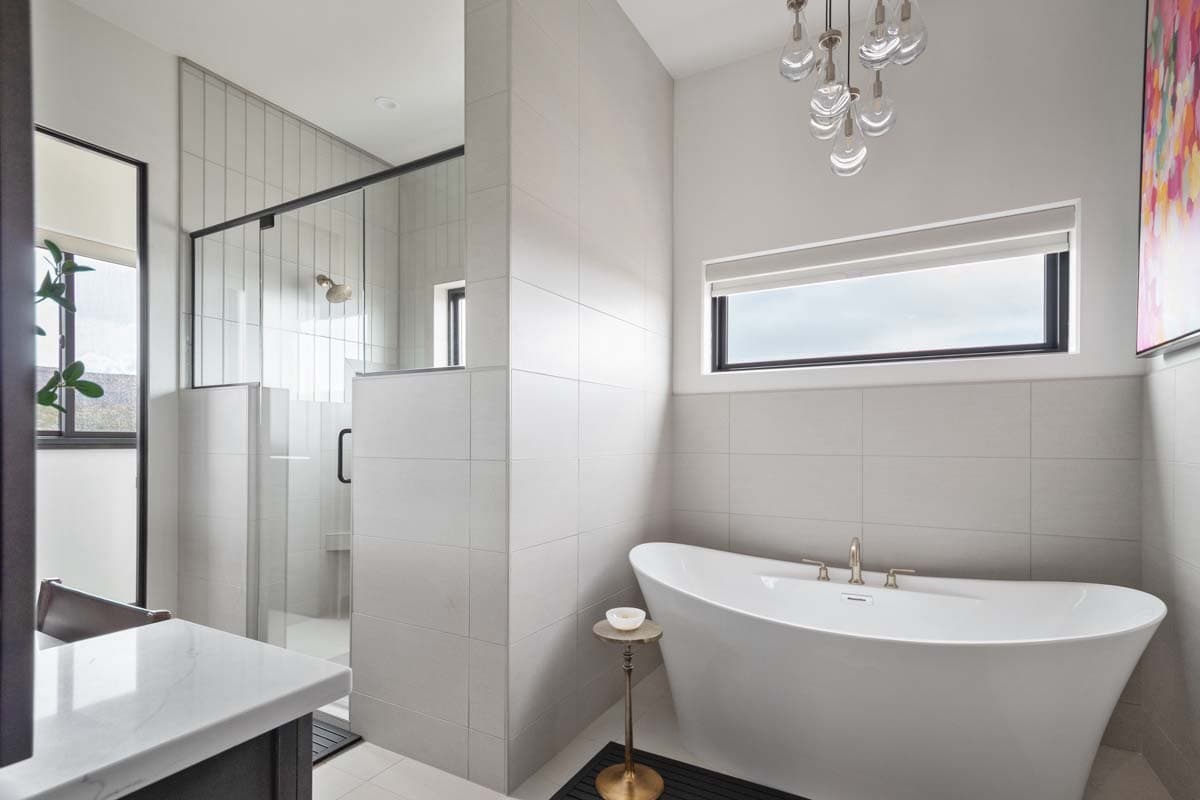

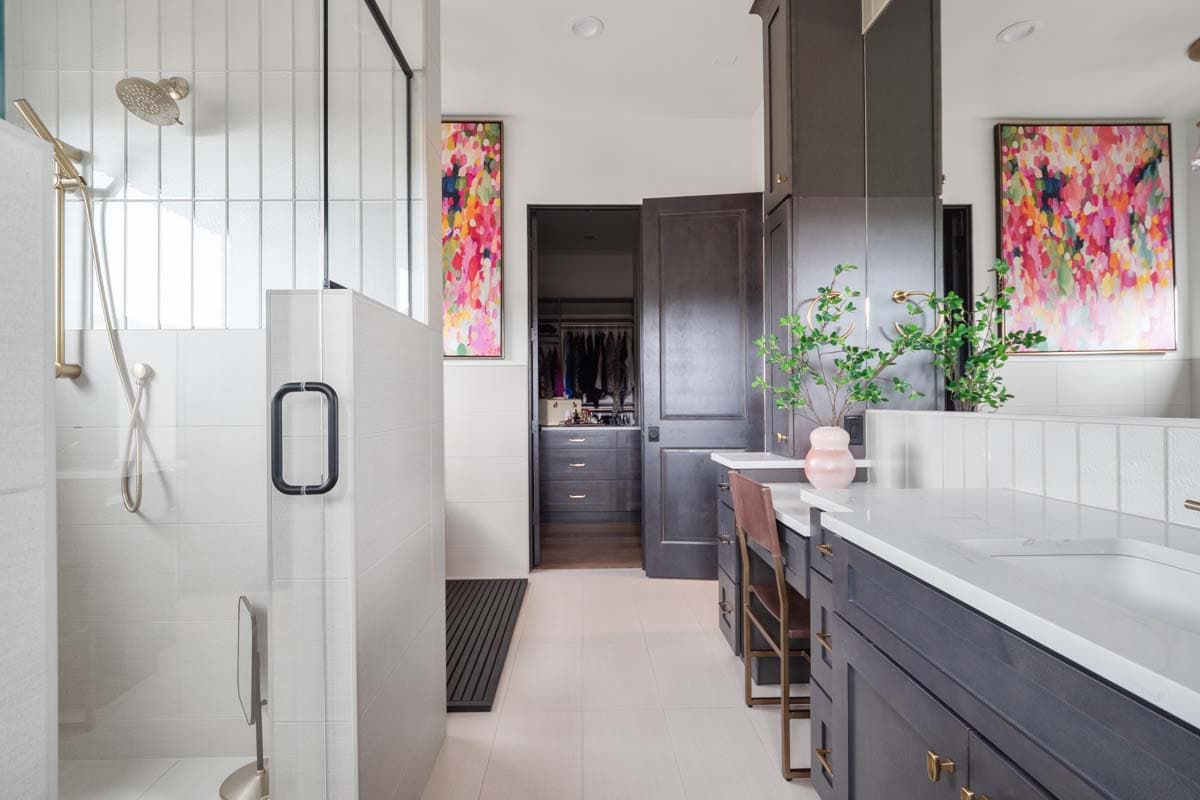

The Owner’s Suite is privately sited on the right wing with a 10' ceiling, roomy bedroom, ensuite bath with separate tub and shower, and direct access to the laundry; secondary bedroom is located on the opposite wing for separation and privacy.
A detached-style casita (15'-6" x 12'-3") with its own bath and kitchenette area provides a private guest or in-law suite; additional special features include a dedicated safe room, library/study options, and an interior wet bar for entertaining.

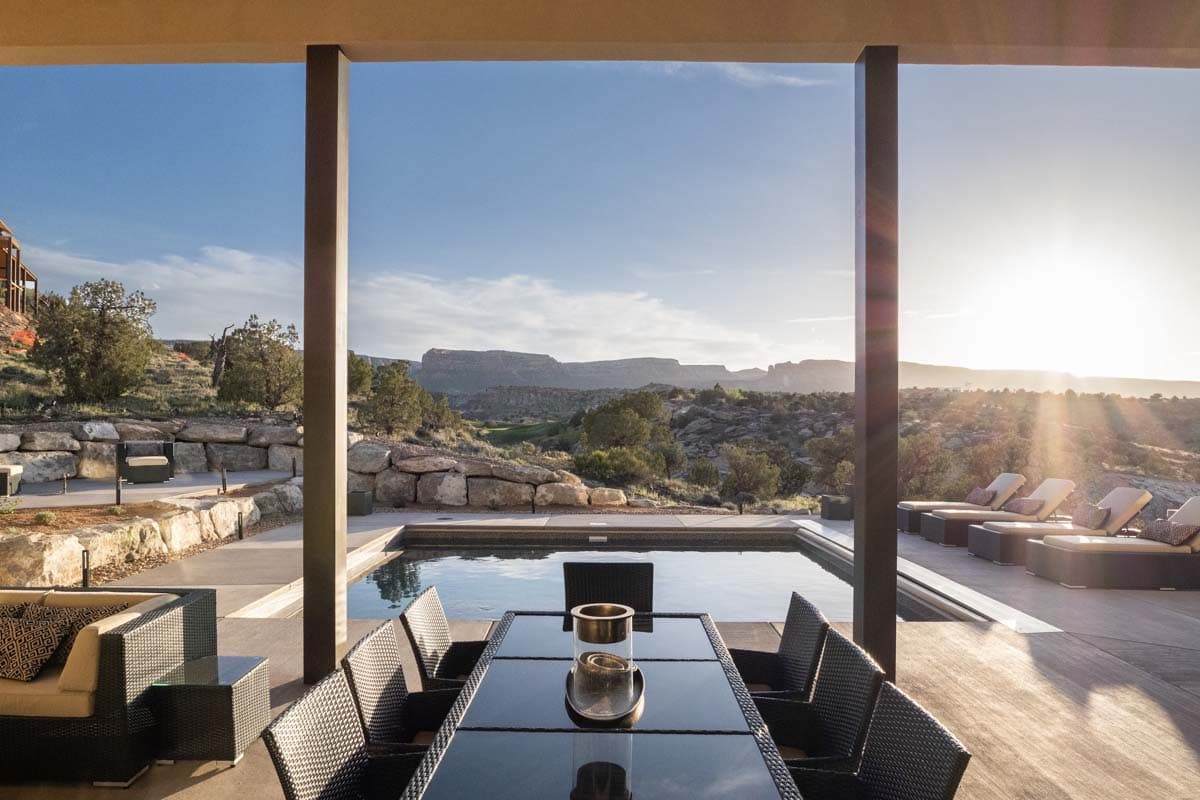

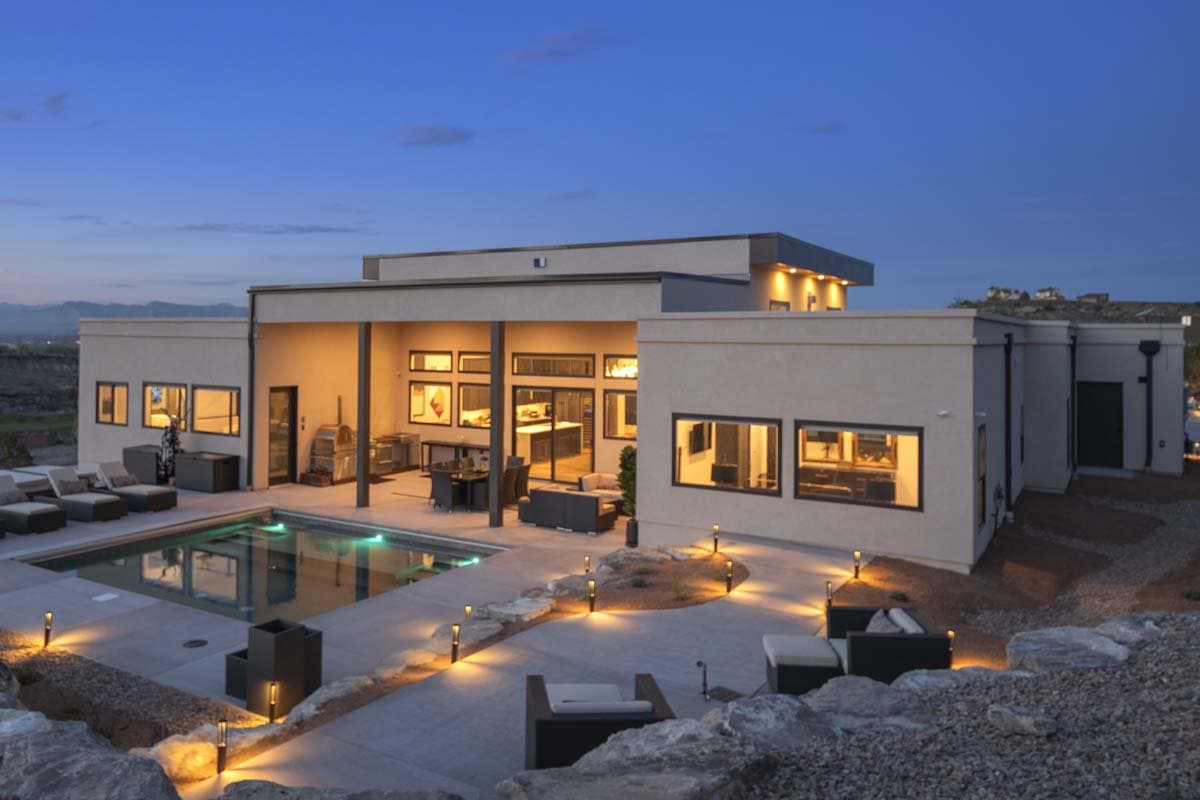

Outdoor living is emphasized with a 33' x 16'-6" covered back patio ideal for morning coffee or evening gatherings, plus a deep front porch and direct entry from the garage into the pantry/mudroom for everyday convenience.
Related Plan: Get a 2-car front garage with house plan 833029WAT (2,931 sq. ft.).

What's Included

Cover Sheet
Floor Plan

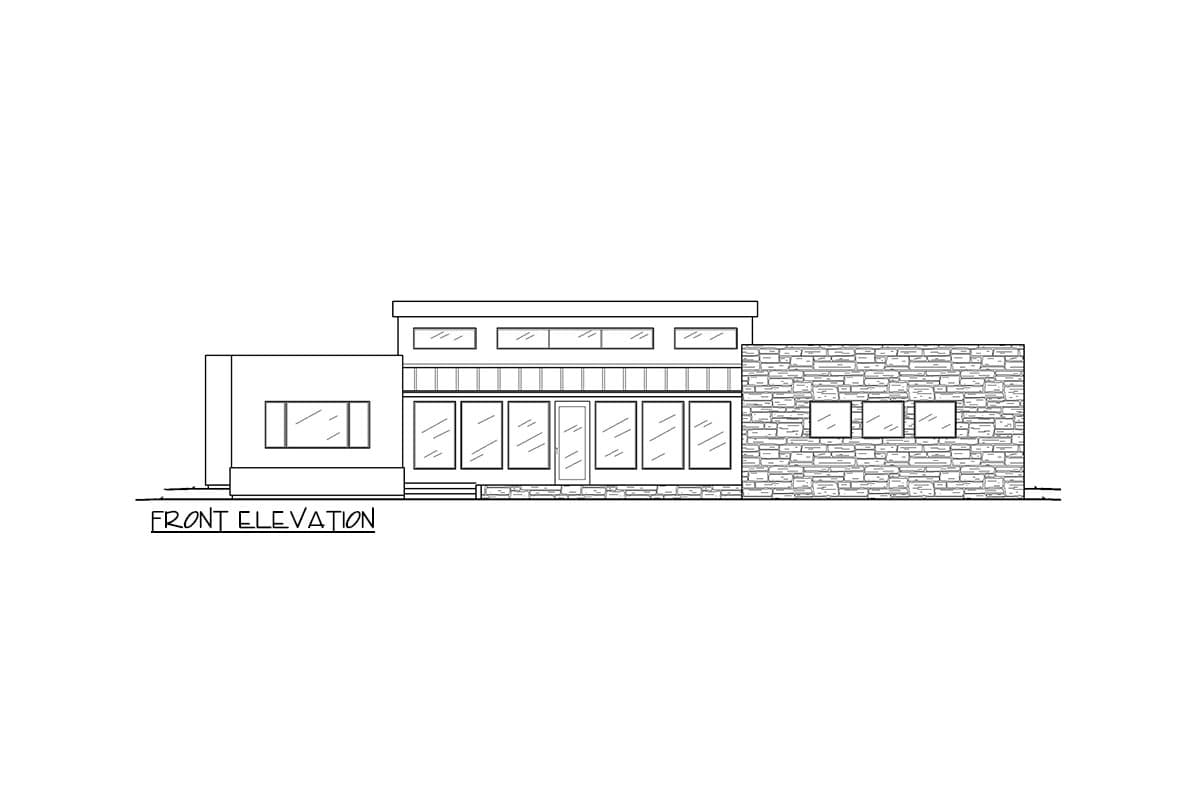

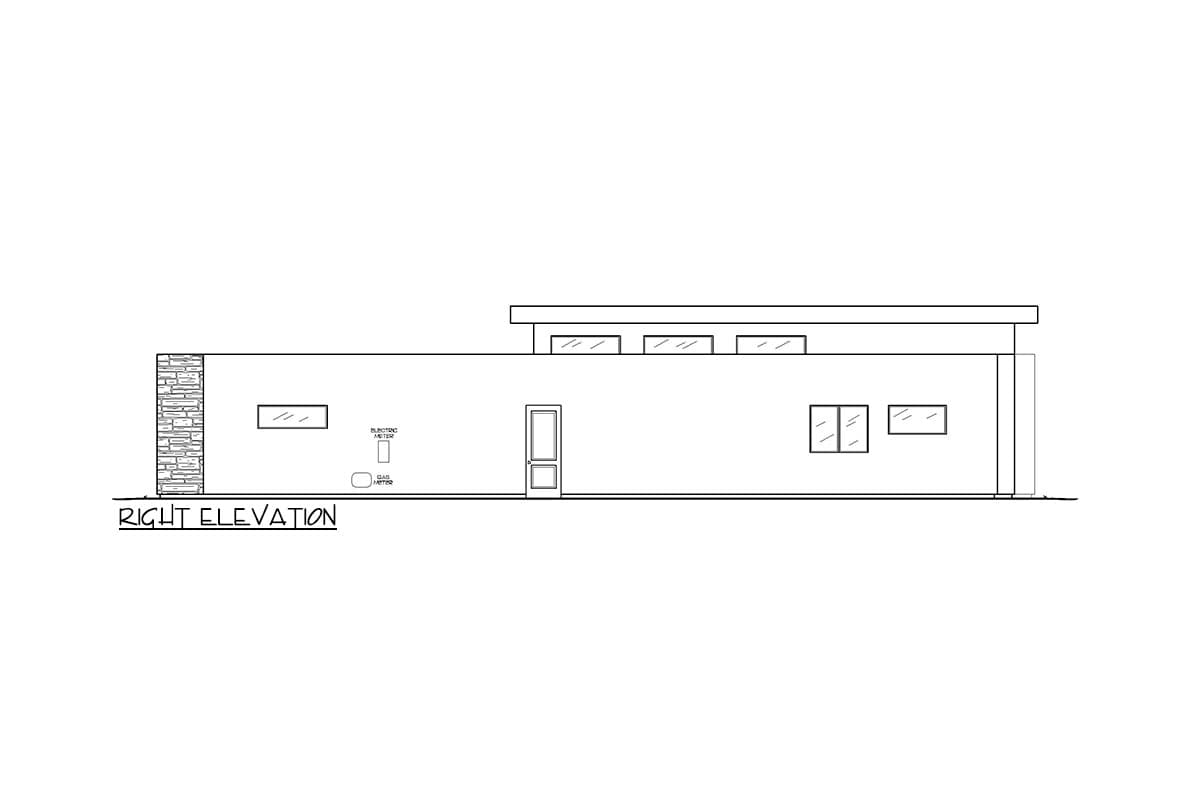

Elevations
Roof Plan
Thermal Envelope Plan (General Prescriptive Energy Compliance)
Detail Sheet

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
