Plan 90133PD
3-Level Escape
Heated S.F.
2,118
Beds
4-5
Baths
2.5
Stories
2
What's Included
Plan Details
  • This 3-level escape will make a great vacation home or a year-round residence. Put it on your sloping lot and take advantage of the patio created off the lower level.

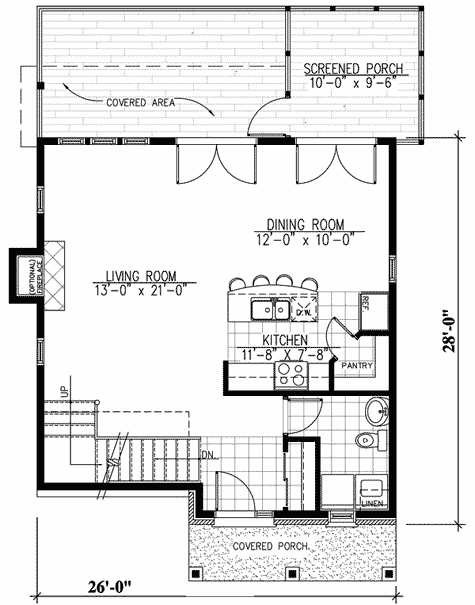

  • A covered porch shelters the front entry. Step inside and enjoy the open floor plan. An optional fireplace will add some flair to the living room. Double doors lead to both a screened porch and a partially covered deck.

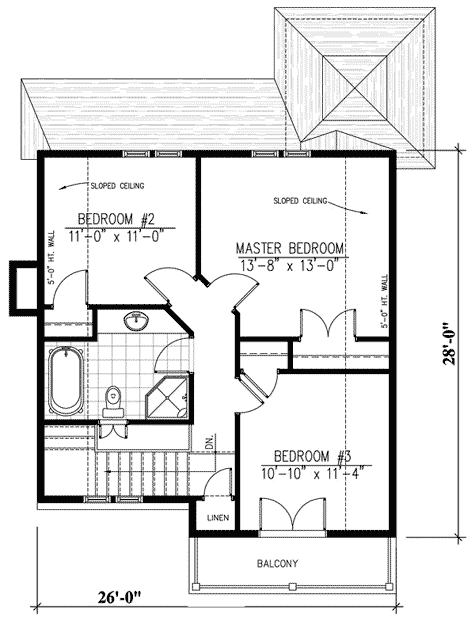

  • Three bedrooms are on the second floor. Bedroom 3 enjoys its own private deck.

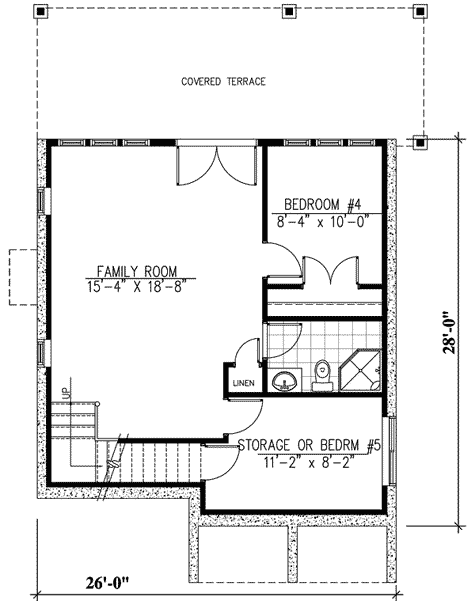

  • A family room plus up to two bedrooms complete the home on the lower level.
  • Related Plans: Save money and get an unfished basement with house plan 90135PD.
  • Get the master on main and a garage with house plan 90131PD.
What's Included
Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

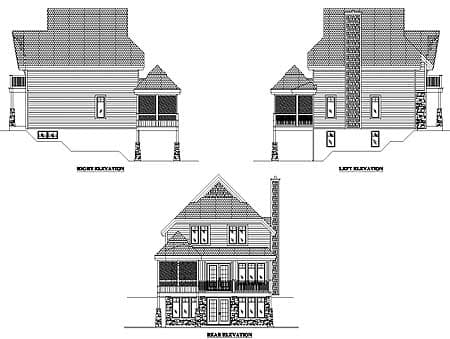

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Level Escape

  • 2,118

    Heated s.f.

  • 4-5

    Beds

  • 2.5

    Baths

  • 2

    Floors

Floor Plan

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,118 sq. ft.
  • Lower Level: 706 sq. ft.
  • 1st Floor: 706 sq. ft.
  • 2nd Floor: 706 sq. ft.

Dimensions

  • Width: 28' 0"
  • Depth: 28' 0"
  • Max ridge height: 34' 0"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 7' 8" First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
