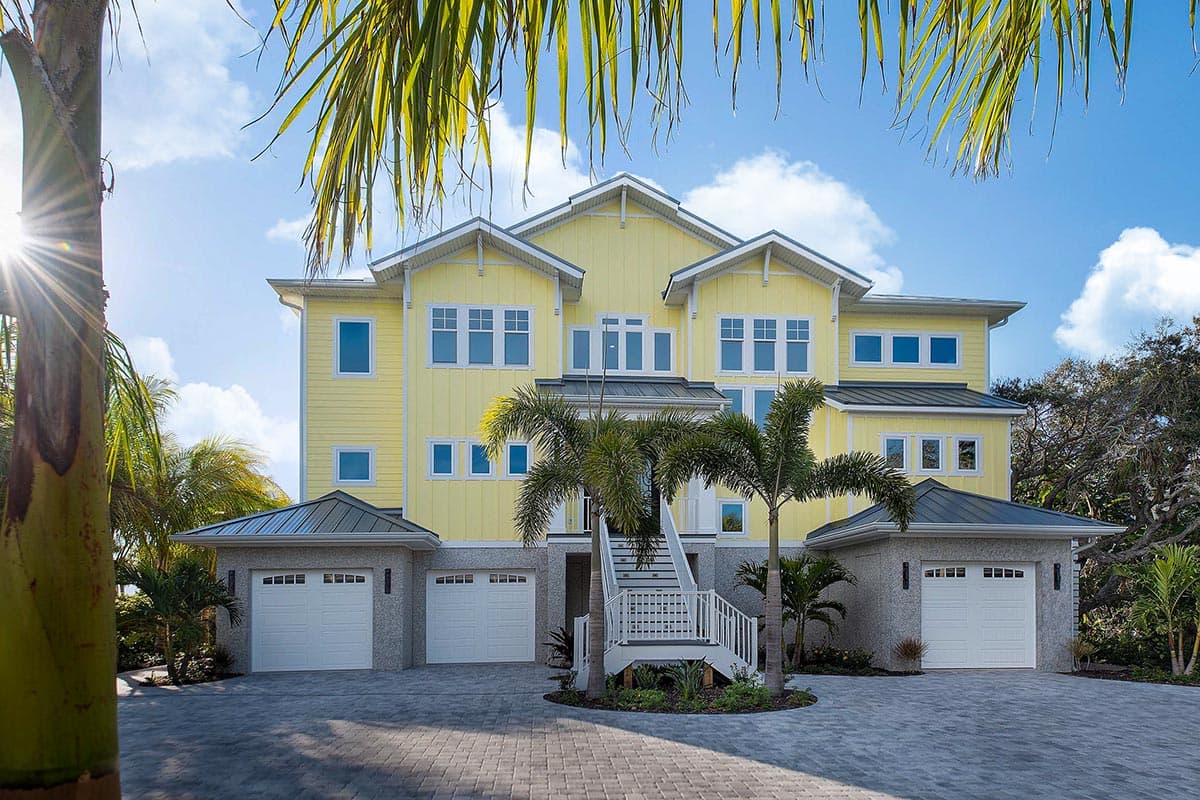

3-Story Coastal Contemporary Home Plan with 2-Story Great Room - 3123 Sq Ft

Plan 33242ZR

  • 3,123

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 3

    Stories

  • 3

    Cars

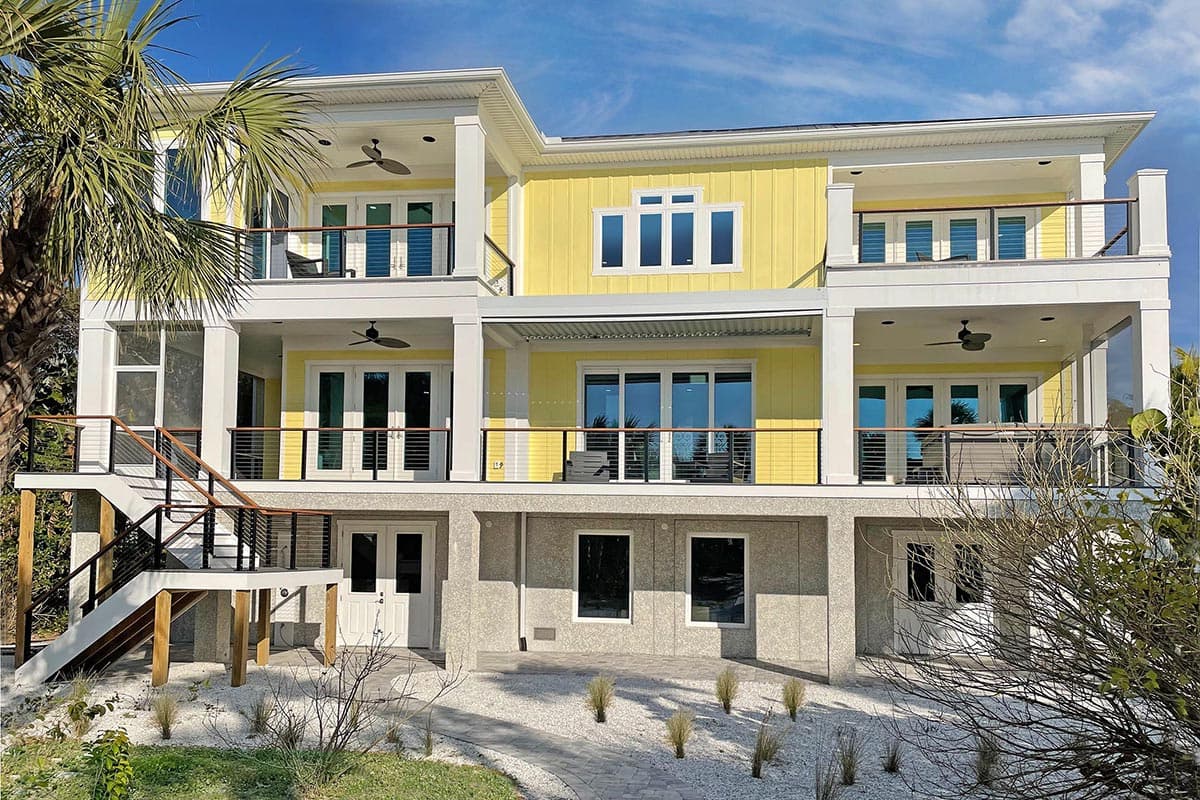

  • This 3-story coastal contemporary home plan gives you 3 beds, 3.5 baths and 3.123 square feet of living space. The ground level has 2,049 square feet of car and storage space. Laundry is conveniently located on the two living levels.

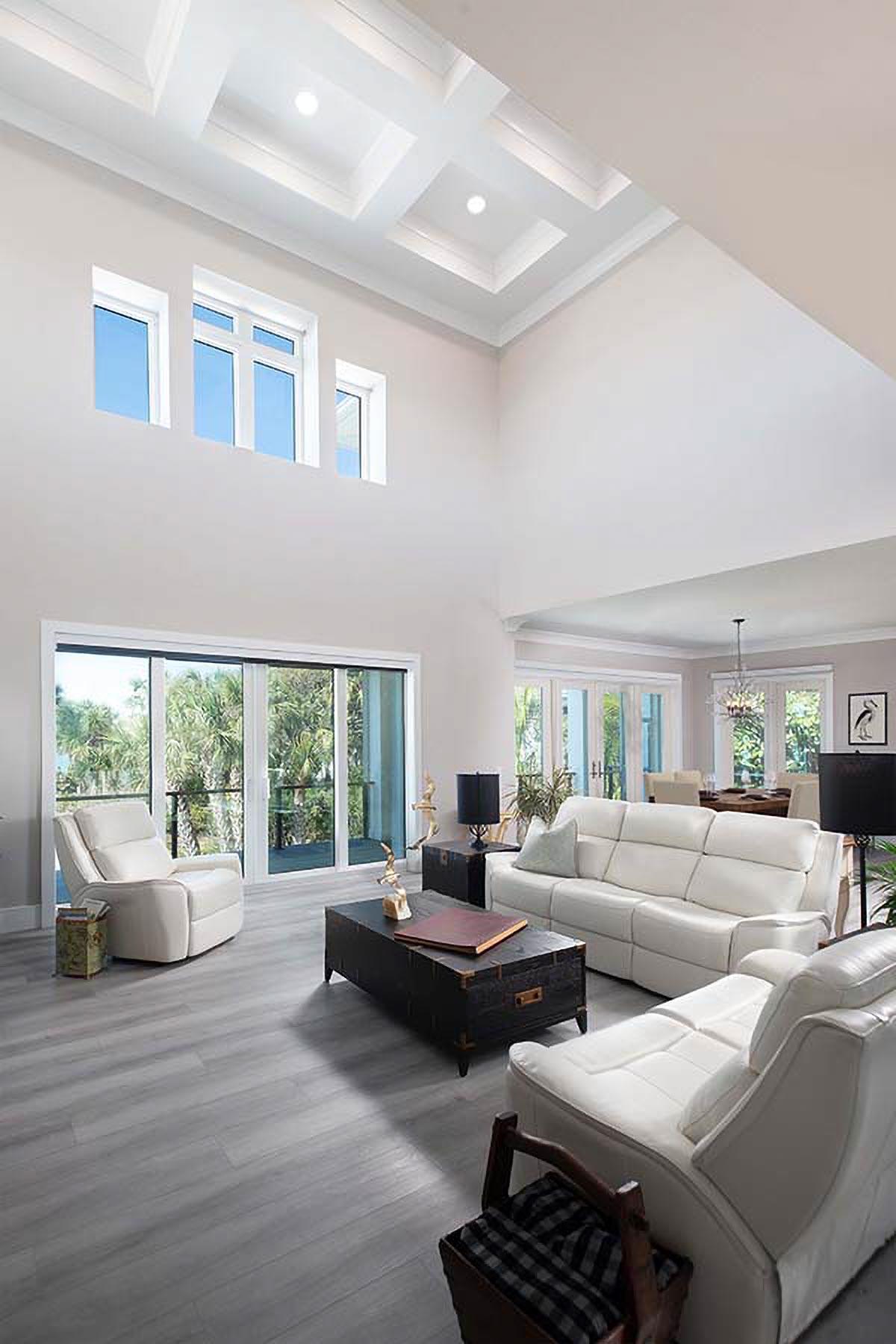

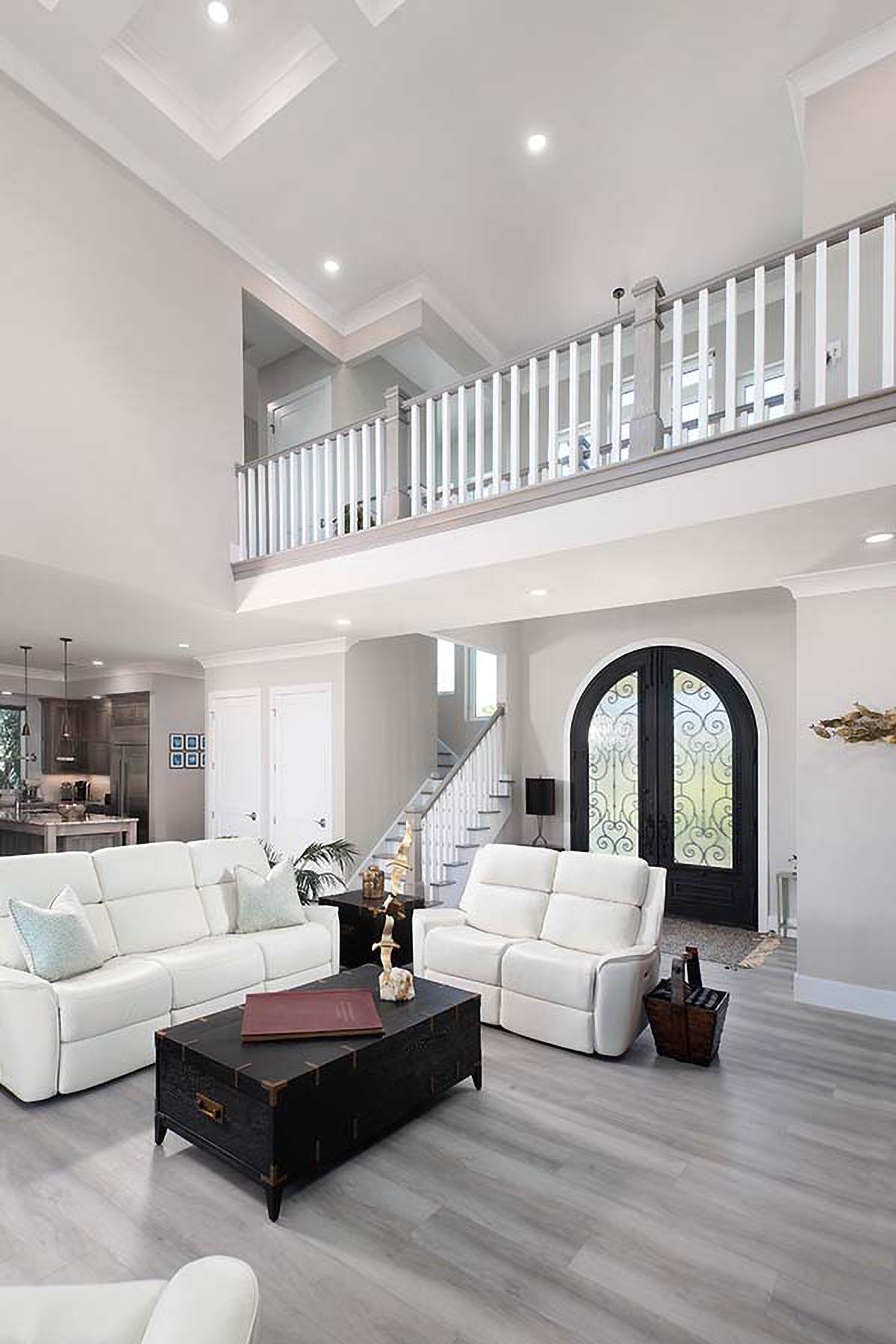

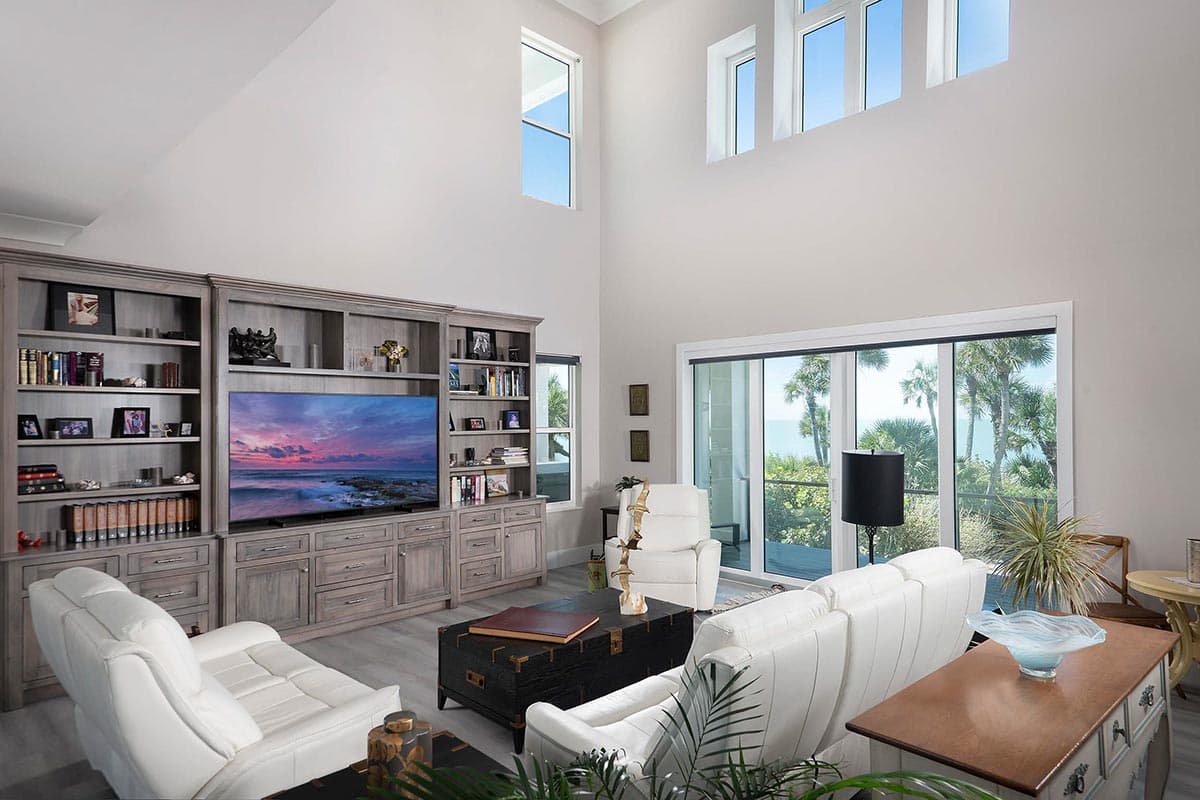

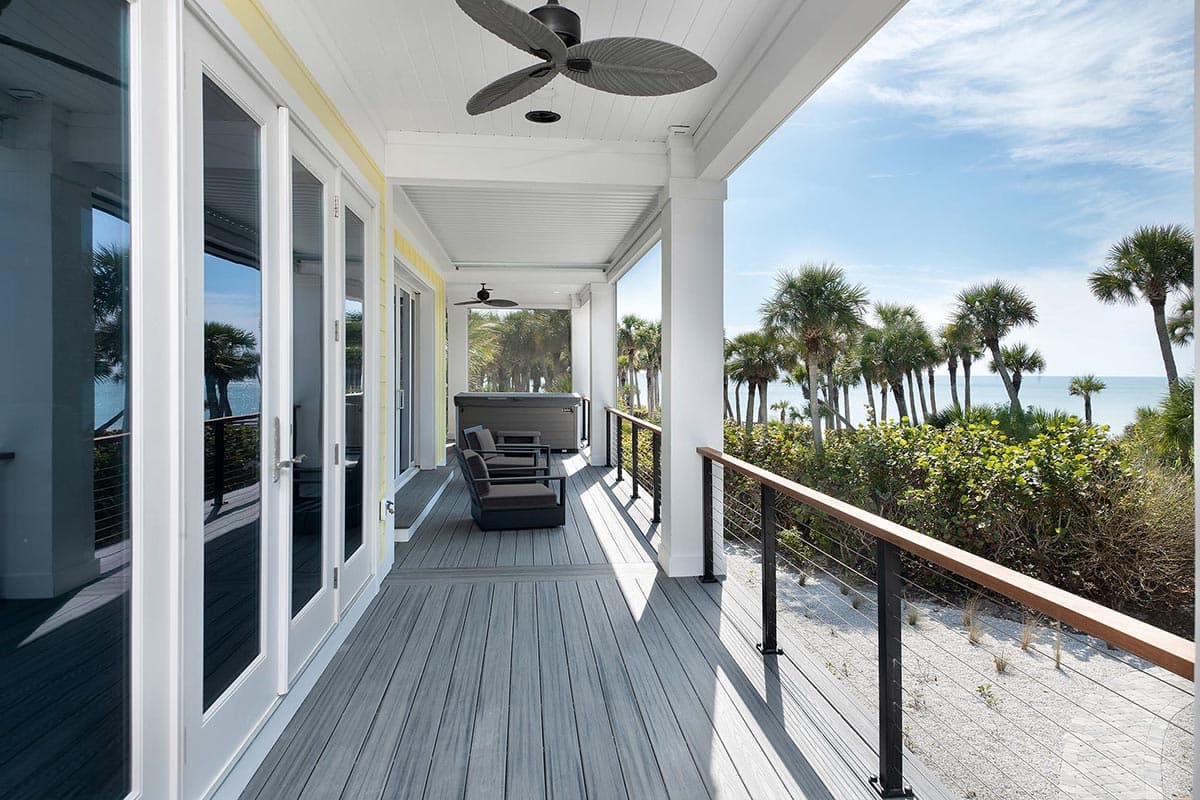

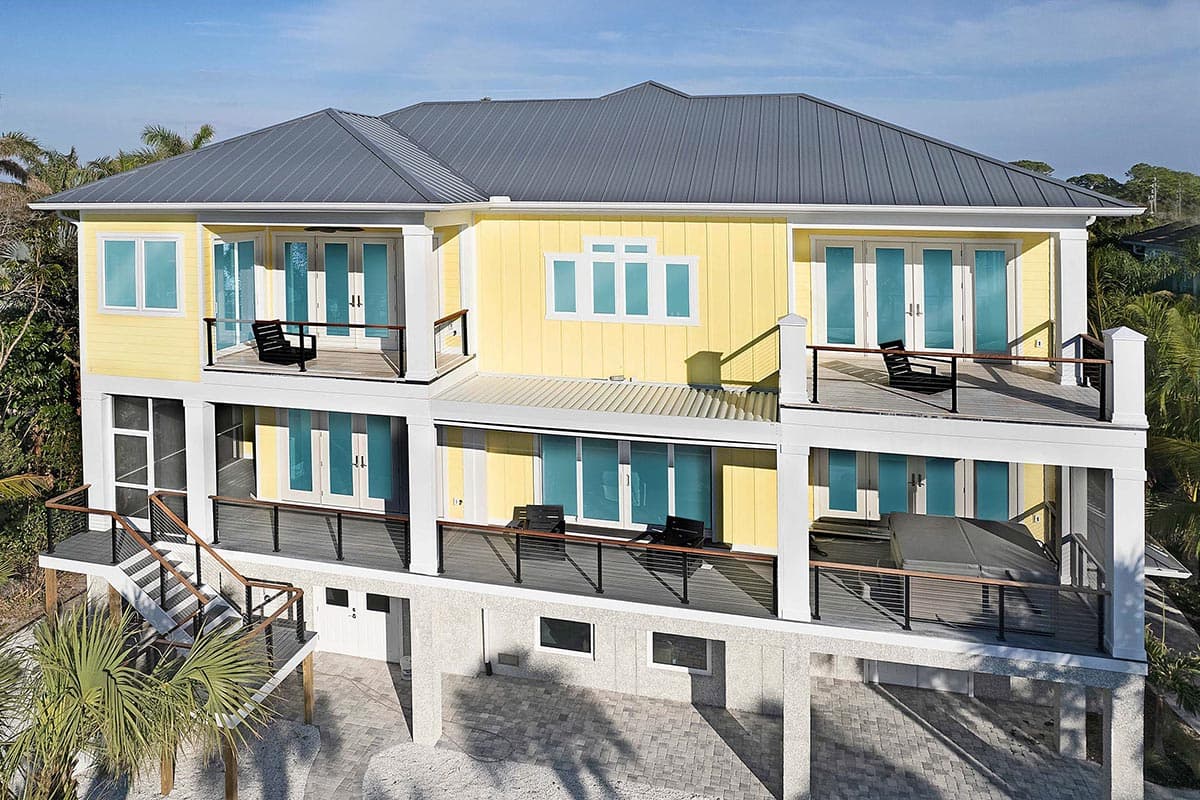

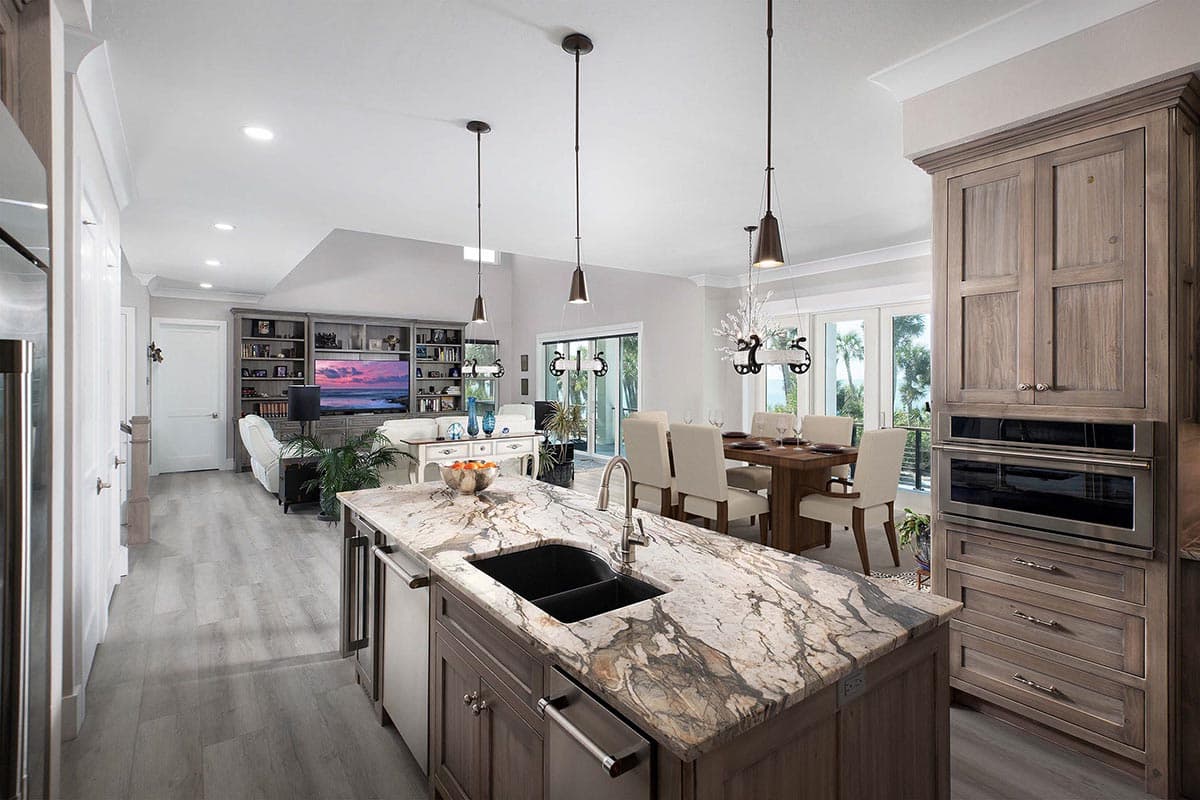

  • The elevated first main floor offers fantastic views from everywhere and the 2-story ceiling fills the great room with natural light. The main living area expands out to generous outdoor covered and uncovered decks.

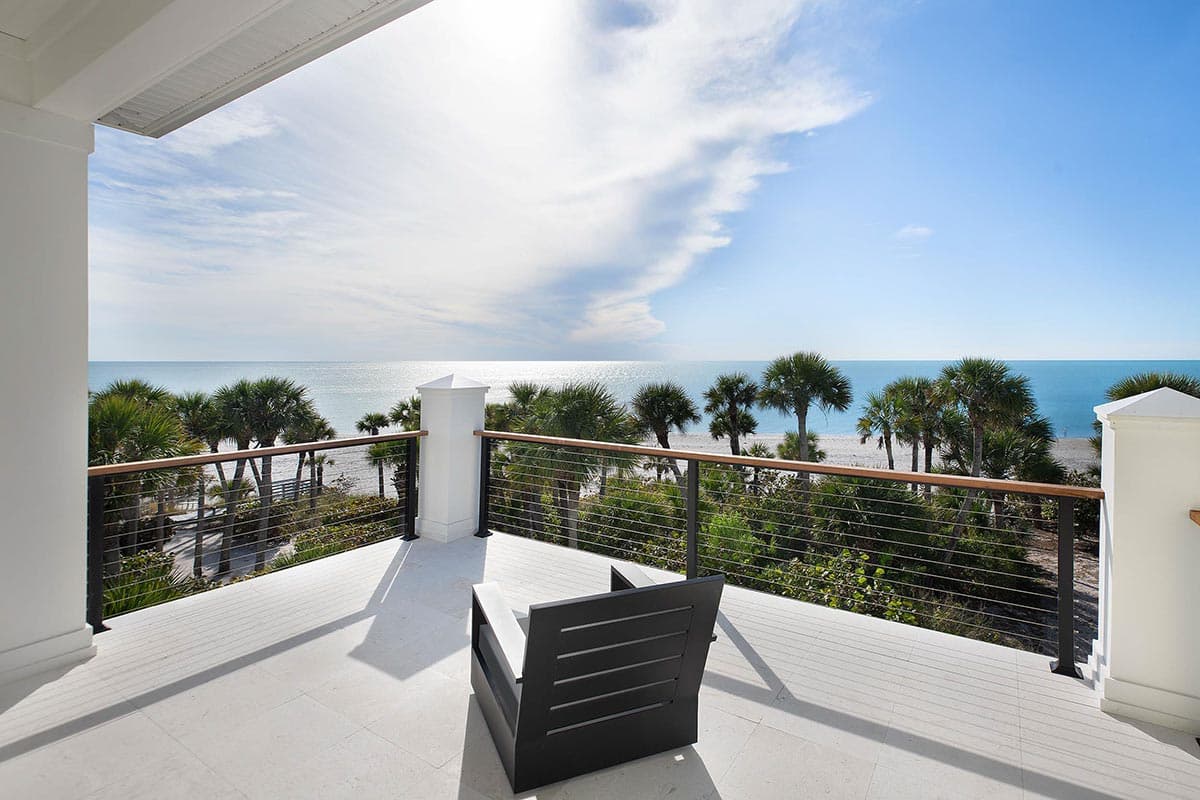

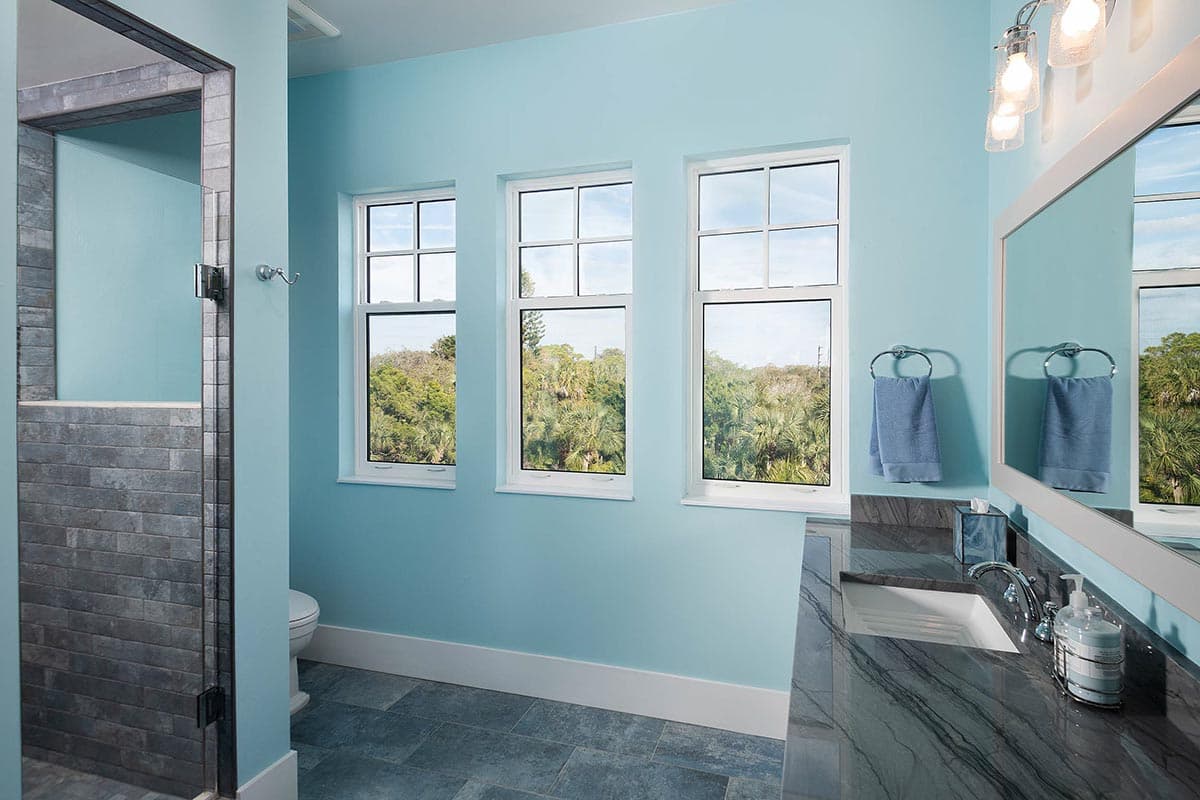

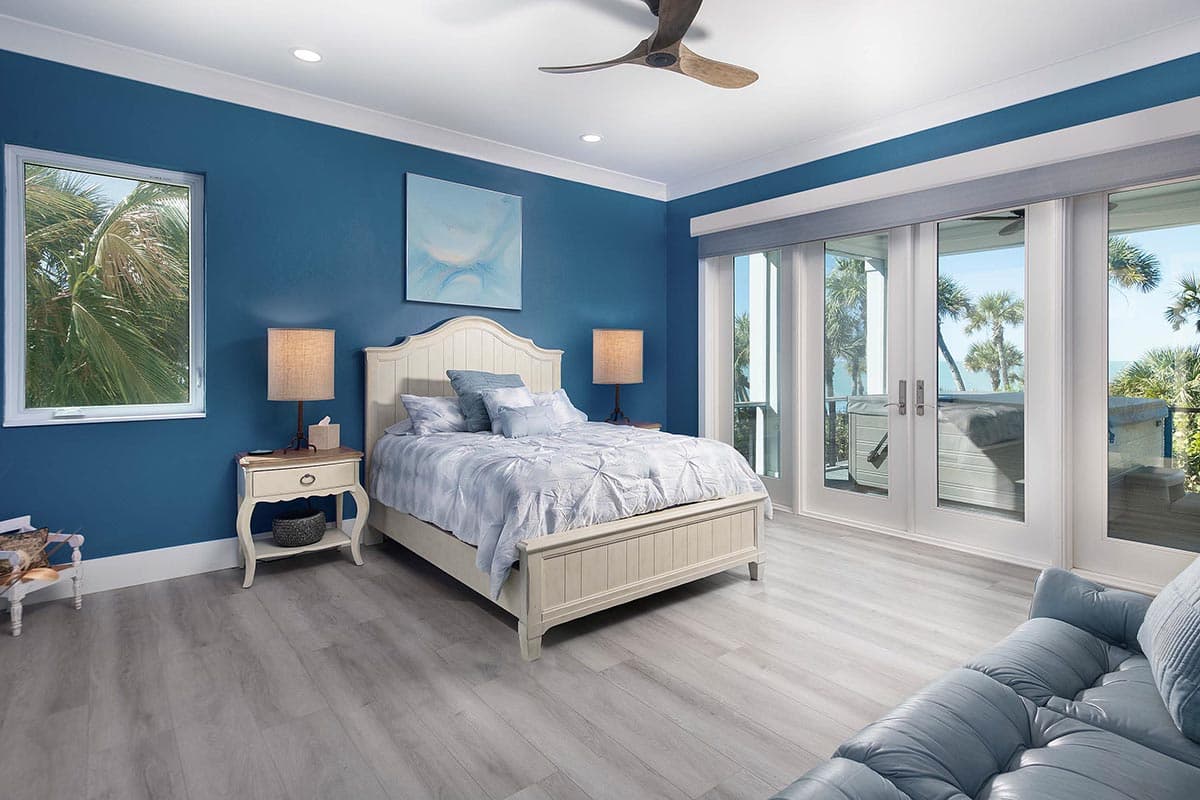

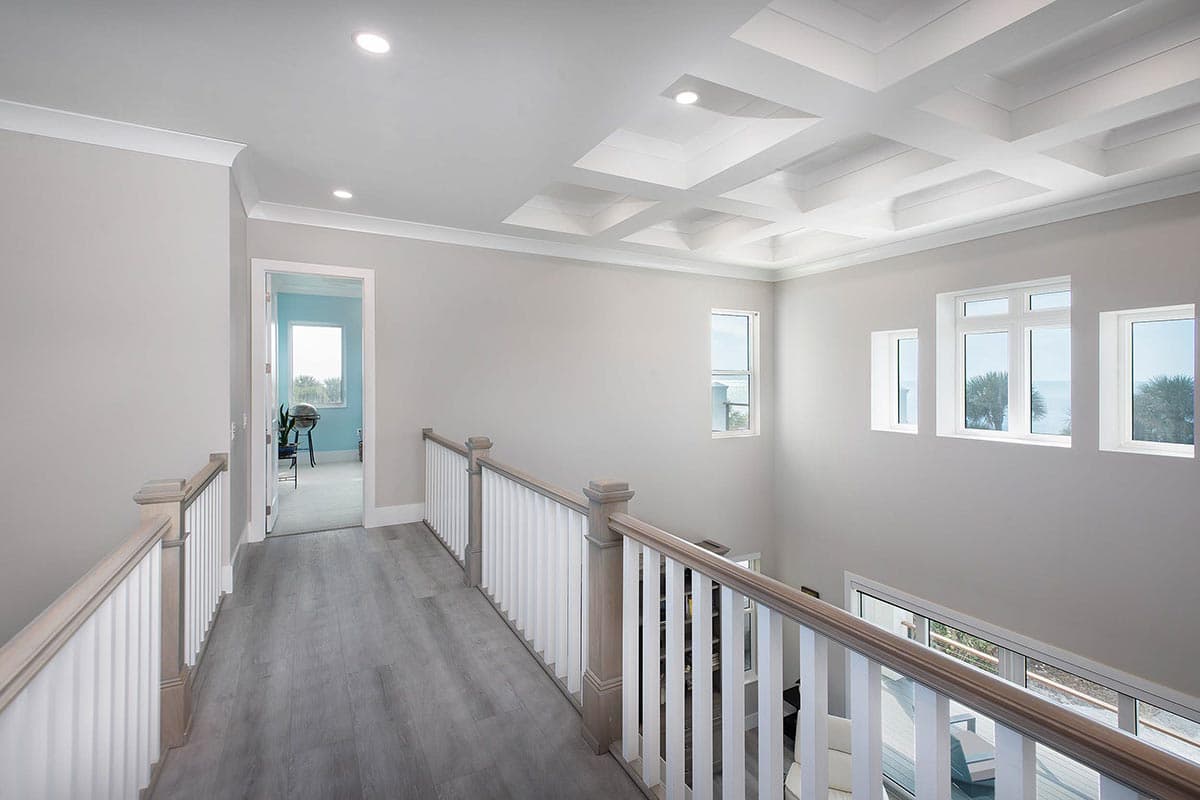

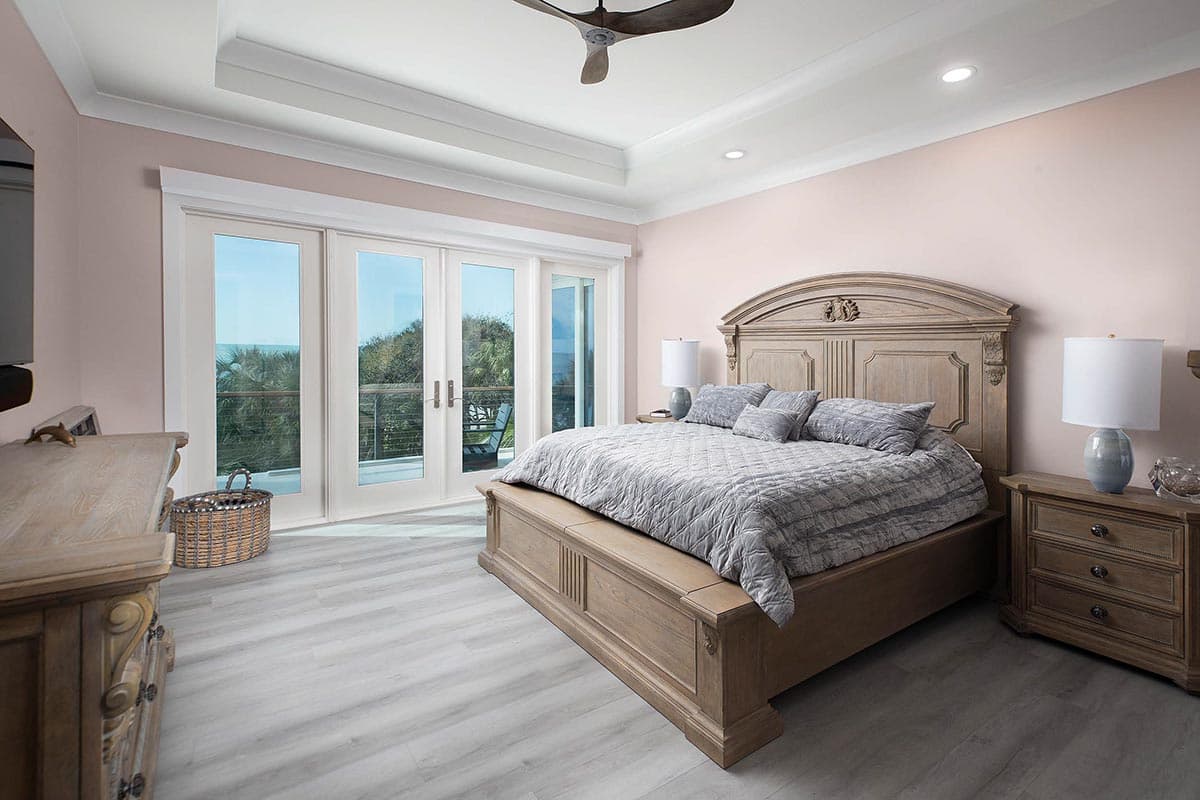

  • The upper floor is entirely the owner’s domain which includes a master suite, a sitting room and a covered balcony to capture the views from. In fact, all the upper floor spaces have direct access to outdoor spaces.

COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.



WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

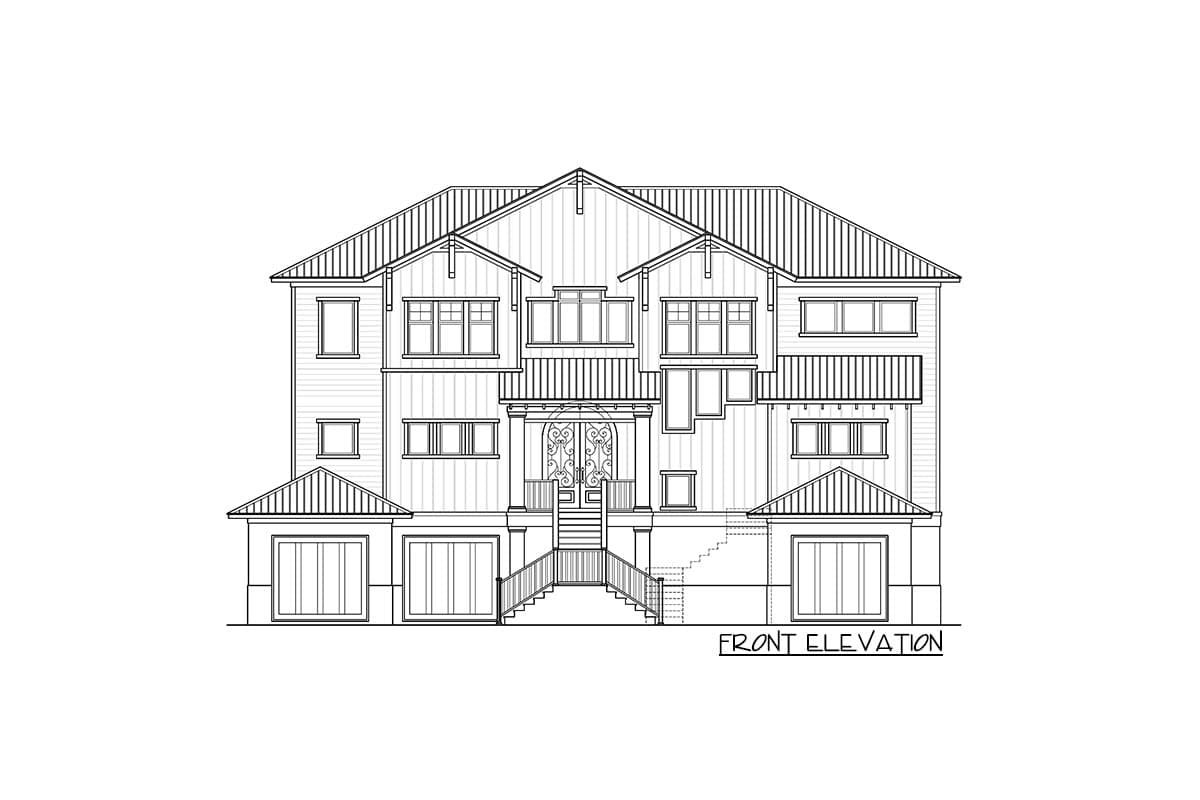

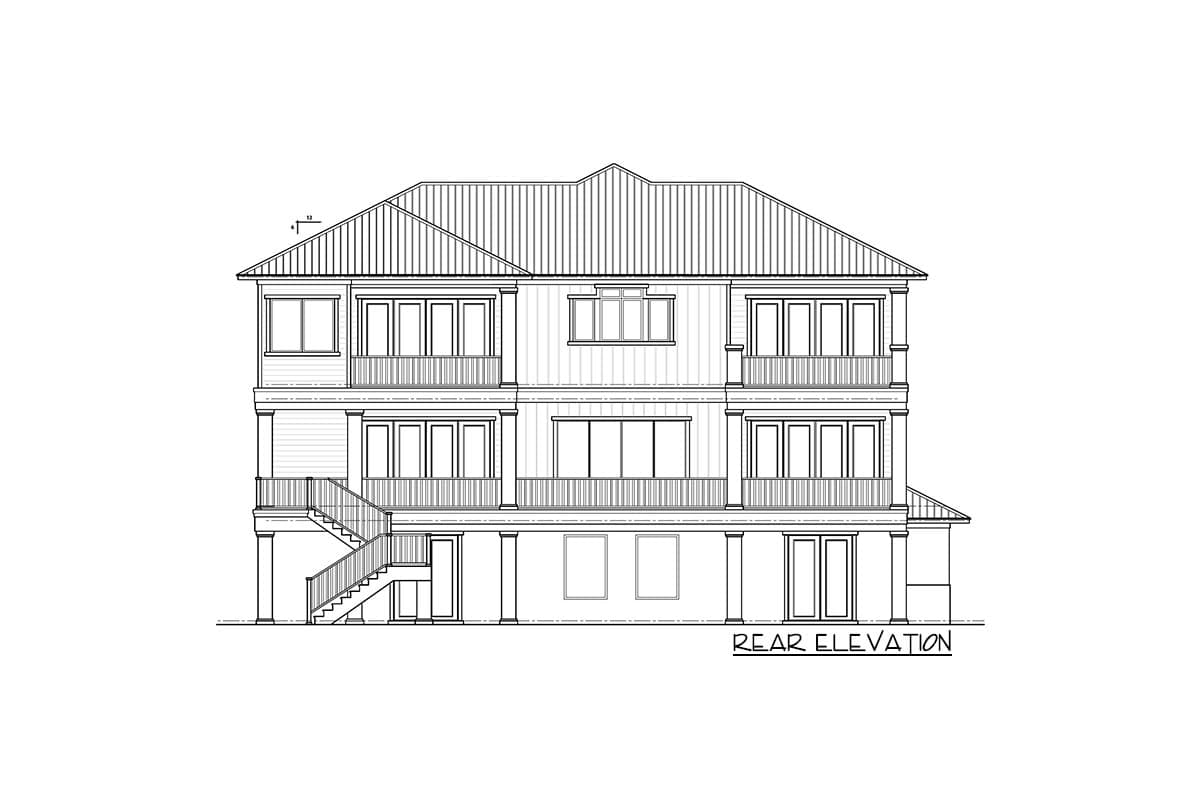

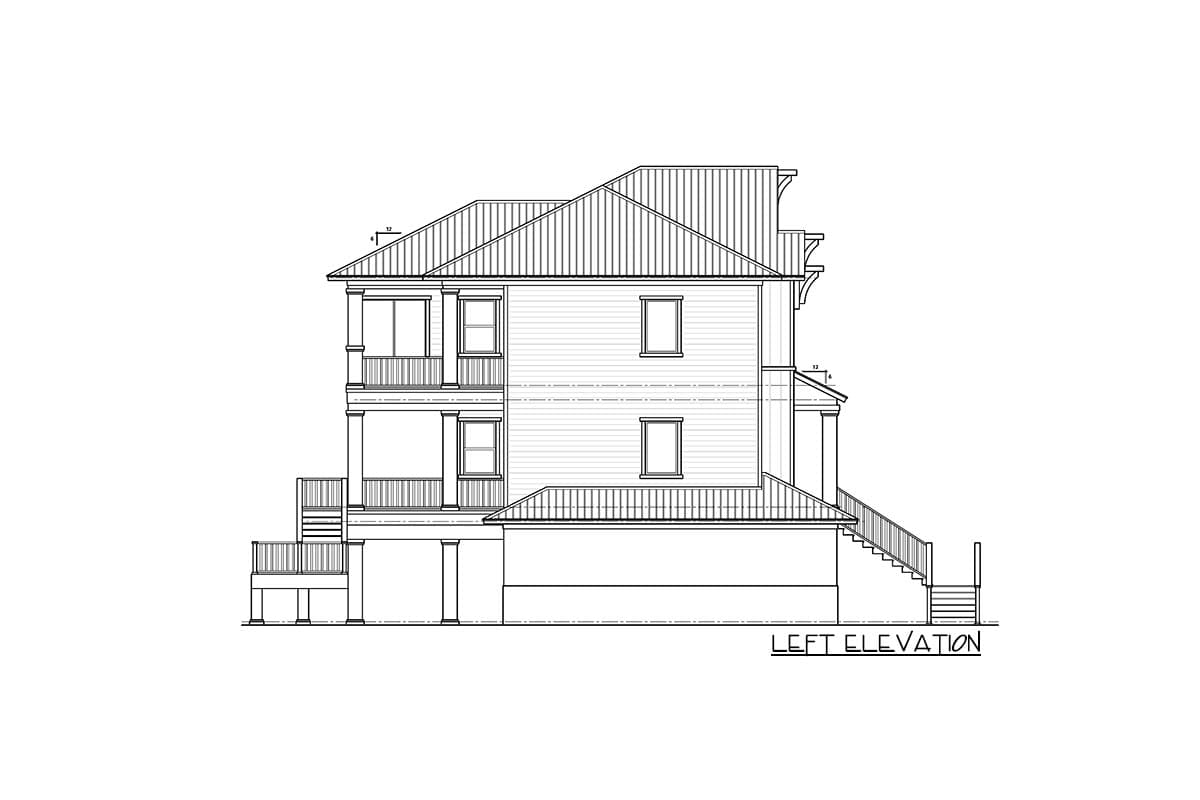

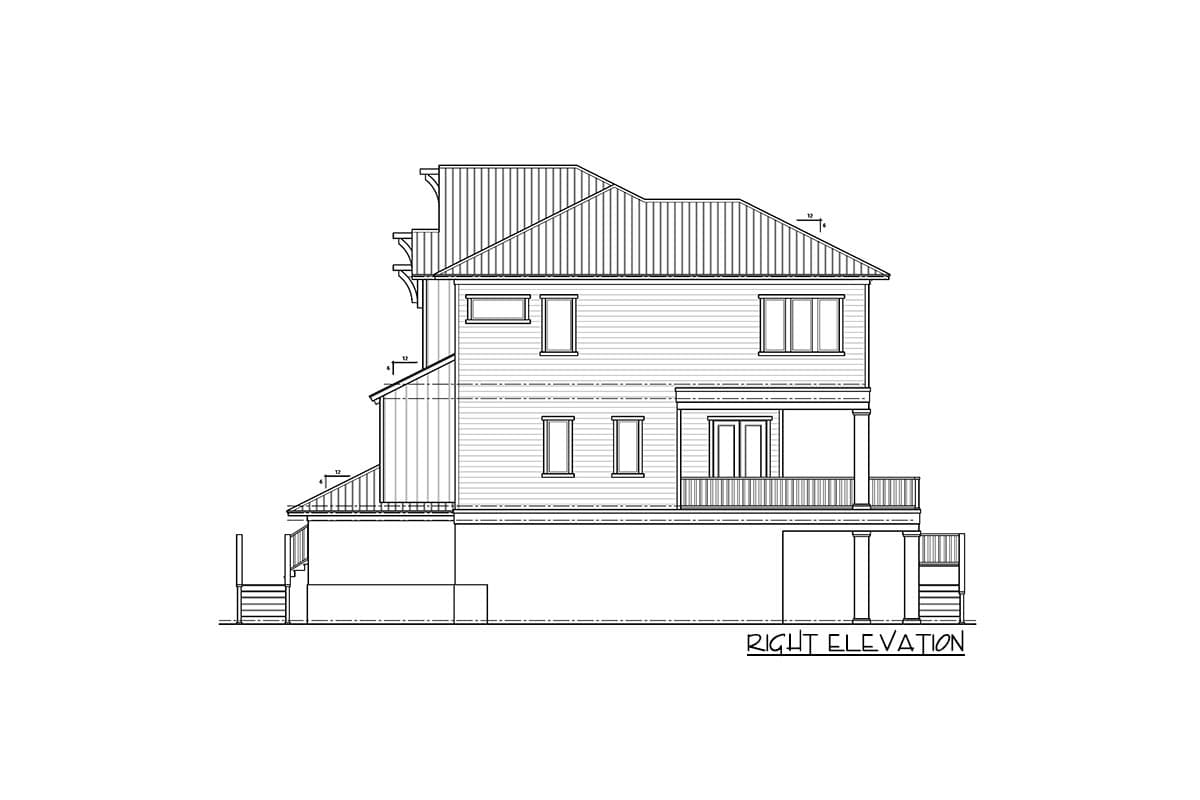

EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.



CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)



ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

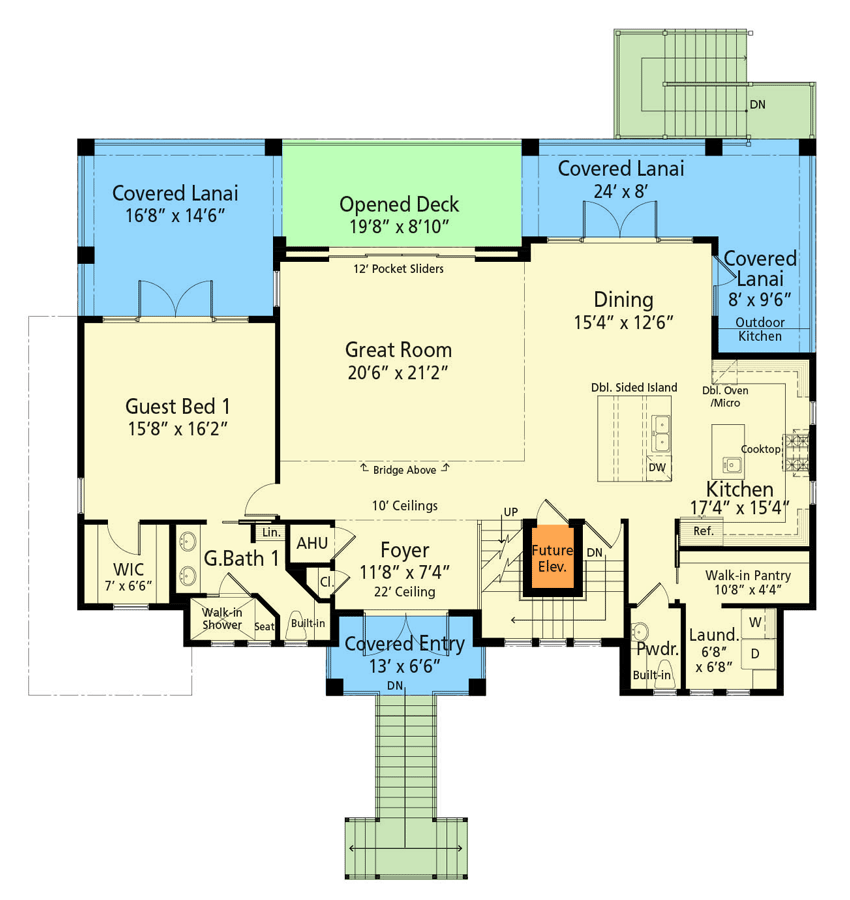

3-Story Coastal Contemporary Home Plan with 2-Story Great Room - 3123 Sq Ft - 33242ZR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

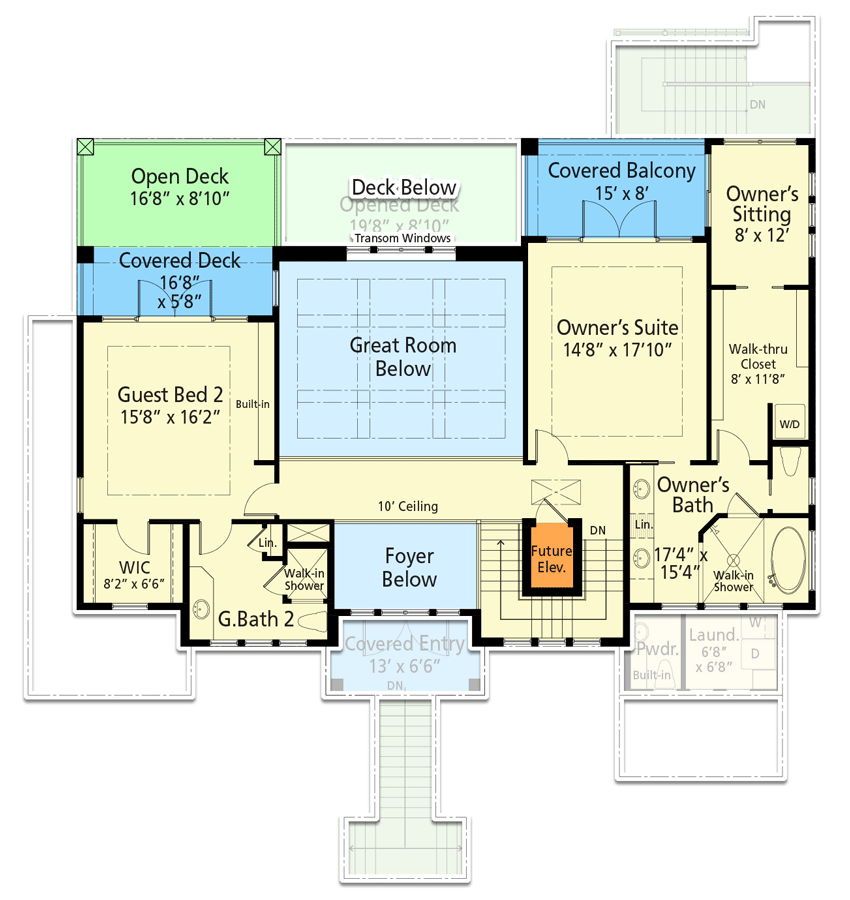

3-Story Coastal Contemporary Home Plan with 2-Story Great Room - 3123 Sq Ft - 33242ZR floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

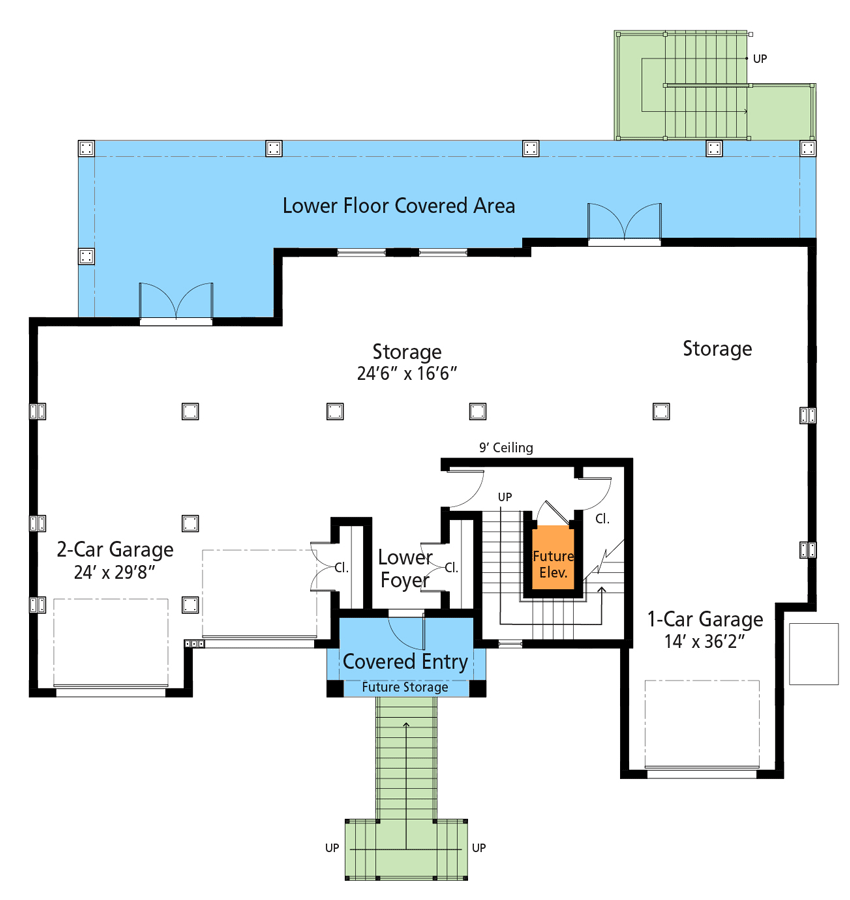

3-Story Coastal Contemporary Home Plan with 2-Story Great Room - 3123 Sq Ft - 33242ZR floor plan - Ground Level

3-Story Coastal Contemporary Home Plan with 2-Story Great Room - 3123 Sq Ft

  • 3,123

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 3

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Ground Level

Plan Details

Square Footage Breakdown

  • Total: 3,123 sq. ft.
  • 1st Floor: 1,695 sq. ft.
  • 2nd Floor: 1,428 sq. ft.

Dimensions

  • Width: 64' 4"
  • Depth: 69' 6"
  • Max ridge height: 42' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 2049 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"
