Plan 68672VR 30'-deep RV Garage Plan with Upstairs Loft

353 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

30'-deep RV Garage Plan with Upstairs Loft

Plan 68672VR

  • 353

    Heated s.f.

  • 2

    Stories

  • 2

    Cars

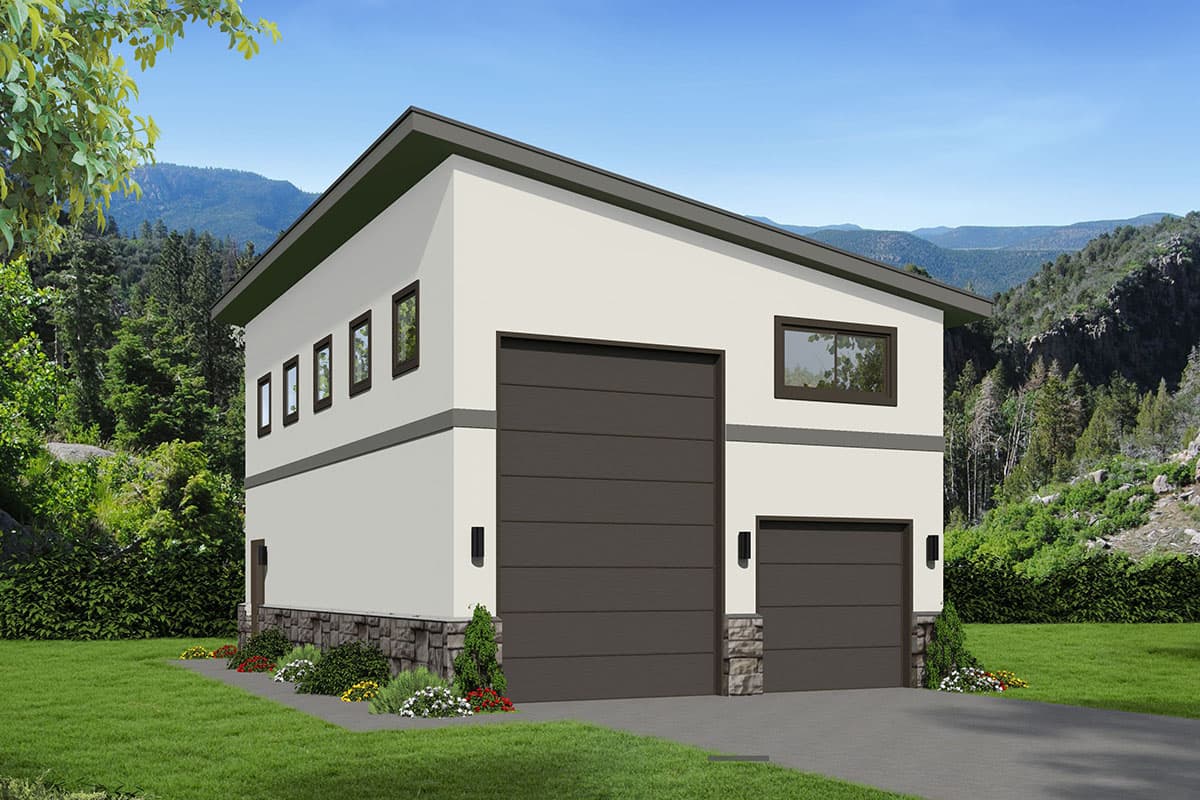

  • A slanted shed roof creates a vaulted ceiling in the large RV bay of this Contemporary garage plan.
  • Climb the stairs to reach an enormous loft studio.
  • There are plenty of windows to bring in light.
  • Related Plan: Get a deeper version with RV garage plan 68596VR. Get a 14' by 14' garage door with plan 68675VR

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

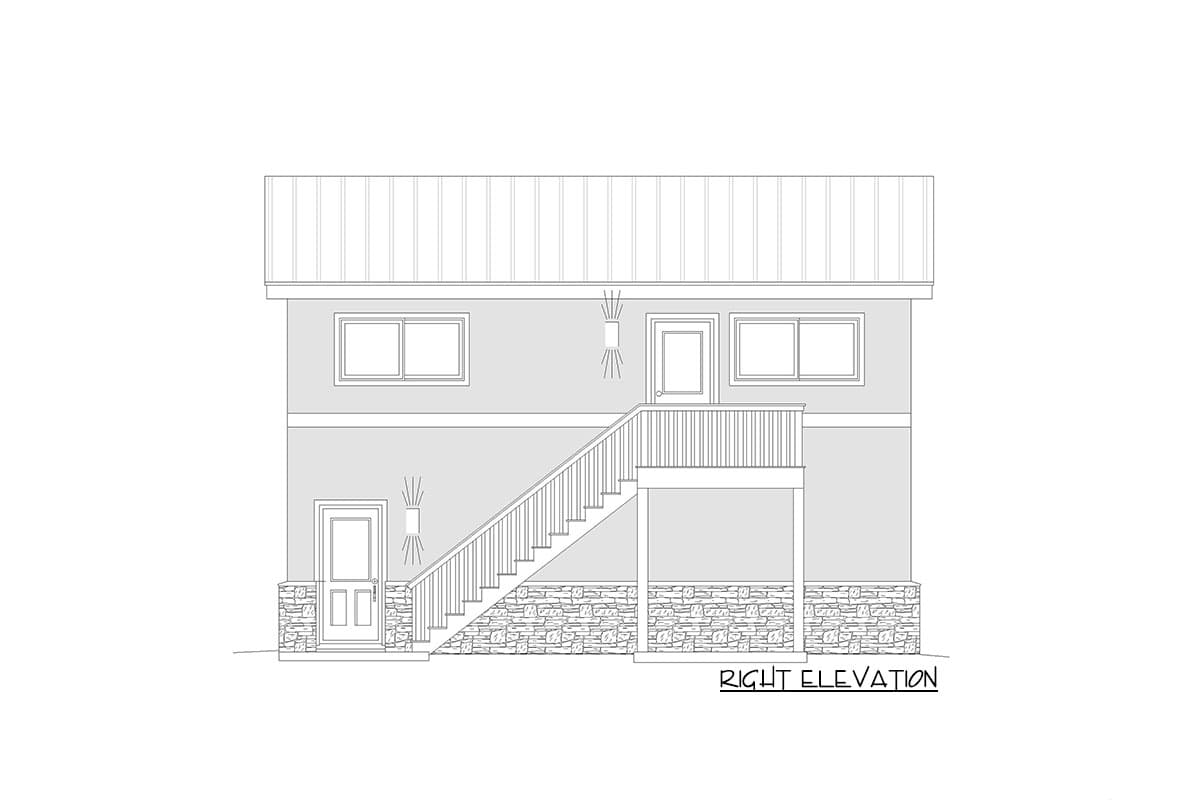

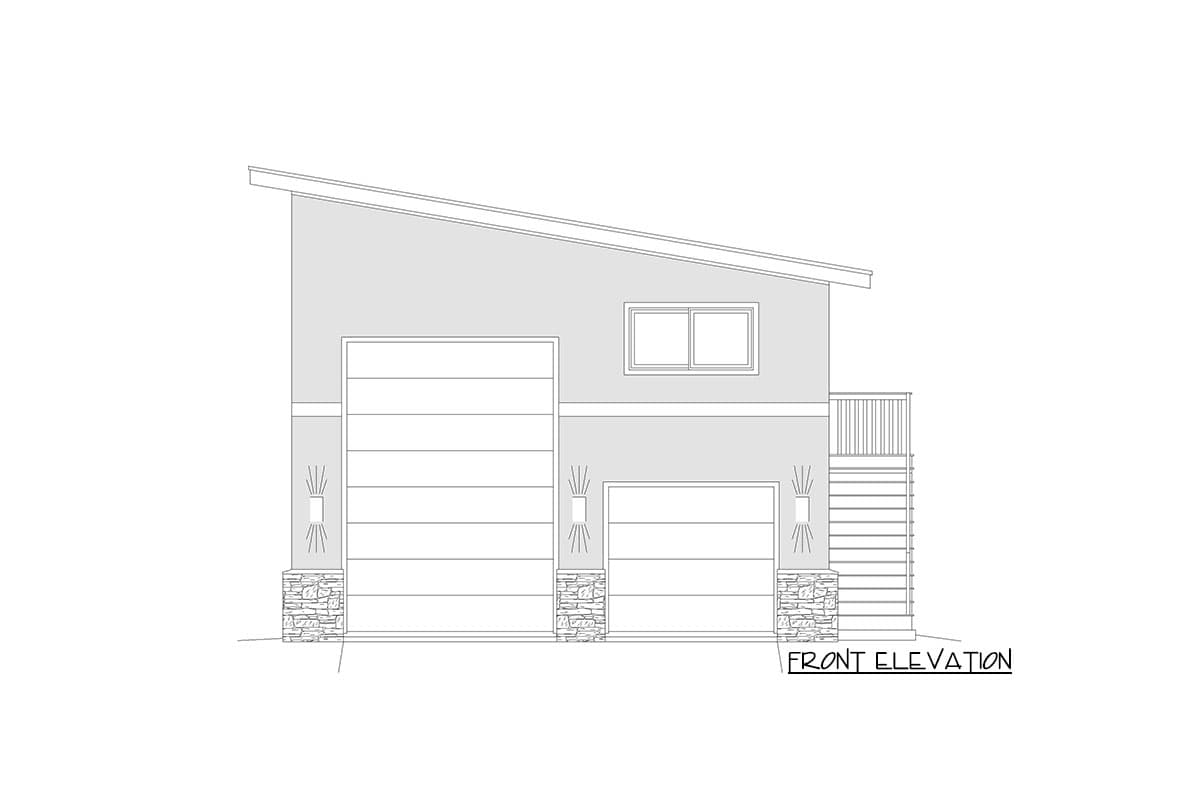

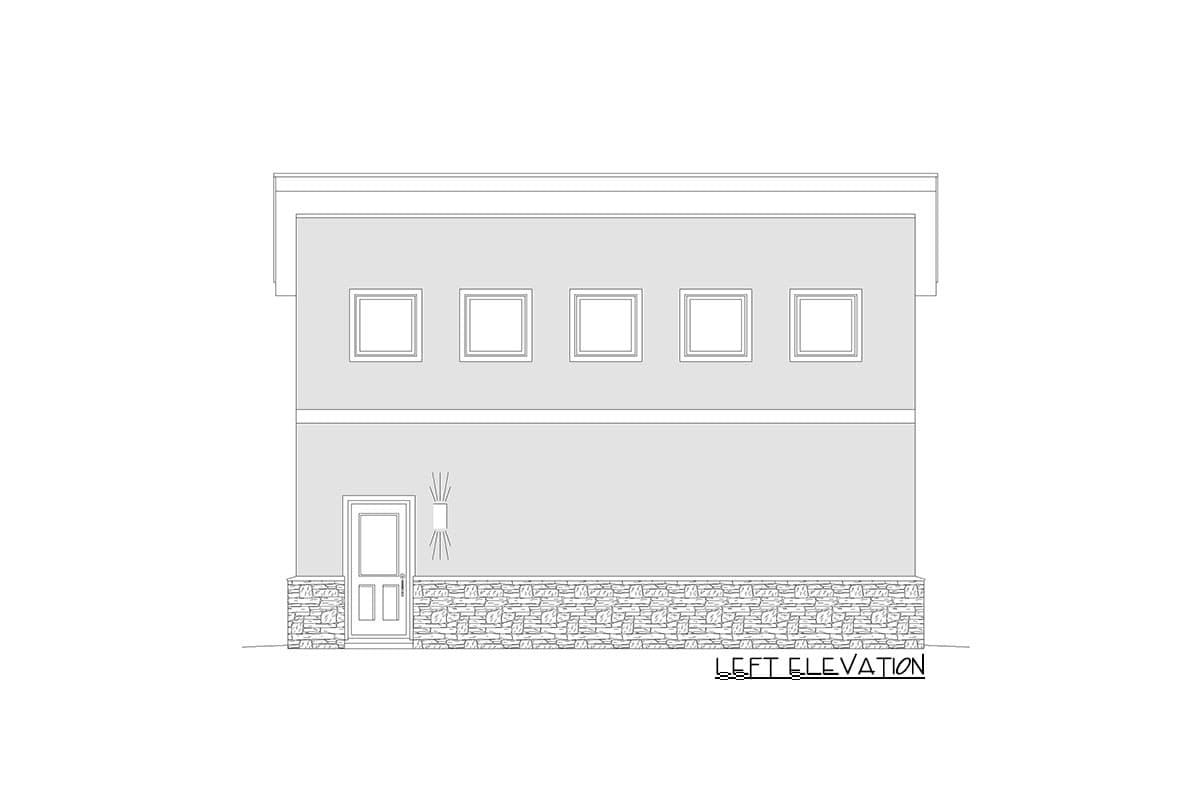

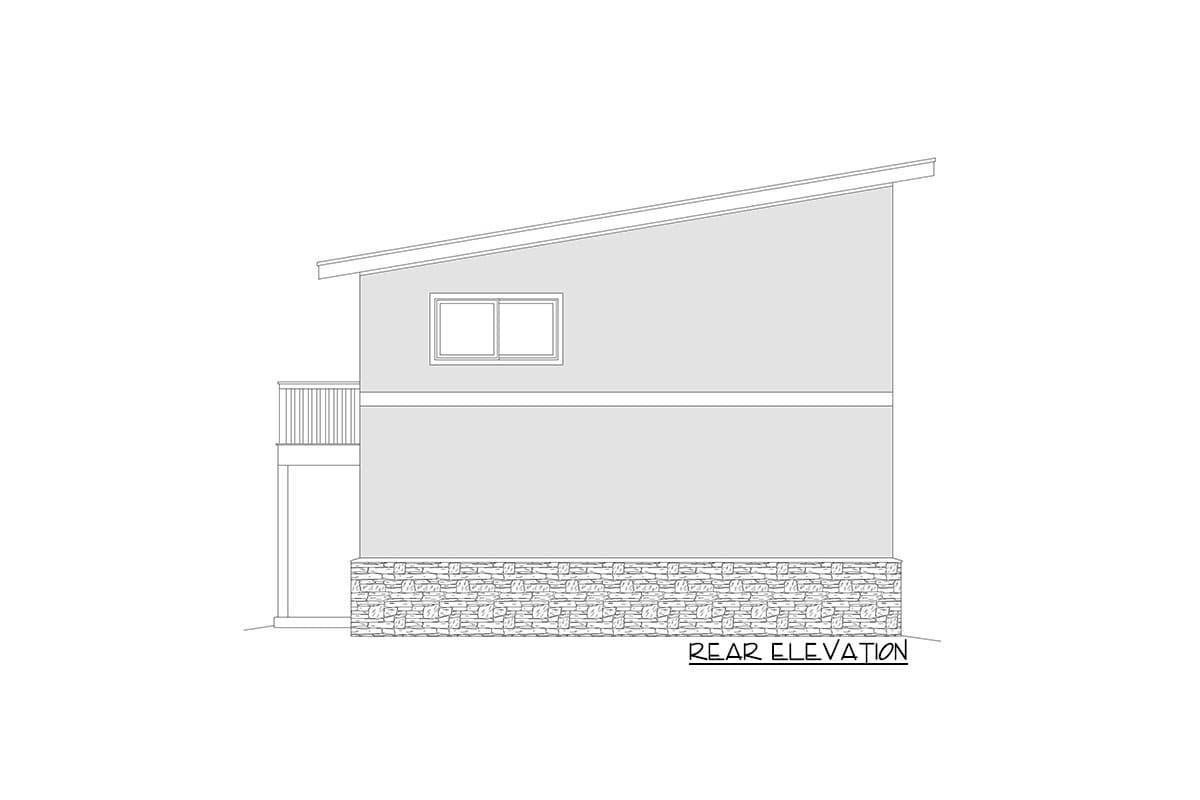

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

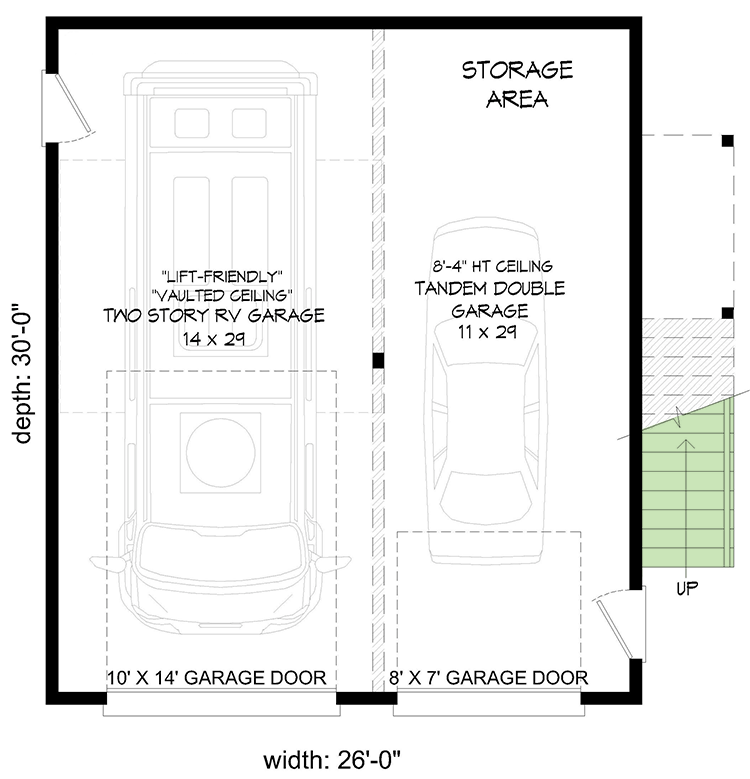

30'-deep RV Garage Plan with Upstairs Loft - 68672VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

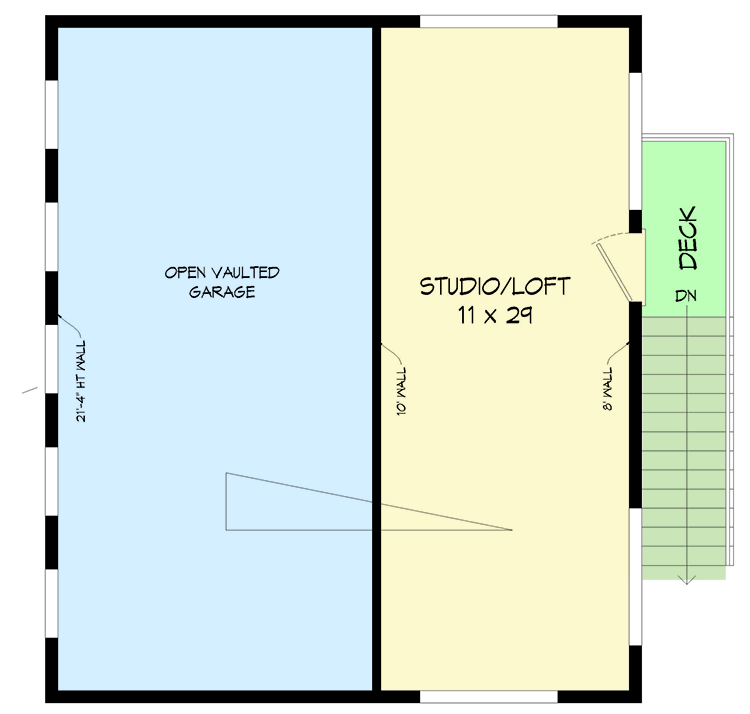

30'-deep RV Garage Plan with Upstairs Loft - 68672VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 353 sq. ft.
  • 2nd Floor: 353 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 26' 0"
  • Depth: 30' 0"
  • Max ridge height: 22' 6"

Garage

  • Type: RV Garage, Detached
  • Area: 780 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 4" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 2 on 12
  • Framing Type: Stick

Architectural Style

Special features

30'-deep RV Garage Plan with Upstairs Loft

  • 353

    Heated s.f.

  • Beds

  • 0

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $800
  • 5 Sets $875
  • 5 Sets + PDF $925
  • CAD + PDF - Single-Build $1,100
  • View all purchase option online

About This Plan

  • A slanted shed roof creates a vaulted ceiling in the large RV bay of this Contemporary garage plan.
  • Climb the stairs to reach an enormous loft studio.
  • There are plenty of windows to bring in light.
  • Related Plan: Get a deeper version with RV garage plan 68596VR. Get a 14' by 14' garage door with plan 68675VR

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 353 sq. ft.
  • 2nd Floor: 353 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 26' 0"
  • Depth: 30' 0"
  • Max ridge height: 22' 6"

Garage

  • Type: RV Garage, Detached
  • Area: 780 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 4" Second Floor / 8' 0"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Stick
Plan 68672VR
