4-5 Bed Modern Contemporary Plan with Luxurious Primary Suite and Rooftop Patio- 3402 Sq Ft

Heated S.F.
3,402
Beds
4 - 5
Baths
3.5 - 4.5
Stories
2-3
Cars
2

Floor Plan

Plan 81870AB

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level - Finished Walkout Basement
Lower Level - Finished Walkout Basement
3rd Floor - Roof Deck
3rd Floor - Roof Deck

Plan 81870AB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

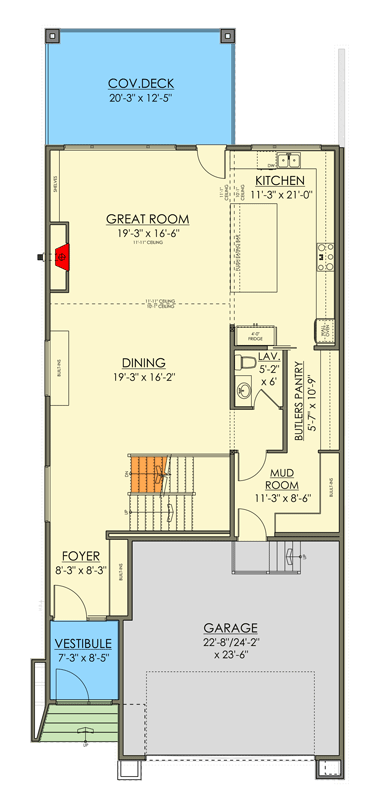

Plan 81870AB: 4-5 Bed Modern Contemporary Plan with Luxurious Primary Suite and Rooftop Patio- 3402 Sq Ft - Floor Plan - Main Level - Contemporary, Modern

2nd Floor

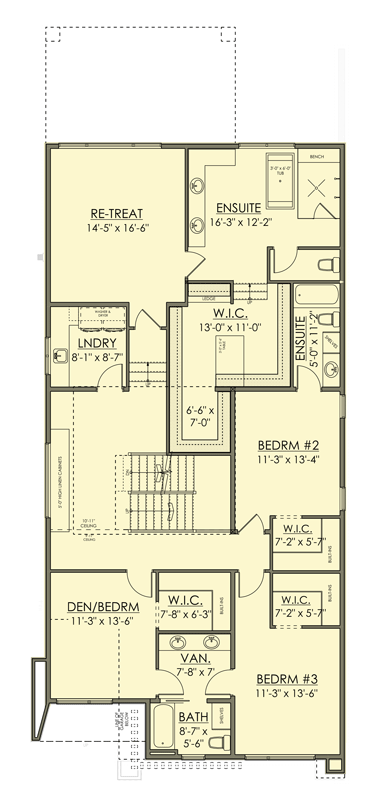

Plan 81870AB: 4-5 Bed Modern Contemporary Plan with Luxurious Primary Suite and Rooftop Patio- 3402 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Modern

Lower Level - Finished Walkout Basement

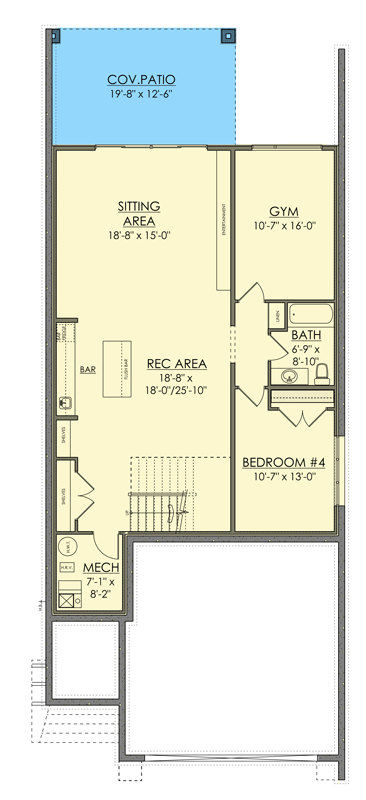

Plan 81870AB: 4-5 Bed Modern Contemporary Plan with Luxurious Primary Suite and Rooftop Patio- 3402 Sq Ft - Floor Plan - Lower Level - Finished Walkout Basement - Contemporary, Modern

3rd Floor - Roof Deck

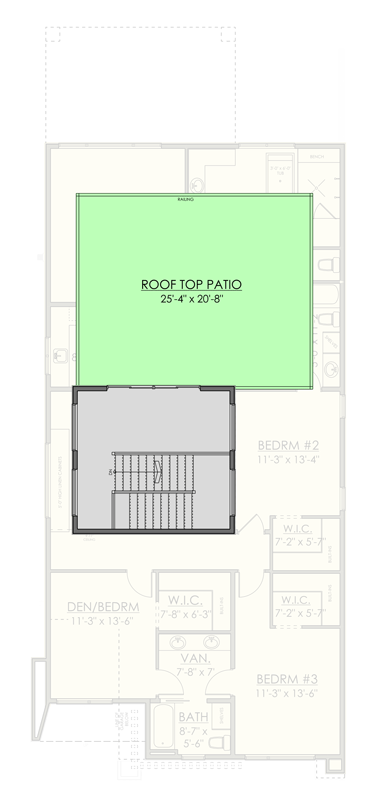

Plan 81870AB: 4-5 Bed Modern Contemporary Plan with Luxurious Primary Suite and Rooftop Patio- 3402 Sq Ft - Floor Plan - 3rd Floor - Roof Deck - Contemporary, Modern

Plan Details

  • With its sleek, boxy profile and Contemporary appeal, this 3,402-square-foot Modern house plan has 3 to 4.5 bathrooms and up to 5 bedrooms, with the owner's suite boasting a spa-style ensuite and massive walk-in closet.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

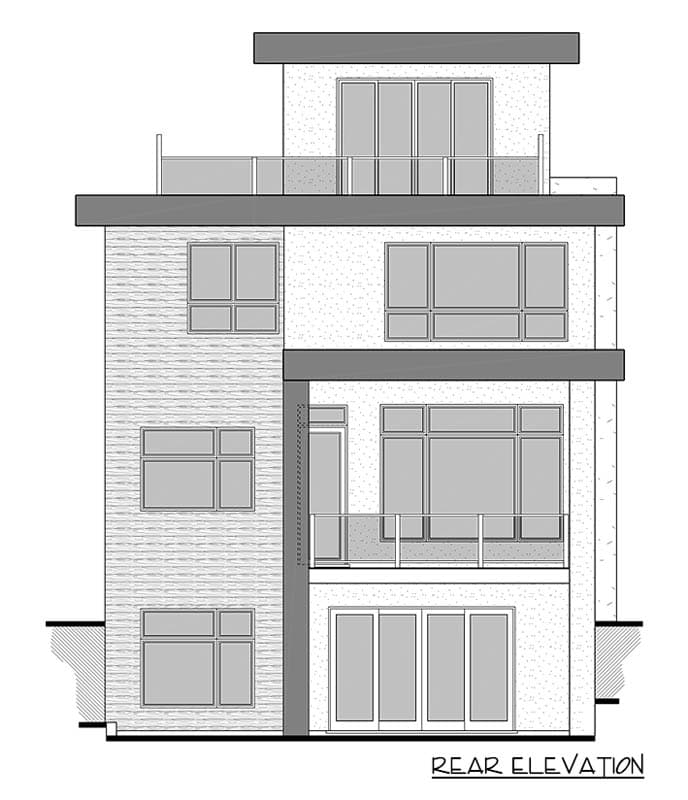

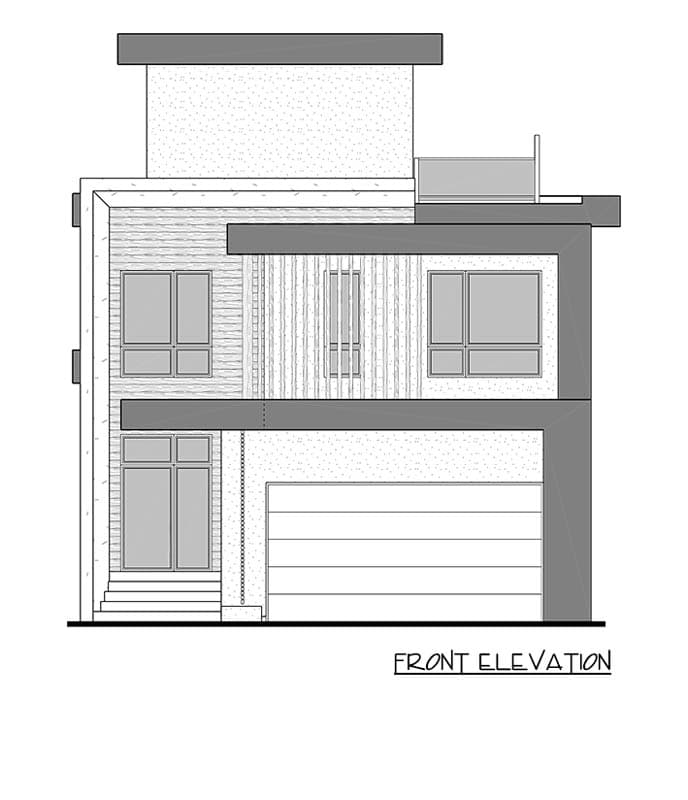

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan

What's Not Included

  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,402 sq. ft.

Lower Level

1,098 sq. ft.

1st Floor

1,440 sq. ft.

2nd Floor

1,940 sq. ft.

3rd Floor

242 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

66' 0"

Max Ridge Height

38' 7"

Garage

Type

Attached

Area

555 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 8"

First Floor

11' 1"

Second Floor

10' 1"

Roof Details

Primary Pitch

0 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Split

Den

Flex Room

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Multiple Stairs

Optionally Finished Bonus Room

Walk-in Pantry

Wet Bar
