4-Bed Coastal Contemporary House Plan with 4-Car Garage - 5625 Sq Ft

Plan 86117BW

  • 5,625

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2

    Stories

  • 4

    Cars

  • This 4-bed coastal contemporary house plan gives you 5625 square feet of heated living and features open floor plan, volume ceilings and multiple outdoor living spaces including one with a fireplace and summer kitchen. Other amenities include an island kitchen, 2 master bedroom suites and a rec room.
  • There is 1416 square feet of parking split between the left garage (718 sq. ft.) and the right garage (716 sq. ft).
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • Related Plan: Get an alternate version with house plan 86051BW

Elevations

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

 Floor Plans

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Size



Electrical Layouts

*Building Section Markers
*Electrical Outlets, Fixtures and Switching



Foundation Plan

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Electrical Locations



Roof Plan

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers



Building Sections

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated



Typical Wall Sections

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness



Miscellaneous Notes and Details

*Miscellaneous General Notes
*Stairway Details (if applicable)


These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

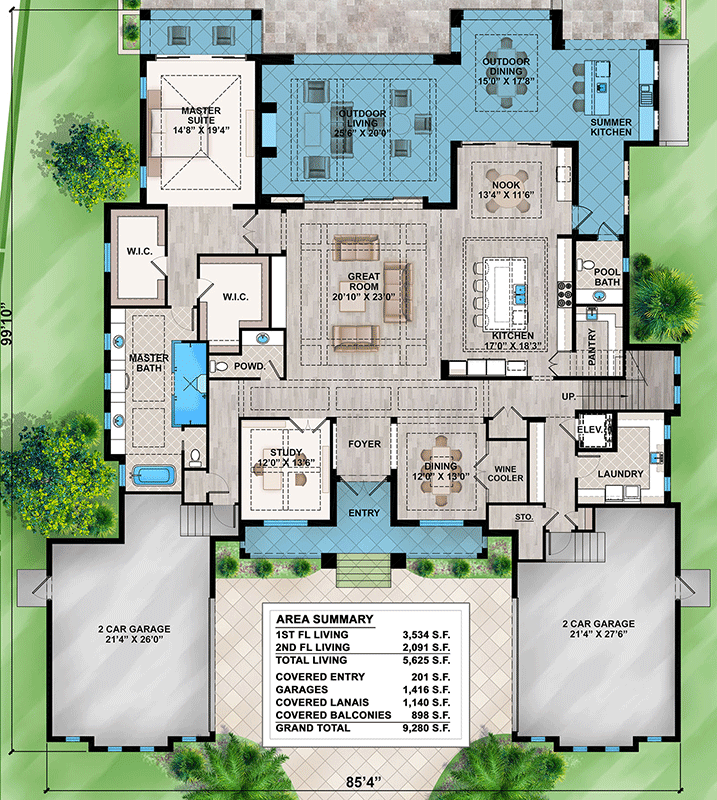

4-Bed Coastal Contemporary House Plan with 4-Car Garage - 5625 Sq Ft - 86117BW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

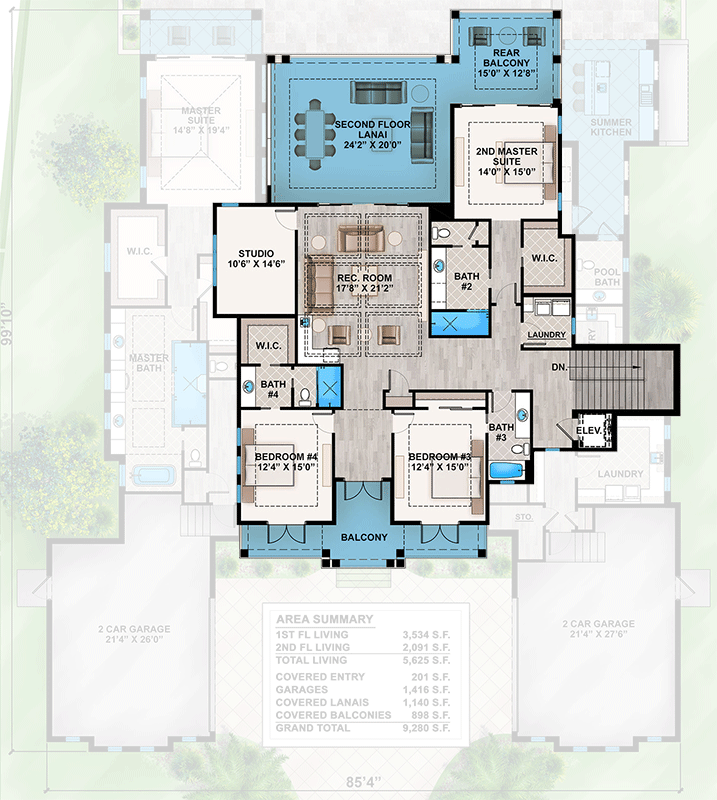

4-Bed Coastal Contemporary House Plan with 4-Car Garage - 5625 Sq Ft - 86117BW floor plan - 2nd Floor

4-Bed Coastal Contemporary House Plan with 4-Car Garage - 5625 Sq Ft

  • 5,625

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 5,625 sq. ft.
  • 1st Floor: 3,534 sq. ft.
  • 2nd Floor: 2,091 sq. ft.

Dimensions

  • Width: 85' 4"
  • Depth: 99' 10"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 1416 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Ceiling Heights

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

4-Bed Coastal Contemporary House Plan with 4-Car Garage - 5625 Sq Ft

  • 5,625

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

4-Bed Coastal Contemporary House Plan with 4-Car Garage - 5625 Sq Ft

  • 5,625

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 5,625 sq. ft.
  • 1st Floor: 3,534 sq. ft.
  • 2nd Floor: 2,091 sq. ft.

Dimensions

  • Width: 85' 4"
  • Depth: 99' 10"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 1416 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Ceiling Heights

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

    Main Level

    2nd Floor
