Plan 710156BTZ

4-Bed House Plan with 2-Level Porch

4-Bed House Plan with 2-Level Porch

Plan 710156BTZ

  • 3,052

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • The exterior of this 4-bed house plan features a two level porch, classic brick and steep gables. The garage doors are protected by a copper canopy, used for both function and design style.
  • The main floor is modern, light and airy. The family room has a coffered ceiling, fireplace and built-in cabinetry.
  • The kitchen with an island is integrated into the family room for interaction. The formal dining room or breakfast area provide space for any meal whether casual lunches or formal holiday gatherings.
  • The main floor bedroom is the perfect guest suite or could be a home office.
  • The upper level opens up with a loft. The master suite features a beamed ceiling and separate walk-in closets. The master bath has an angled double vanity, soaking tub and shower.
  • The secondary bedrooms have walk-in closets and share a compartmentalized bathroom.
  • Related Plan: Get an alternate version with house plan 710049BTZ.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations

Floor Plan

Plan details



4-Bed House Plan with 2-Level Porch

  • 3,052

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,375
  • 8 Sets $1,475
  • PDF - multi-use $1,620
  • Reproducible Set $1,700
  • CAD - multi-use $3,090
  • View all purchase option online

About This Plan

  • The exterior of this 4-bed house plan features a two level porch, classic brick and steep gables. The garage doors are protected by a copper canopy, used for both function and design style.
  • The main floor is modern, light and airy. The family room has a coffered ceiling, fireplace and built-in cabinetry.
  • The kitchen with an island is integrated into the family room for interaction. The formal dining room or breakfast area provide space for any meal whether casual lunches or formal holiday gatherings.
  • The main floor bedroom is the perfect guest suite or could be a home office.
  • The upper level opens up with a loft. The master suite features a beamed ceiling and separate walk-in closets. The master bath has an angled double vanity, soaking tub and shower.
  • The secondary bedrooms have walk-in closets and share a compartmentalized bathroom.
  • Related Plan: Get an alternate version with house plan 710049BTZ.

Floor Plans

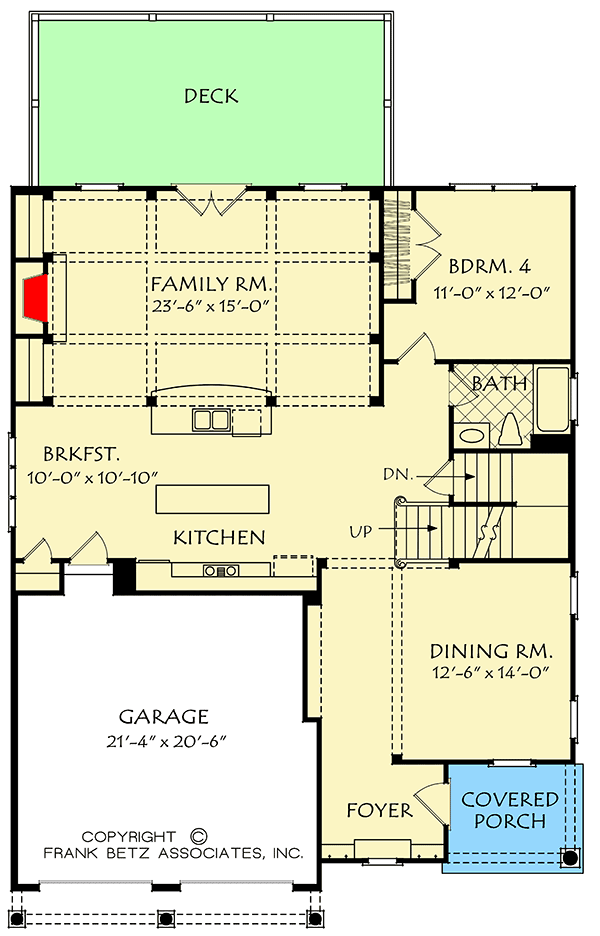

  • Main Level

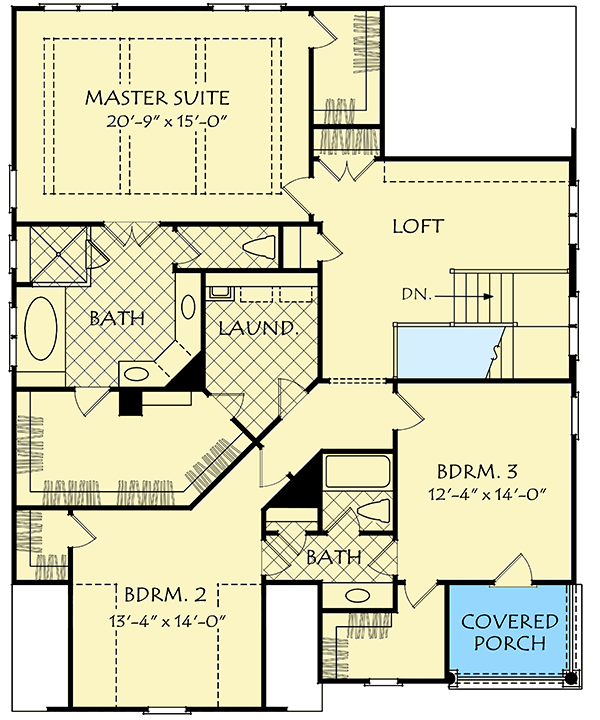

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,052 sq. ft.
  • 1st Floor: 1,446 sq. ft.
  • 2nd Floor: 1,606 sq. ft.
  • Basement Unfinished: 1,446 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 40' 0"
  • Depth: 50' 0"
  • Max ridge height: 33' 6"

Garage

  • Type: Attached
  • Area: 455 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
