Plan 710296BTZ

4-Bed House Plan with Vaulted Family Room

4-Bed House Plan with Vaulted Family Room

Plan 710296BTZ

  • 2,982

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

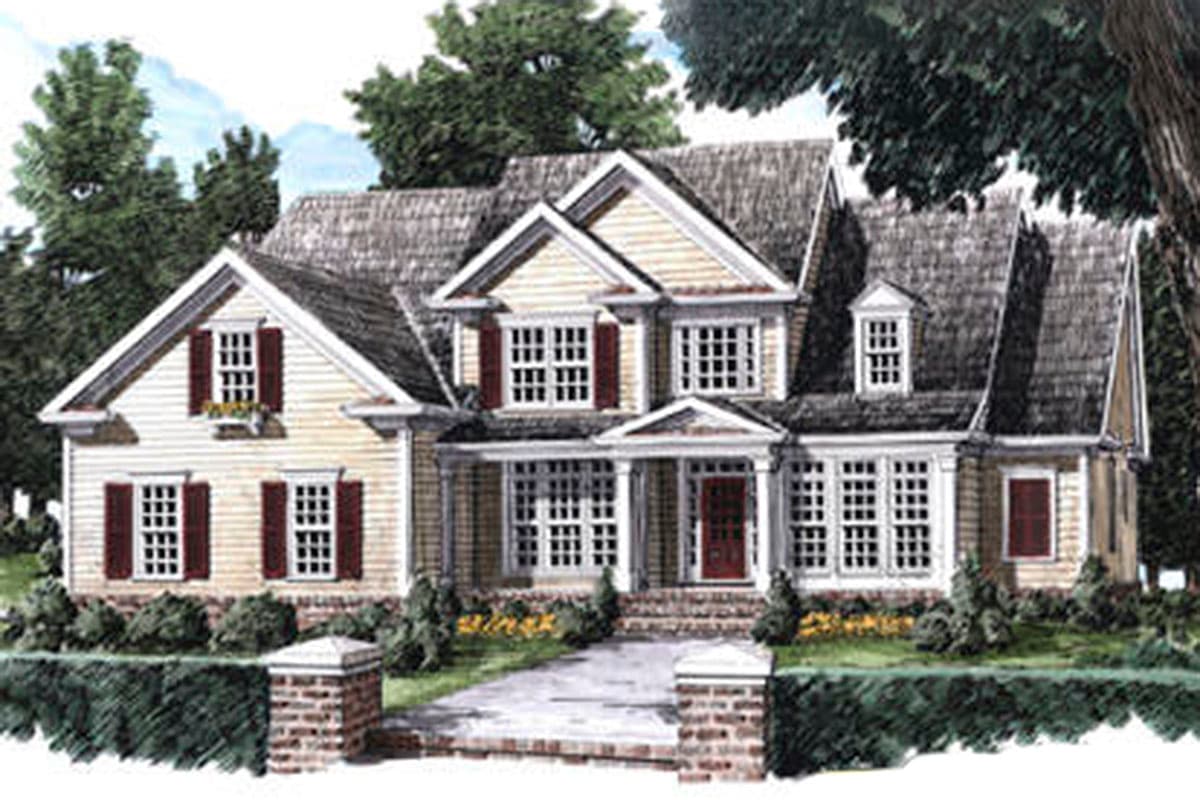

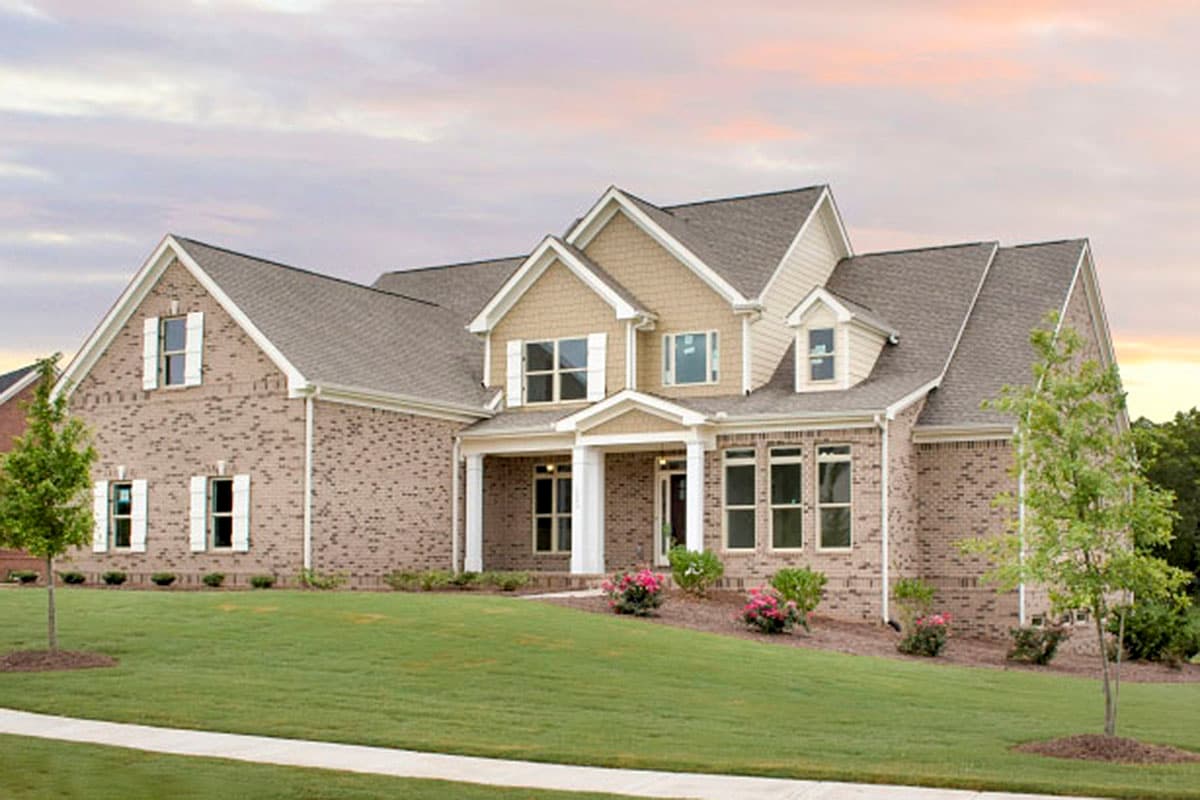

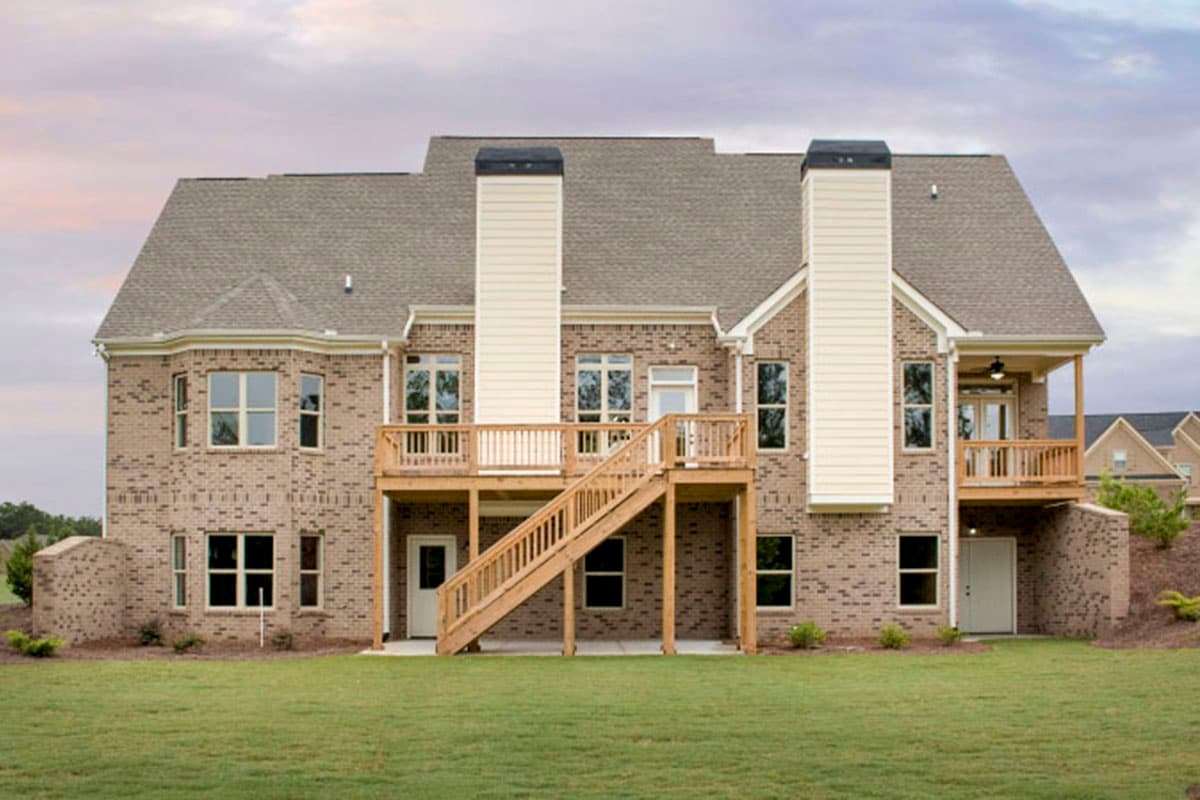

  • The clean and simple use of siding as the exterior material combines well with the multi-angled roofline to create an inviting front elevation for this 4-bed house plan.

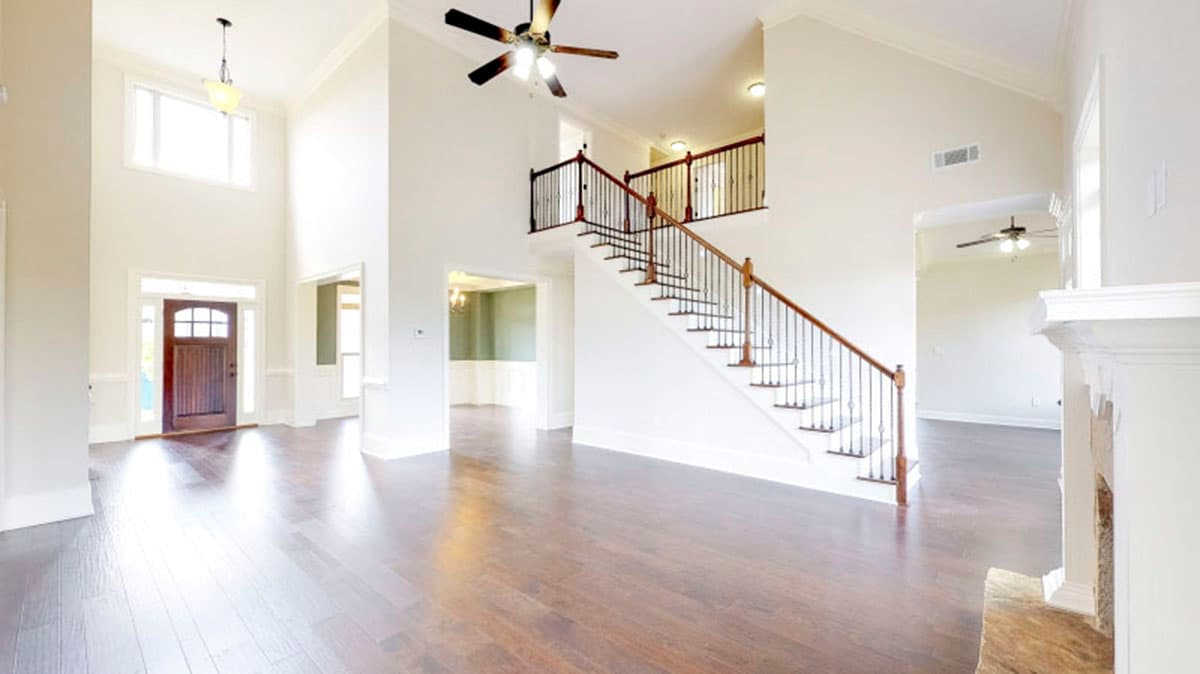

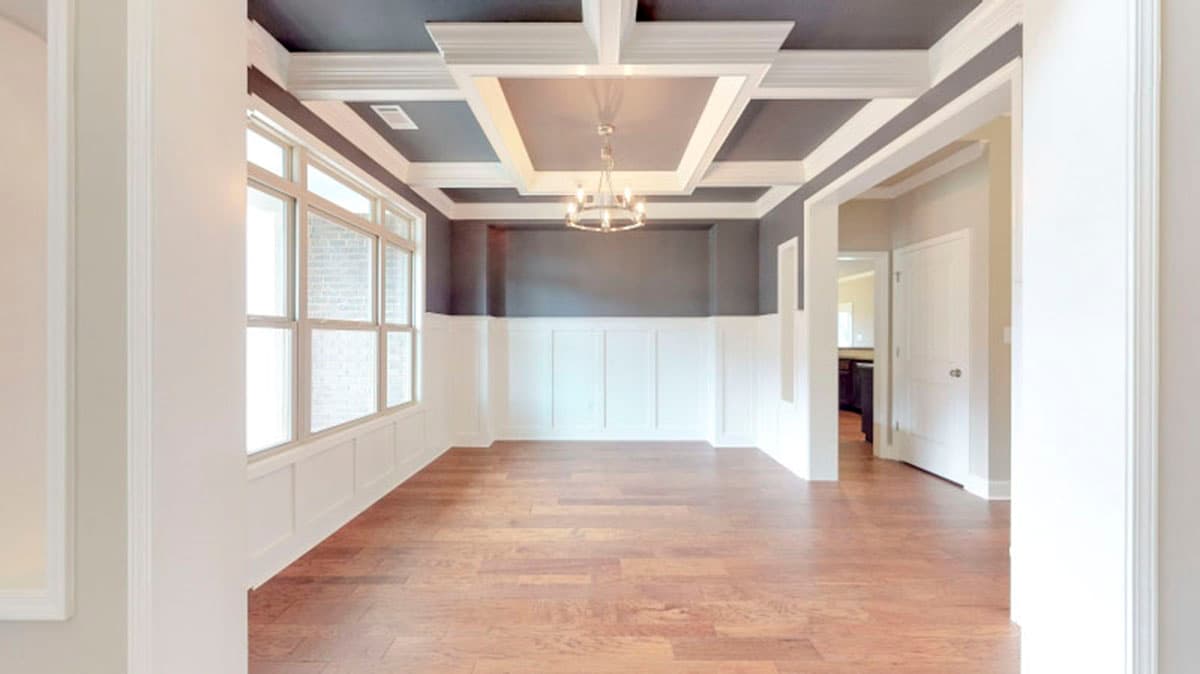

  • From the foyer you have views into the vaulted family room. French doors add privacy to the office to your right.

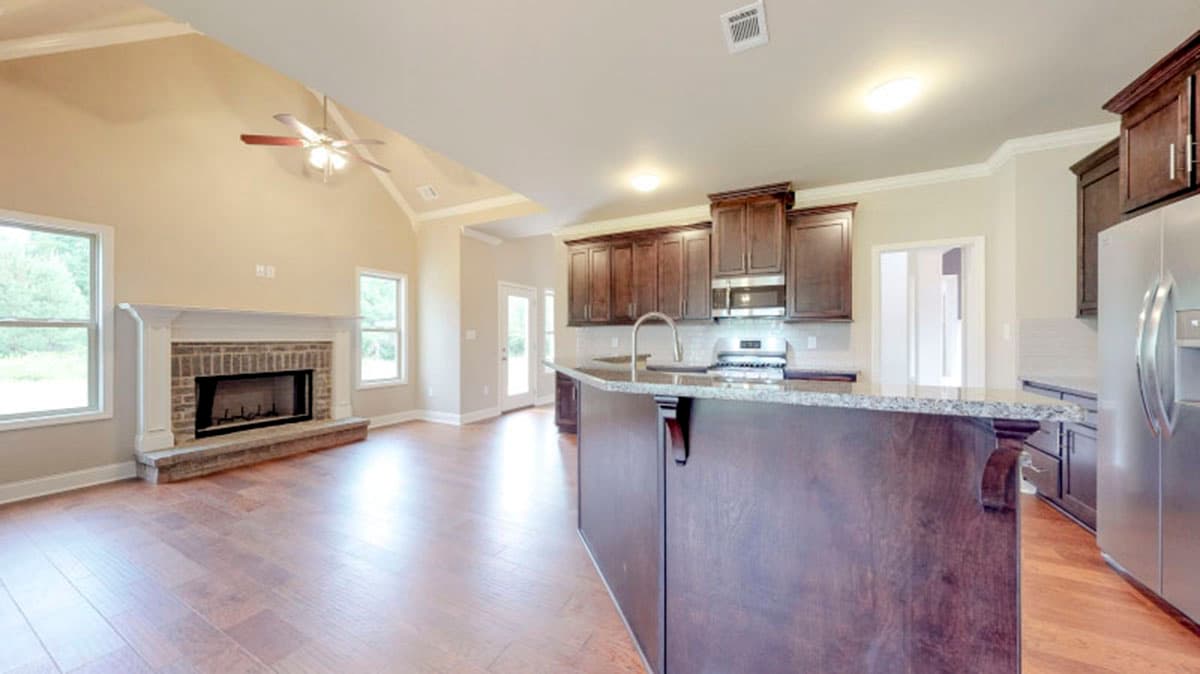

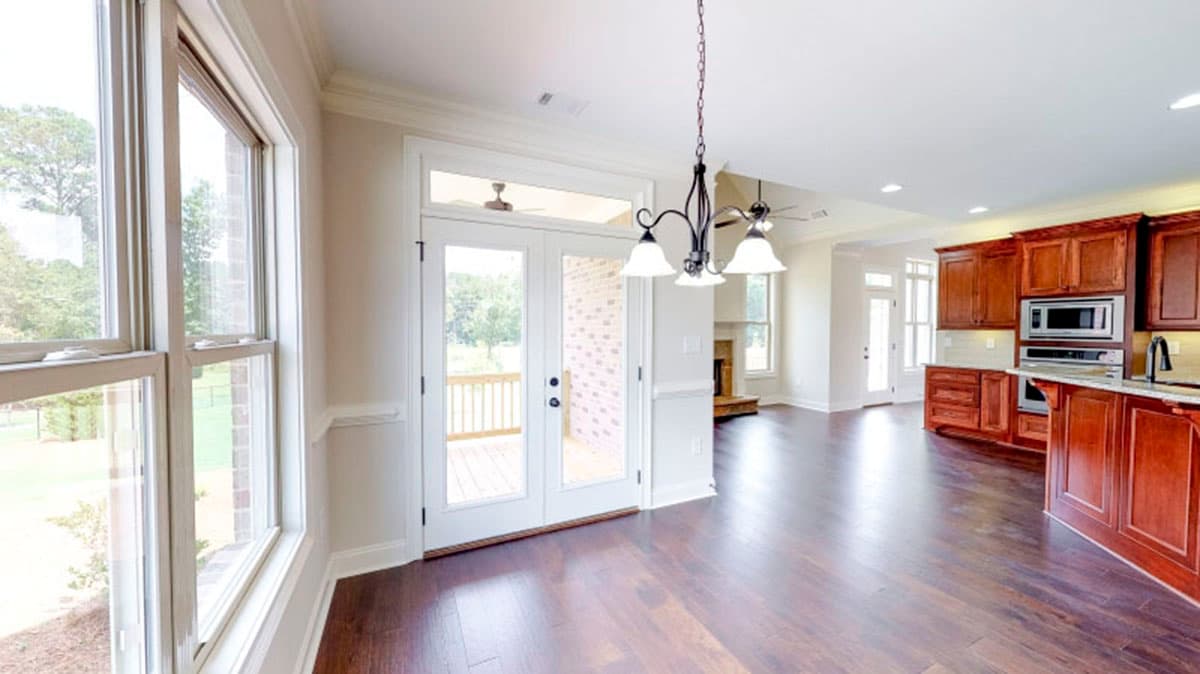

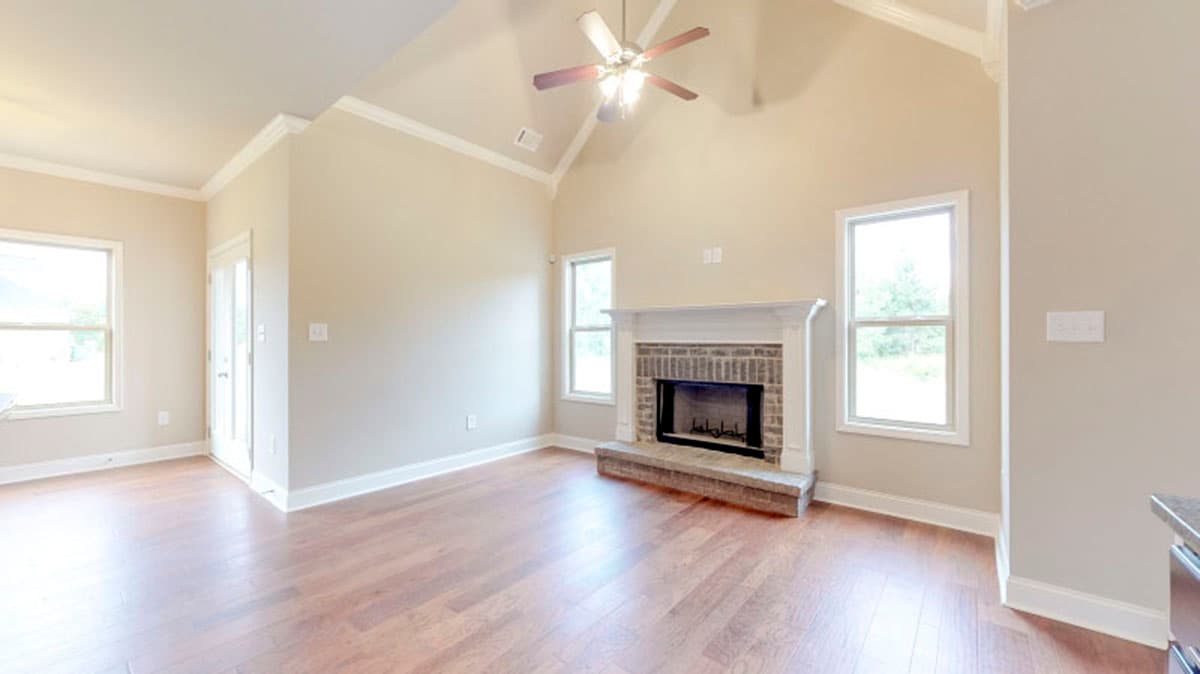

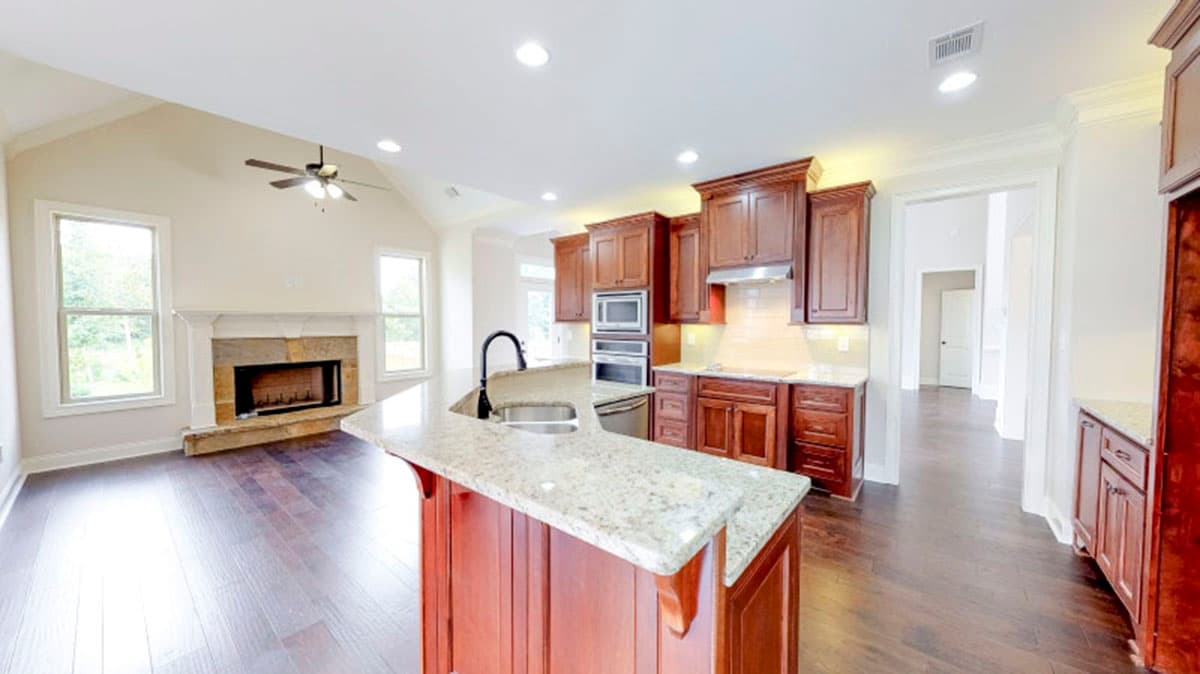

  • A vaulted keeping room is nestled into the kitchen area, giving families a casual and comfortable spot to gather.

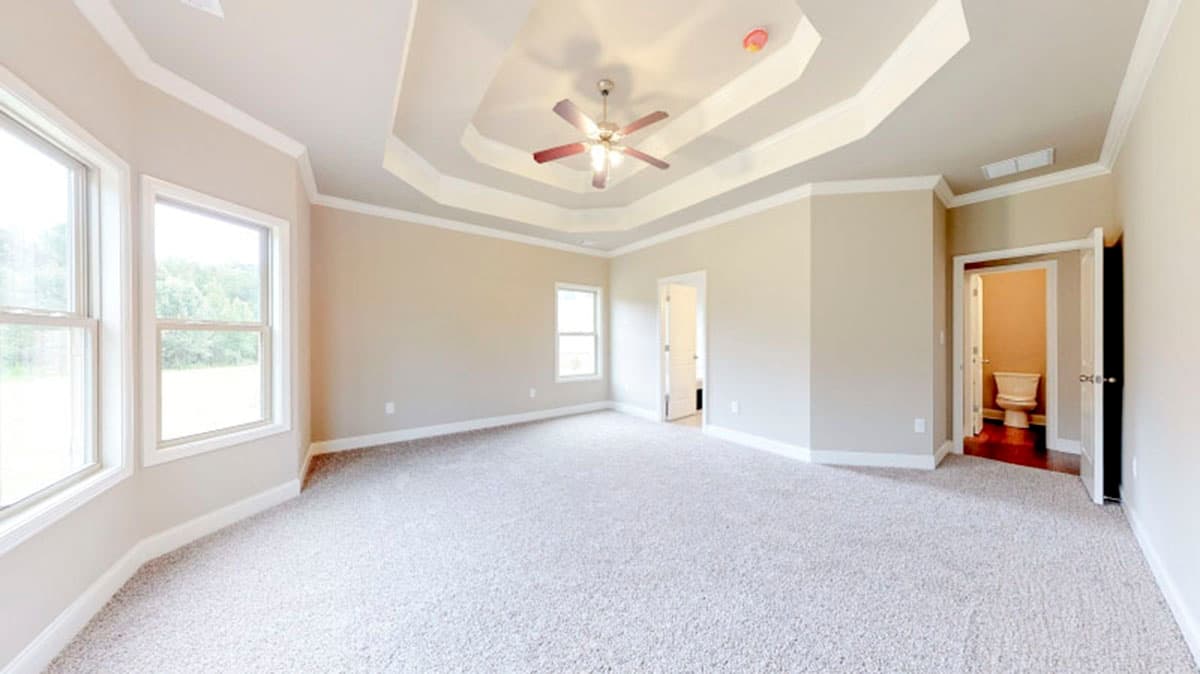

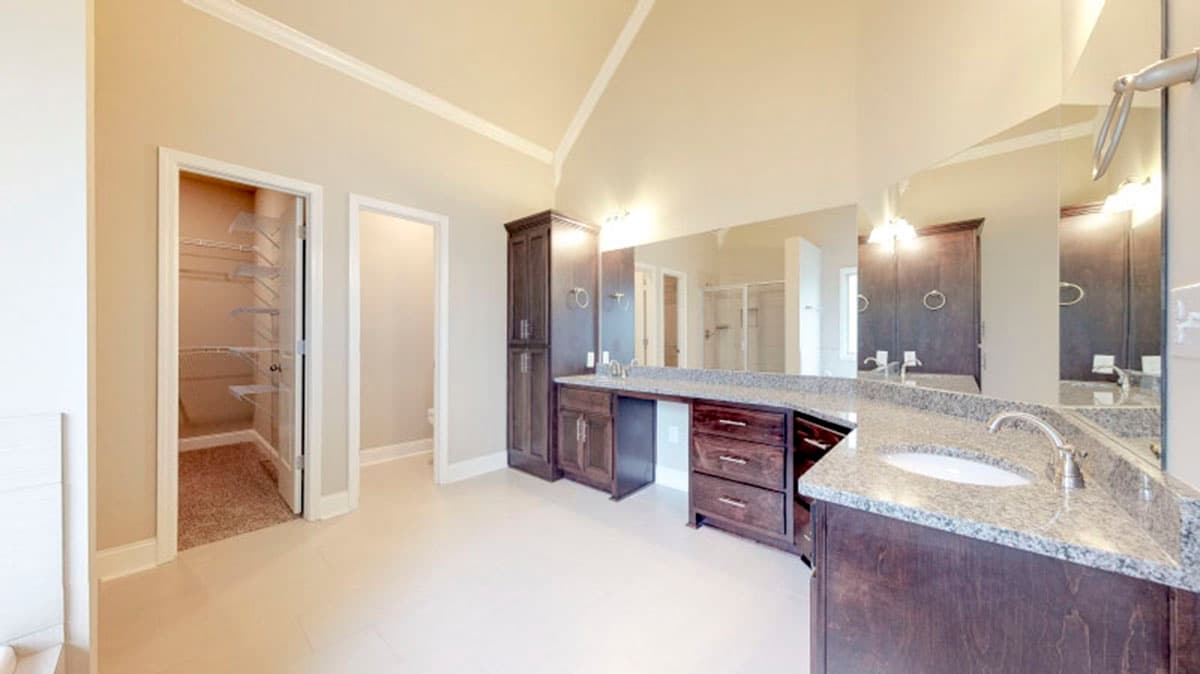

  • The master suite enjoys the privacy of being the only bedroom on the main level, while three additional bedrooms are incorporated to the upper level, one of which has a vaulted ceiling. Also upstairs, a loft overlooks the family room, making a perfect spot for a lounging area or homework station for kids.
  • Related Plans: Get alternate exteriors with house plans 710134BTZ710188BTZ and 710099BTZ.

The plans include the following:

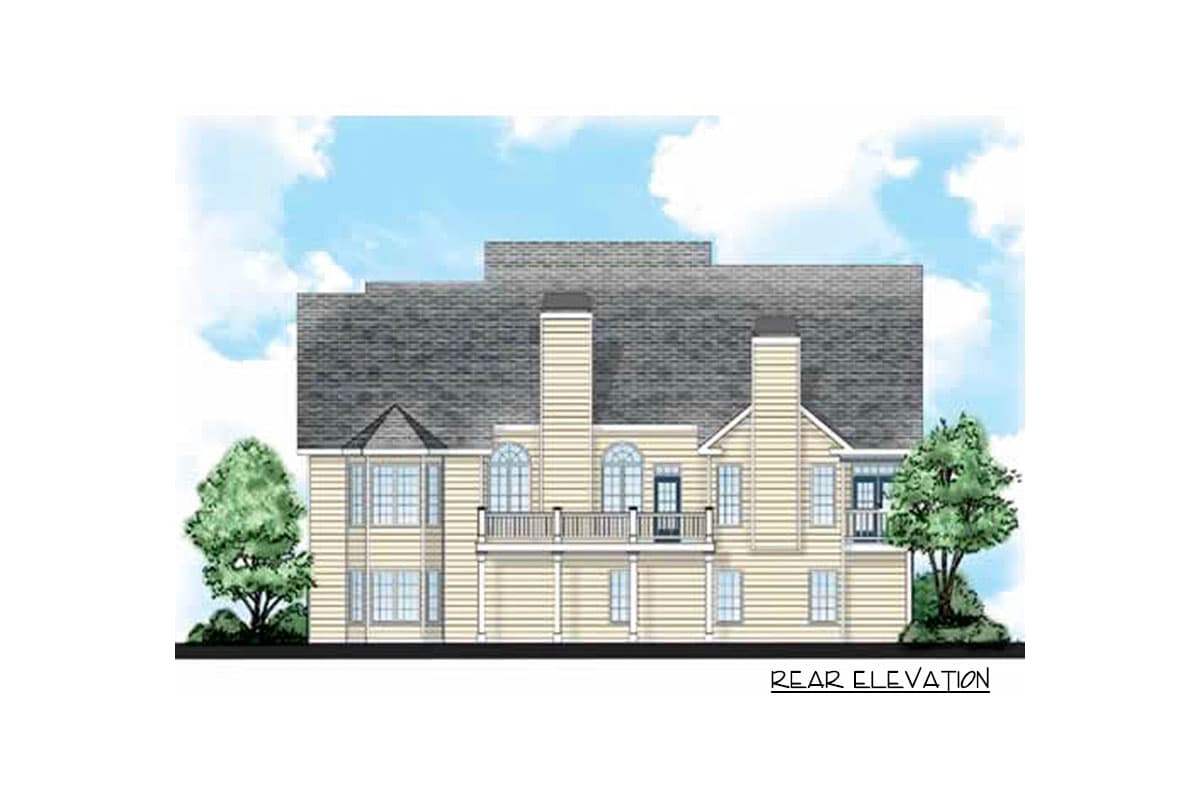

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.


Floor Plan

Plan details



4-Bed House Plan with Vaulted Family Room

  • 2,982

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,280
  • 8 Sets $1,380
  • PDF - multi-use $1,490
  • Reproducible Set $1,565
  • CAD - multi-use $2,850
  • View all purchase option online

About This Plan

  • The clean and simple use of siding as the exterior material combines well with the multi-angled roofline to create an inviting front elevation for this 4-bed house plan.
  • From the foyer you have views into the vaulted family room. French doors add privacy to the office to your right.
  • A vaulted keeping room is nestled into the kitchen area, giving families a casual and comfortable spot to gather.
  • The master suite enjoys the privacy of being the only bedroom on the main level, while three additional bedrooms are incorporated to the upper level, one of which has a vaulted ceiling. Also upstairs, a loft overlooks the family room, making a perfect spot for a lounging area or homework station for kids.
  • Related Plans: Get alternate exteriors with house plans 710134BTZ710188BTZ and 710099BTZ.

Floor Plans

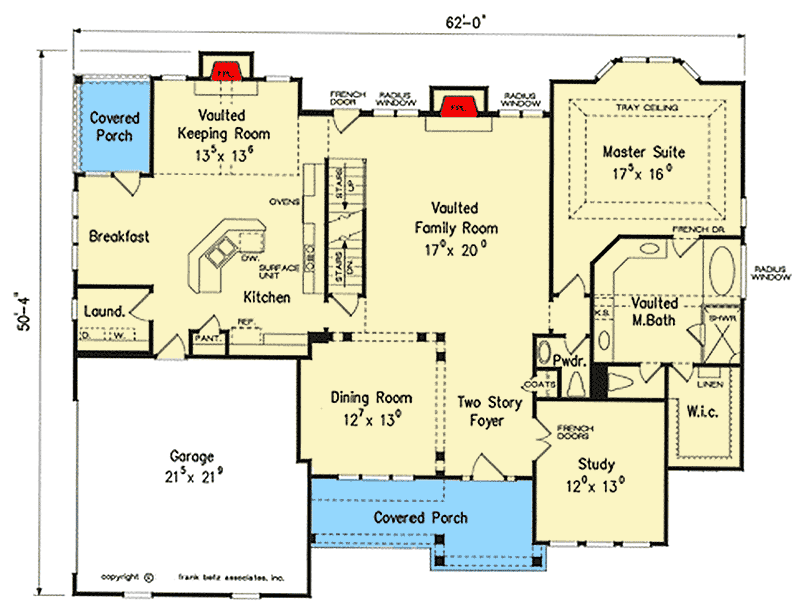

  • Main Level

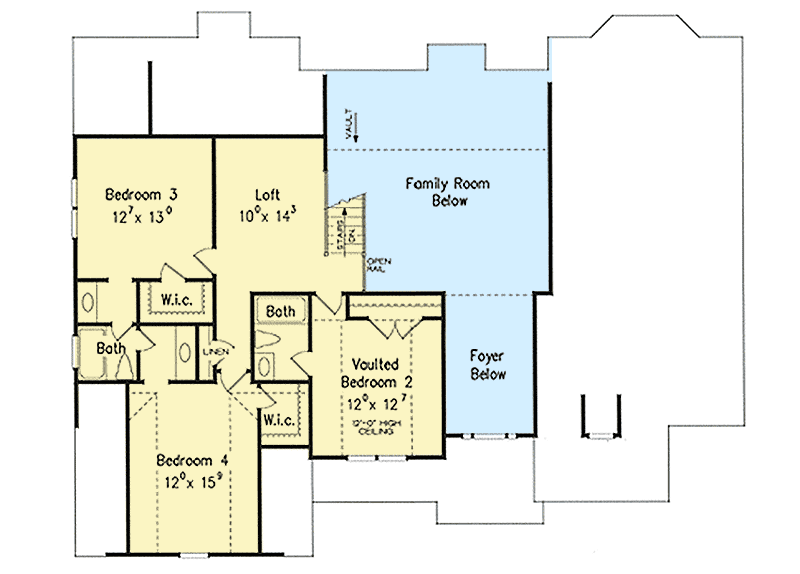

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,982 sq. ft.
  • 1st Floor: 2,024 sq. ft.
  • 2nd Floor: 958 sq. ft.
  • Basement Unfinished: 2,024 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 62' 0"
  • Depth: 50' 4"
  • Max ridge height: 30' 6"

Garage

  • Type: Attached
  • Area: 471 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
