4-Bed Modern Craftsman with Entertaining in Back

Plan 270011AF

  • 3,460

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

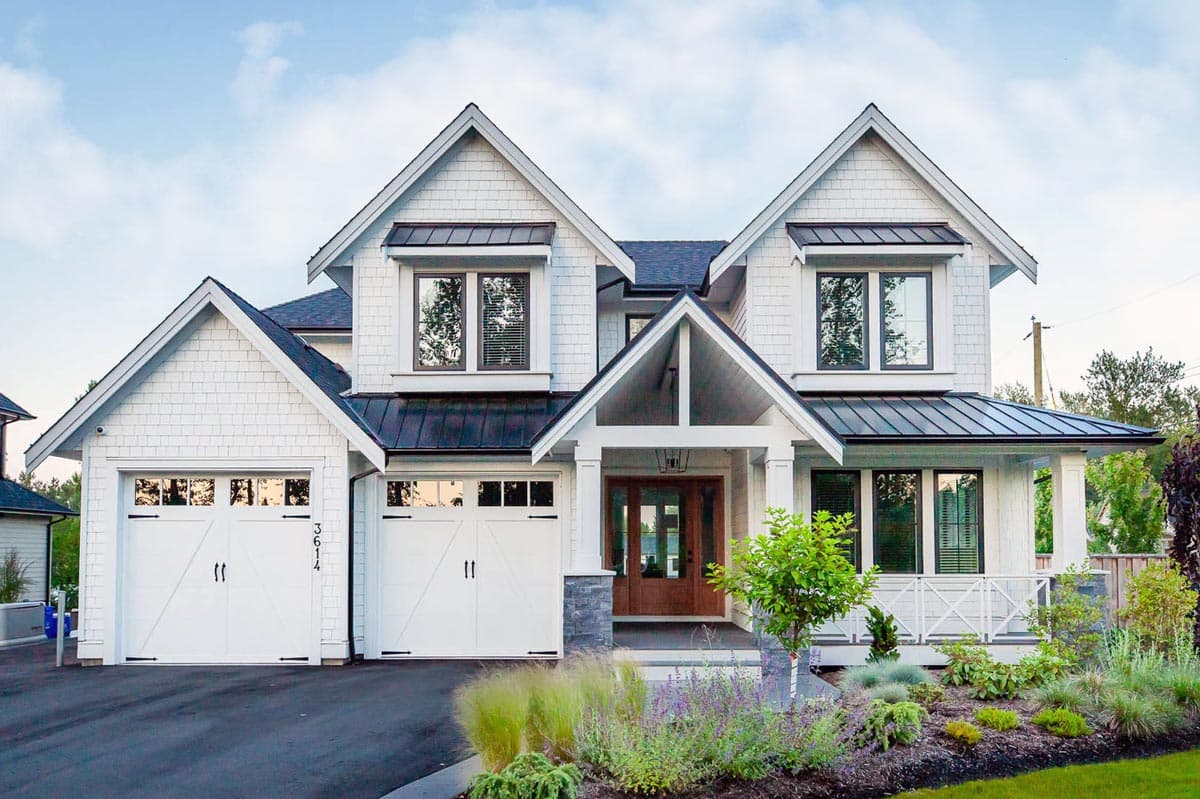

  • Two sturdy gables flank the vaulted covered entry, while a series of standing seam metal roofs, including one over the front porch, give this modern, Craftsman house plan incredible curb appeal.
  • French doors off the foyer open to your study with a boxed bay window in front. Back in the foyer, your views extend to the back of the home, where an open floor plan makes for great entertaining.
  • The kitchen has a large, working island with casual seating on the great room side. A walk-in pantry gives you great storage, and a functional barn door reveals the mudroom, making unloading groceries a breeze.
  • Two sets of french doors - one from the eating area and the other from the great room - take you to the vaulted deck in back. The ceiling rises to the second floor creating a magical place to enjoy the views.
  • Upstairs, a loft area overlooks the the great room. Three of the four upstairs bedrooms have vaulted ceilings, including the two in front and the master suite, with a rear deck. A roomy laundry room is conveniently located to all the bedrooms.
  • Related Plan: Get an alternate exterior with house plan 270010AF.

This plan set includes the following:

  • Foundation Plan - Footing sizes, slab thickness, floor framing notes, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof framing notes, roof pitch, attic venting, overhangs, roof finish materials, etc.
  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Sections and Notes - Cut through views of the home
  • Details - Dissected drawings of typical construction details
What is NOT included in the plans:

  •           Architectural or Engineering Stamp - handled locally if required
  •           Site Plan - handled locally when required
  •           Electrical plan
  •           Mechanical Drawings (location of heating and air equipment and duct work) — your subcontractors handle this
  •           Framing layouts with beam sizes and locations
  •           Material lists
  •           Energy calculations - handled locally when required
  •   Renderings, photography, or marketing imagery

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

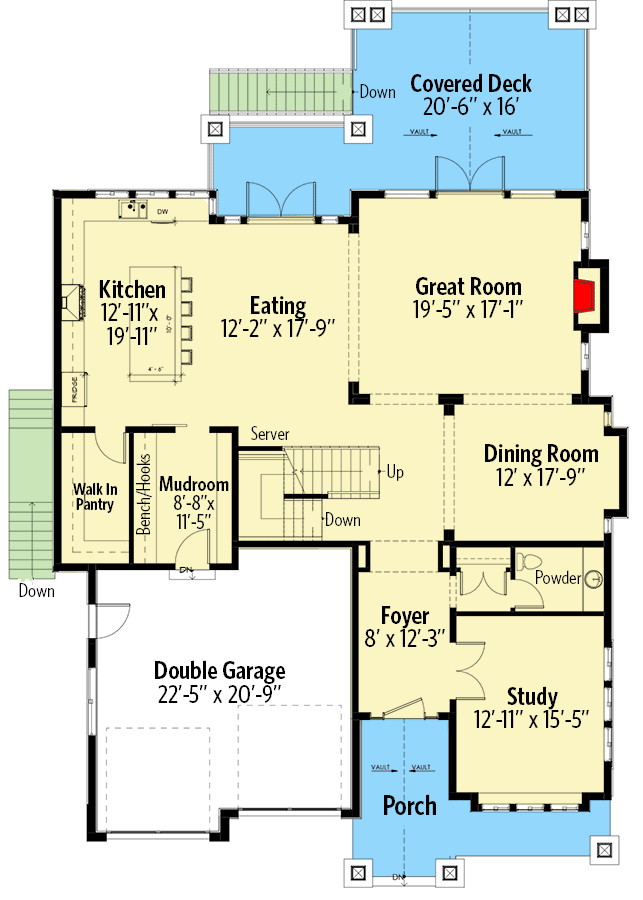

4-Bed Modern Craftsman with Entertaining in Back - 270011AF floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

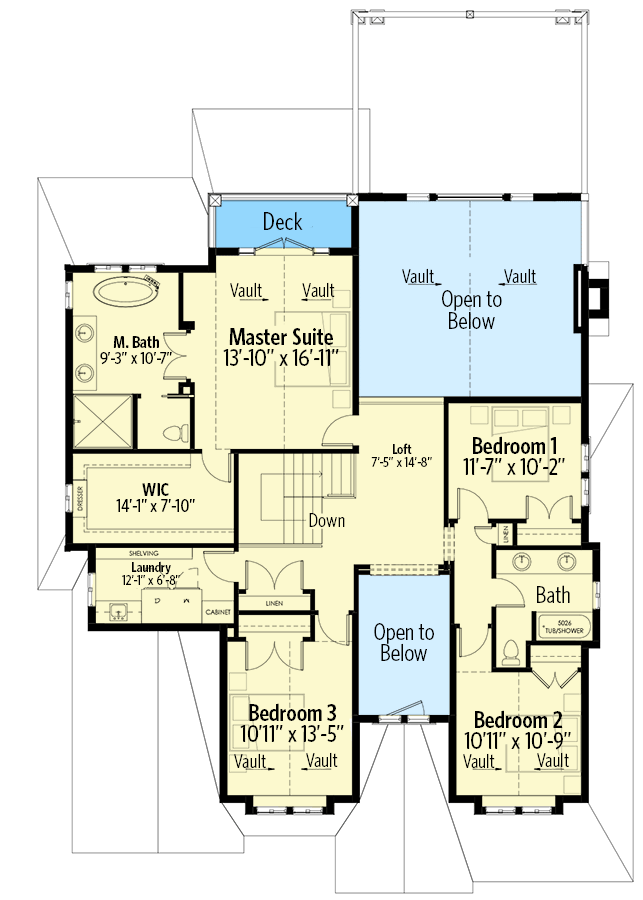

4-Bed Modern Craftsman with Entertaining in Back - 270011AF floor plan - 2nd Floor

Optional Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

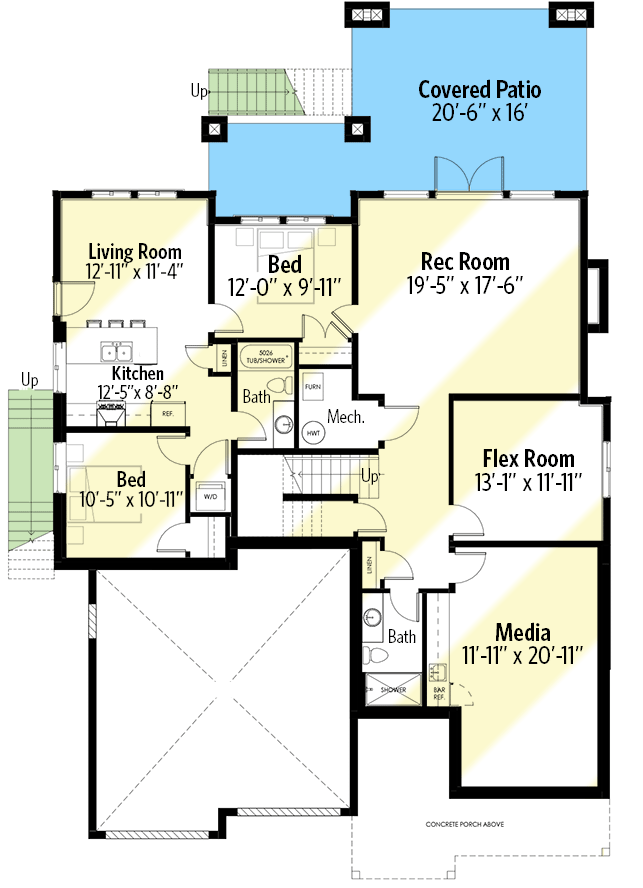

4-Bed Modern Craftsman with Entertaining in Back - 270011AF floor plan - Optional Lower Level

Unfinished Basement

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

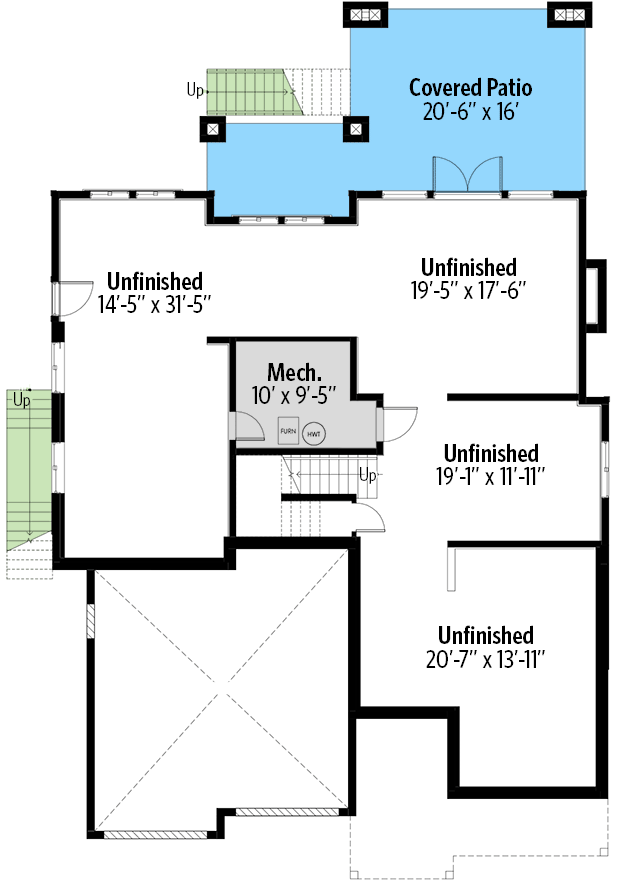

4-Bed Modern Craftsman with Entertaining in Back - 270011AF floor plan - Unfinished Basement

4-Bed Modern Craftsman with Entertaining in Back

  • 3,460

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level

  • Unfinished Basement

Plan Details

Square Footage Breakdown

  • Total: 3,460 sq. ft.
  • 1st Floor: 1,908 sq. ft.
  • 2nd Floor: 1,552 sq. ft.

Dimensions

  • Width: 49' 10"
  • Depth: 76' 10"
  • Max ridge height: 31' 2"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 563 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"
