Plan 270091AF

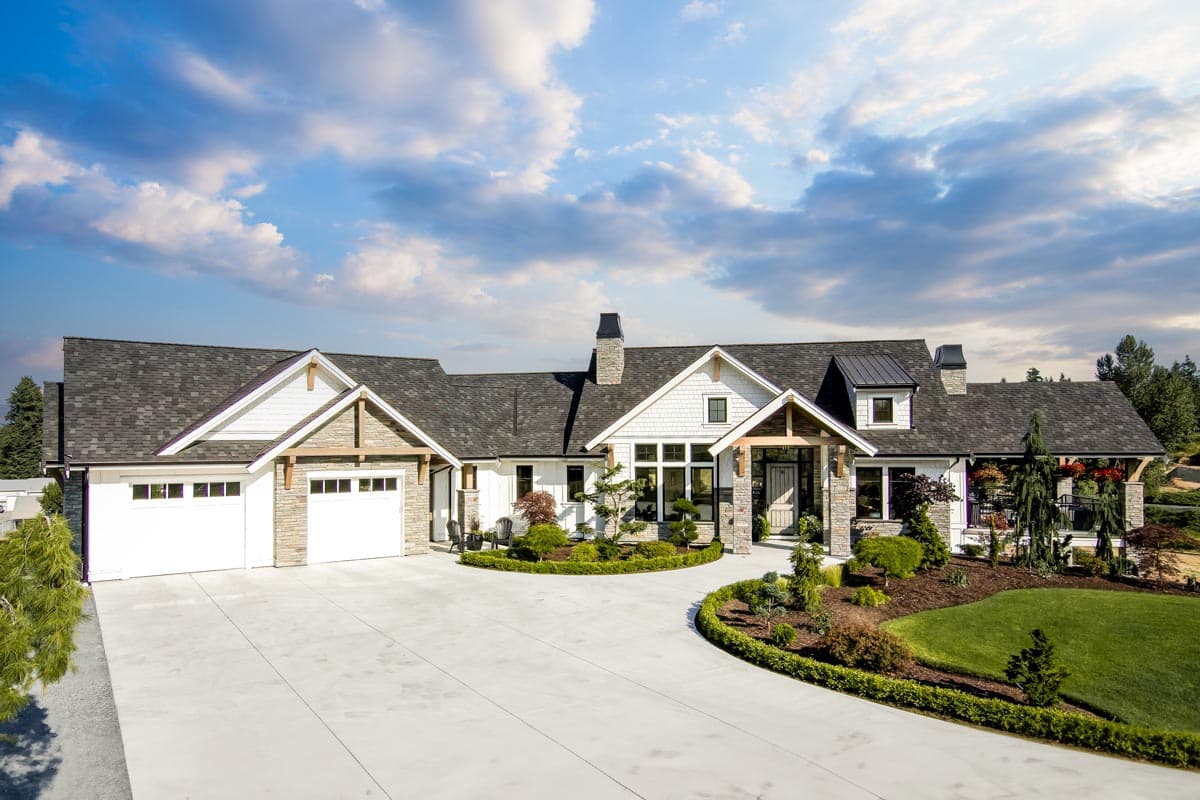

4-Bed Modern Farmhouse Plan with Angled and Lower Level Garages - 3224 Sq Ft

Heated S.F.
4,854
Beds
4 - 5
Baths
2.5 - 3.5
Stories
1
Cars
4

Floor Plan

Plan 270091AF

Main Level
Main Level
Lower Level
Lower Level

Plan 270091AF

M-F 9am-5pm EST |

1-203-761-8500

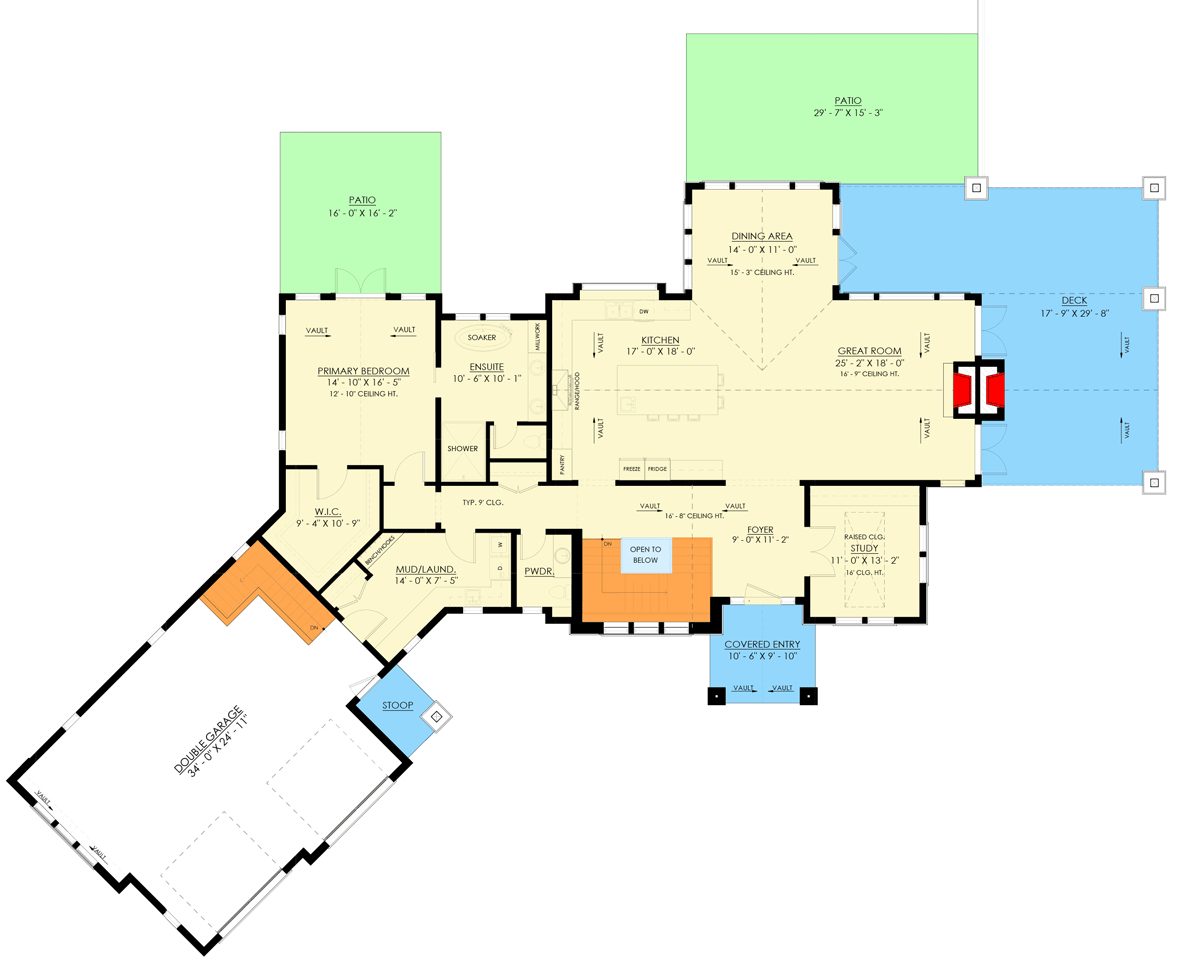

Main Level

Plan 270091AF: 4-Bed Modern Farmhouse Plan with Angled and Lower Level Garages - 3224 Sq Ft - Floor Plan - Main Level - Country, Craftsman, Modern Farmhouse, Mountain, New American, Northwest, Ranch

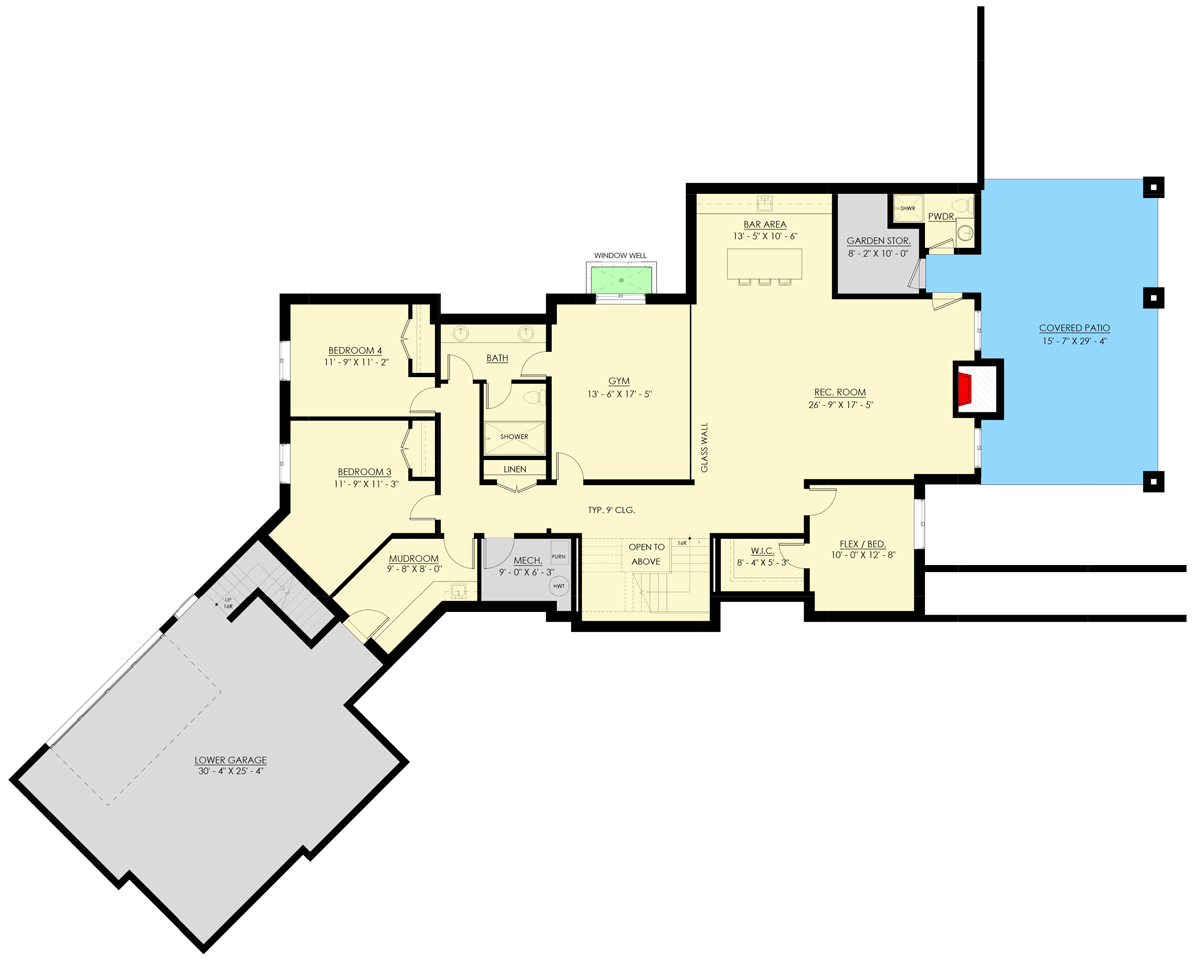

Lower Level

Plan 270091AF: 4-Bed Modern Farmhouse Plan with Angled and Lower Level Garages - 3224 Sq Ft - Floor Plan - Lower Level - Country, Craftsman, Modern Farmhouse, Mountain, New American, Northwest, Ranch

Plan Details

  • This 4 bed, 2.5 bath Modern Farmhouse plan gives you 3,224 square feet of heated living including 860 square feet in the finished walkout basement.

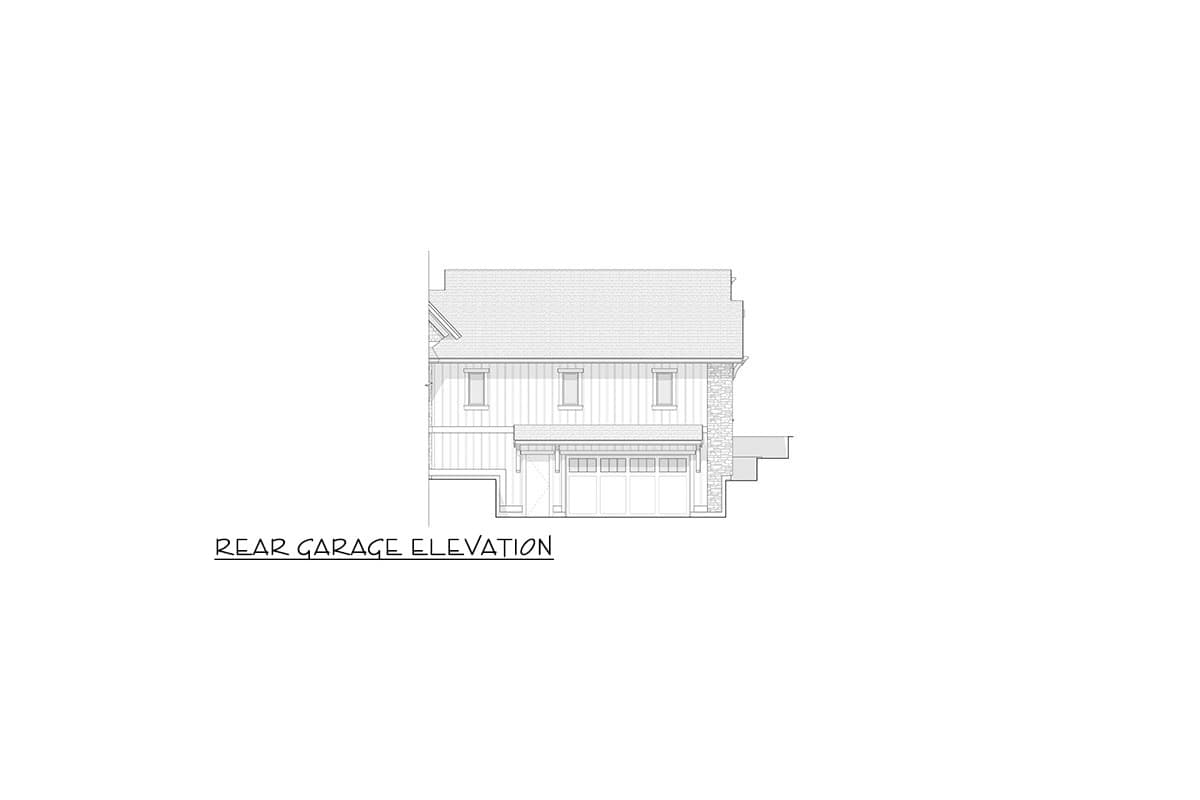

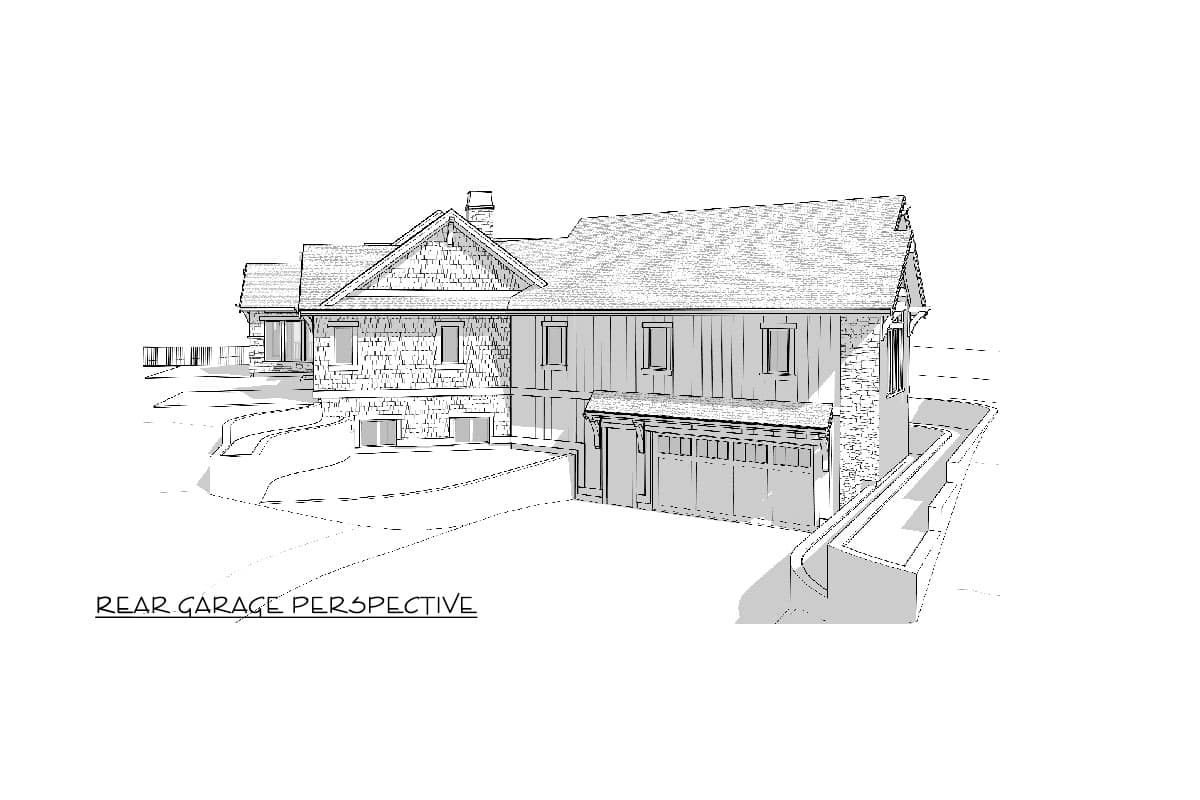

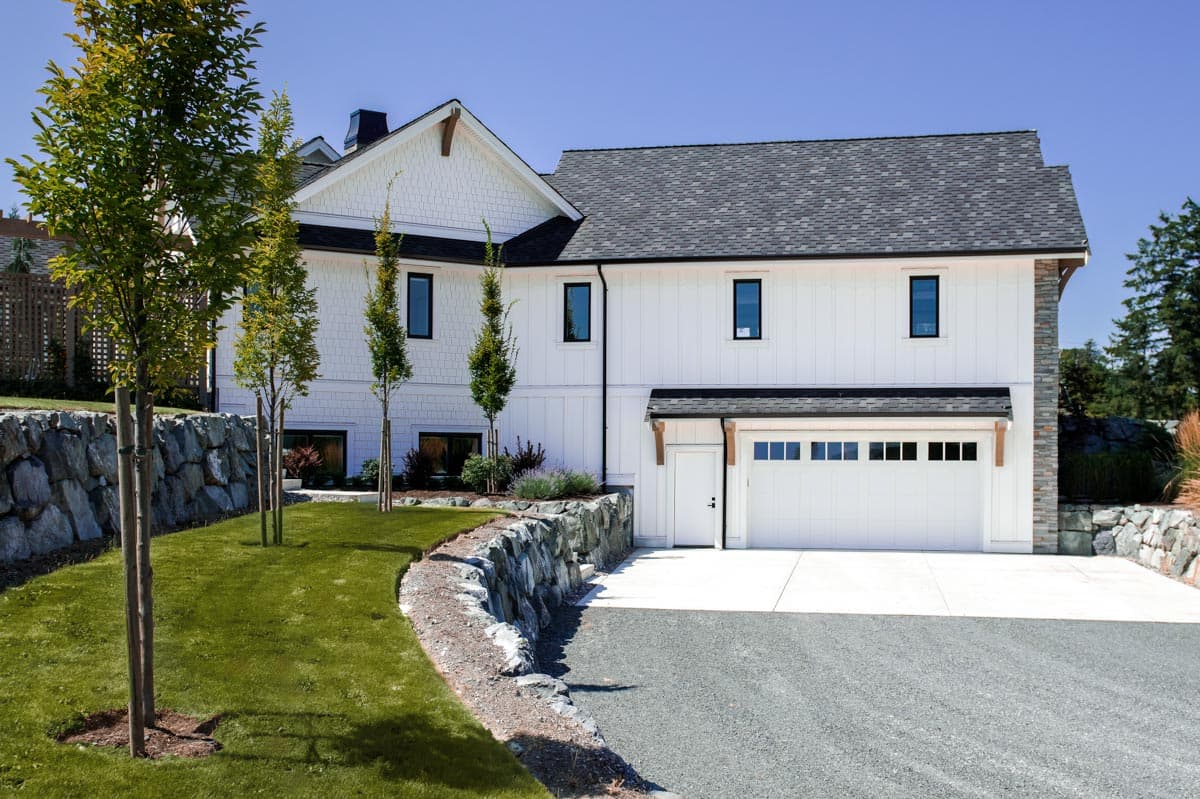

  • A 3-car garage comes off the home at an angle and a 1-car garage is accessible from the down-slope side.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Foundation Plan
  • Floor Plan(s) with Door and Window Opening Sizes
  • Roof Plan showing pitches, valleys, ridges

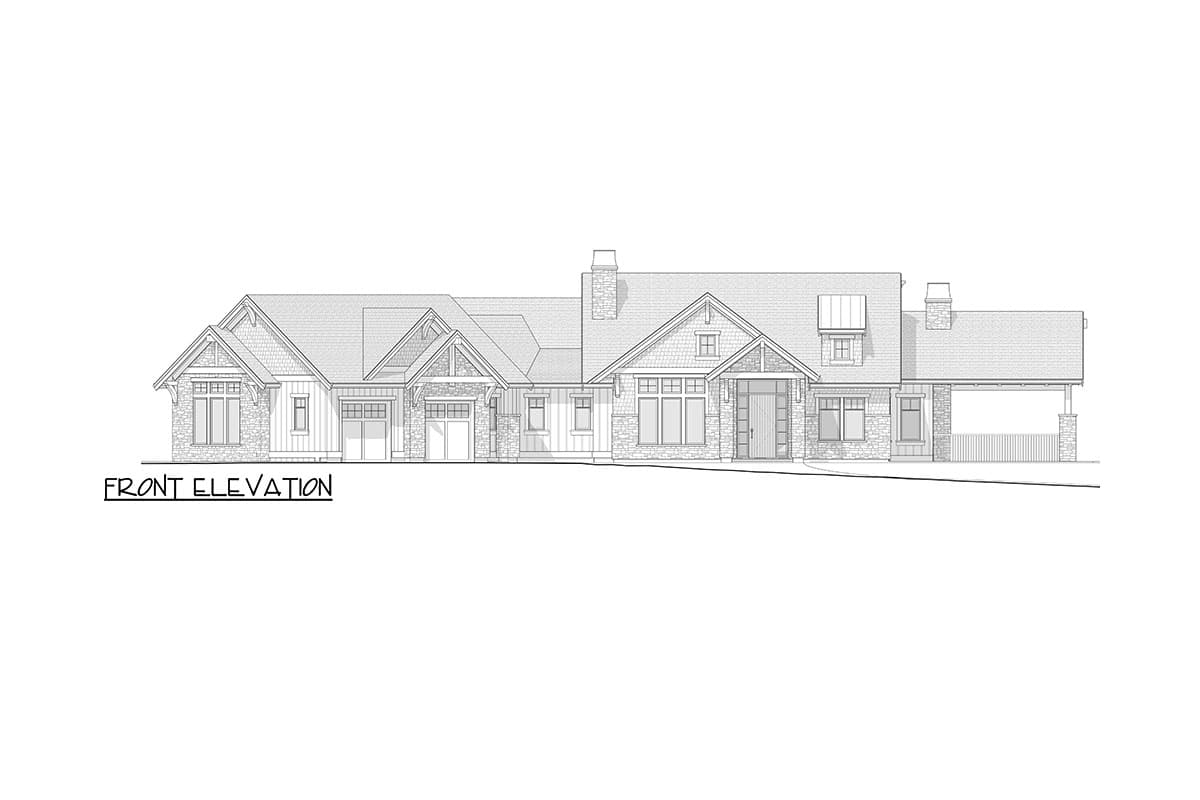

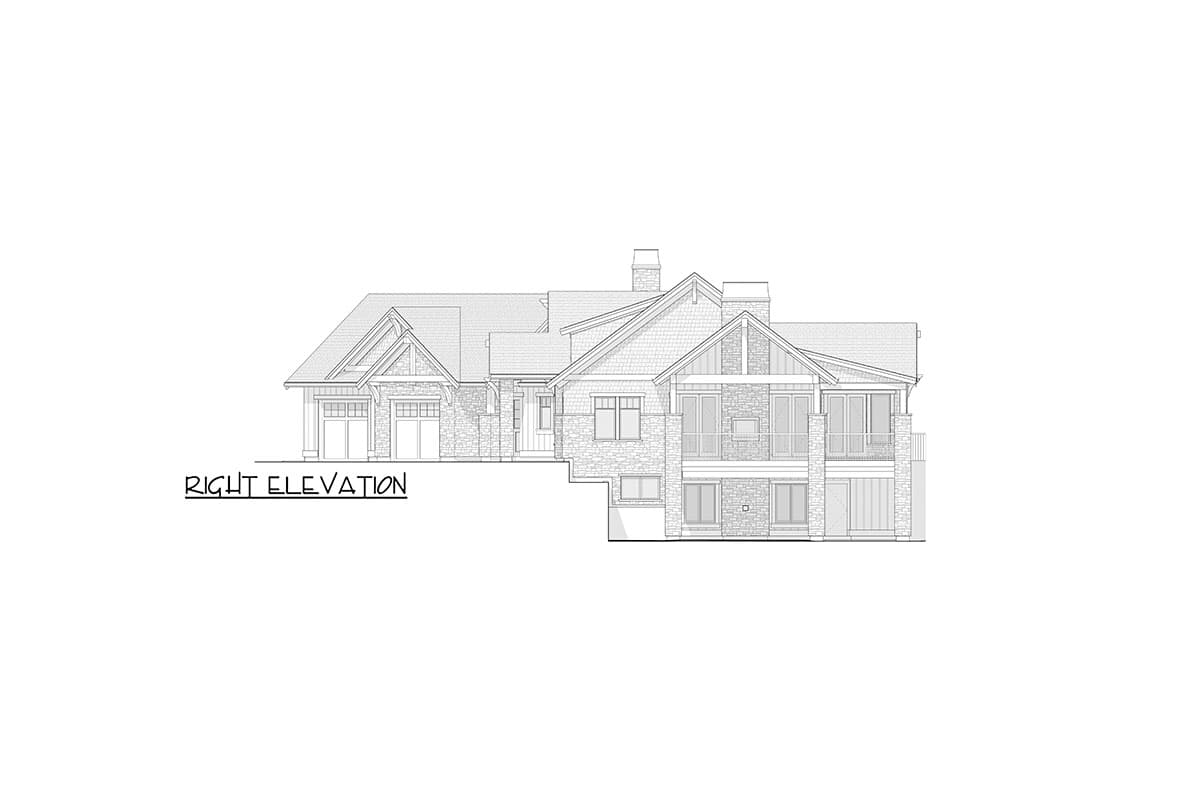

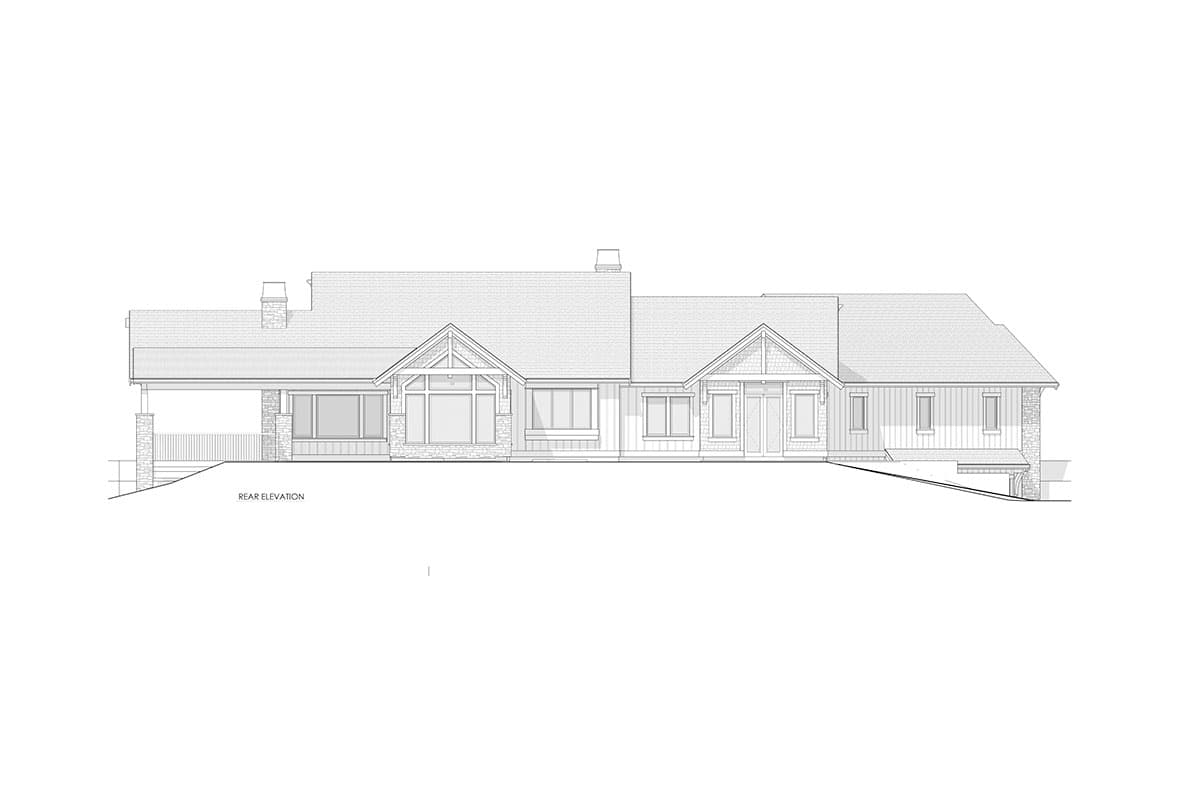

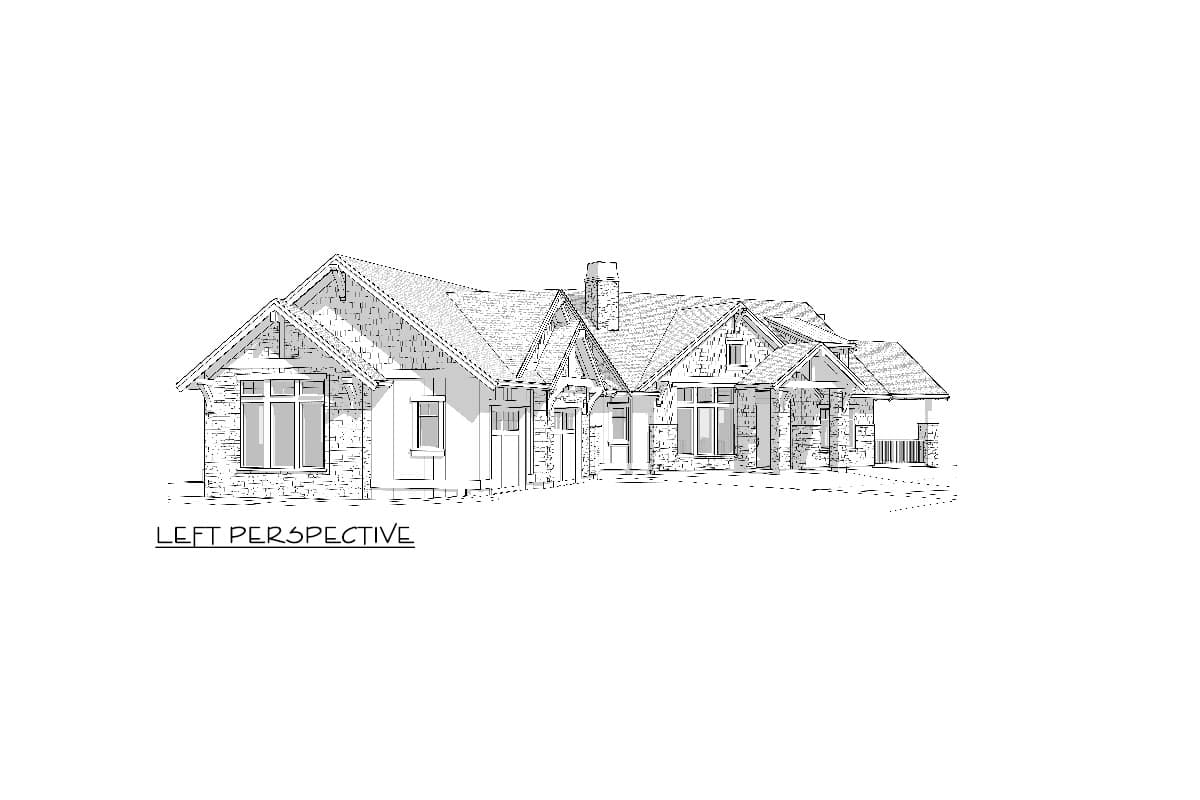

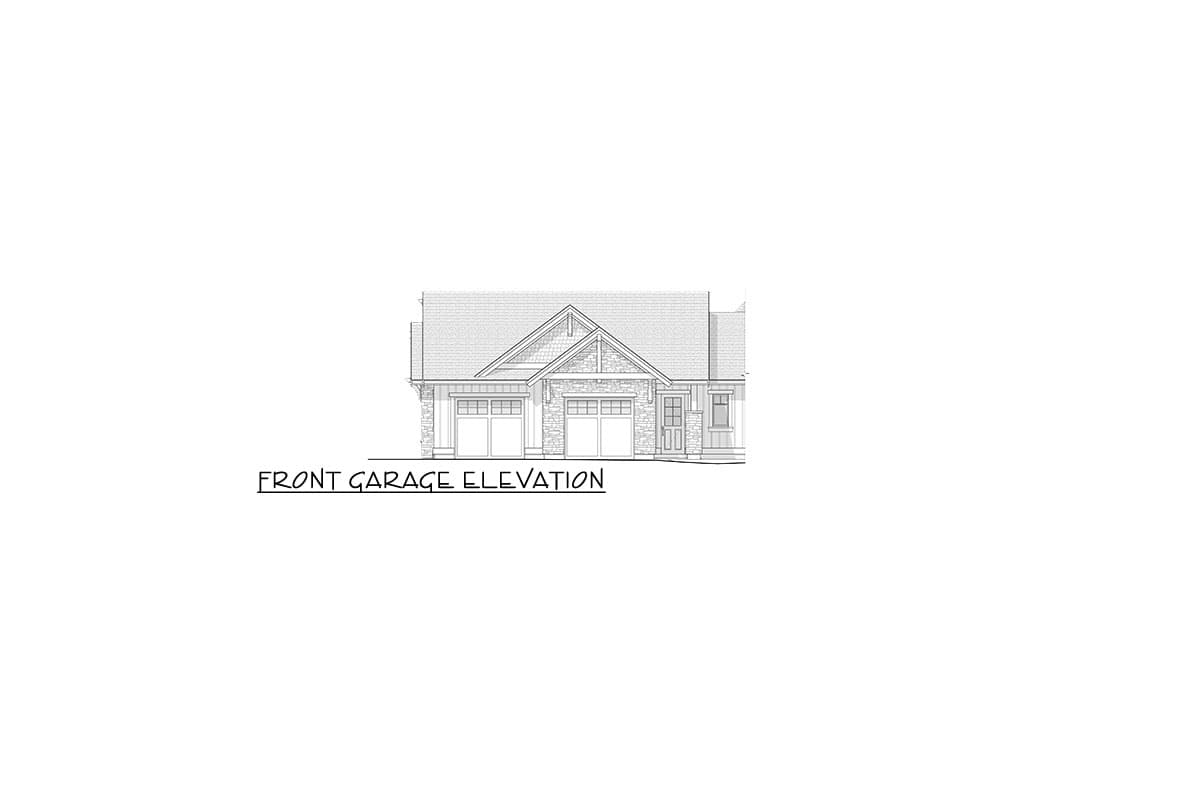

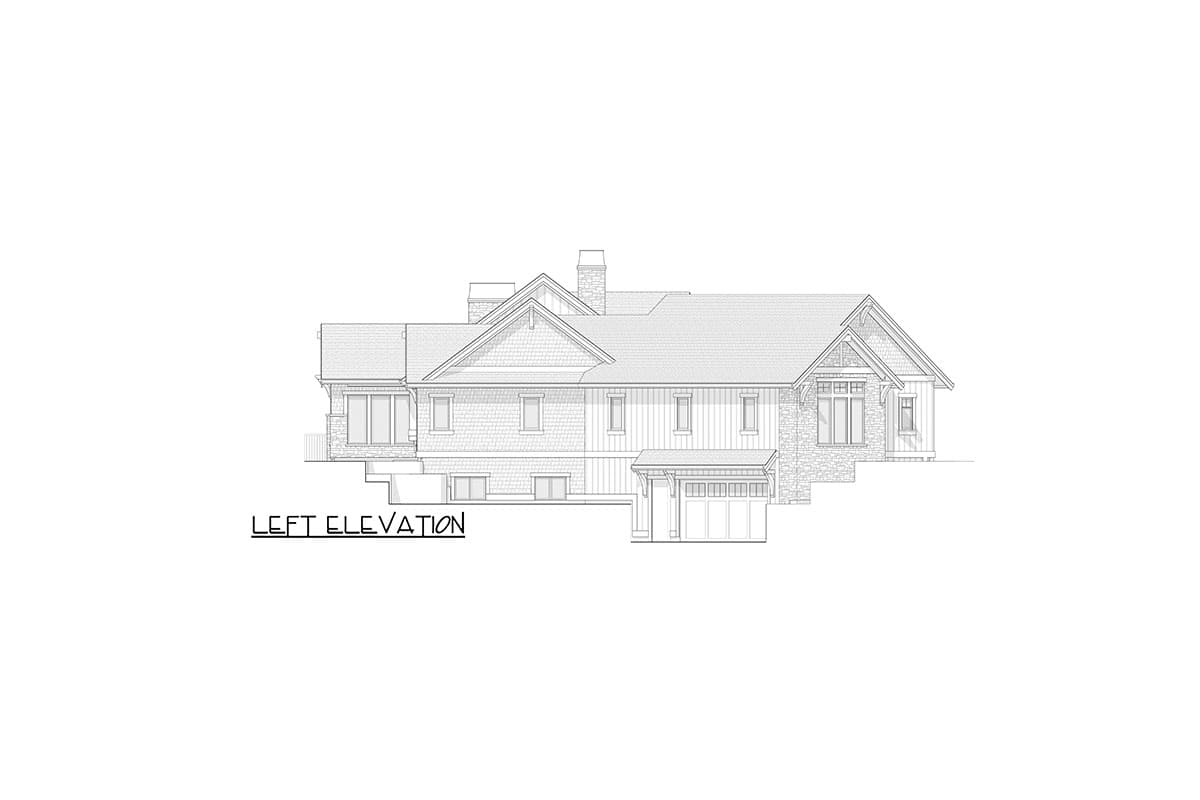

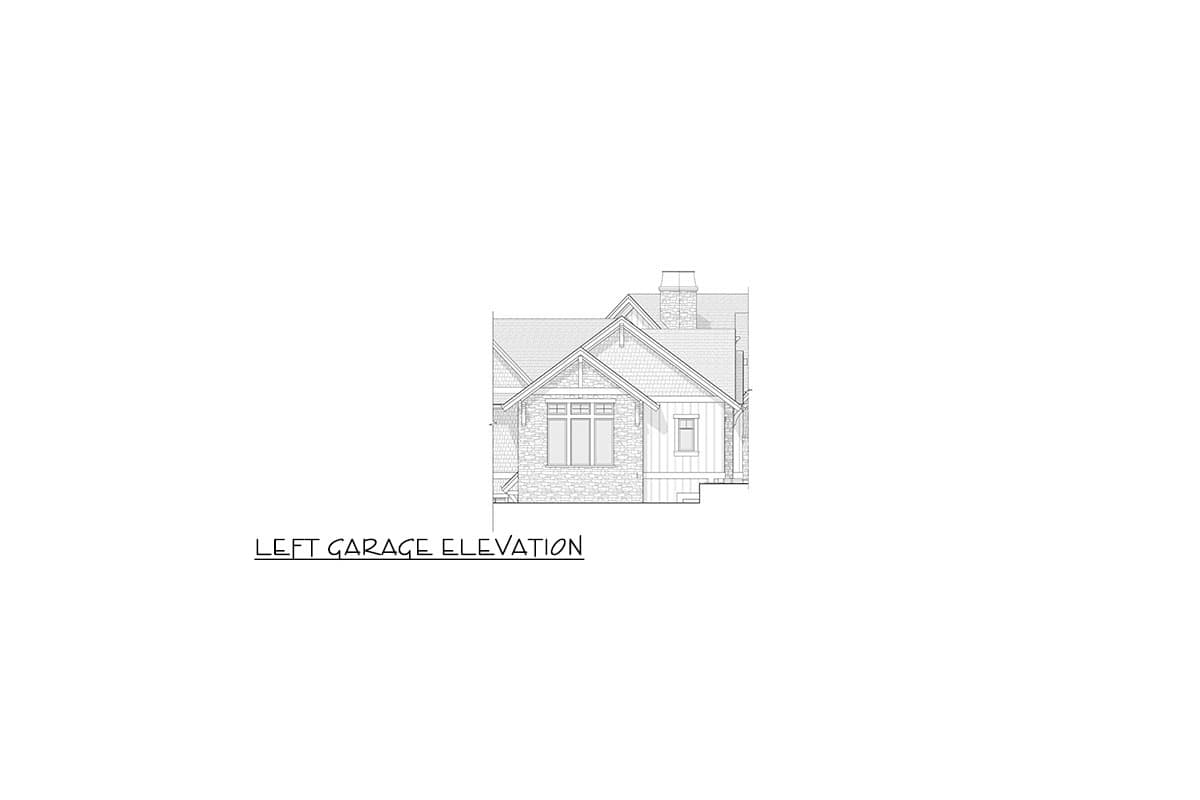

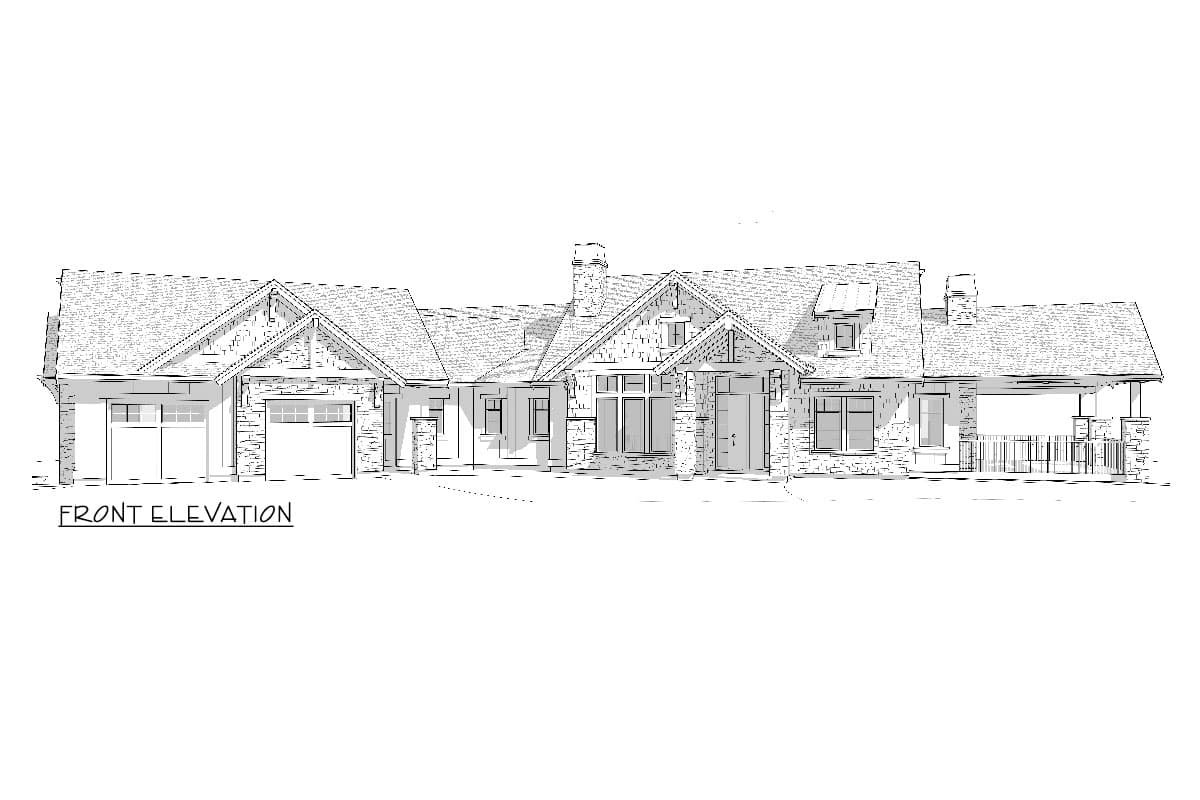

  • Exterior Elevations
  • Building Section
  • Typical Construction Details/Sections

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Framing - layouts with beam sizes and locations
  • Electrical plan
  • Plumbing Details
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Energy calculations - handled locally when required
  • Renderings, photography, or marketing imagery

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,854 sq. ft.

Lower Level

2,490 sq. ft.

1st Floor

2,364 sq. ft.

Basement Unfinished

860 sq. ft.

Porch, Front

100 sq. ft.

Deck & Porch

708 sq. ft.

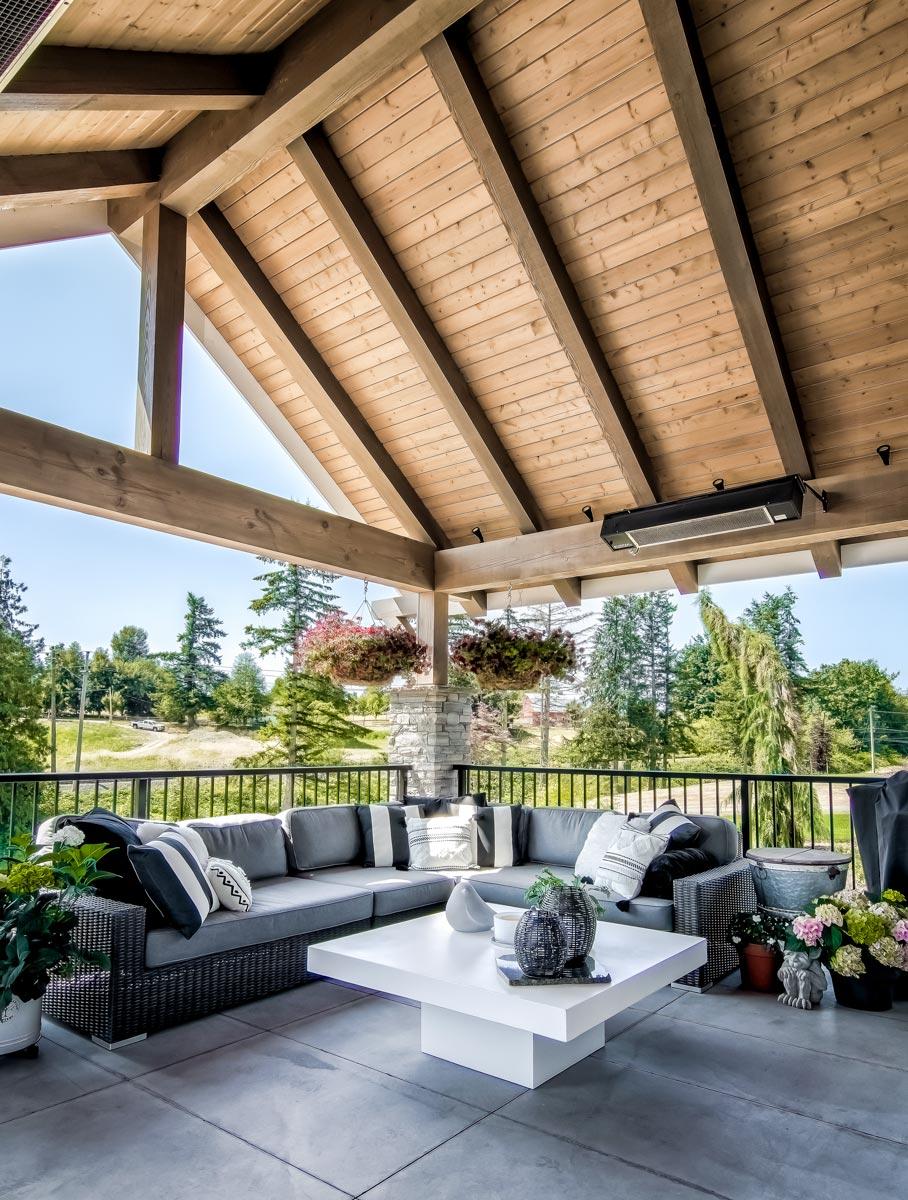

Covered Patio

665 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

114' 10"

Depth

91' 8"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

860 sq. ft.

Count

4 Cars

Entry Location

Front, Rear

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Modern Farmhouse

Mountain

New American

Northwest

Ranch

Special Features

Angled Garage

Bedrooms - Split

Breakfast Nook

Den

Flex Room

Formal Dining

Game/Rec Room

Home Office

Laundry Access from Master Suite

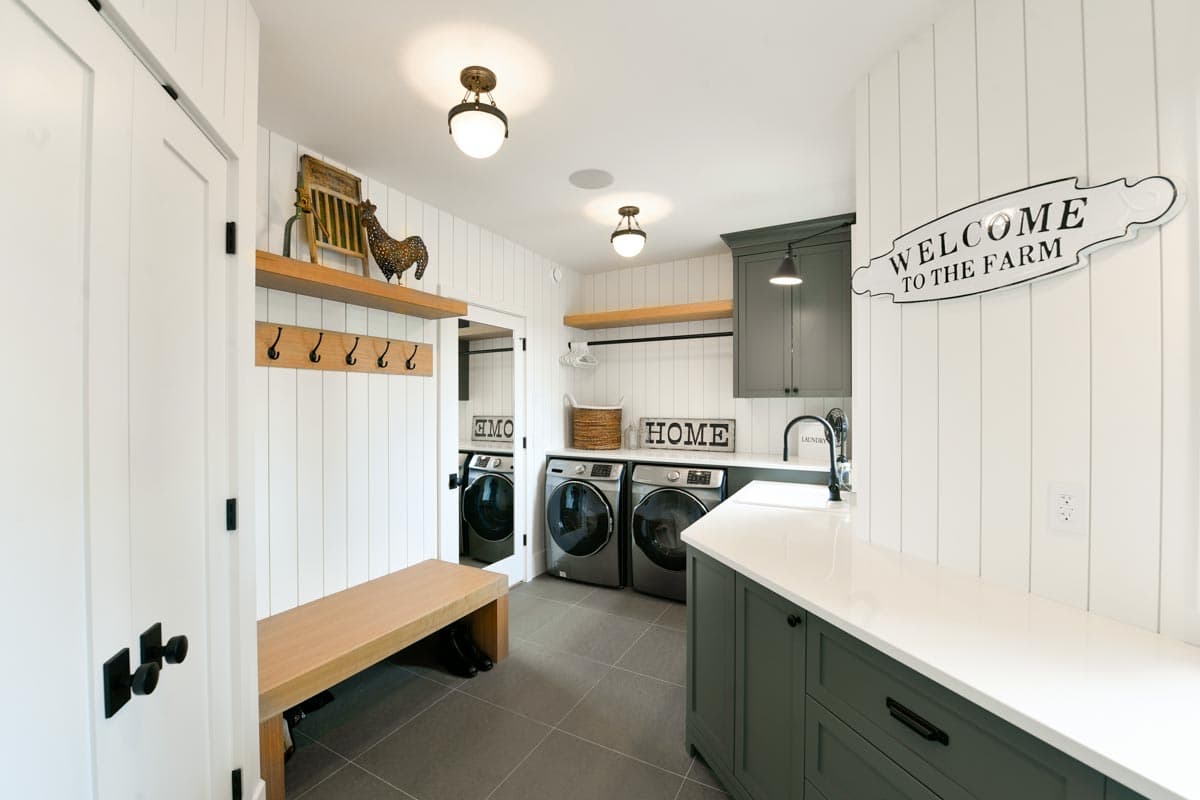

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

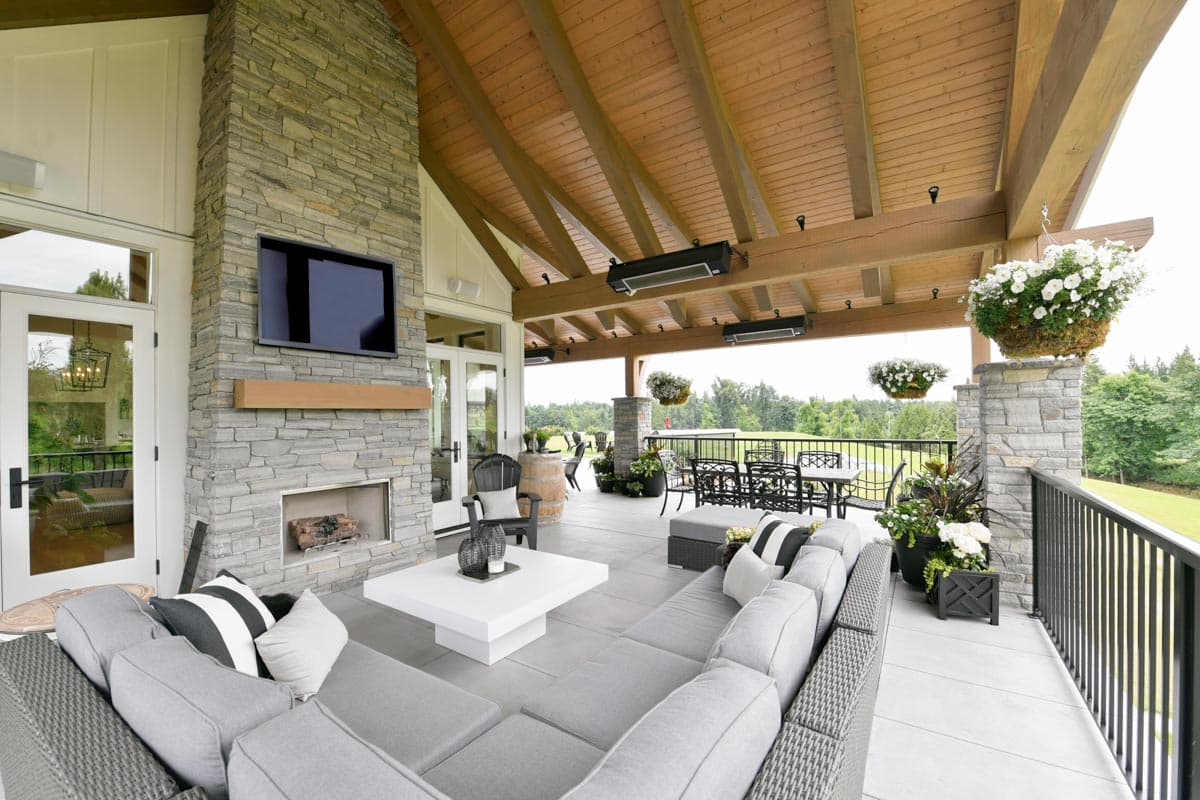

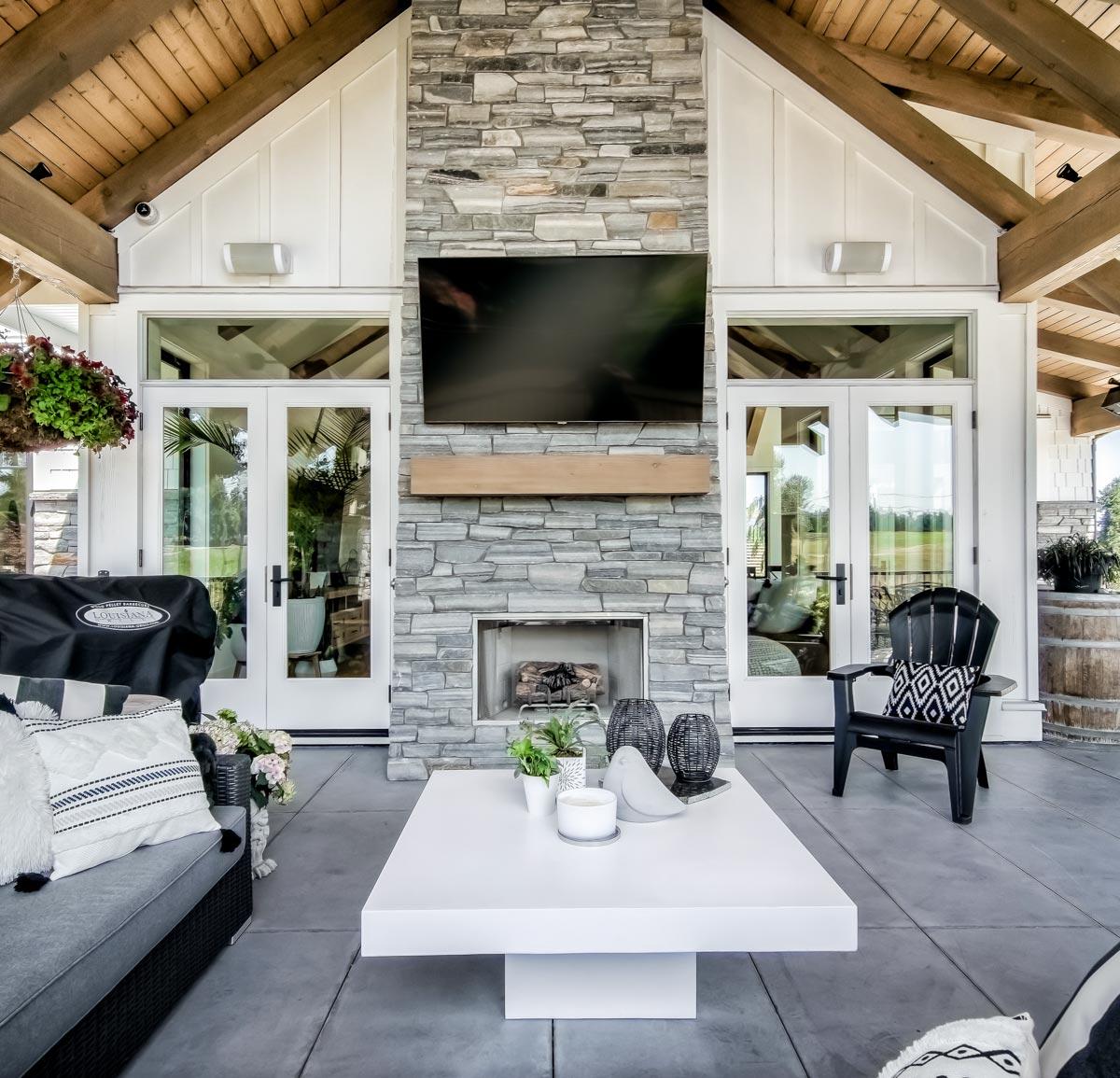

Outdoor Fireplace

Stacked Porches

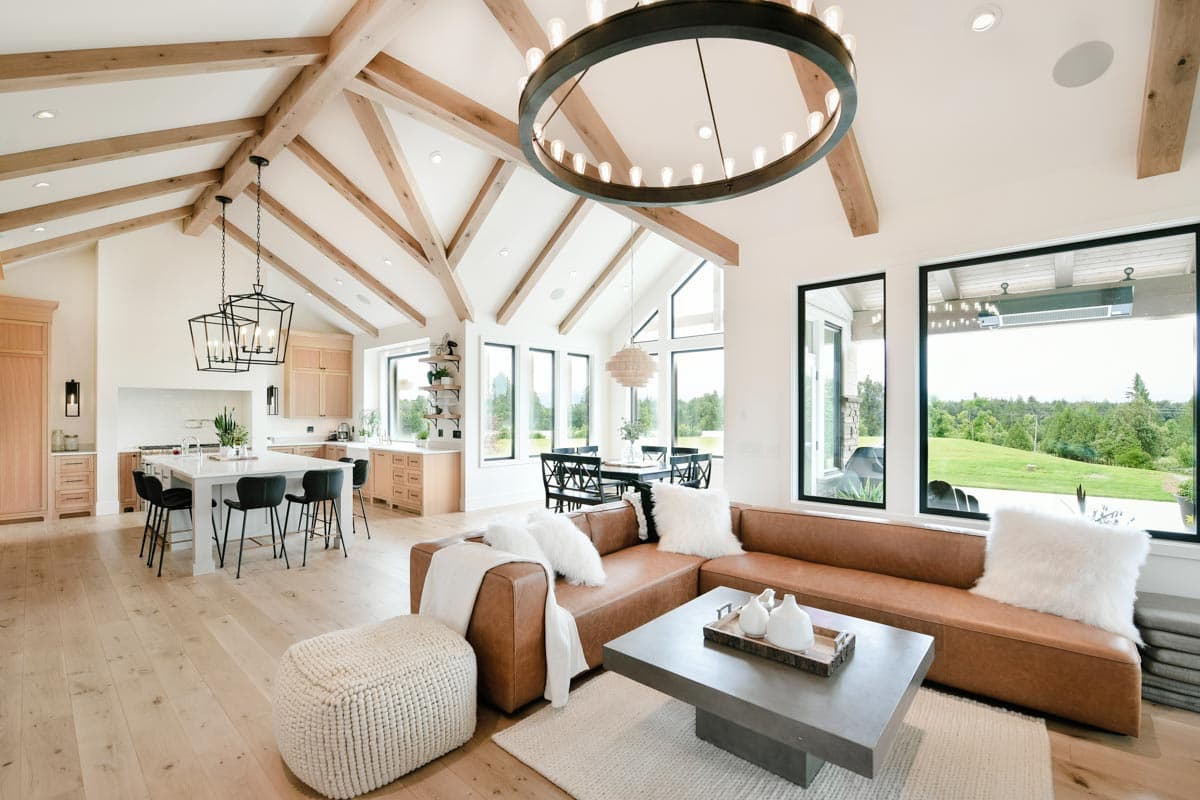

Two Story Great Room

Wet Bar

Workshop

Plan Collections

Canadian House Plans

Home Office

Lake House Plans

Photo Gallery

Premium Collection

Sloping Lot
