4-Bed New American House Plan with Upstairs Loft - 3465 Sq Ft

Heated S.F.
3,465
Beds
4 - 5
Baths
4.5
Stories
2
Cars
2
Tour

Floor Plan

Plan 83667CRW

Main Level
Main Level
2nd Floor
2nd Floor
Optional Side Entry Garage (+$350)
Optional Side Entry Garage (+$350)

Plan 83667CRW

M-F 9am-5pm EST |

1-203-761-8500

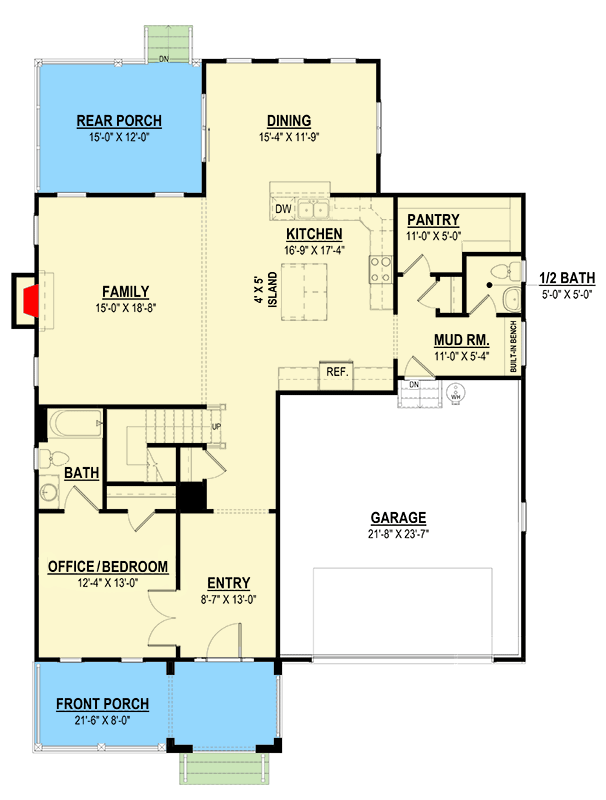

Main Level

Plan 83667CRW: 4-Bed New American House Plan with Upstairs Loft - 3465 Sq Ft - Floor Plan - Main Level - Contemporary, Modern Farmhouse, New American

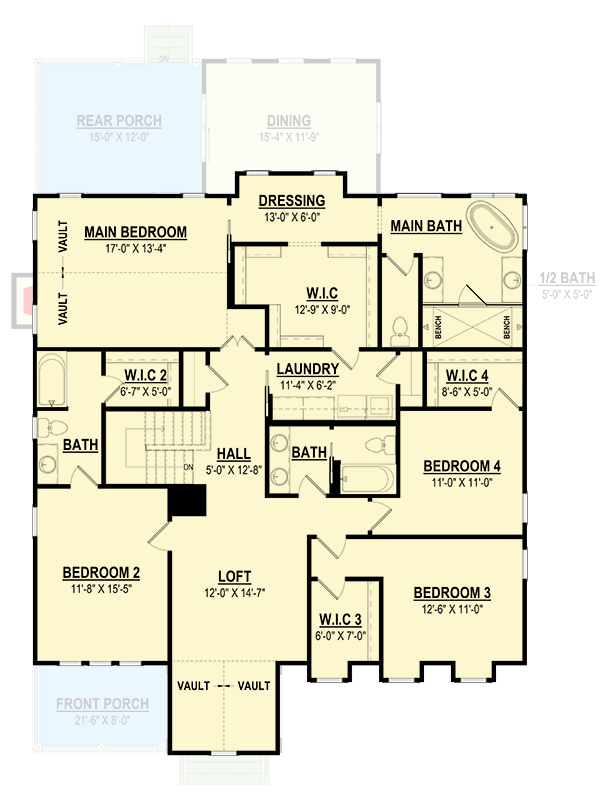

2nd Floor

Plan 83667CRW: 4-Bed New American House Plan with Upstairs Loft - 3465 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Modern Farmhouse, New American

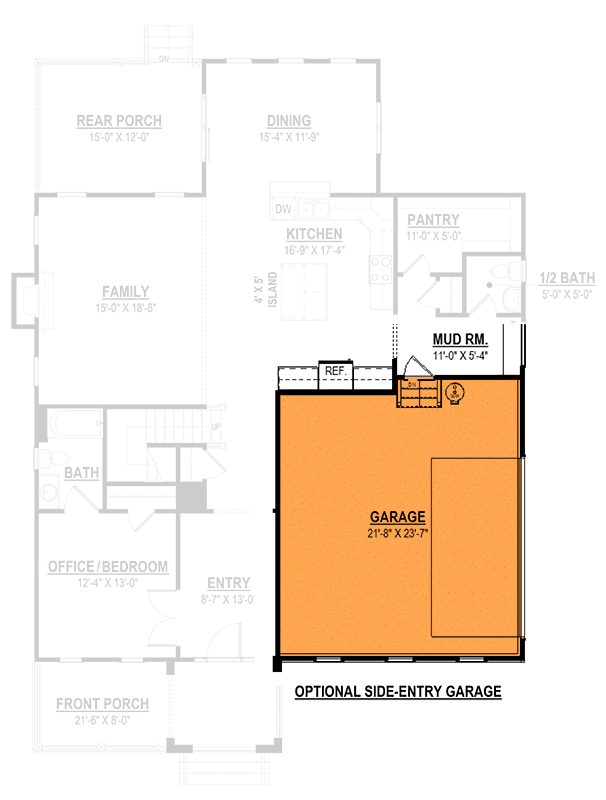

Optional Side Entry Garage (+$350)

Plan 83667CRW: 4-Bed New American House Plan with Upstairs Loft - 3465 Sq Ft - Floor Plan - Optional Side Entry Garage (+$350) - Contemporary, Modern Farmhouse, New American

Plan Details

  • This new american house plan offers you 3,465 square feet of heated living space, 4-5 beds, 4.5 baths, and a 541 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover sheet with rendering
  • Foundation plan with details
  • Detailed floor plan(s) (includes window & door sizes, plumbing fixture locations, detail notes, etc.)
  • Roof plan (birds eye view of roof with overhang/truss heel notes)

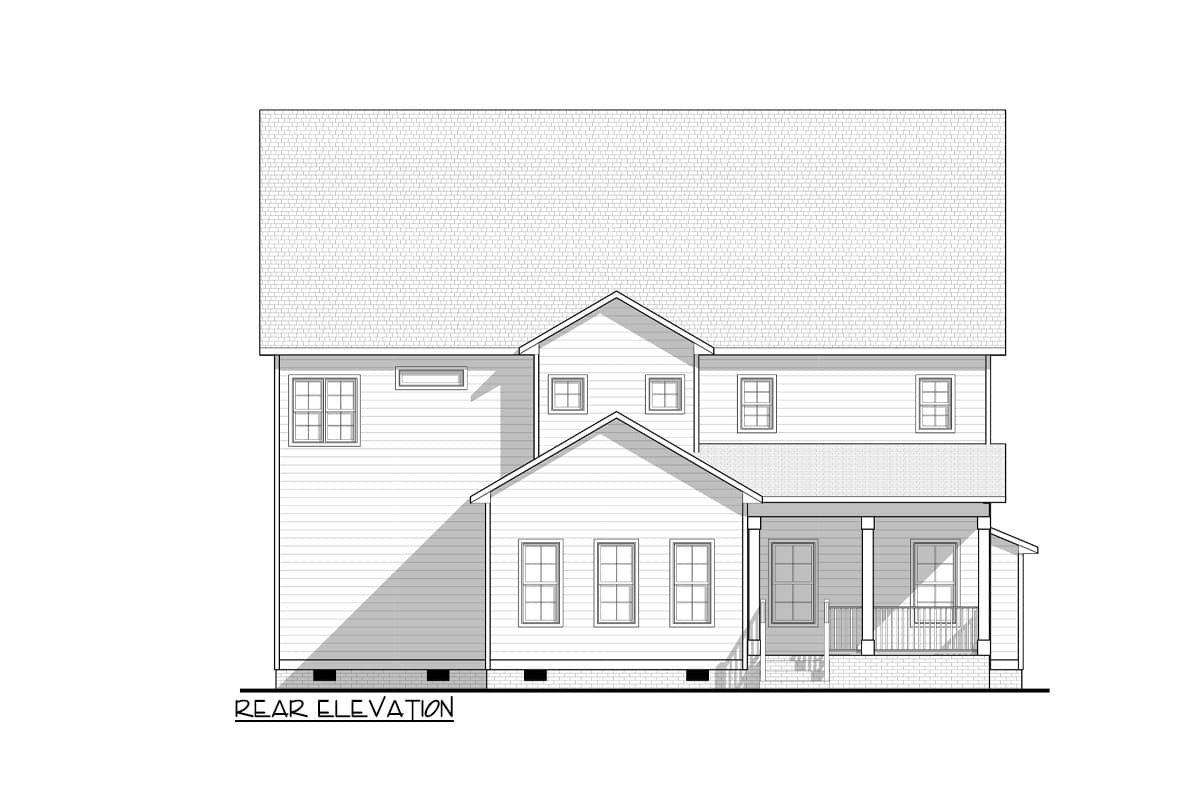

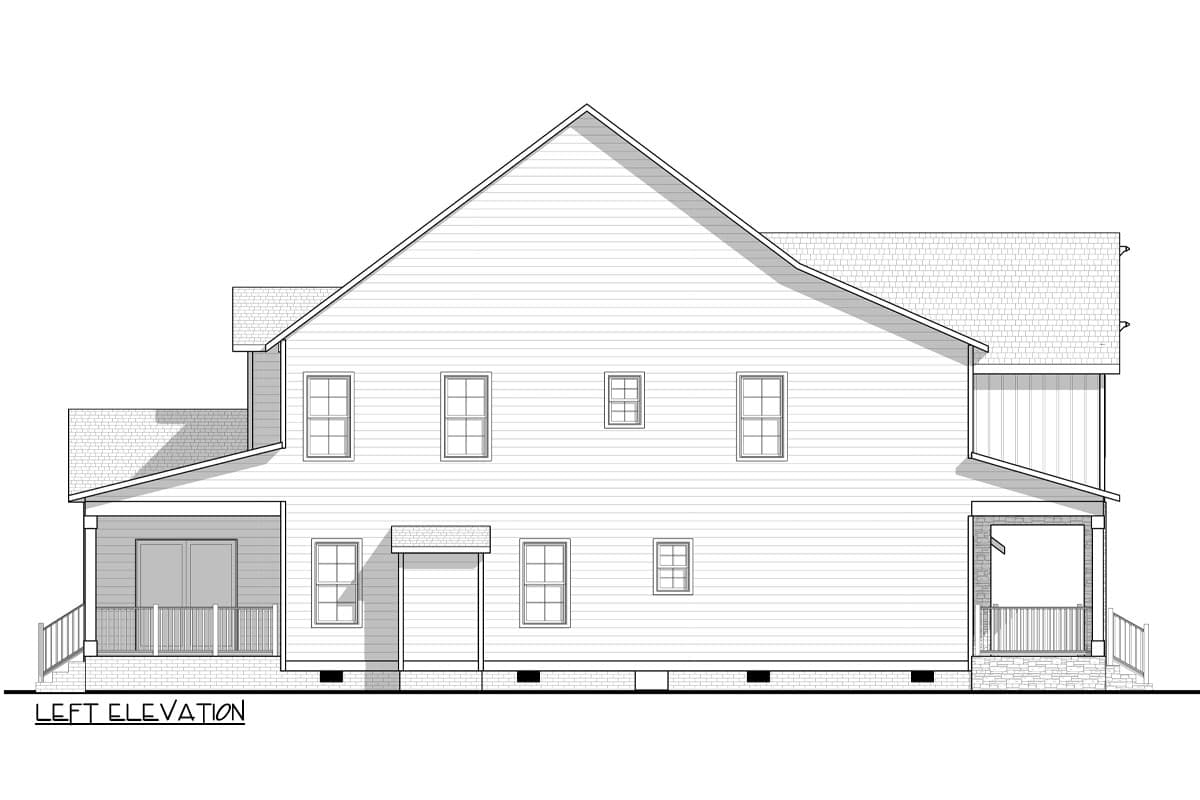

  • Four exterior views (front, rear, right, left)
  • Building section with Kitchen plan and misc. notes
  • Typical Wall Section
  • Some plans include a suggested electrical layout.
  • Please contact us for a specific plan's sheet index.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,465 sq. ft.

1st Floor

1,499 sq. ft.

2nd Floor

1,966 sq. ft.

Basement Unfinished

1,509 sq. ft.

Porch, Front

176 sq. ft.

Porch, Rear

180 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

46' 0"

Depth

54' 0"

Max Ridge Height

33' 4"

Garage

Type

Attached

Area

541 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern Farmhouse

New American

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Flex Room

Formal Dining

Home Office

Laundry Access from Master Suite

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

3,465 sq. ft.

1st Floor

1,499 sq. ft.

2nd Floor

1,966 sq. ft.

Basement Unfinished

1,509 sq. ft.

Porch, Front

176 sq. ft.

Porch, Rear

180 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

46' 0"

Depth

54' 0"

Max Ridge Height

33' 4"

Garage

Type

Attached

Area

541 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern Farmhouse

New American

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Flex Room

Formal Dining

Home Office

Laundry Access from Master Suite

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom

Plan Collections

Home Office
