4 Bedroom Splendor with Options

Plan 15803GE

  • 3,770

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This is another 4 bedrooms version of this popular plan family. It also comes in a 3 bedroom version as well - see house plan 15602GE.
  • A highlight of this design is the dramatic great room with two-story ceilings and a beautiful gently-curved wall of windows.
  • Off the kitchen, you'll love your beamed-ceilinged keeping room with fireplace and rear deck access through French doors.
  • The dining room and study both have special ceiling treatments in line with the high-end spirit of this design.
  • The master suite is light-filled and has rear deck access and a subtle sitting area. No corners are cut in the master bath.
  • Two stairs lead upstairs where you'll find three bedroom suites and unfinished space above the garage for storage or future expansion.
  • Related Plans: Get more room with house plans 15733GE (3,937 sq. ft.), 15674GE (3,944 sq. ft.), 15614GE (4,376 sq. ft.) and 15634GE (4,991 sq. ft.).
  • Downsize to 3 bedrooms with house plan 15602GE(3,451 sq. ft.).

The plan set includes the following:

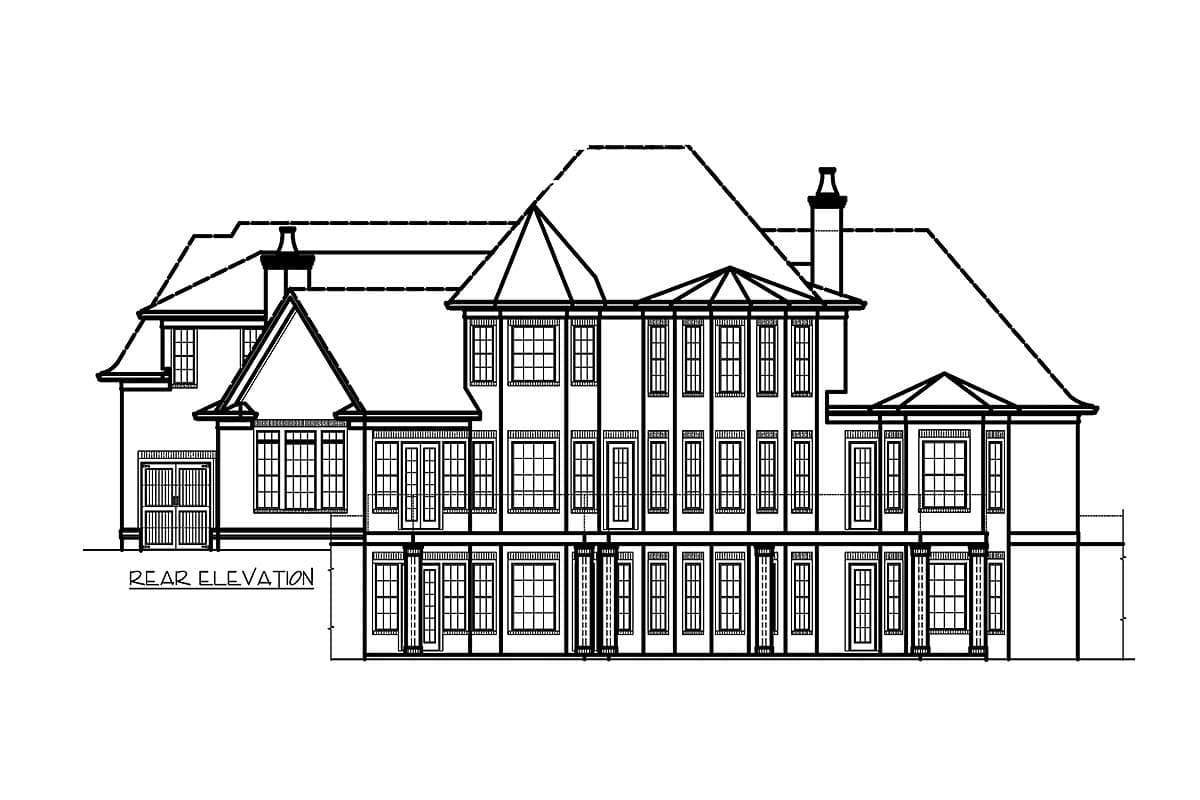

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

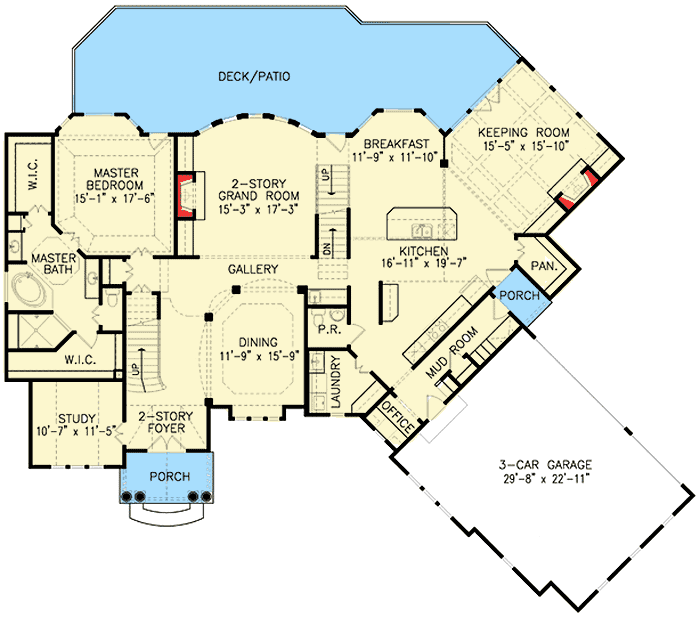

4 Bedroom Splendor with Options - 15803GE floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

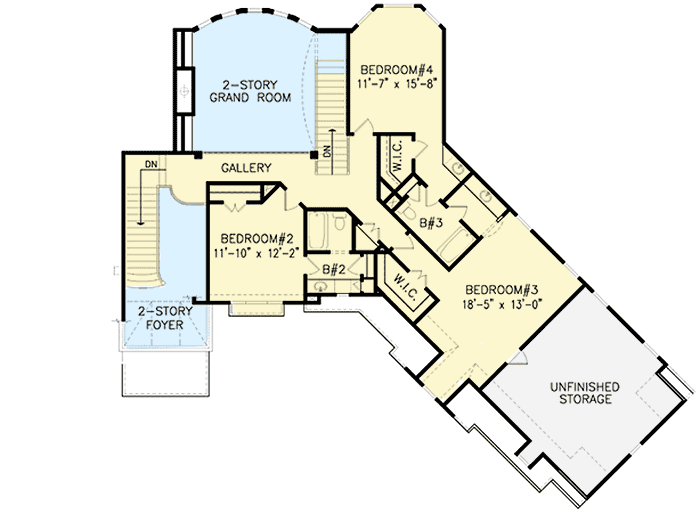

4 Bedroom Splendor with Options - 15803GE floor plan - 2nd Floor
