Luxury House Plan in Many Versions

Plan 15674GE

  • 3,944

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • A popular design, this luxury home plan includes a dramatic a living room with a beautiful gently-curved wall of windows.
  • Off the kitchen, you'll love your vaulted family room with fireplace and rear deck access.
  • The master suite is light-filled and has rear deck access. No corners are cut in the master bath.
  • Two stairs lead upstairs where you'll find three bedroom suites and bonus space above the garage for entertainment purposes including a video room.
  • Related Plans: Gain a two-story living room with house plan 15614GE (4,376 sq. ft.), 15733GE (3,937 sq. ft.) and 15803GE (3,770 sq. ft.). Get a larger home with house plan 15634GE (4,991 sq. ft.). Downsize to 3 bedrooms with house plan 15602GE.(3,451 sq. ft.).

The plan set includes the following:

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

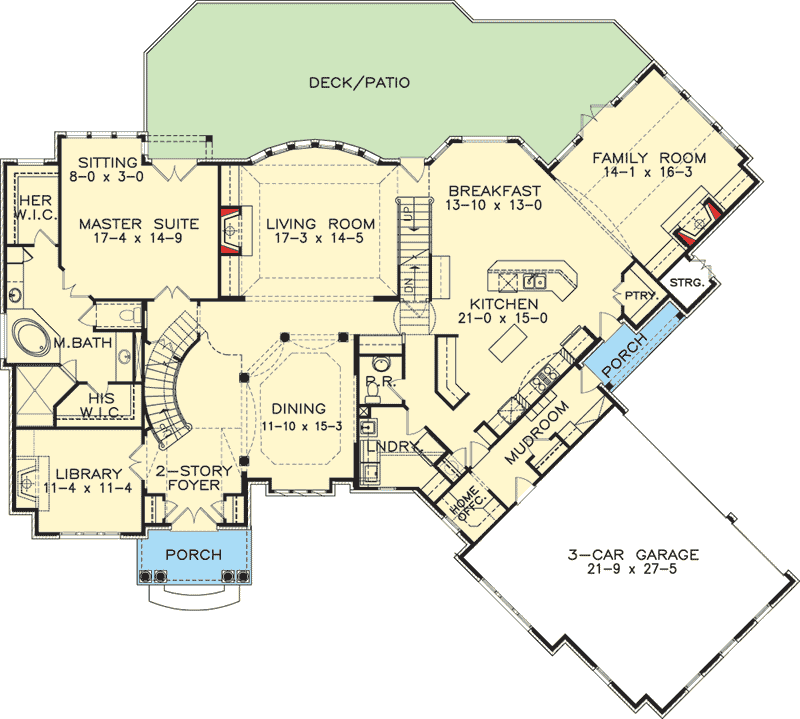

Luxury House Plan in Many Versions - 15674GE floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

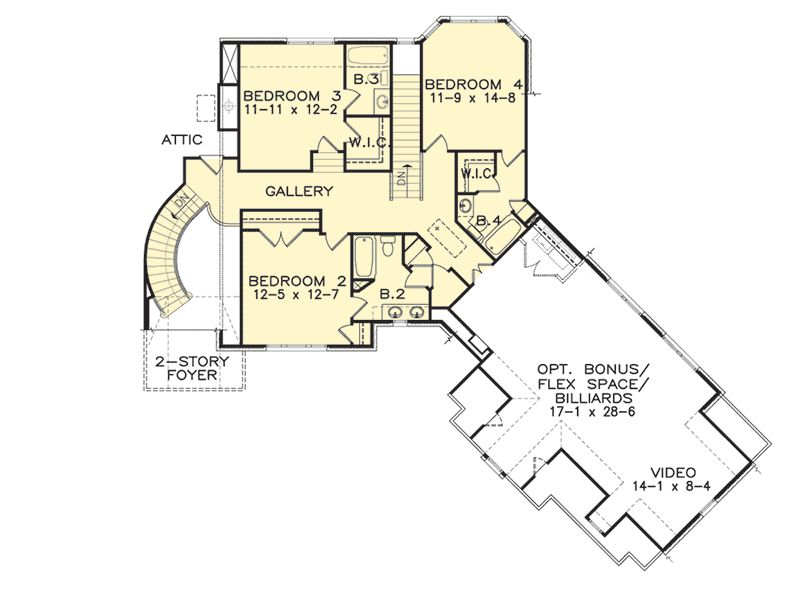

Luxury House Plan in Many Versions - 15674GE floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

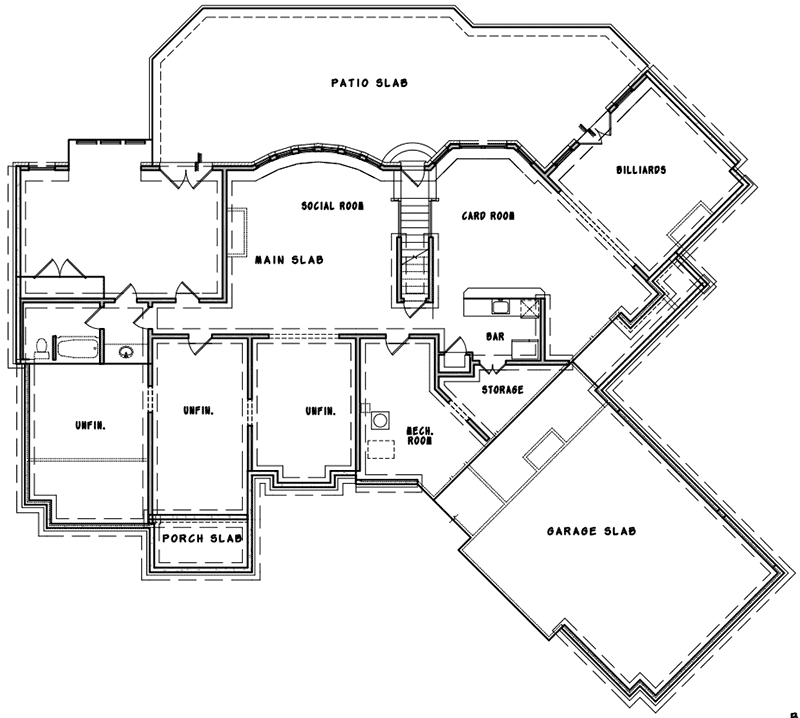

Luxury House Plan in Many Versions - 15674GE floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,944 sq. ft.
  • 1st Floor: 2,875 sq. ft.
  • 2nd Floor: 1,069 sq. ft.
  • Bonus: 476 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 88' 5"
  • Depth: 72' 9"

Garage

  • Type: Attached
  • Area: 596 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Luxury House Plan in Many Versions

  • 3,944

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,495
  • CAD - Single-Build $3,845
  • View all purchase option online

About This Plan

  • A popular design, this luxury home plan includes a dramatic a living room with a beautiful gently-curved wall of windows.
  • Off the kitchen, you'll love your vaulted family room with fireplace and rear deck access.
  • The master suite is light-filled and has rear deck access. No corners are cut in the master bath.
  • Two stairs lead upstairs where you'll find three bedroom suites and bonus space above the garage for entertainment purposes including a video room.
  • Related Plans: Gain a two-story living room with house plan 15614GE (4,376 sq. ft.), 15733GE (3,937 sq. ft.) and 15803GE (3,770 sq. ft.). Get a larger home with house plan 15634GE (4,991 sq. ft.). Downsize to 3 bedrooms with house plan 15602GE.(3,451 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,944 sq. ft.
  • 1st Floor: 2,875 sq. ft.
  • 2nd Floor: 1,069 sq. ft.
  • Bonus: 476 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 88' 5"
  • Depth: 72' 9"

Garage

  • Type: Attached
  • Area: 596 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
Plan 15674GE
View this and more for this plan by visiting www.architechtecturaldesigns.com/15674GE
|
