Three Bedroom Splendor with Options

3,451 3 4 2 3
Pageloader

Three Bedroom Splendor with Options

Plan 15602GE

  • 3,451

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

  • A popular design, this luxury home plan also comes in a four bedroom version (see house plan 15614GE and 15803GE).
  • A highlight of this design is the dramatic great room with two-story ceilings and a beautiful gently-curved wall of windows. This sense of volume is carried through to the two-story kitchen and nook.
  • Off the kitchen, you'll love your beamed-ceilinged keeping room with fireplace and rear deck access.
  • The dining room and study both have special ceiling treatments in line with the high-end spirit of this design.
  • The master suite is light-filled and has rear deck access. No corners are cut in the master bath.
  • Two stairs lead upstairs where you'll find two bedroom suites and unfinished space above the garage for storage or future expansion.
  • Related Plans: Gain an extra bedroom with house plans 15803GE (3,770 sq. ft.), 15614GE (4,376 sq. ft.) and 15674GE (3,944 sq. ft.) and 15733GE (3,937 sq. ft.).
  • For an even larger version, see house plan 15634GE (4,991 sq. ft.).

The plan set includes the following:

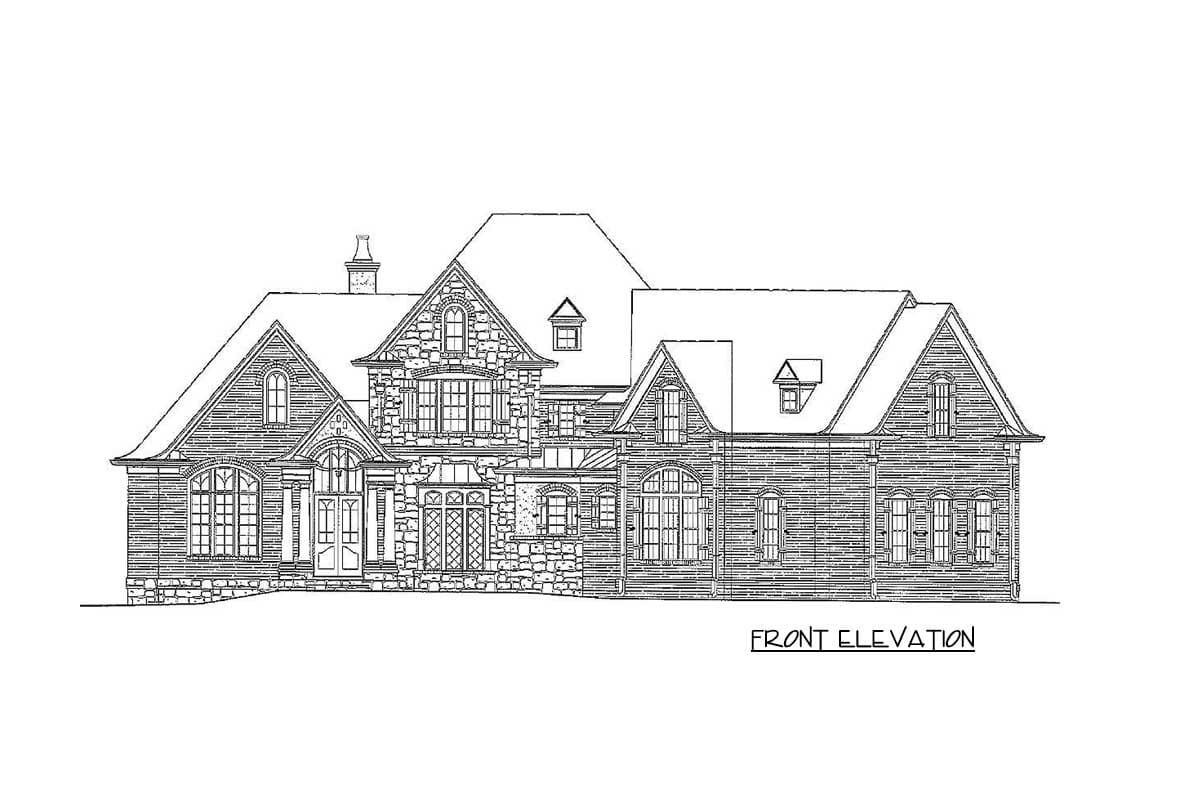

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • The plans are designed to meet the International Residential Code but are not designed for a specific area.  These plans do not come engineered or with structural drawings. They do not include framing plans.
  • Plans do include wall and cornice sections, general foundation sections and details.



Floor Plan

Plan details



Three Bedroom Splendor with Options

  • 3,451

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $2,175
  • CAD $3,125
  • View all purchase option online

About This Plan

  • A popular design, this luxury home plan also comes in a four bedroom version (see house plan 15614GE and 15803GE).
  • A highlight of this design is the dramatic great room with two-story ceilings and a beautiful gently-curved wall of windows. This sense of volume is carried through to the two-story kitchen and nook.
  • Off the kitchen, you'll love your beamed-ceilinged keeping room with fireplace and rear deck access.
  • The dining room and study both have special ceiling treatments in line with the high-end spirit of this design.
  • The master suite is light-filled and has rear deck access. No corners are cut in the master bath.
  • Two stairs lead upstairs where you'll find two bedroom suites and unfinished space above the garage for storage or future expansion.
  • Related Plans: Gain an extra bedroom with house plans 15803GE (3,770 sq. ft.), 15614GE (4,376 sq. ft.) and 15674GE (3,944 sq. ft.) and 15733GE (3,937 sq. ft.).
  • For an even larger version, see house plan 15634GE (4,991 sq. ft.).

Floor Plans

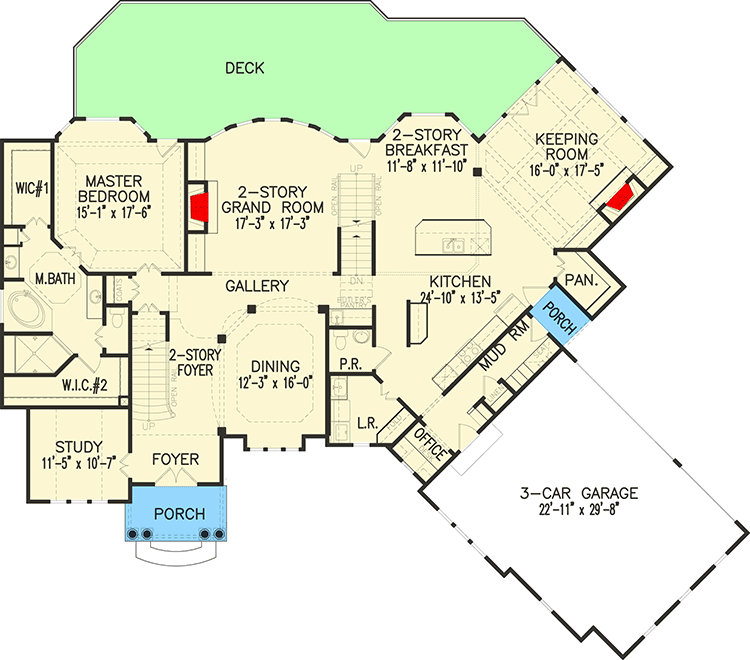

  • Main Level

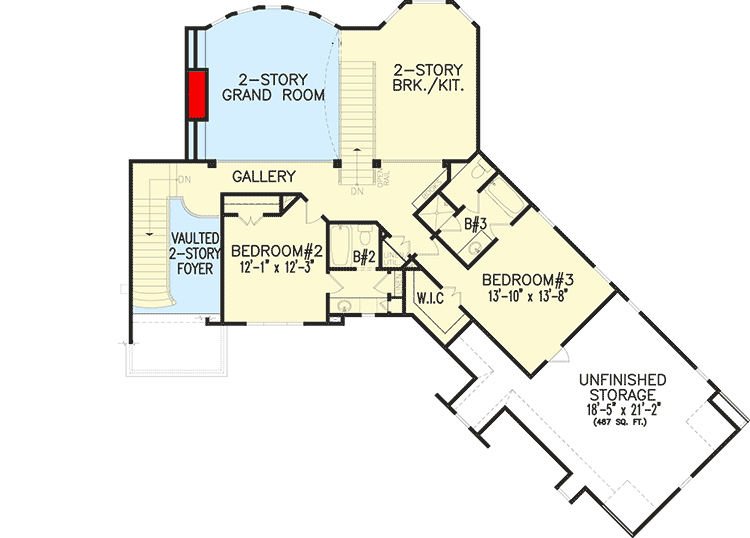

  • 2nd Floor
