Plan 270101AF
4-Car Modern Farmhouse Garage with 2-Bed ADU - 890 Sq Ft
Heated S.F.
890
Beds
2
Baths
1
Stories
2
Cars
4
Floor Plan
2nd Floor - Finished Apartment Layout
Reverse Floor Plan

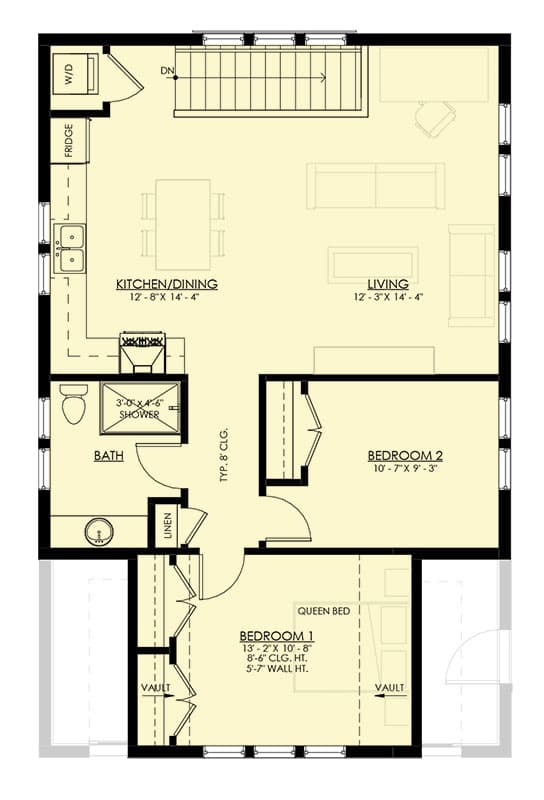

4-Car Modern Farmhouse Garage with 2-Bed ADU - 890 Sq Ft - 270101AF floor plan - 2nd Floor - Finished Apartment Layout
2nd Floor - Unfinished Version
Reverse Floor Plan

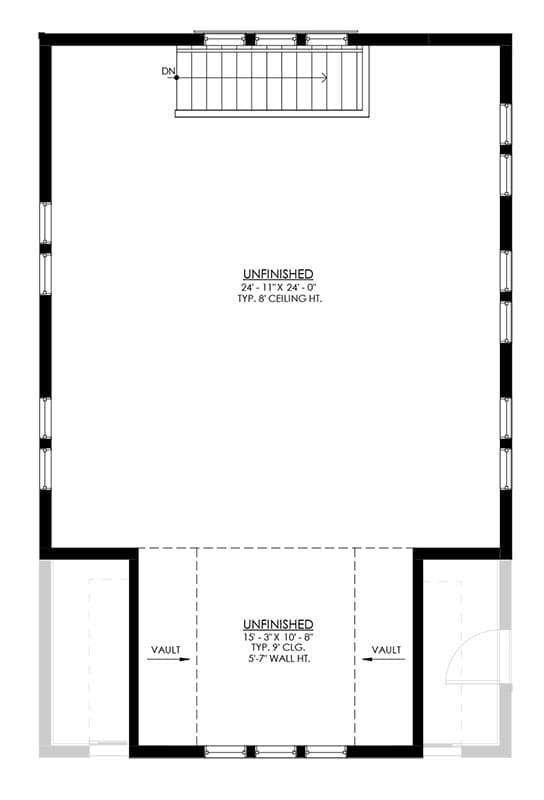

4-Car Modern Farmhouse Garage with 2-Bed ADU - 890 Sq Ft - 270101AF floor plan - 2nd Floor - Unfinished Version
Plan Details
  • This Modern Farmhouse-style garage with apartment upstairs gives you 1,040 square feet of parking on the ground level, with an optionally finished 2nd level 890 square feet of living space in the 2-bedroom ADU apartment layout.
  • Park two cars - or four if you park tandem style - behind the two overhead garage doors. Without any support beams in the garage, there is plenty of flexibility to utilize the space as you wish.
  • The entry into the apartment is accessed from underneath the large covered patio along the left side of the structure, and once inside you are met with a convenient landing zone with built-in bench and coat hooks.
  • Upstairs you enter into the apartment's in the kitchen area of the large open living space, with a stacked washer/dryer unit behind a door at the very top of the stairs. The L-shaped kitchen has ample counter space for food prep and enough floor space for a dining table as well.
  • Behind the staircase is a perfect nook for a desk or bookshelf.
  • A small vestibule leads to the two bedrooms and a shared full bath.
  • Alternatively, you can leave the second floor unfinished and use the space for storage or projects.
  • Related Plans: Get an alternate apartment layout with plans 270098AF (873 sq. ft.) and 270076AF (876 sq. ft.).
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.

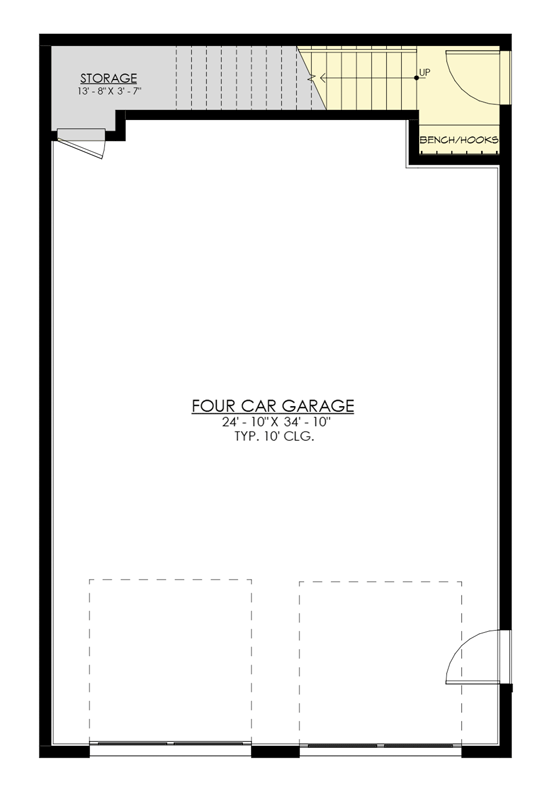

  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

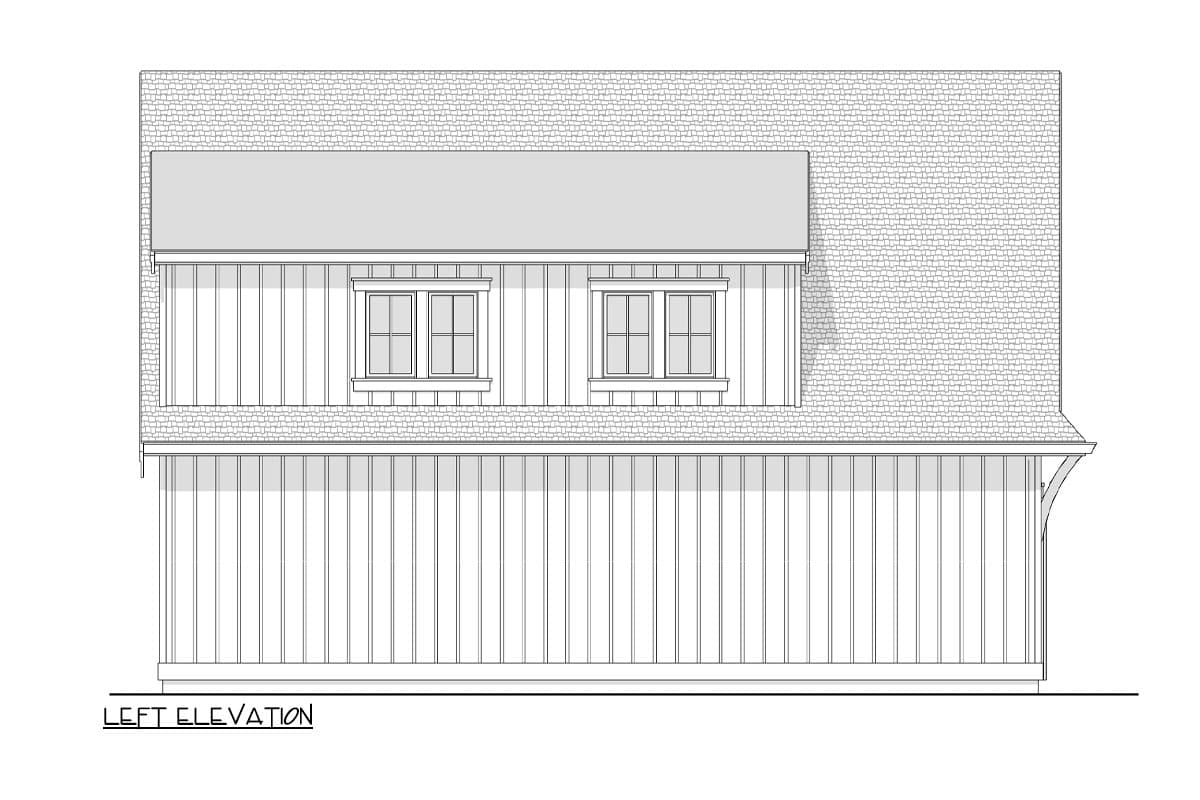

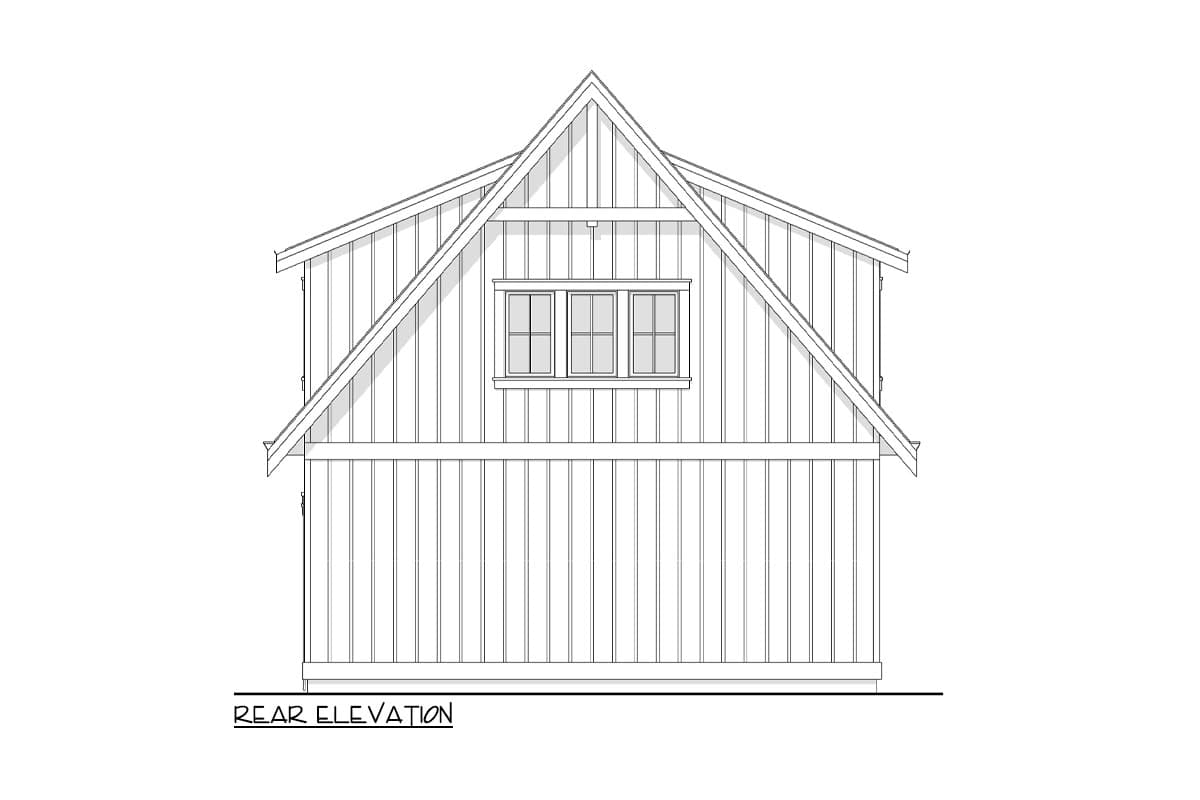

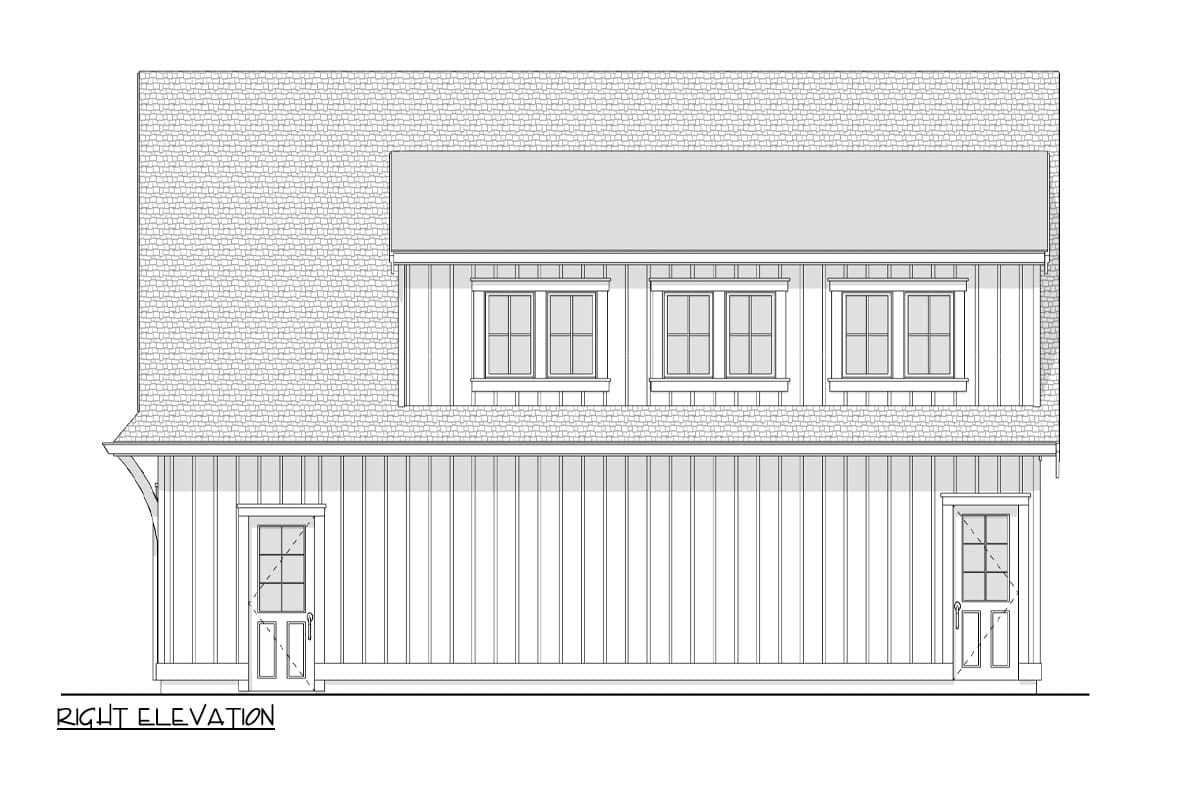

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, etc.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Framing layouts with beam sizes and locations
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4-Car Modern Farmhouse Garage with 2-Bed ADU - 890 Sq Ft

  • 890

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor - Finished Apartment Layout

  • 2nd Floor - Unfinished Version

Plan Details

Square Footage Breakdown

  • Total: 890 sq. ft.
  • 2nd Floor: 890 sq. ft.

Dimensions

  • Width: 26' 0"
  • Depth: 40' 0"
  • Max ridge height: 28' 6"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 1040 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
