Plan 666203RAF
5-Bed Contemporary Home Plan with Elevator and Walkout Basement
Heated S.F.
5,471
Beds
5
Baths
4.5+
Stories
2
Cars
3
What's Included
Plan Details
  • The centrally located elevator helps you move easily between floors in this 5-bedroom Contemporary home plan. This design totals 5,471 square feet of living space.

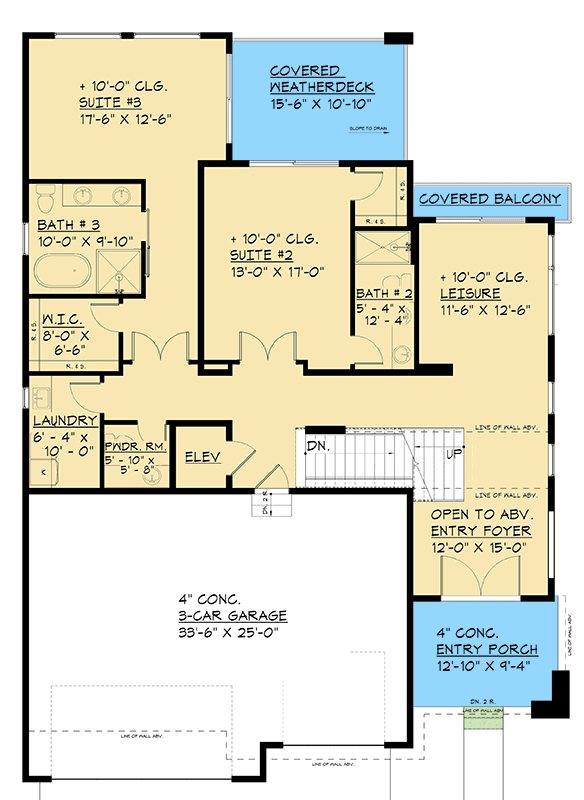

  • The main level consists of a leisure room near the foyer, as well as two bedroom suites, a laundry room, and access to the 3-car garage.
  • The heart of the home resides upstairs to take advantage of the surrounding views. An oversized island includes a wraparound eating bar in the kitchen and a pocket door provides access to the pantry.
  • The master suite boasts a vaulted ceiling and coffee bar, while sitting across the hall from a laundry closet. A home office completes the second level.

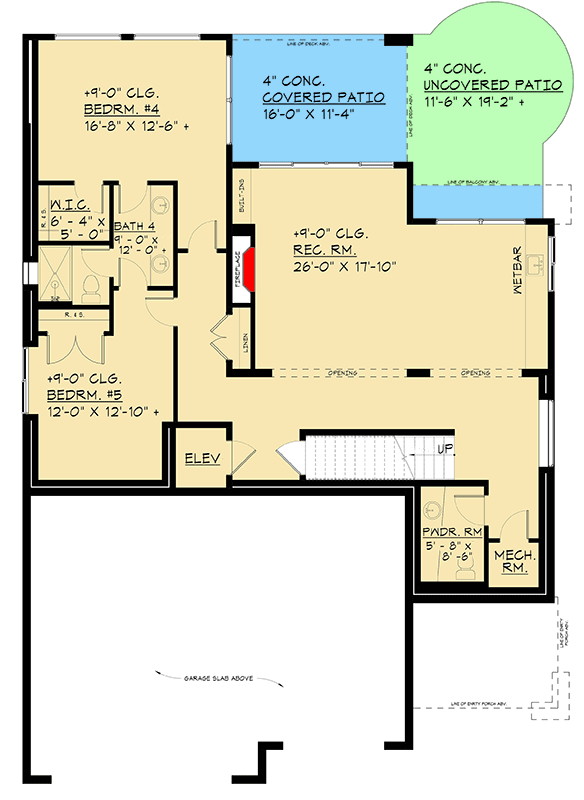

  • In the walkout basement, you will find a sizable rec room with a cozy fireplace and access to a covered patio. Bedrooms 4 and 5 share a Jack-and- Jill bathroom to round out the lower level.
What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

5-Bed Contemporary Home Plan with Elevator and Walkout Basement

  • 5,471

    Heated s.f.

  • 5

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 5,471 sq. ft.
  • Lower Level: 1,537 sq. ft.
  • 1st Floor: 1,632 sq. ft.
  • 2nd Floor: 2,302 sq. ft.
  • Rooftop: 1,413 sq. ft.

Dimensions

  • Width: 47' 0"
  • Depth: 66' 4"
  • Max ridge height: 36' 10"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 3

Garage

  • Type: Attached
  • Area: 836 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement, Daylight
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 1.25 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

5-Bed Contemporary Home Plan with Elevator and Walkout Basement

  • 5,471

    Heated s.f.

  • 5

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

5-Bed Contemporary Home Plan with Elevator and Walkout Basement

  • 5,471

    Heated s.f.

  • 5

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 5,471 sq. ft.
  • Lower Level: 1,537 sq. ft.
  • 1st Floor: 1,632 sq. ft.
  • 2nd Floor: 2,302 sq. ft.
  • Rooftop: 1,413 sq. ft.

Dimensions

  • Width: 47' 0"
  • Depth: 66' 4"
  • Max ridge height: 36' 10"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 3

Garage

  • Type: Attached
  • Area: 836 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement, Daylight
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 1.25 on 12
  • Framing Type: Truss

    Main Level

    2nd Floor

    Lower Level
