Plan 623157DJ 5-Bed Transitional Home Plan Under 5500 Square Feet with Courtyard Parking for 6 Cars

5,388 5 4.5+ 2 6
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

5-Bed Transitional Home Plan Under 5500 Square Feet with Courtyard Parking for 6 Cars

Plan 623157DJ

  • 5,388

    Heated s.f.

  • 5

    Beds

  • 4.5+

    Baths

  • 2

    Stories

  • 6

    Cars

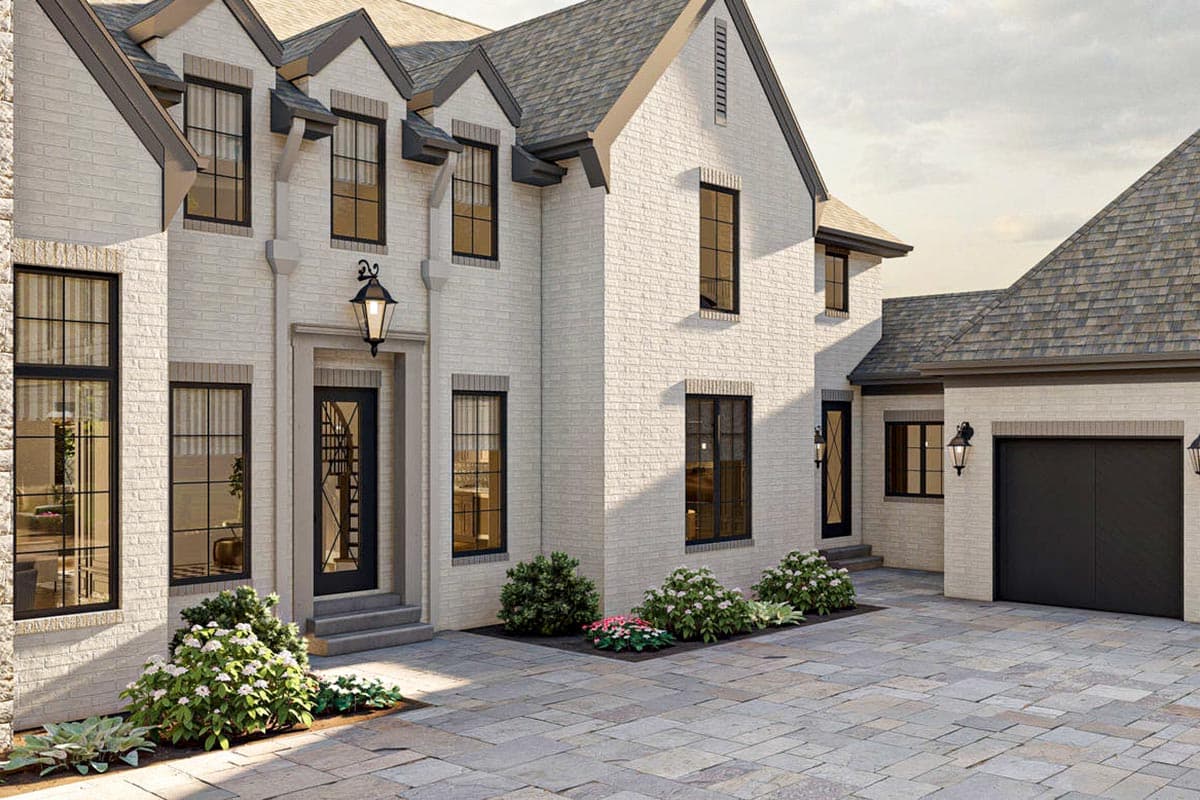

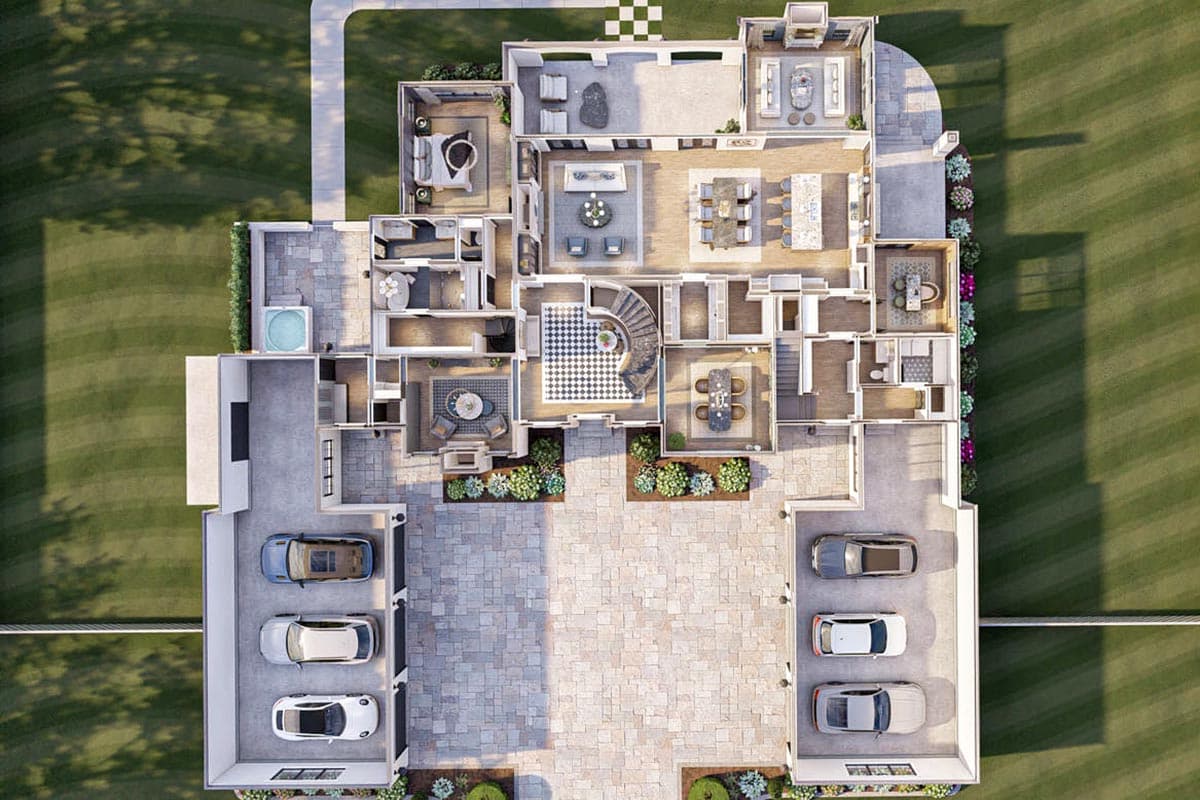

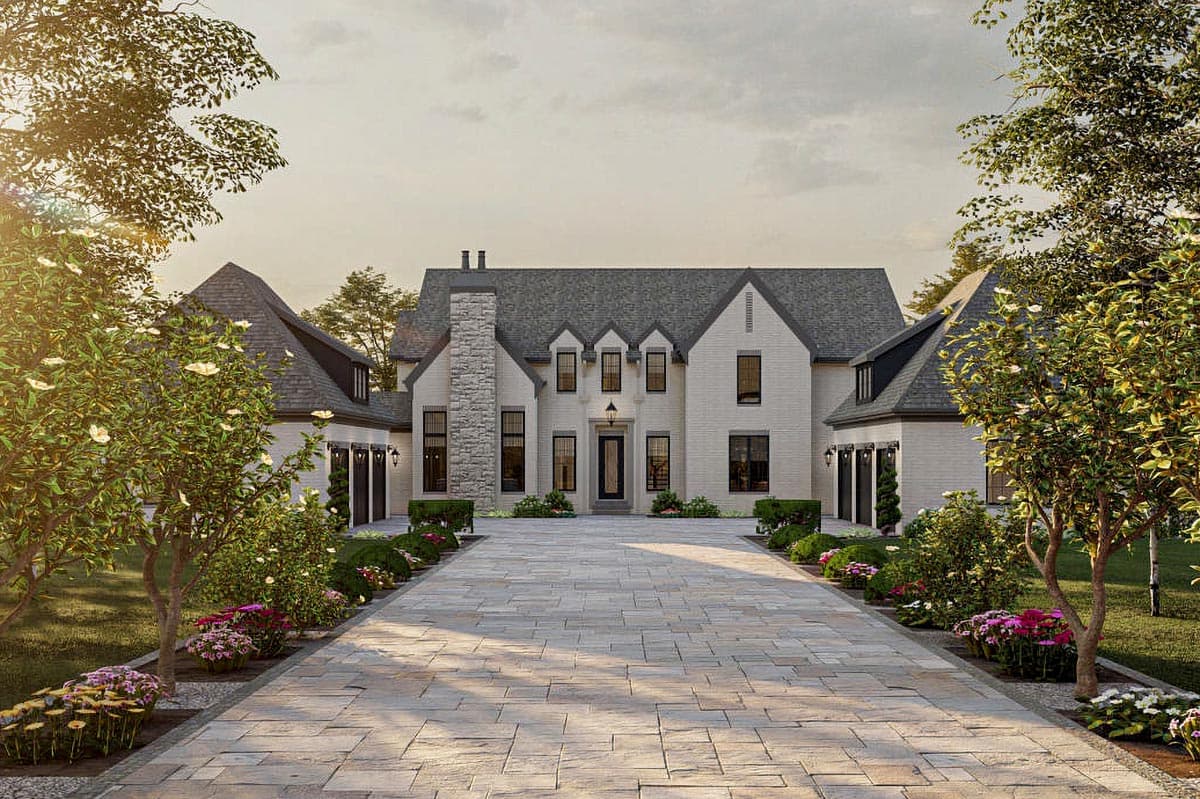

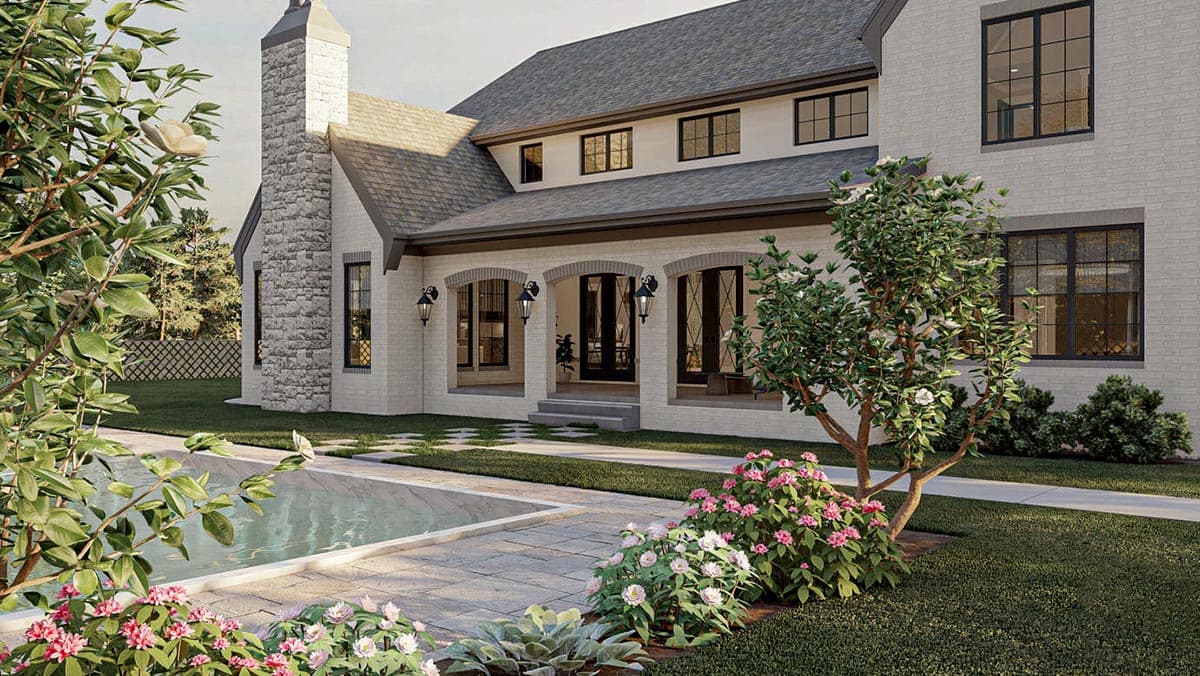

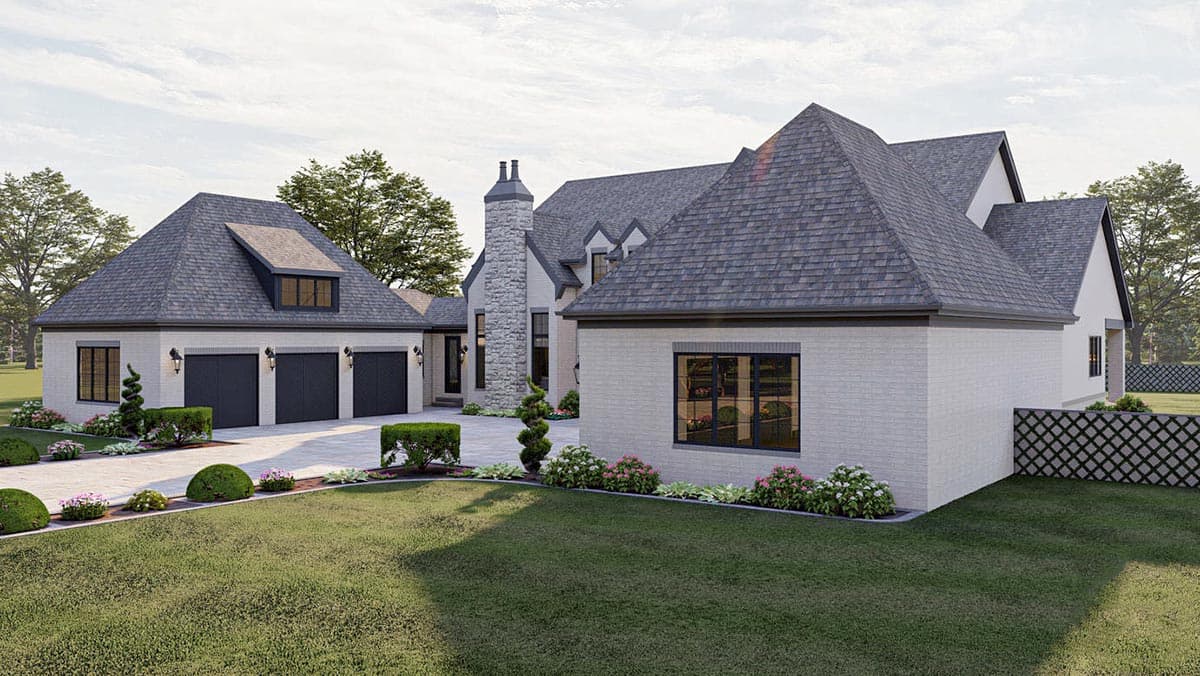

  • Approach the front door from the courtyard flanked by matching 3-car garages and enter the front door with three sets of windows above with gable roofs giving the home contemporary curb appeal. Inside, you get 5 beds, 4.5 baths and 5,388 square feet of heated living space spread across two floors.

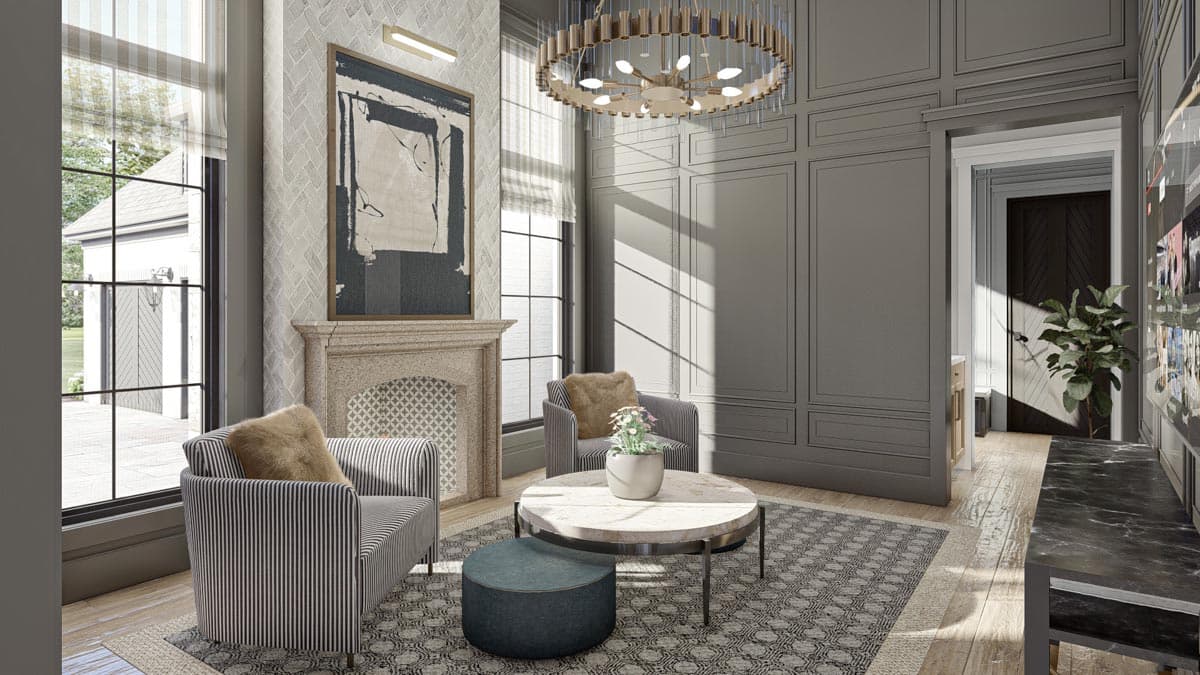

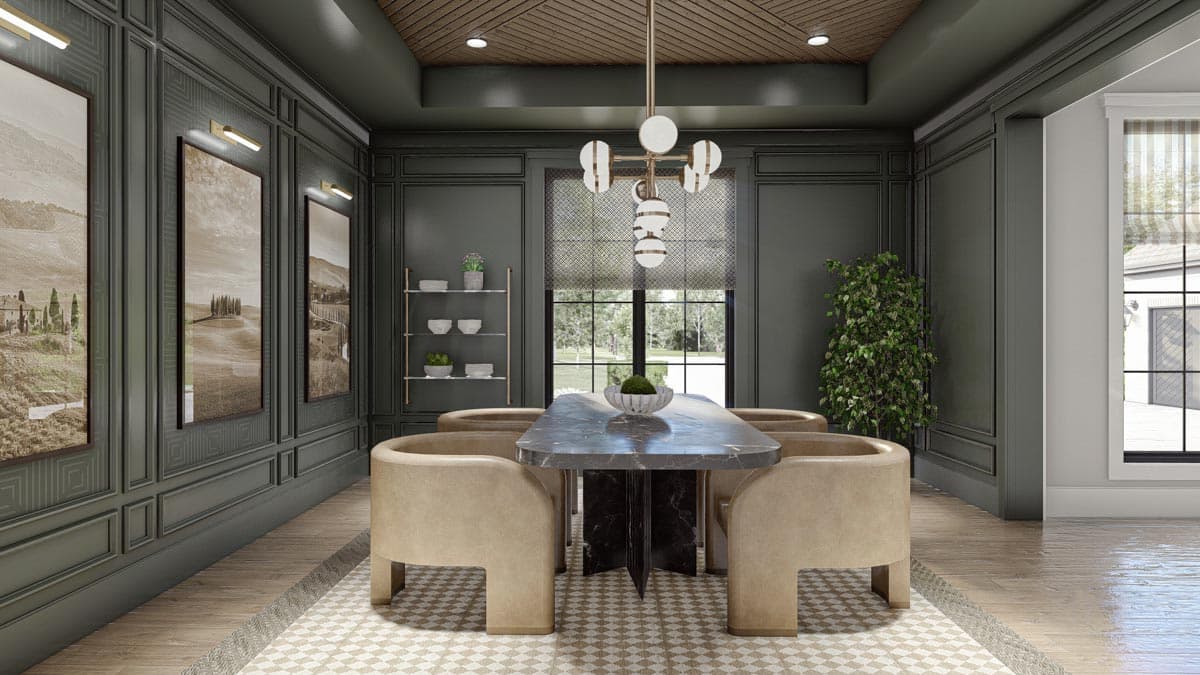

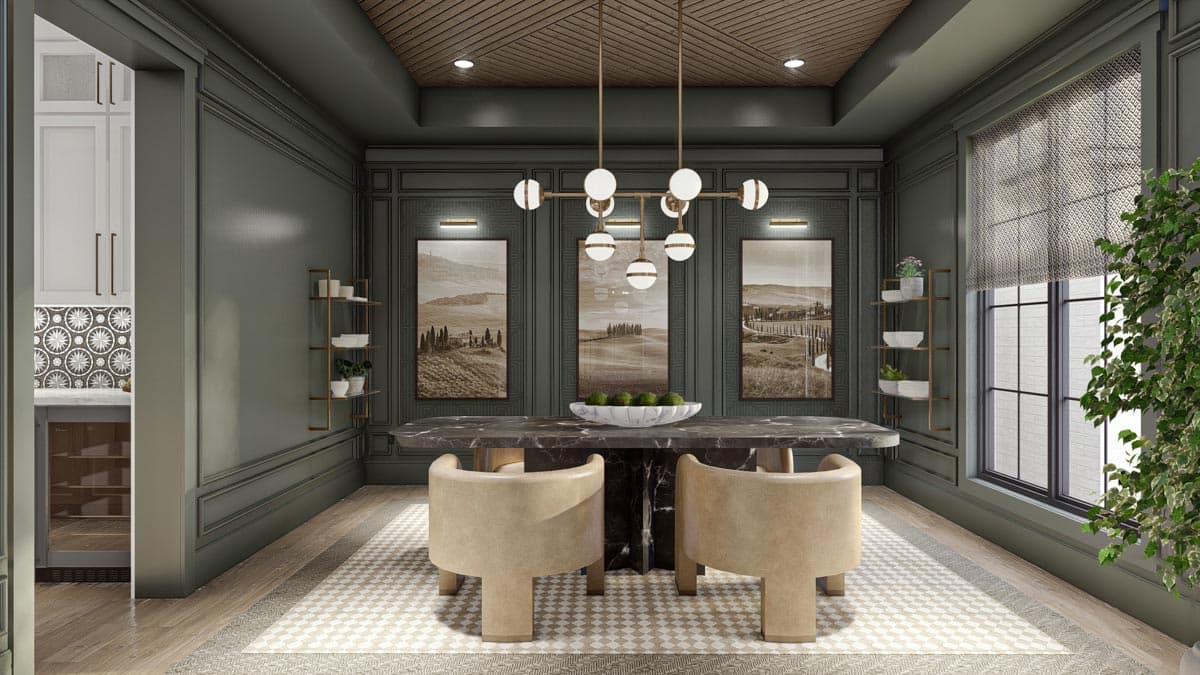

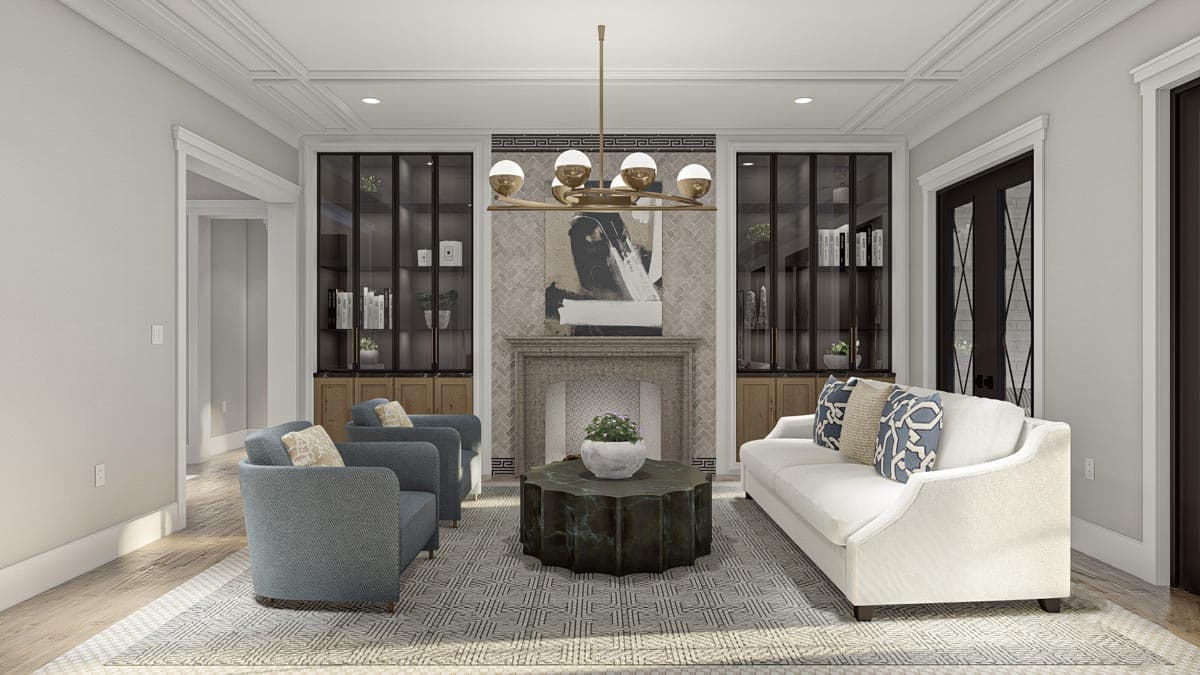

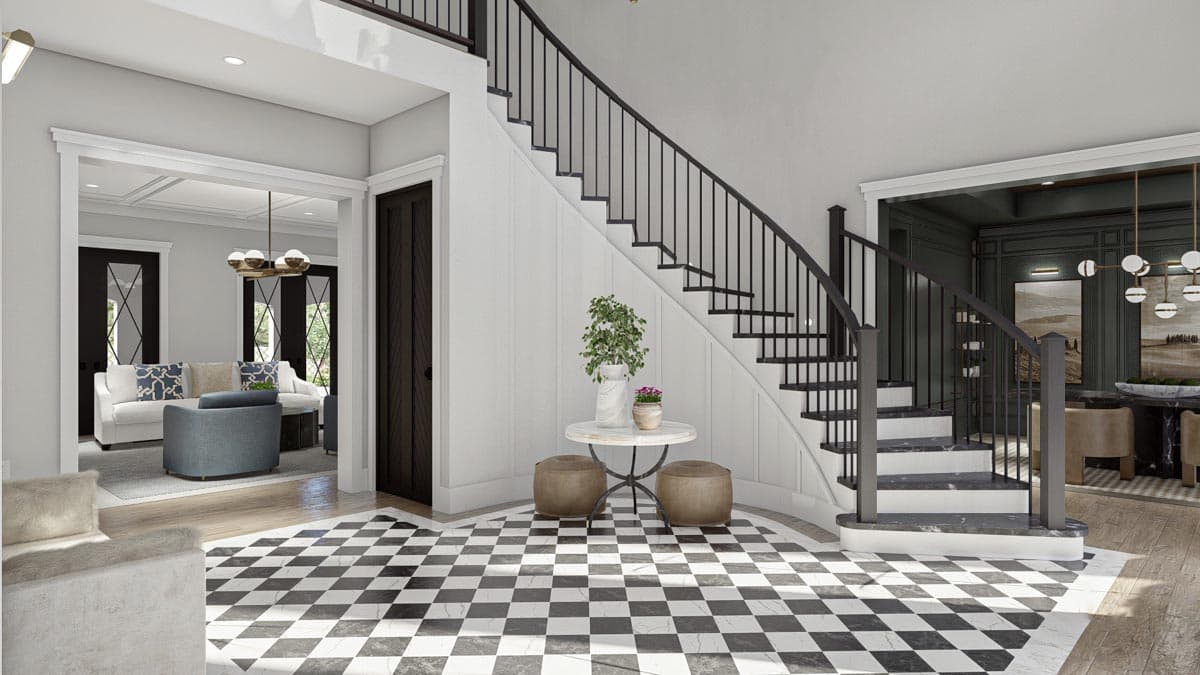

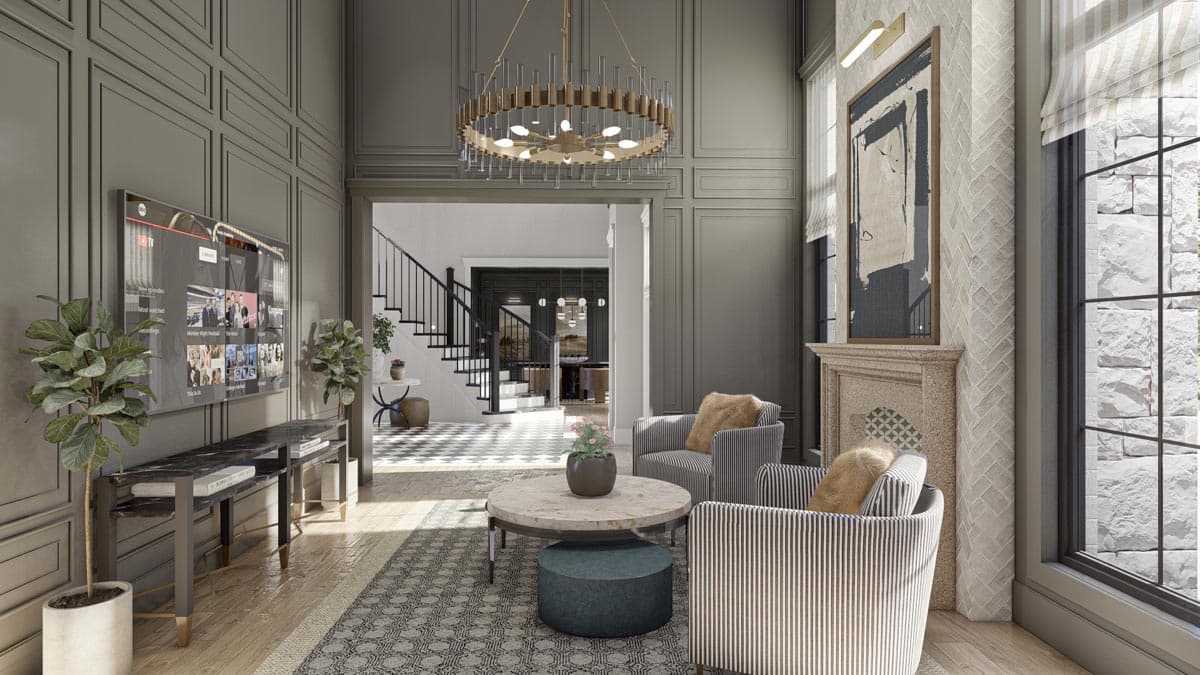

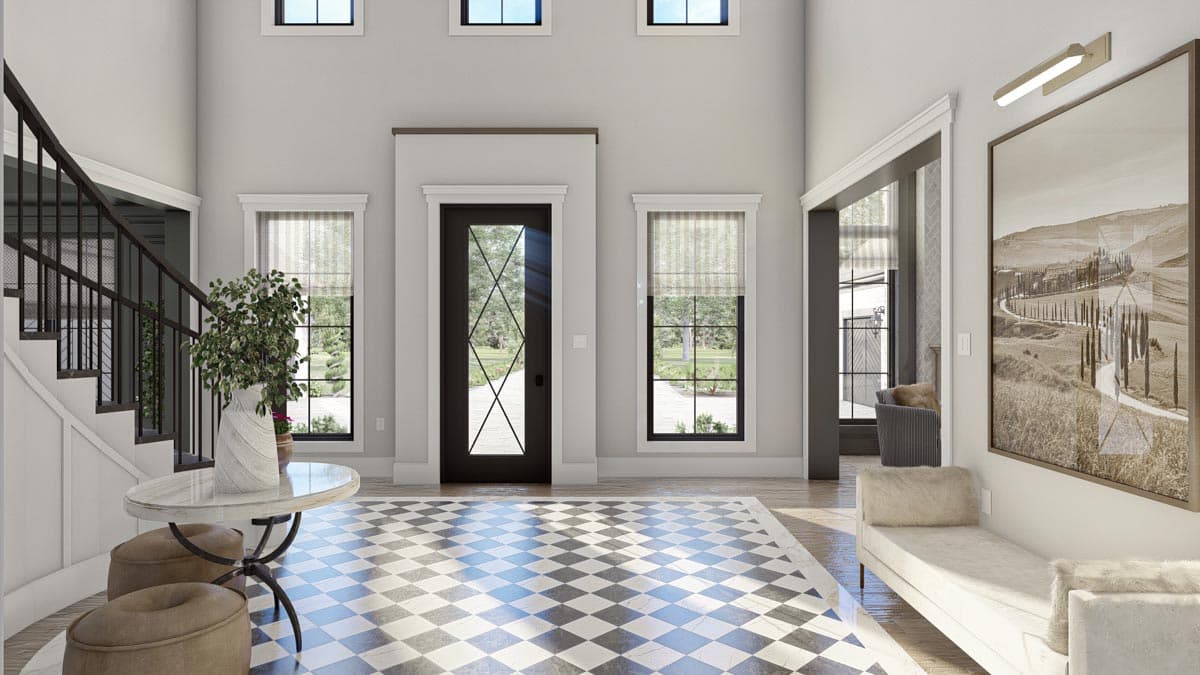

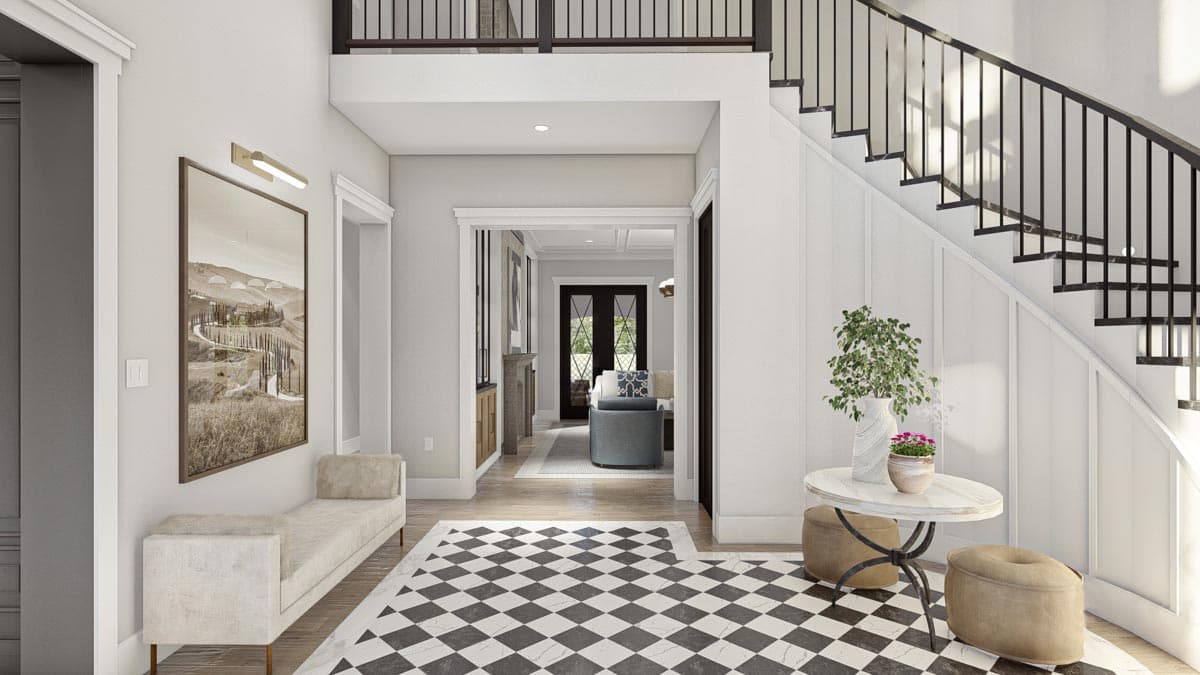

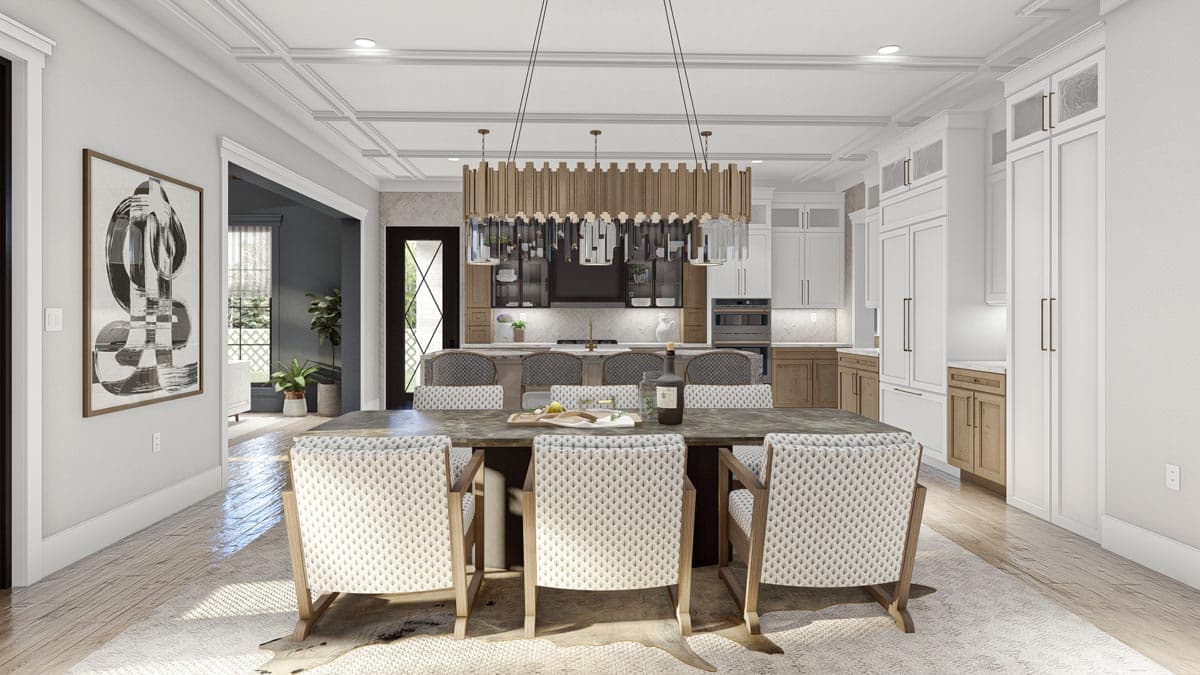

  • A curved stair welcome you inside the foyer with a living room with fireplace and a dining room to either side.

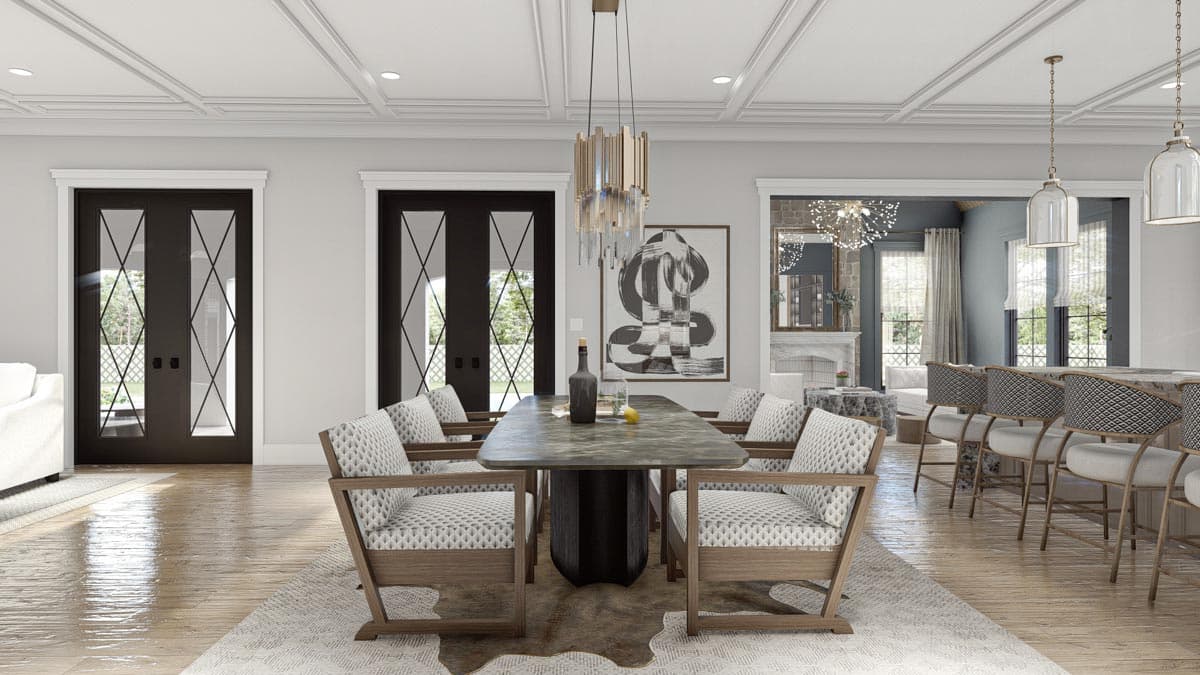

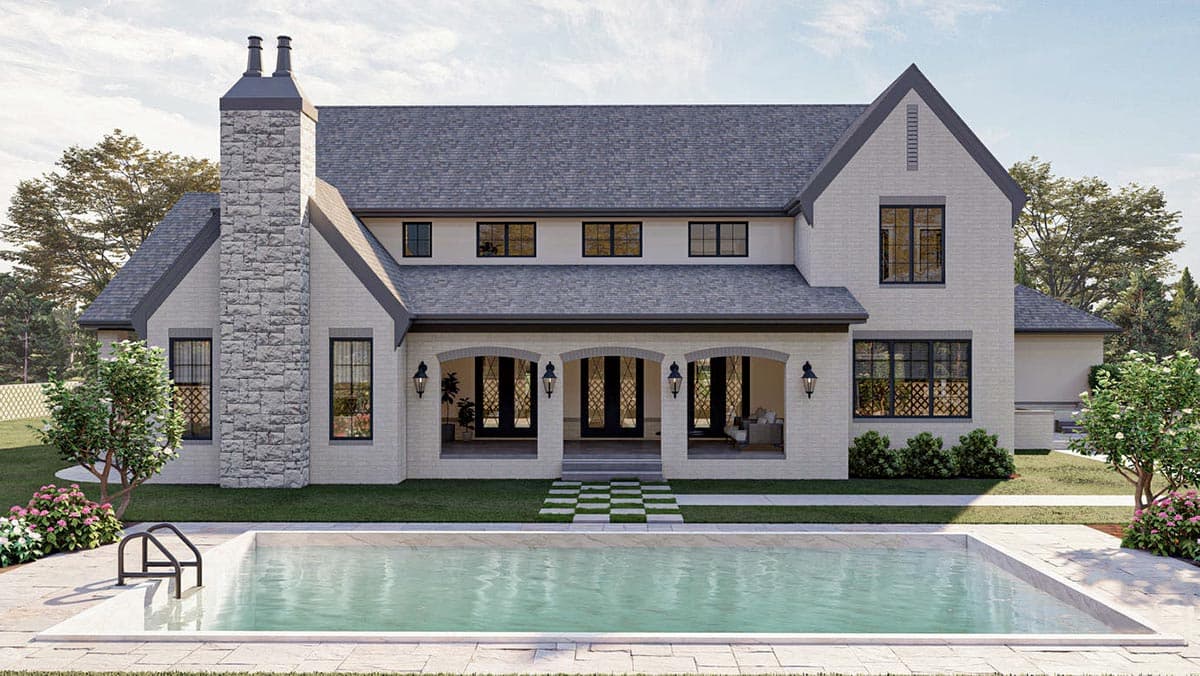

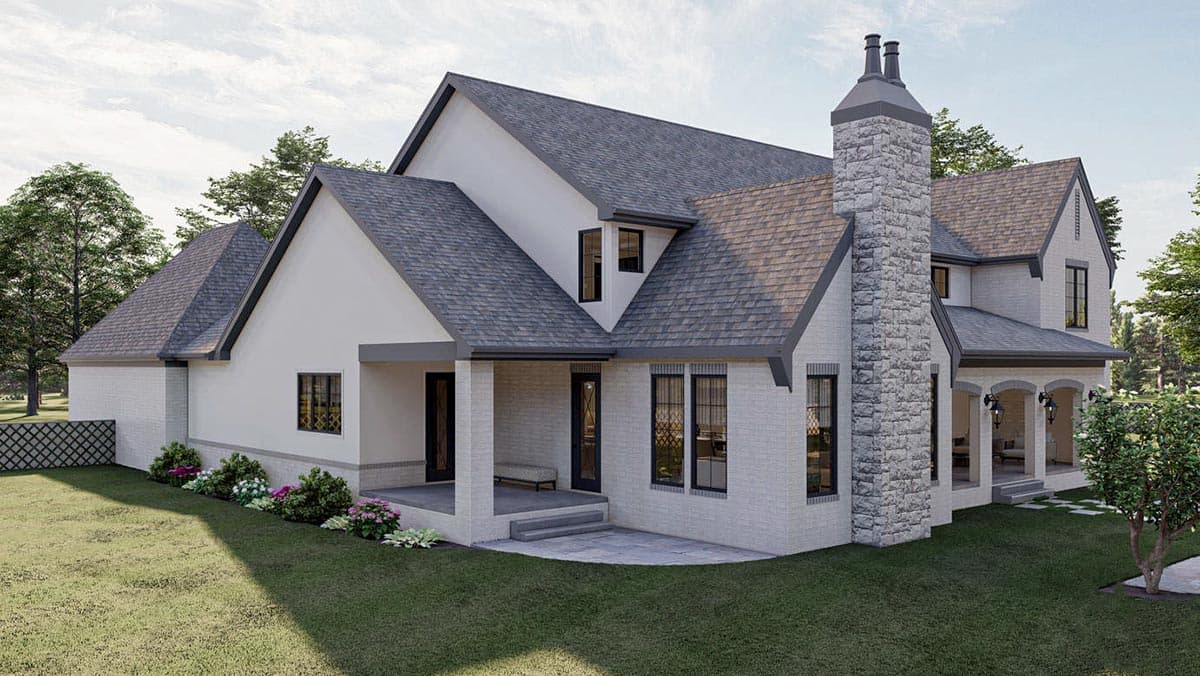

  • The great room with fireplace is open to the kitchen and has views across the back. A pair of French doors take you to the covered porch extending your livability to the outdoors.

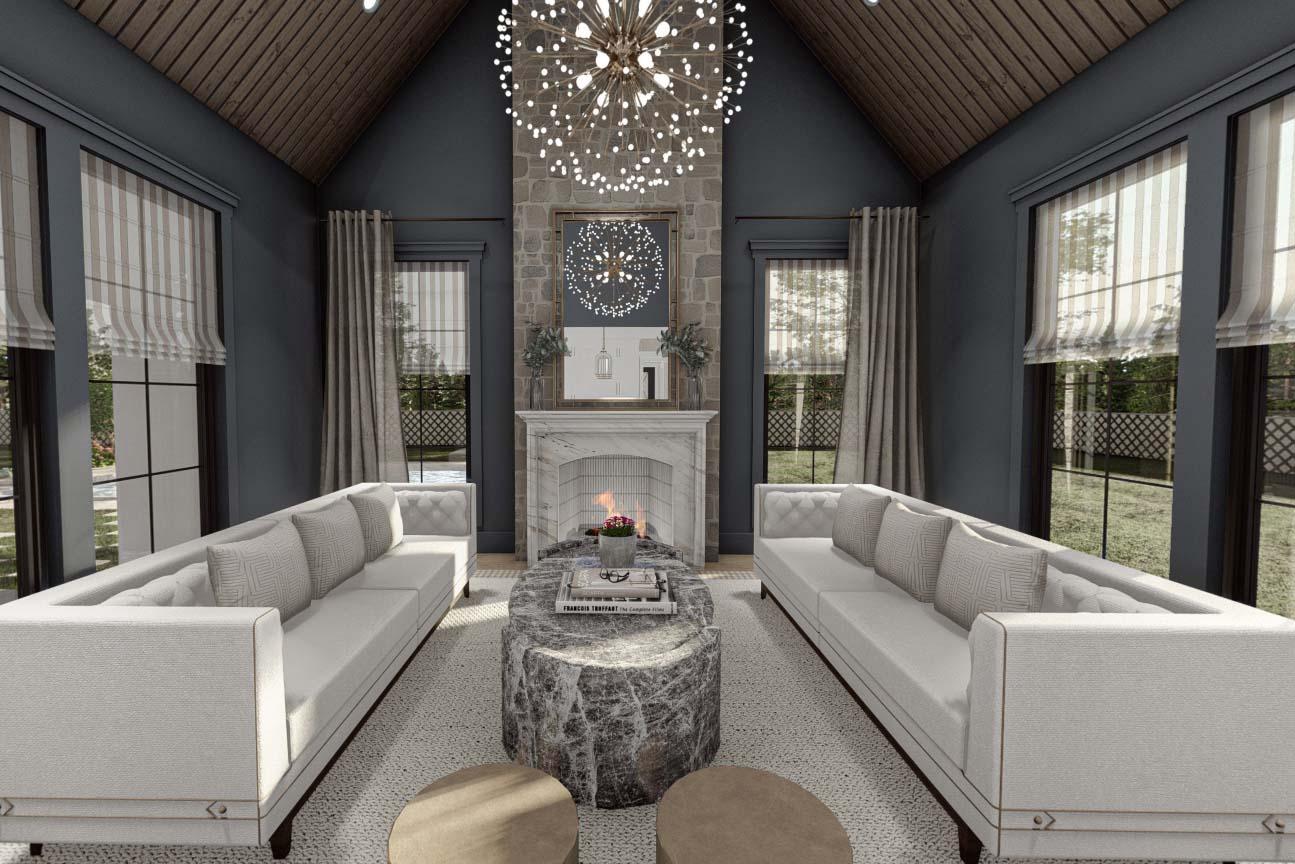

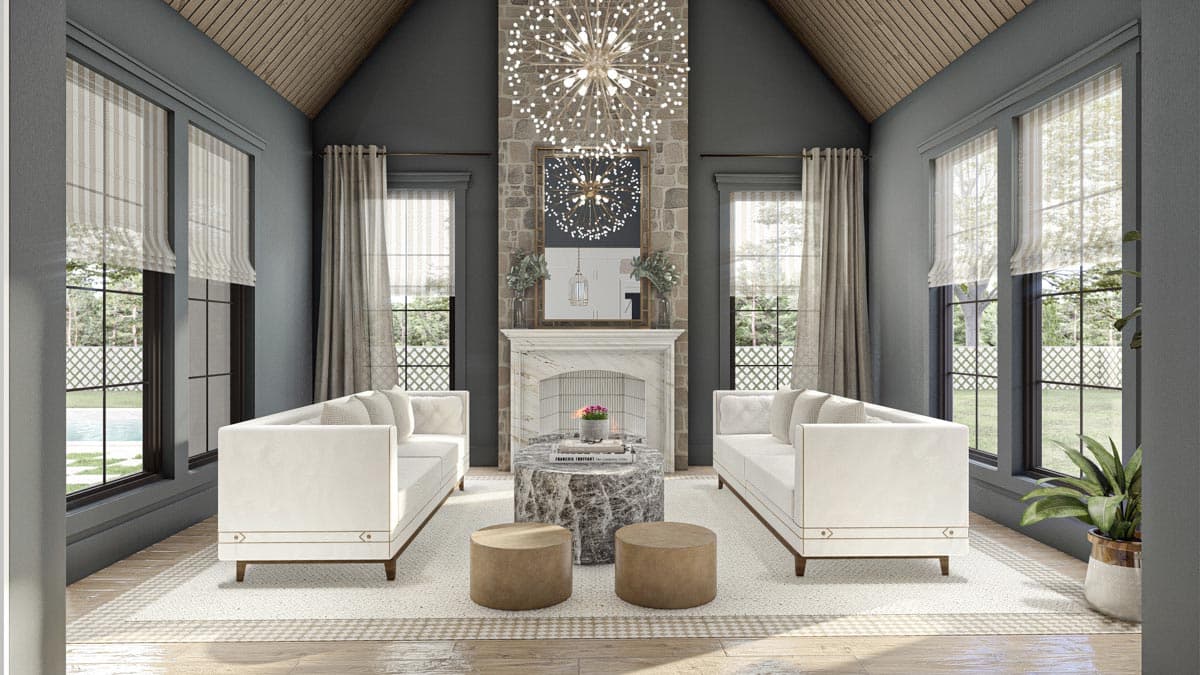

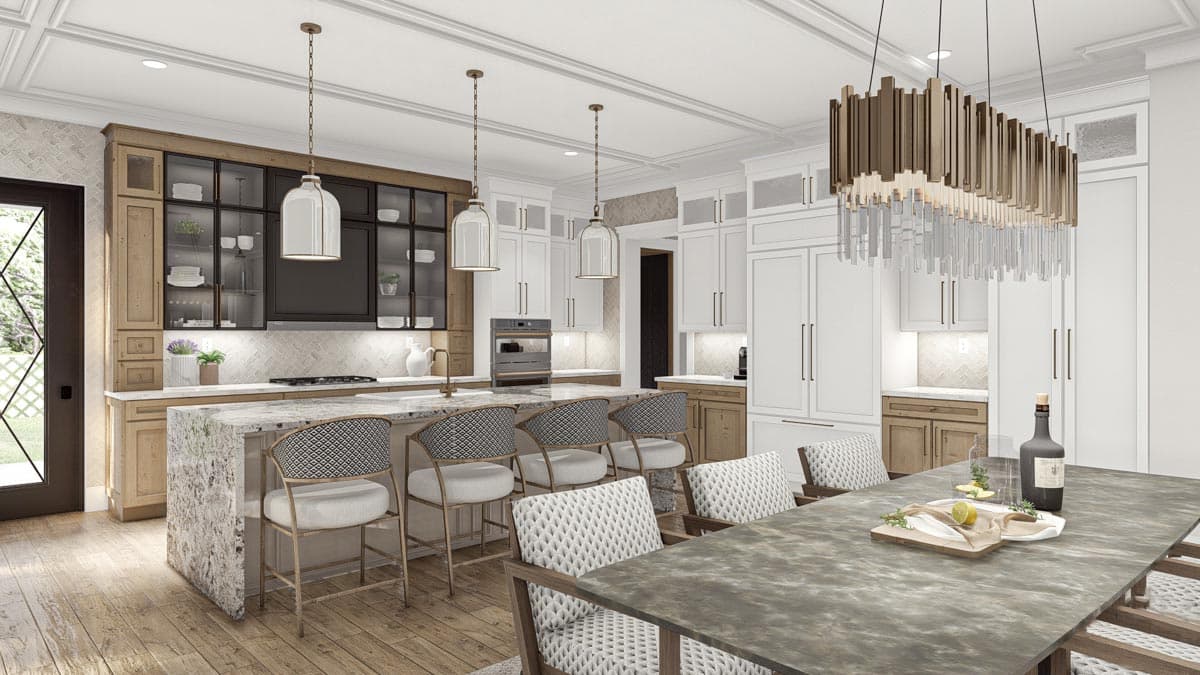

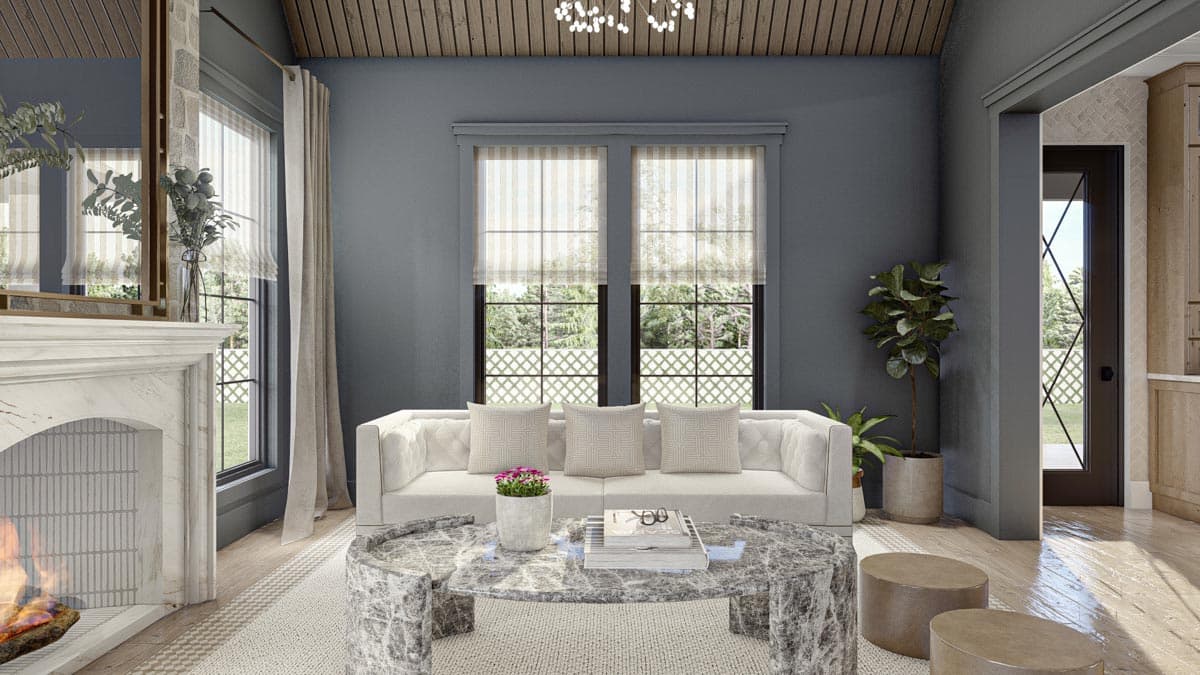

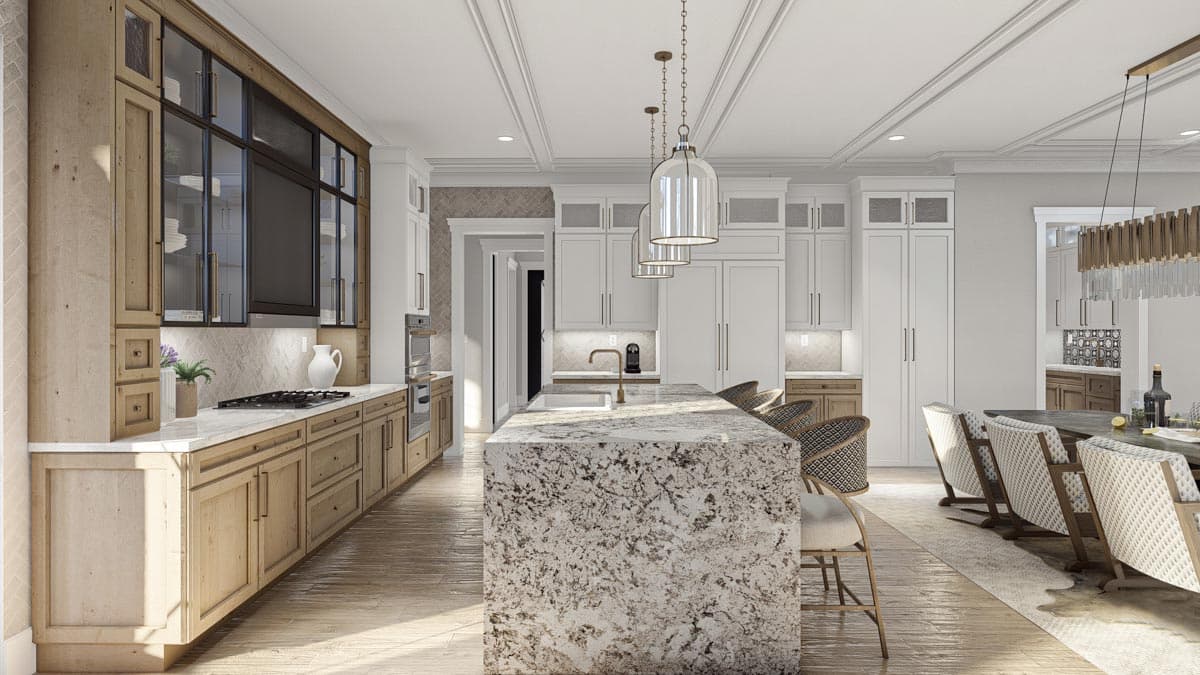

  • The kitchen has a large island and has views to two fireplaces: one in the great room and the other in the vaulted family room. A side porch is steps away.

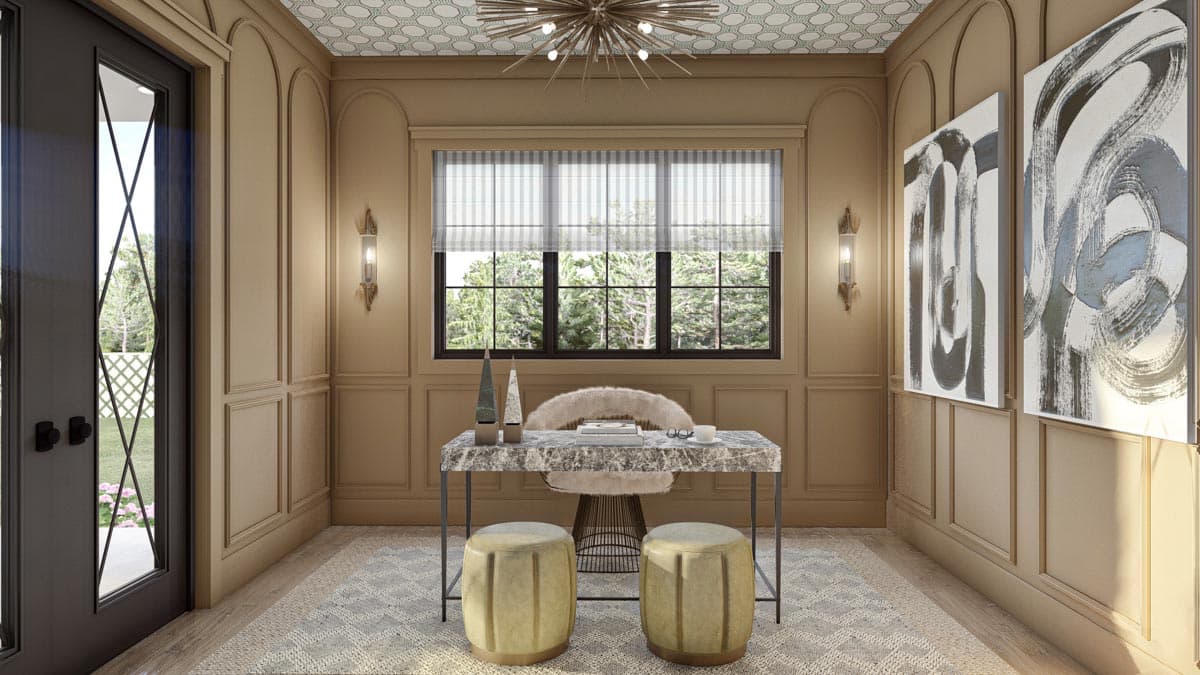

  • A home office has French door access to the side porch and makes a great work-from-home space.

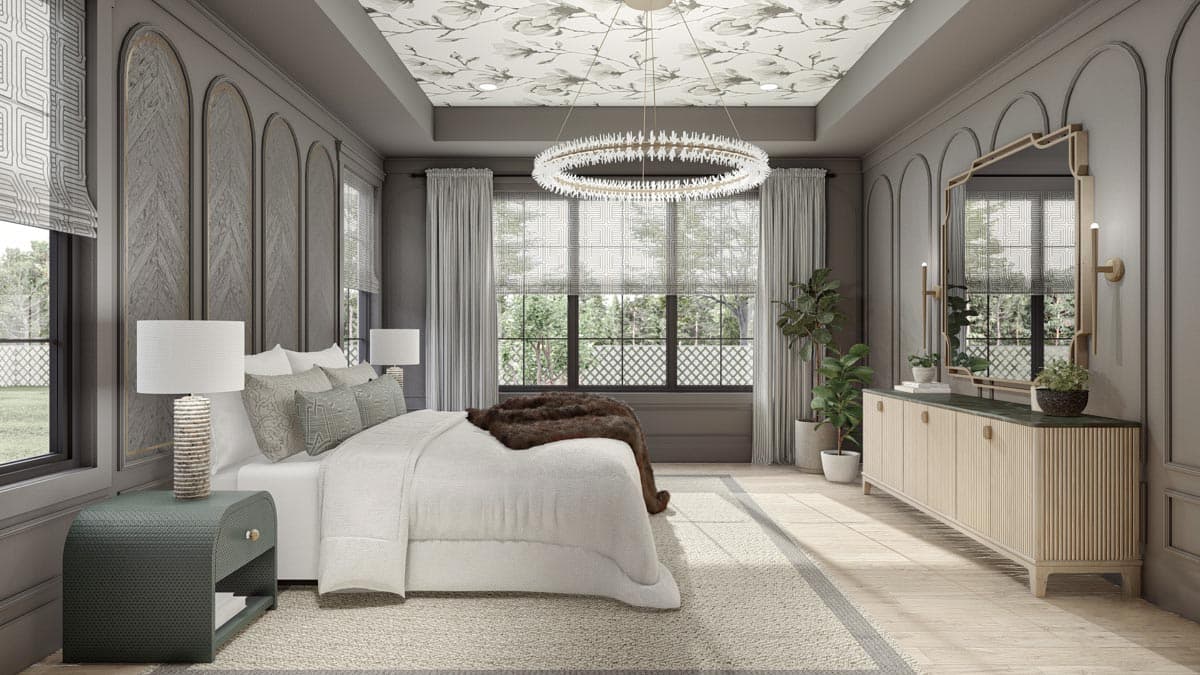

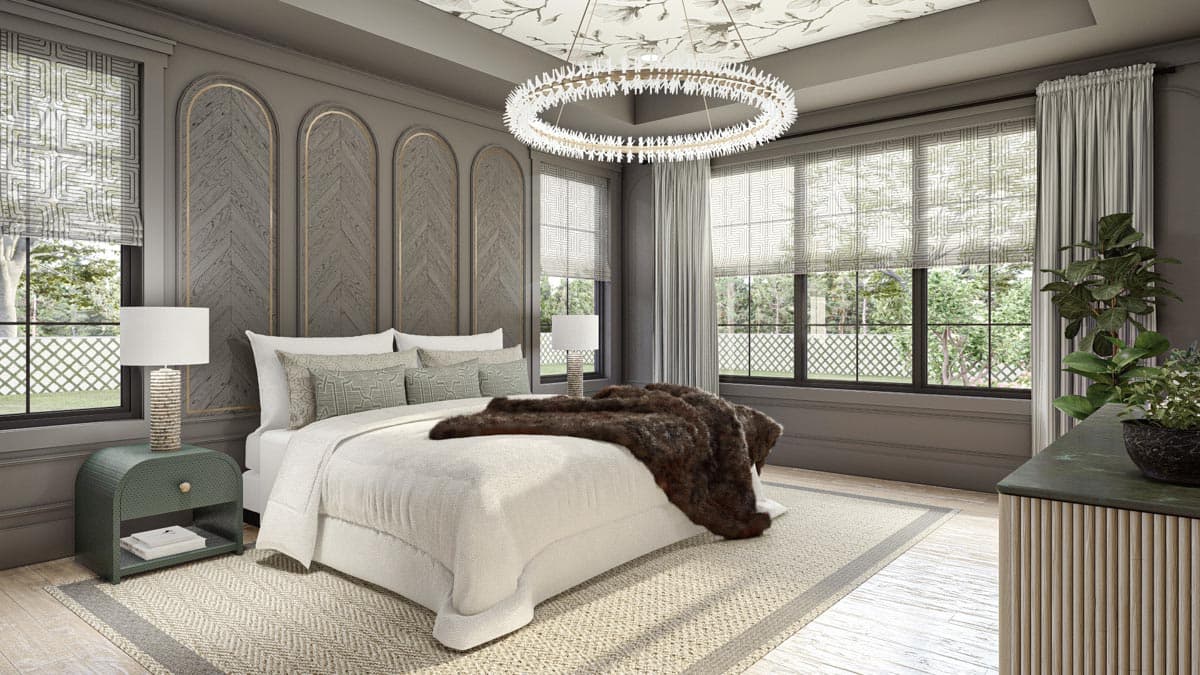

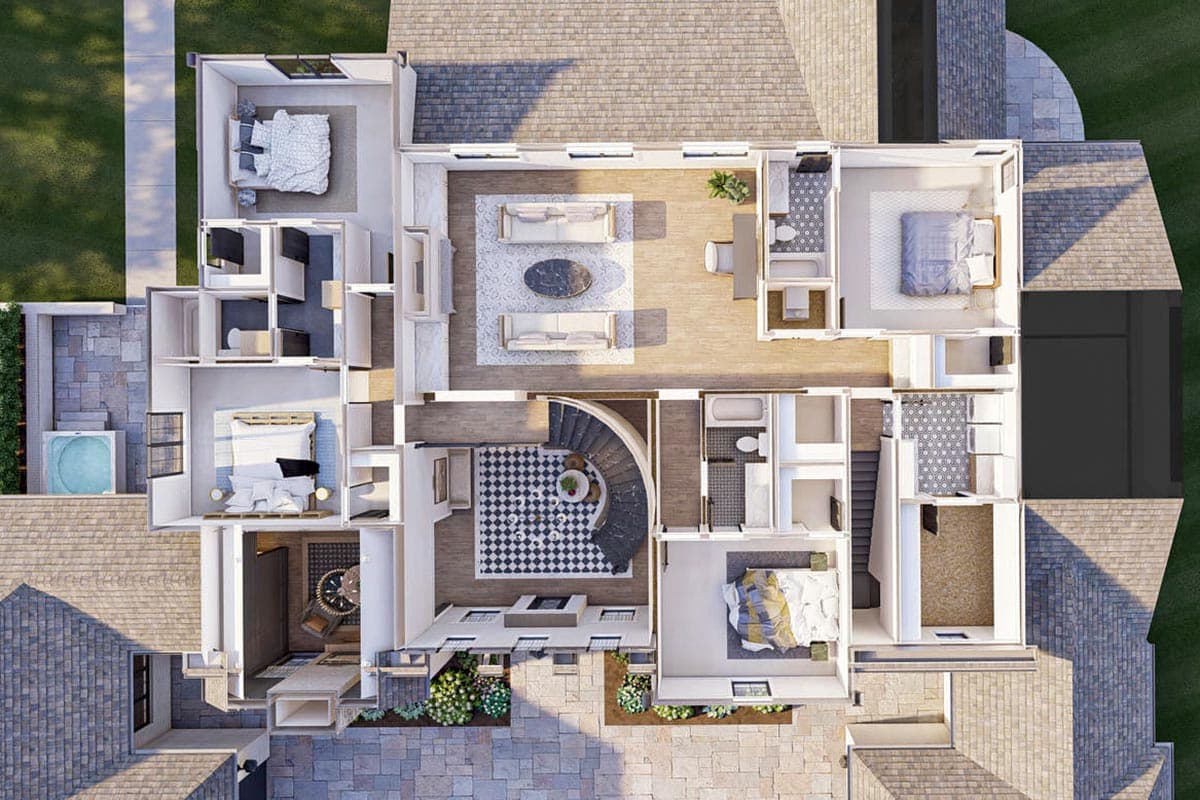

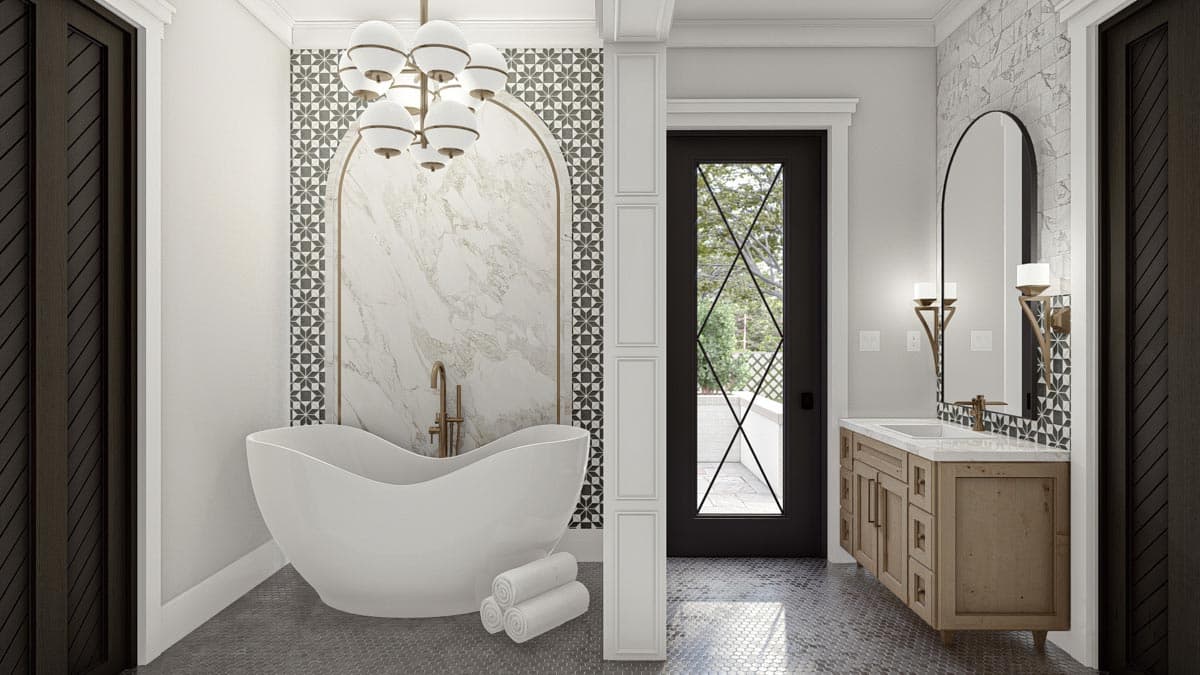

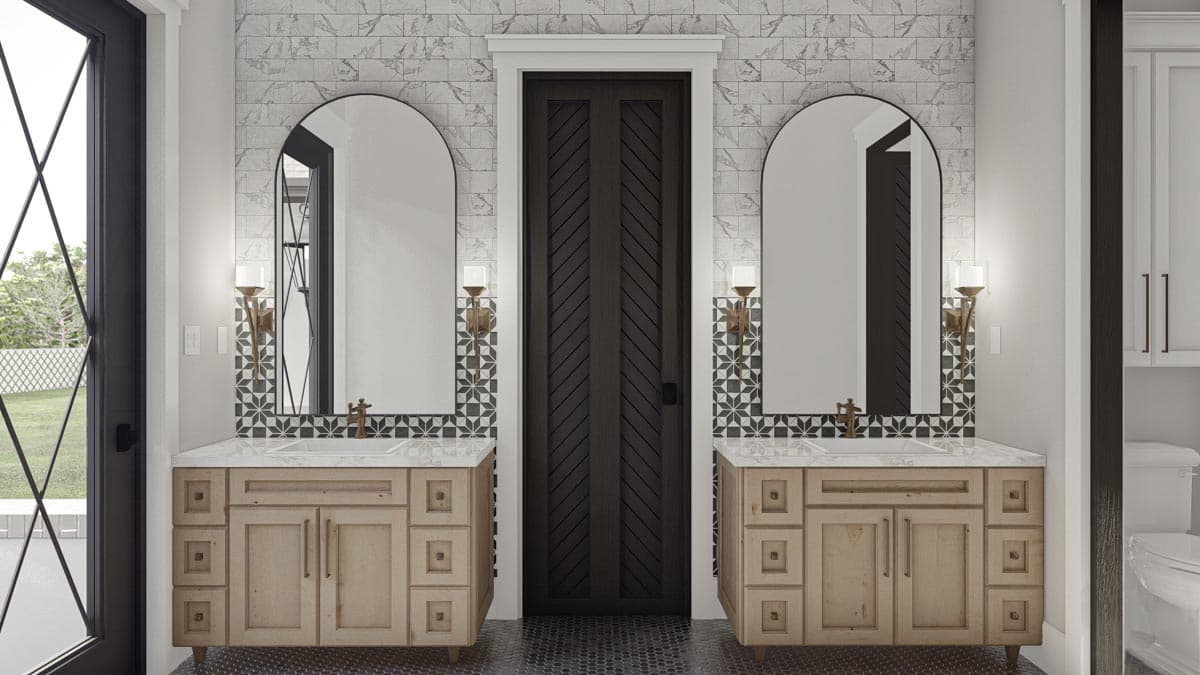

  • The master suite has a tray ceiling, a five-fixture bath and a large walk-in closet with a spiral stair that takes you to the basement. A door in the bathroom takes you to a private patio with hot tub. The remaining four bedrooms are located upstairs, - two on either side of the family room - and a laundry room.
  • Select the optional finished lower level (additional cost) and get an additional 2,614 square feet dedicated to fun spaces, including a home theater, a playroom with slide and more.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

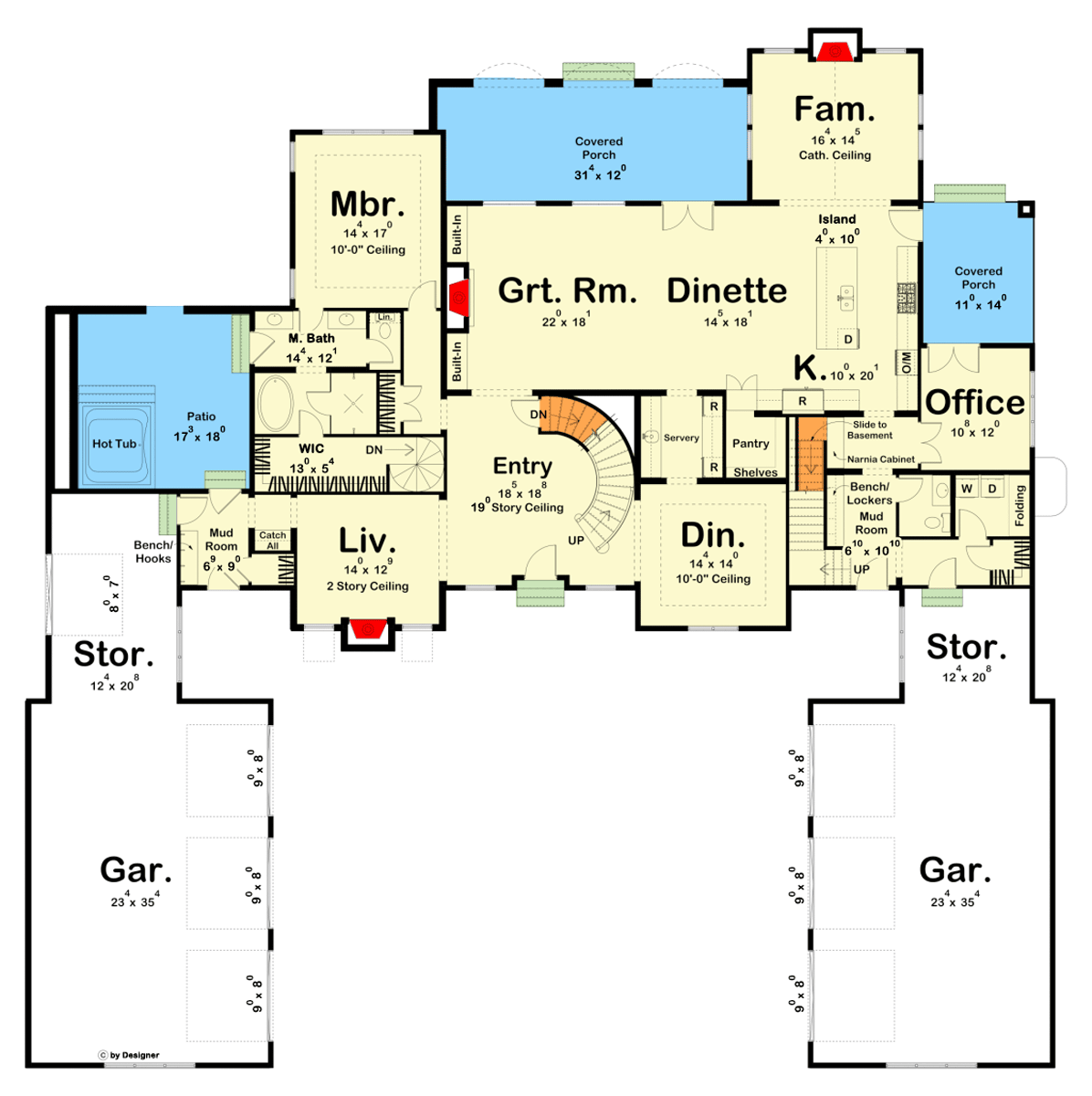

5-Bed Transitional Home Plan Under 5500 Square Feet with Courtyard Parking for 6 Cars - 623157DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

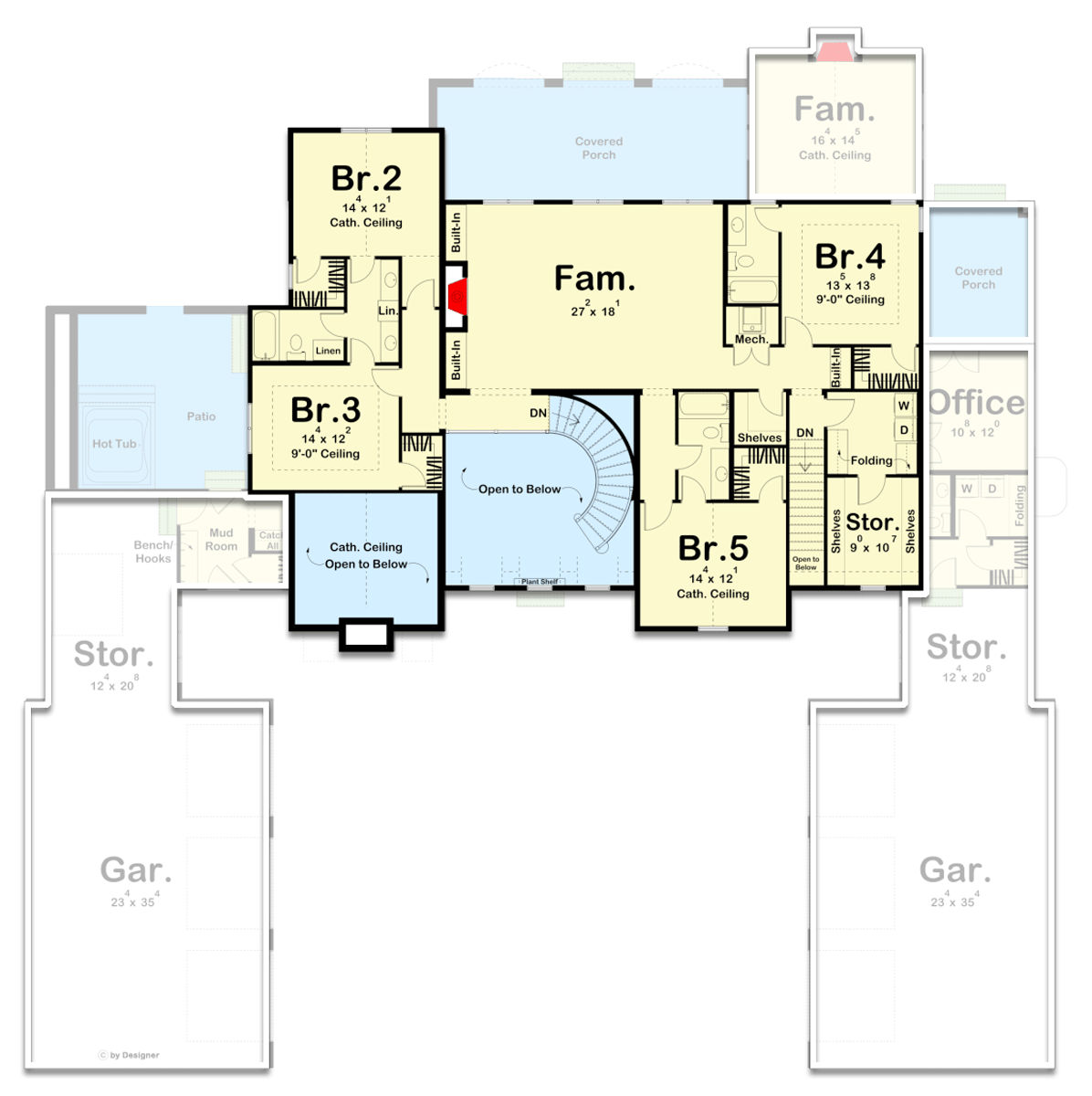

5-Bed Transitional Home Plan Under 5500 Square Feet with Courtyard Parking for 6 Cars - 623157DJ floor plan - 2nd Floor

Optional Finished Lower Level Layout (+$250)

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

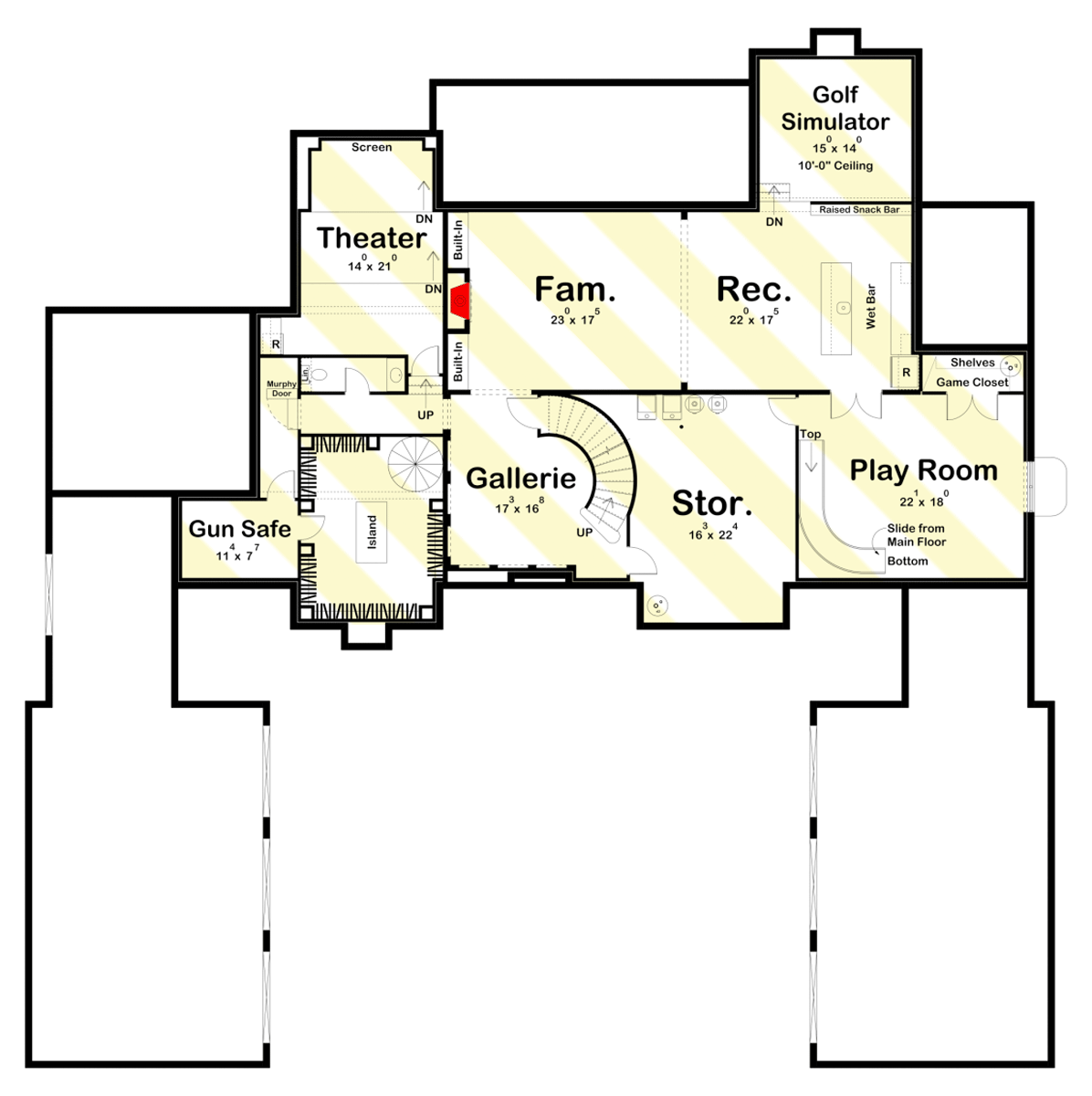

5-Bed Transitional Home Plan Under 5500 Square Feet with Courtyard Parking for 6 Cars - 623157DJ floor plan - Optional Finished Lower Level Layout (+$250)

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,388 sq. ft.
  • 1st Floor: 3,267 sq. ft.
  • 2nd Floor: 2,121 sq. ft.
  • Porch, Combined: 498 sq. ft.
  • Optional Lower Level: 2,614 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1 or 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 101' 0"
  • Depth: 102' 0"
  • Max ridge height: 32' 1"

Garage

  • Type: Attached
  • Area: 2137 sq. ft.
  • Count: 6 Cars
  • Entry Location: Courtyard

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

5-Bed Transitional Home Plan Under 5500 Square Feet with Courtyard Parking for 6 Cars

  • 5,388

    Heated s.f.

  • 5

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 6

    Car garage

Buy This Plan
  • PDF - Single-Build $2,500
  • 5 Sets + PDF $2,750
  • PDF - Unlimited Build $3,000
  • CAD + PDF - Single-Build $3,000
  • CAD Unlimited + PDF $3,500
  • View all purchase option online

About This Plan

  • Approach the front door from the courtyard flanked by matching 3-car garages and enter the front door with three sets of windows above with gable roofs giving the home contemporary curb appeal. Inside, you get 5 beds, 4.5 baths and 5,388 square feet of heated living space spread across two floors.
  • A curved stair welcome you inside the foyer with a living room with fireplace and a dining room to either side.
  • The great room with fireplace is open to the kitchen and has views across the back. A pair of French doors take you to the covered porch extending your livability to the outdoors.
  • The kitchen has a large island and has views to two fireplaces: one in the great room and the other in the vaulted family room. A side porch is steps away.
  • A home office has French door access to the side porch and makes a great work-from-home space.
  • The master suite has a tray ceiling, a five-fixture bath and a large walk-in closet with a spiral stair that takes you to the basement. A door in the bathroom takes you to a private patio with hot tub. The remaining four bedrooms are located upstairs, - two on either side of the family room - and a laundry room.
  • Select the optional finished lower level (additional cost) and get an additional 2,614 square feet dedicated to fun spaces, including a home theater, a playroom with slide and more.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Finished Lower Level Layout (+$250)

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,388 sq. ft.
  • 1st Floor: 3,267 sq. ft.
  • 2nd Floor: 2,121 sq. ft.
  • Porch, Combined: 498 sq. ft.
  • Optional Lower Level: 2,614 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 101' 0"
  • Depth: 102' 0"
  • Max ridge height: 32' 1"

Garage

  • Type: Attached
  • Area: 2137 sq. ft.
  • Count: 6 Cars
  • Entry Location: Courtyard

Roof

  • Framing Type: Truss
Plan 623157DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/623157DJ
|
