Plan 82060KA 5 Beds With Optional Exterior

2,405 5 3 2 2
Print
Compare
...

5 Beds With Optional Exterior

Plan 82060KA

  • 2,405

    Heated s.f.

  • 5

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • You'll have plenty of room for a large family in this handsome 5 Mediterranean home.
  • The L-shaped living area gives you broad sightlines from room to room.
  • The kitchen is bright and airy with a triple window - add a huge island and a walk-in pantry and you have a winning combination.
  • Sliding glass door open to a rear patio for dining al fresco.
  • Every bedroom on the second floor is a generous size, with a laundry closet right where you need it.
  • The bonus room faces front.
  • Related Plans: Shorten the porch with house plan 82059KA.
  • Get 5 beds and 3 baths with house plans 82061KA and 82062KA.

Each plan set includes the following:

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

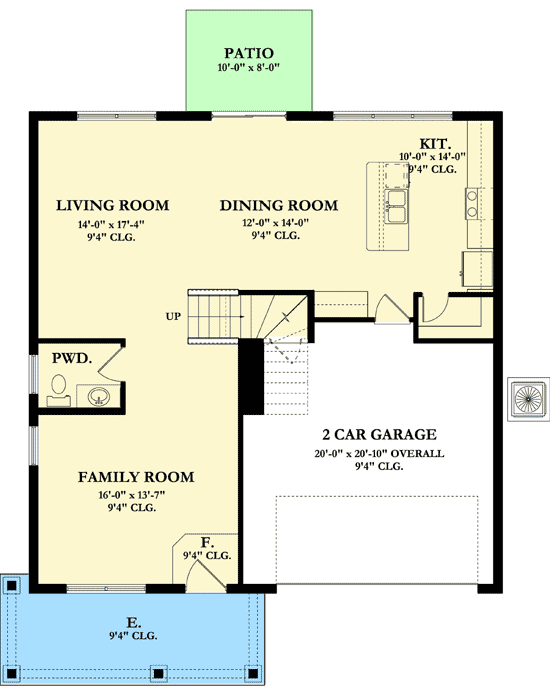

5 Beds With Optional Exterior - 82060KA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

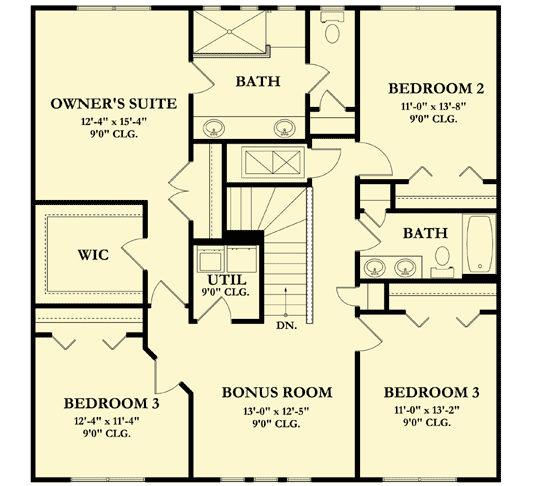

5 Beds With Optional Exterior - 82060KA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,405 sq. ft.
  • 1st Floor: 1,019 sq. ft.
  • 2nd Floor: 1,386 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 37' 8"
  • Depth: 43' 4"
  • Max ridge height: 28' 2"

Garage

  • Type: Attached
  • Area: 425 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 4" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 5 on 12
  • Framing Type: Truss

Architectural Style

Special features



5 Beds With Optional Exterior

  • 2,405

    Heated s.f.

  • 5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,695
  • PDF - Single-Build $1,995
  • CAD - Single-Build $1,995
  • View all purchase option online

About This Plan

  • You'll have plenty of room for a large family in this handsome 5 Mediterranean home.
  • The L-shaped living area gives you broad sightlines from room to room.
  • The kitchen is bright and airy with a triple window - add a huge island and a walk-in pantry and you have a winning combination.
  • Sliding glass door open to a rear patio for dining al fresco.
  • Every bedroom on the second floor is a generous size, with a laundry closet right where you need it.
  • The bonus room faces front.
  • Related Plans: Shorten the porch with house plan 82059KA.
  • Get 5 beds and 3 baths with house plans 82061KA and 82062KA.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,405 sq. ft.
  • 1st Floor: 1,019 sq. ft.
  • 2nd Floor: 1,386 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 37' 8"
  • Depth: 43' 4"
  • Max ridge height: 28' 2"

Garage

  • Type: Attached
  • Area: 425 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 4" Second Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
