Plan 81734AB

5500 Sq Ft Modern Home with Slightly Angled 3-Car Garage

Heated S.F.
5,538
Beds
3 - 7
Baths
3.5+ - 5.5+
Stories
2
Cars
3- 5

Floor Plan

Plan 81734AB

Main Level
Main Level
2nd Floor
2nd Floor
Optionally Finished Lower Level
Optionally Finished Lower Level

Plan 81734AB

M-F 9am-5pm EST |

1-203-761-8500

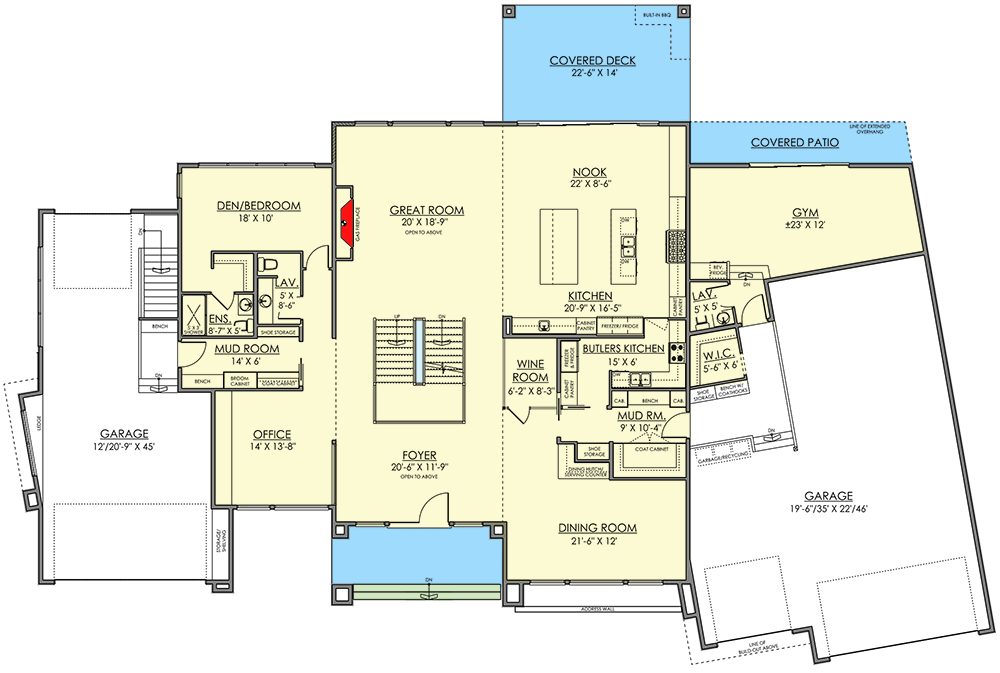

Main Level

Plan 81734AB: 5500 Sq Ft Modern Home with Slightly Angled 3-Car Garage - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern, Northwest

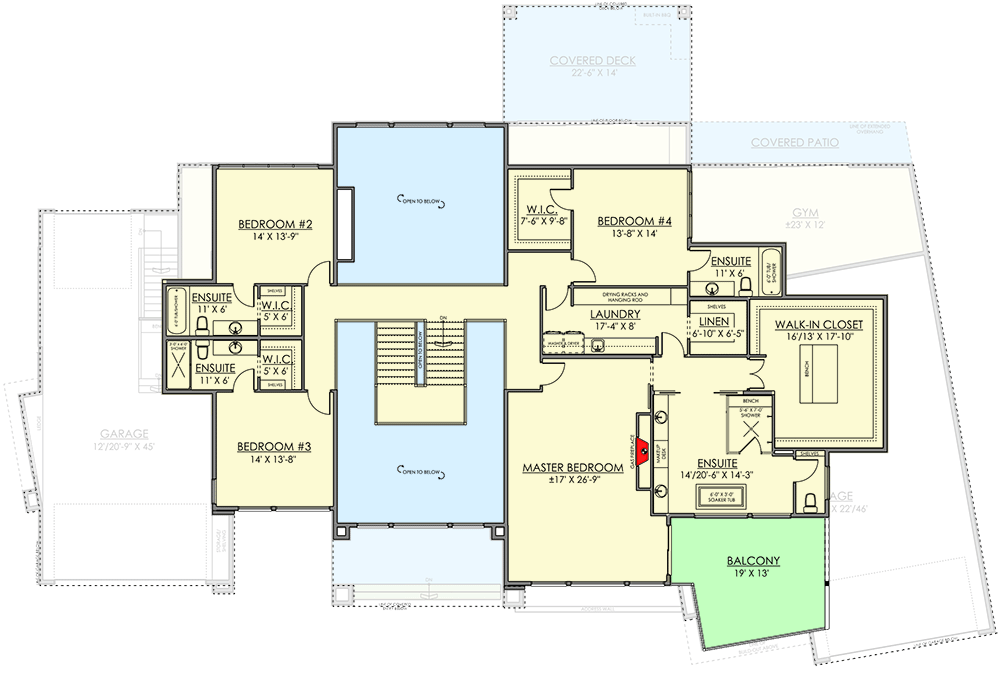

2nd Floor

Plan 81734AB: 5500 Sq Ft Modern Home with Slightly Angled 3-Car Garage - Floor Plan - 2nd Floor - Contemporary, Mid Century Modern, Modern, Northwest

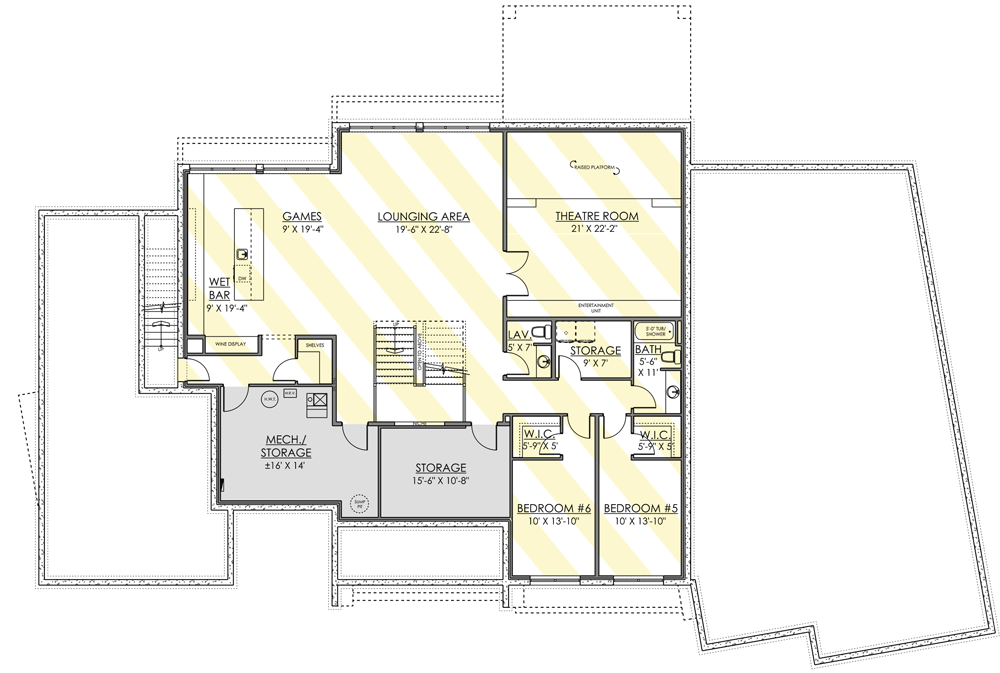

Optionally Finished Lower Level

Plan 81734AB: 5500 Sq Ft Modern Home with Slightly Angled 3-Car Garage - Floor Plan - Optionally Finished Lower Level - Contemporary, Mid Century Modern, Modern, Northwest

Plan Details

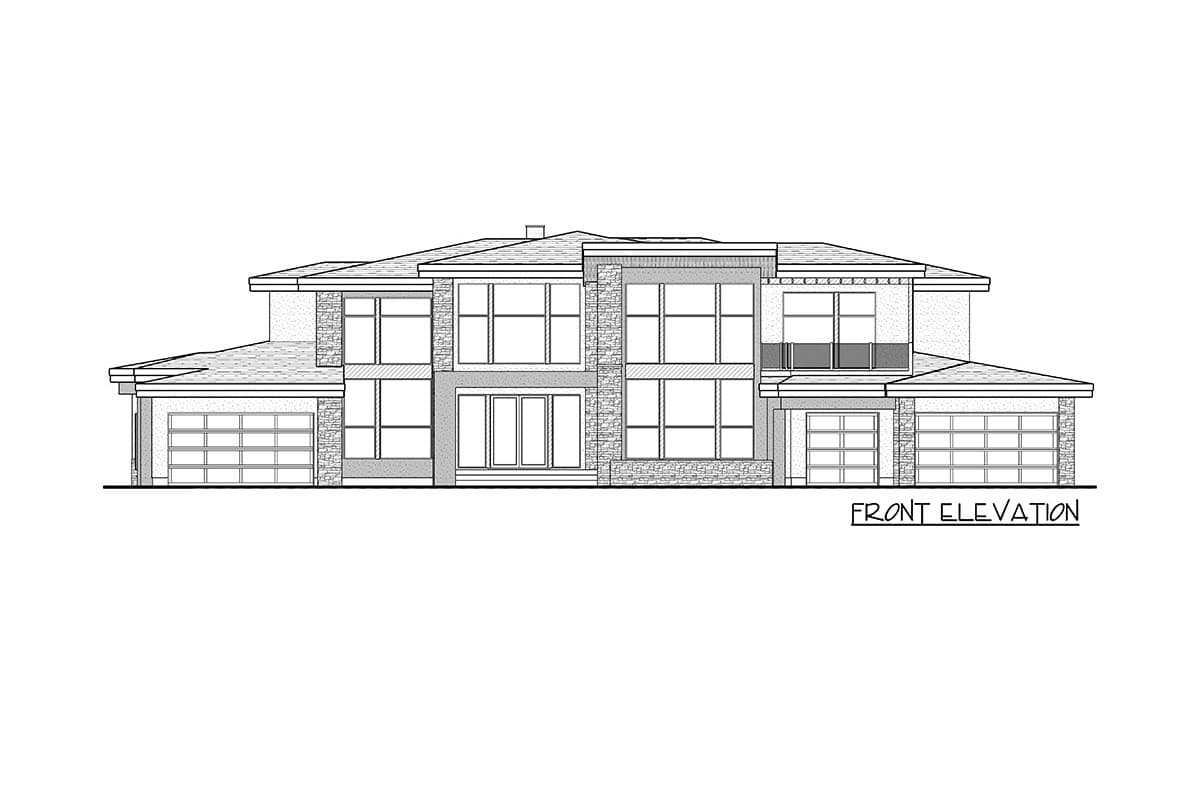

  • A front elevation filled with glass ensures a light and airy interior for this Modern home plan that totals 5500 square feet of living space.
  • The main level consists of an open-concept layout, formal dining room, home office, and a den / bedroom suite. The slightly angled garage features access to a gym with a covered patio and powder bath.
  • Entertaining is a dream in this gourmet kitchen which boasts two islands and a butler's pantry with a second range and more cold storage.
  • Four bedroom suites are located upstairs with the master bedroom occupying most of the square footage. The 5-fixture master bathroom includes a dresser island in the walk-in closet and access to the laundry room.
  • Finish the lower level as designed for an additional 2,218 square feet and enjoy a games / lounge area with a wet bar, home theatre, and two bedrooms that share a full bath.

What's Included

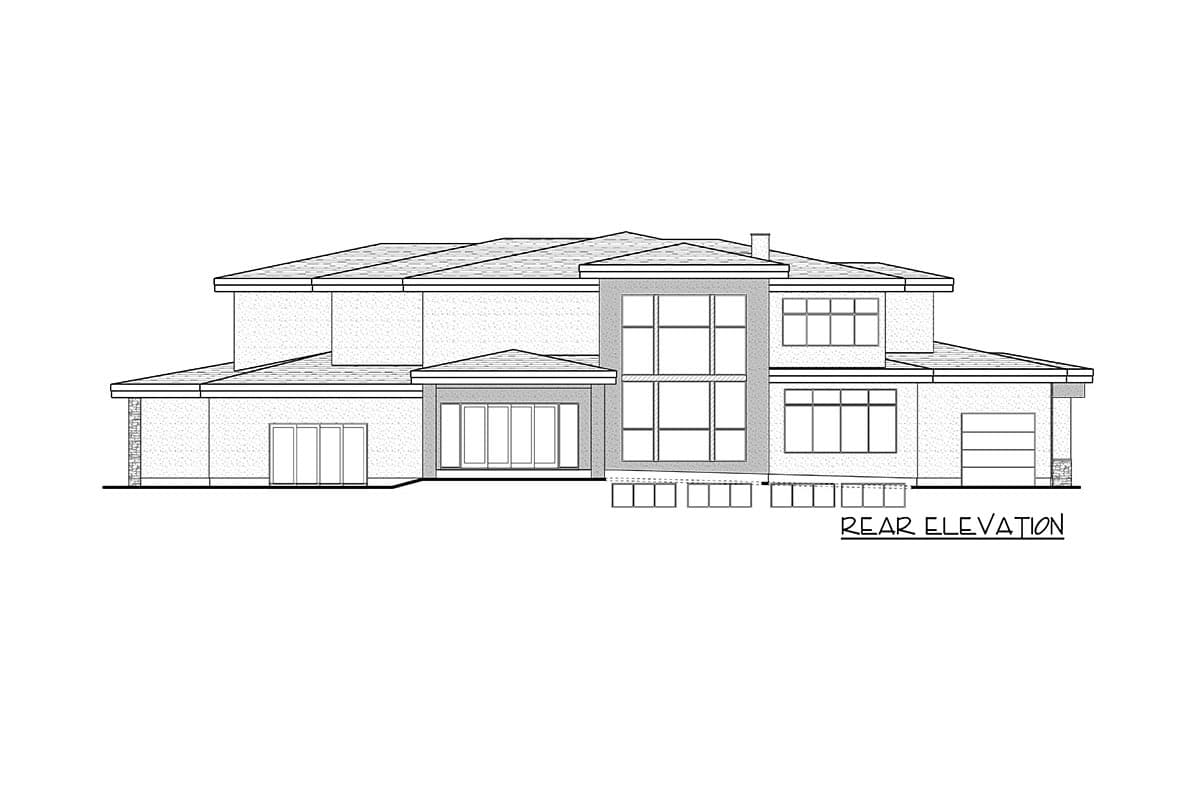

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan

What's Not Included

  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

5,538 sq. ft.

1st Floor

2,955 sq. ft.

2nd Floor

2,583 sq. ft.

Optional Lower Level

2,218 sq. ft.

Beds/Baths

Bedrooms

3, 4, 5, 6, or 7

Full bathrooms

3, 4, or 5

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

114' 9"

Depth

79' 3"

Max Ridge Height

31' 8"

Garage

Type

Attached

Area

3356 sq. ft.

Count

3, 4, or 5 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 8"

First Floor

11' 1"

Second Floor

10' 1"

Roof Details

Primary Pitch

2.5 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Northwest

Special Features

Angled Garage

Breakfast Nook

Butler Walk-in Pantry

Den

Flex Room

Game/Rec Room

Home Office

Home Theater

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Two Kitchen Islands

Two Story Great Room

Wet Bar

Wine Room

Plan Collections

Canadian House Plans
