Plan 770500JME

A-Frame House Plan Under 1600 Square Feet with 12-Foot-Deep Back Patio

Name: Plan 770500JME: A-Frame House Plan Under 1600 Square Feet with 12-Foot-Deep Back Patio
Brand: Architectural Designs
SKU: 770500JME
Price: 1195.0 USD
Availability: InStock

Heated S.F.

1,583

Beds

Baths

1.5

Stories

Floor Plan

Main Level

2nd Floor

Plan Details

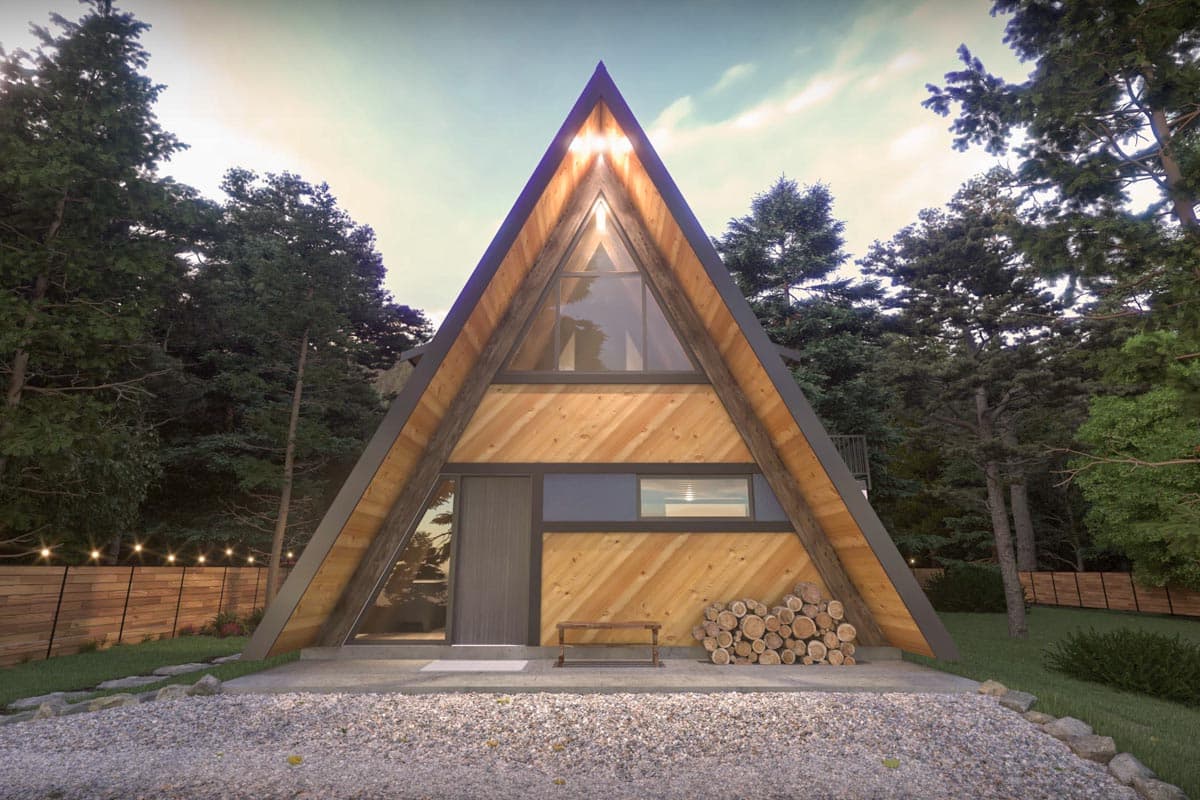

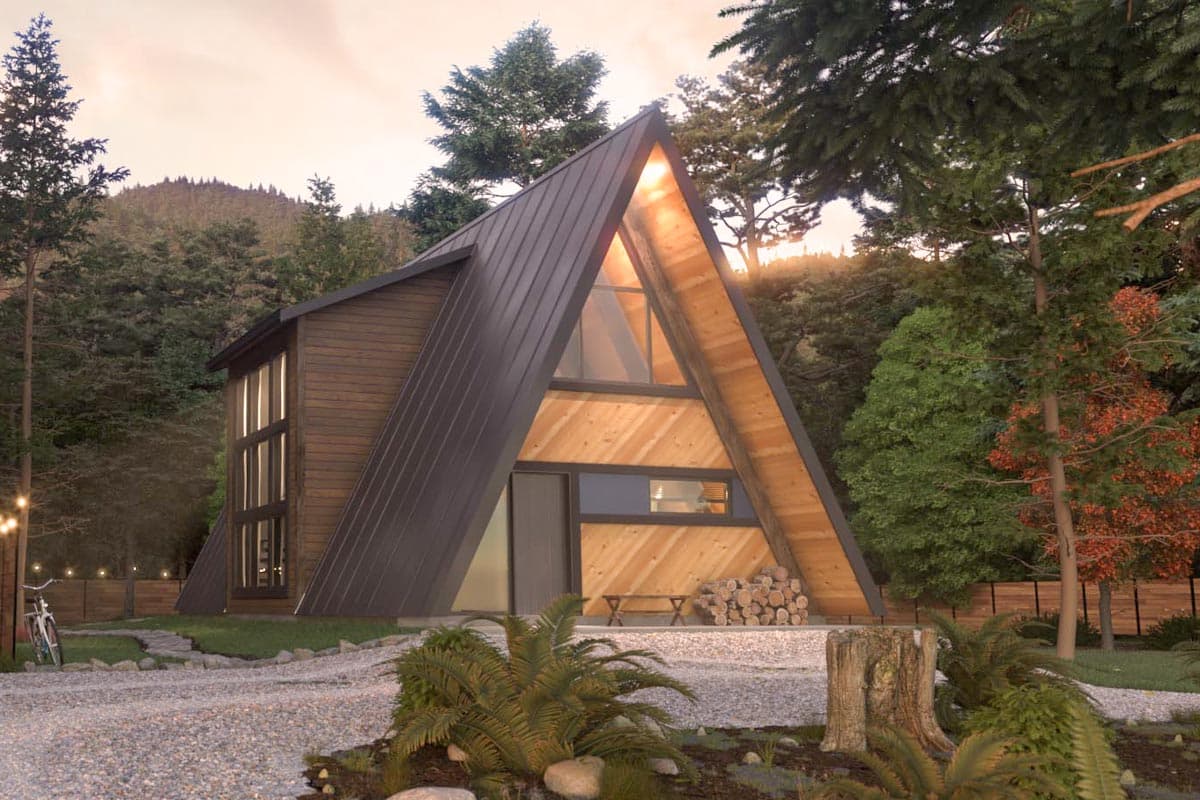

Windows fill the kitchen with natural light on the right side of this 1,583 square foot A-Frame house plan with two bedrooms on the upper floor.

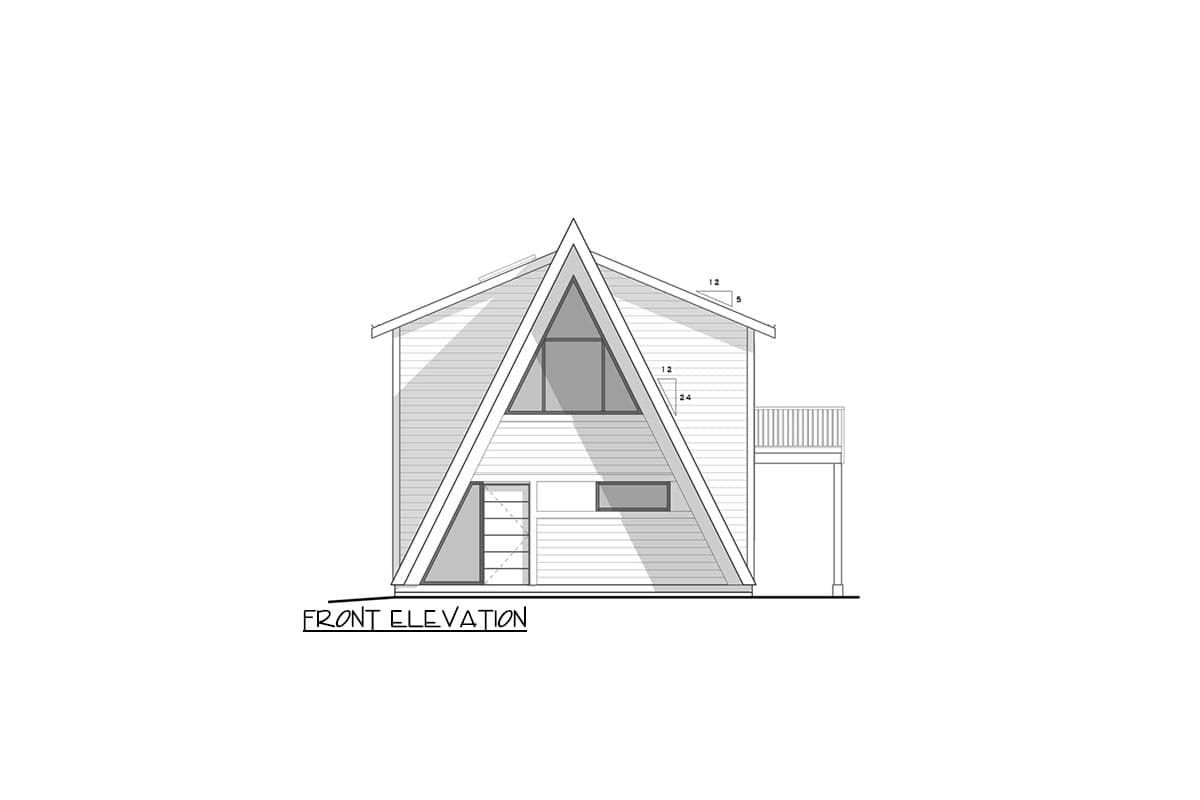

A 6'-deep entry porch with triangular window to the side of the front door greets you as you enter the home. A coat closet and powder room - and mechanicals and laundry room further in - are located by the foyer.

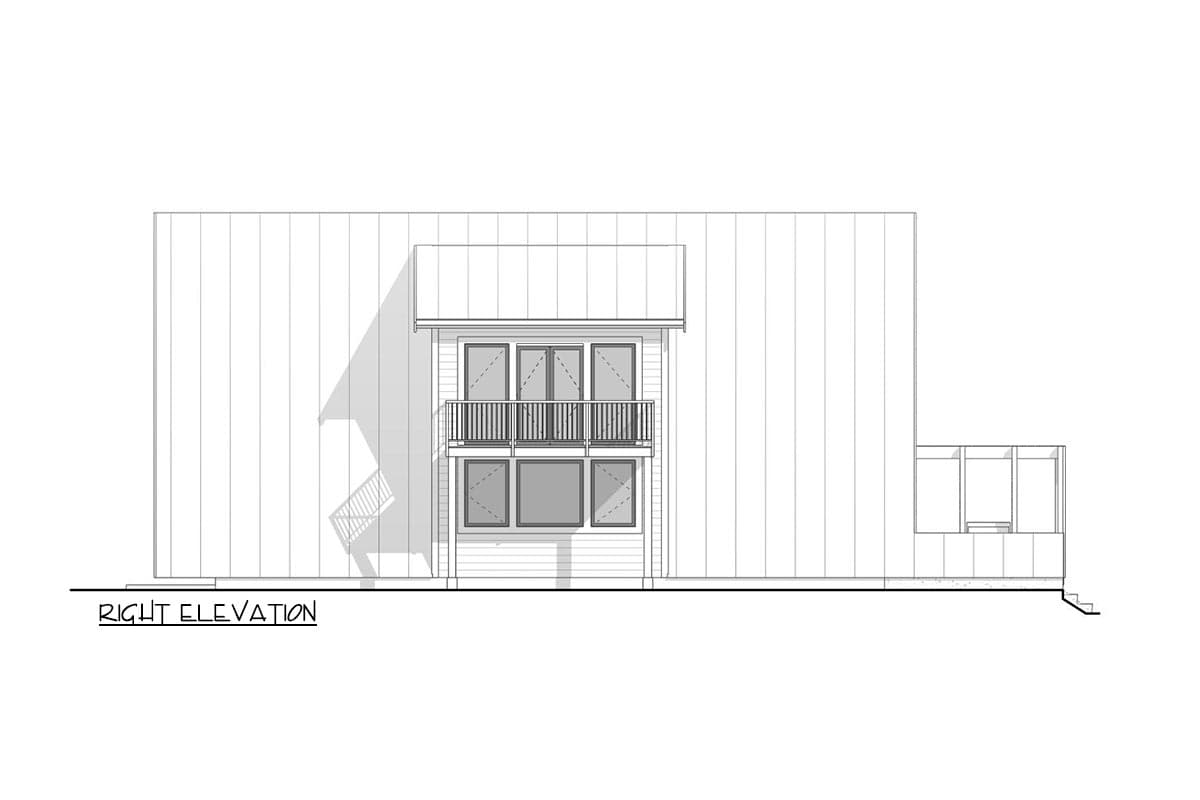

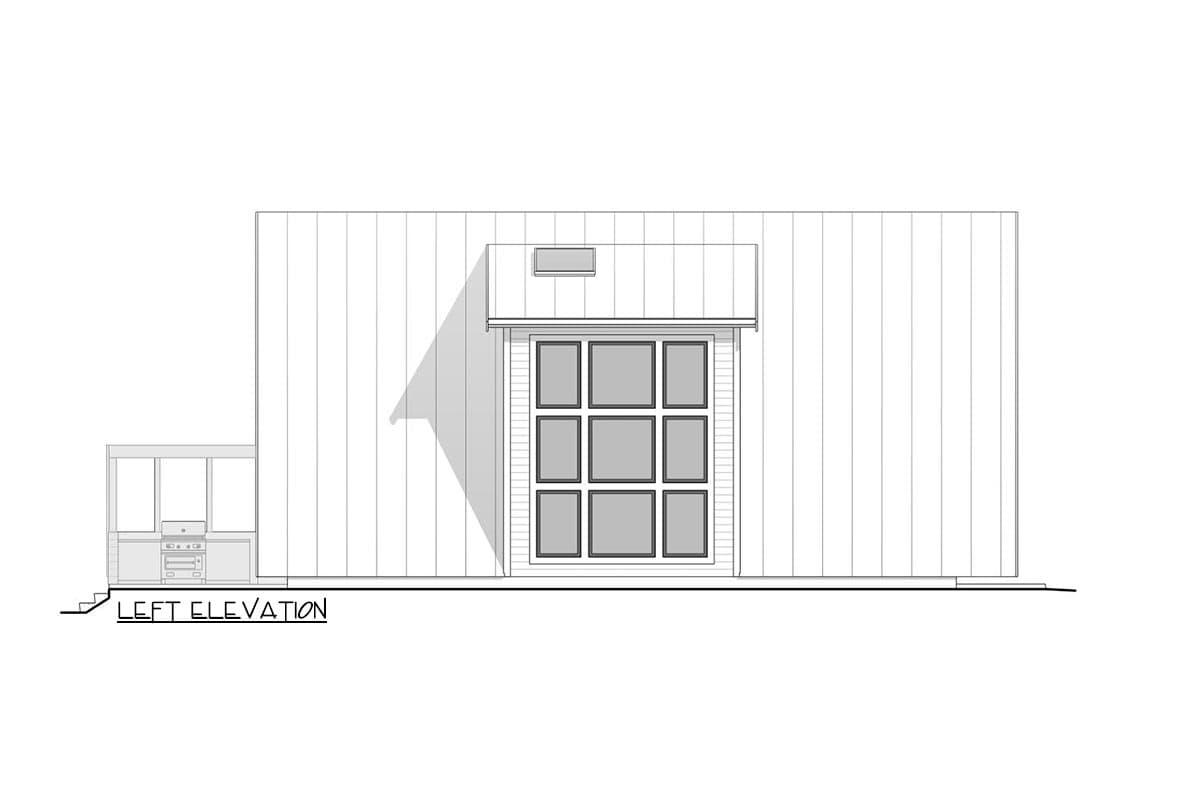

A double sink is centered on the windows looking out the side and there is room for a table that can comfortably seat 6 in the kitchen.

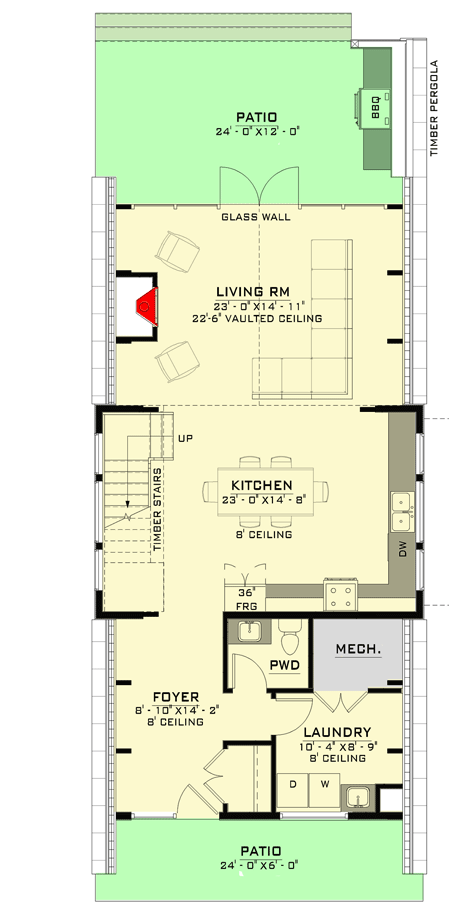

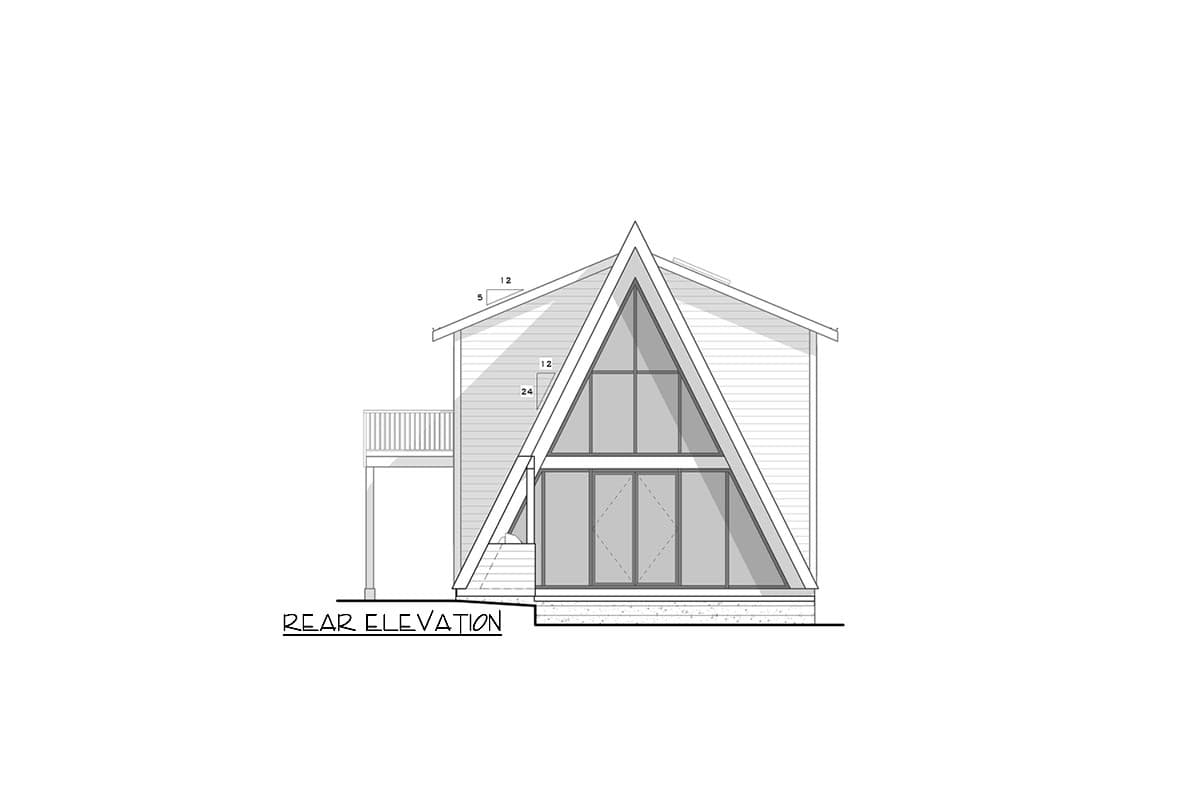

The living room is open to above and has a fireplace and access to the 12'-deep patio in back.

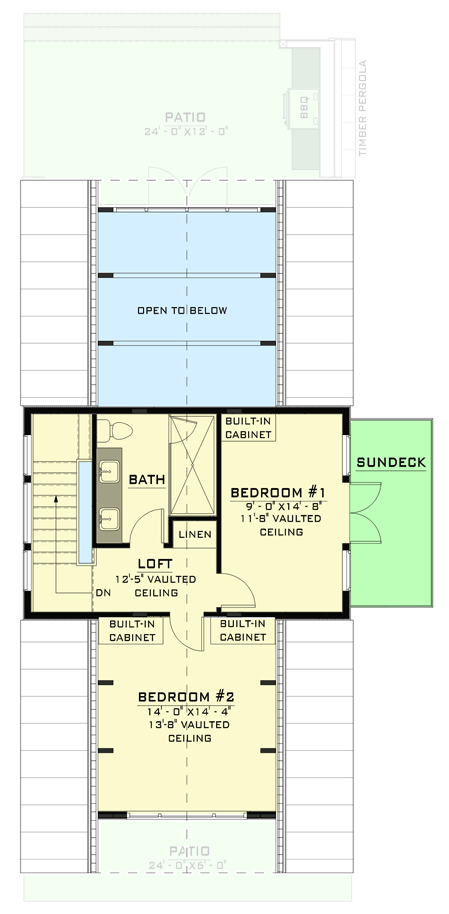

Upstairs, Bed 1 has French door access to a sundeck and Bed 2 has a vaulted ceiling that runs down the middle of the room.
DELIVERY NOTE: Please allow 3 to 5 days for delivery if it includes Readable Reverse.

What's Included

Cover sheet
Foundation plan
Floor plans
Floor joist layout
Roof truss layout
Sections
Elevations

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required.
Electrical (lighting) plan
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
