Plan 81831AB

A-Frame House Plan with Custom Skylight Windows - 2361 Sq Ft

Heated S.F.
2,361
Beds
3 - 4
Baths
2 - 3
Stories
2

Floor Plan

Plan 81831AB

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 81831AB

M-F 9am-5pm EST |

1-203-761-8500

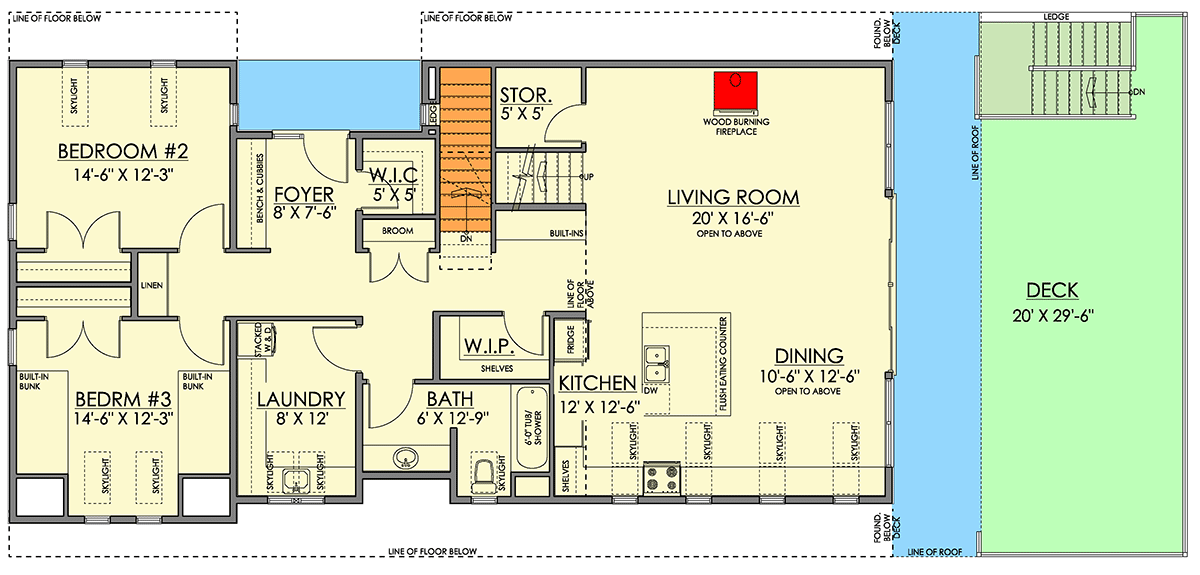

Main Level

Plan 81831AB: A-Frame House Plan with Custom Skylight Windows - 2361 Sq Ft - Floor Plan - Main Level - A-Frame, Contemporary, Mountain, Vacation

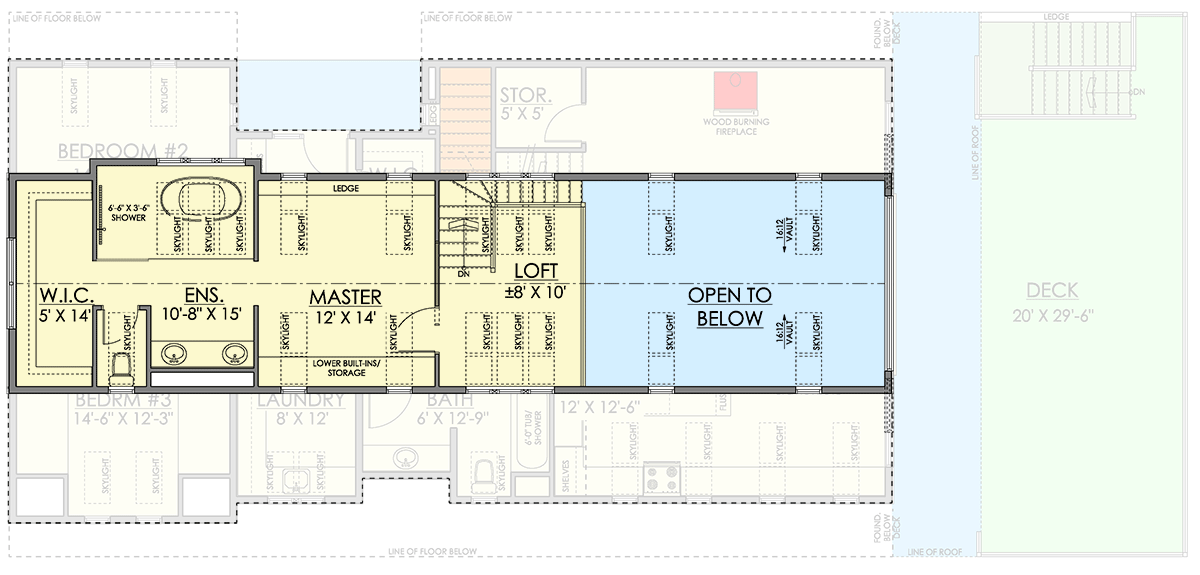

2nd Floor

Plan 81831AB: A-Frame House Plan with Custom Skylight Windows - 2361 Sq Ft - Floor Plan - 2nd Floor - A-Frame, Contemporary, Mountain, Vacation

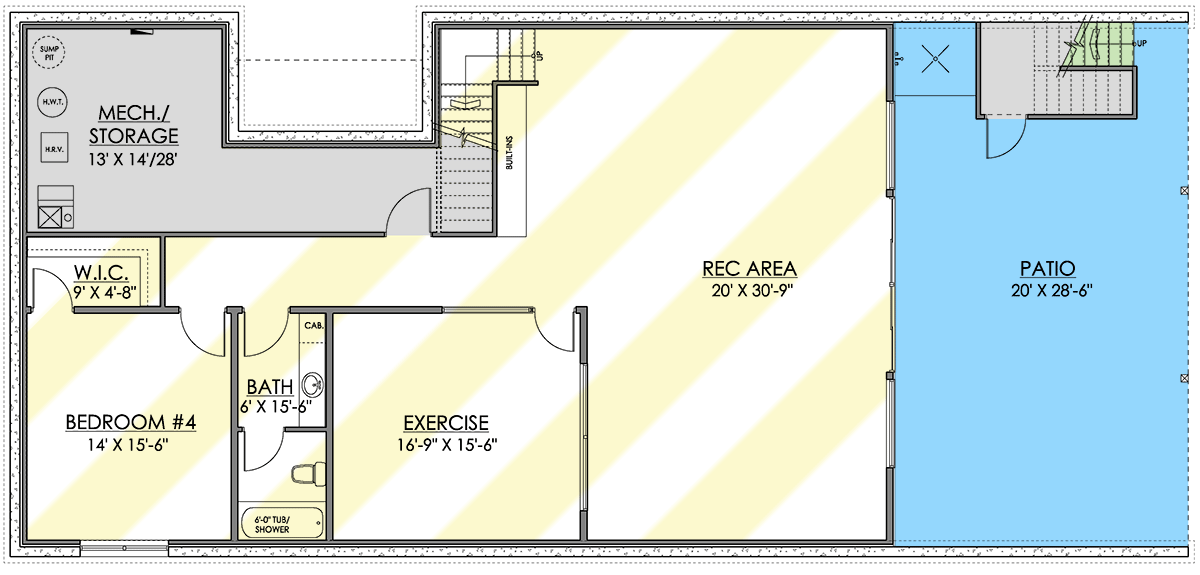

Lower Level

Plan 81831AB: A-Frame House Plan with Custom Skylight Windows - 2361 Sq Ft - Floor Plan - Lower Level - A-Frame, Contemporary, Mountain, Vacation

Plan Details

  • This A-frame house plan gives you 3 beds, 2 baths and 2,361 square feet of heated living. Expand and finish the lower level and get a fourth bedroom suite and 1,591 square feet of living space.
  • A-Frame roof and above grade walls are sloping trusses.
  • The above grade windows are all skylights in the sloping truss roof and require a specialized window company to supply.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan

What's Not Included

  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,361 sq. ft.

1st Floor

1,761 sq. ft.

2nd Floor

600 sq. ft.

Optional Lower Level

1,591 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

37' 0"

Depth

80' 0"

Max Ridge Height

27' 4"

Ceiling Heights

Lower Level

10'

First Floor

9' 1"

Second Floor

13' 10"

Living Room

24' 0''

Roof Details

Primary Pitch

16 on 12

Framing Type

Truss

Architectural Style

A-Frame

Contemporary

Mountain

Vacation

Special Features

Laundry - Main Level

Loft

Master Suite - Upstairs

Two Story Great Room

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

2,361 sq. ft.

1st Floor

1,761 sq. ft.

2nd Floor

600 sq. ft.

Optional Lower Level

1,591 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

37' 0"

Depth

80' 0"

Max Ridge Height

27' 4"

Ceiling Heights

Lower Level

10'

First Floor

9' 1"

Second Floor

13' 10"

Living Room

24' 0''

Roof Details

Primary Pitch

16 on 12

Framing Type

Truss

Architectural Style

A-Frame

Contemporary

Mountain

Vacation

Special Features

Laundry - Main Level

Loft

Master Suite - Upstairs

Two Story Great Room

Plan Collections

Canadian House Plans
