Angled Nook House Plan with Guest Room
Heated S.F.
2,927
Beds
4
Baths
3.5
Stories
1
Cars
3
What's Included
Plan Details
  • This house plan with an attractively-angled nook comes in multiple versions. All share the same layout and exterior features that make this a timeless classic.
  • Step inside off the covered porch entry with sidelights and you'll be greeted by front to back views through the dynamic great room with a fireplace with built-ins and access to the kitchen, nook and covered patio.
  • The central island cooktop gives you extra counterspace and the nook and breakfast bar offer flexible informal eating options.
  • The master bedroom has access to the covered patio. The rest of the master suite is designed with comfort in mind.
  • Three additional bedrooms with walk-in closets, two baths, a powder room and a convenient utility room off the garage complete this house plan.
  • Related Plans: Gain a second story bonus room with house plan 48034FM(2,720 sq. ft.), 48389FM (with media room) and 48305FM (3,510 sq. ft.). Downsize to 3 bedrooms with house plan 48020FM (2,553 sq. ft.).
What's Included
  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan
  • Front and Left Elevation
  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Angled Nook House Plan with Guest Room

  • 2,927

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

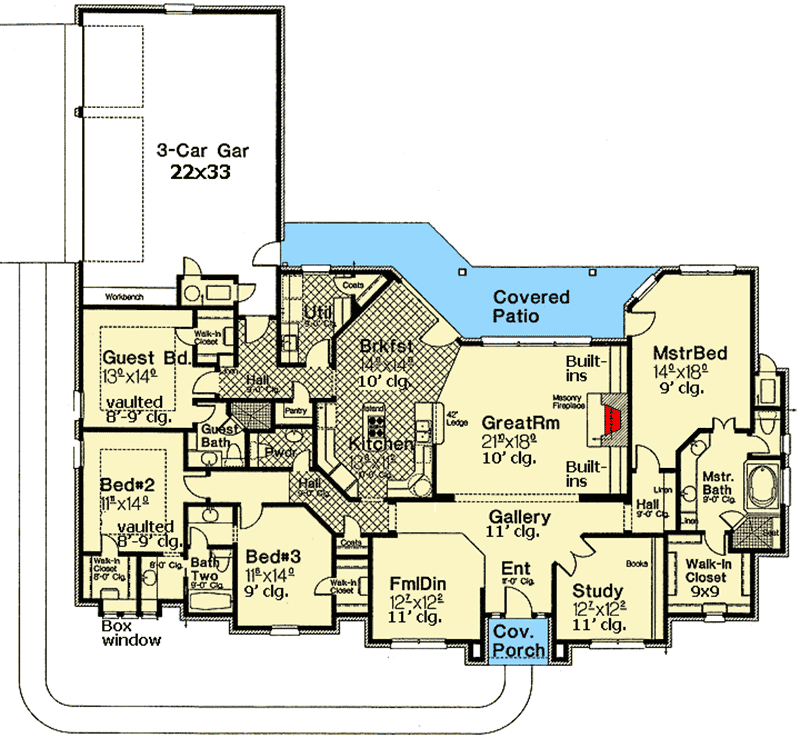

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,927 sq. ft.
  • 1st Floor: 2,927 sq. ft.

Dimensions

  • Width: 80' 0"
  • Depth: 73' 10"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 726 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
