Back Woods House Plan with Wraparound Porch and a Drive-Under Garage

Plan 68878VR

  • 3,483

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • 2

    Cars

  • This 3-bed house plan was designed for a sloping lot and gives you parking on the lower level and lots of storage. The exterior has blend of board and batten siding and stone and has a rugged standing seam metal roof.
  • The main entry is off the wraparound porch and takes you into the open floor plan. The kitchen has unimpeded views across the vaulted great room with corner fireplace and to the covered back porch beyond.
  • The dining room is vaulted and has views on all three walls.
  • The main floor master has back porch access through sliding doors. And the upstairs masters has its own private balcony. Upstairs, a loft area overlooks the vaulted great room below..
  • Related Plans: Get an alternate version with drive-under garage with house plans 68625VR, 68808VR and 680101VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

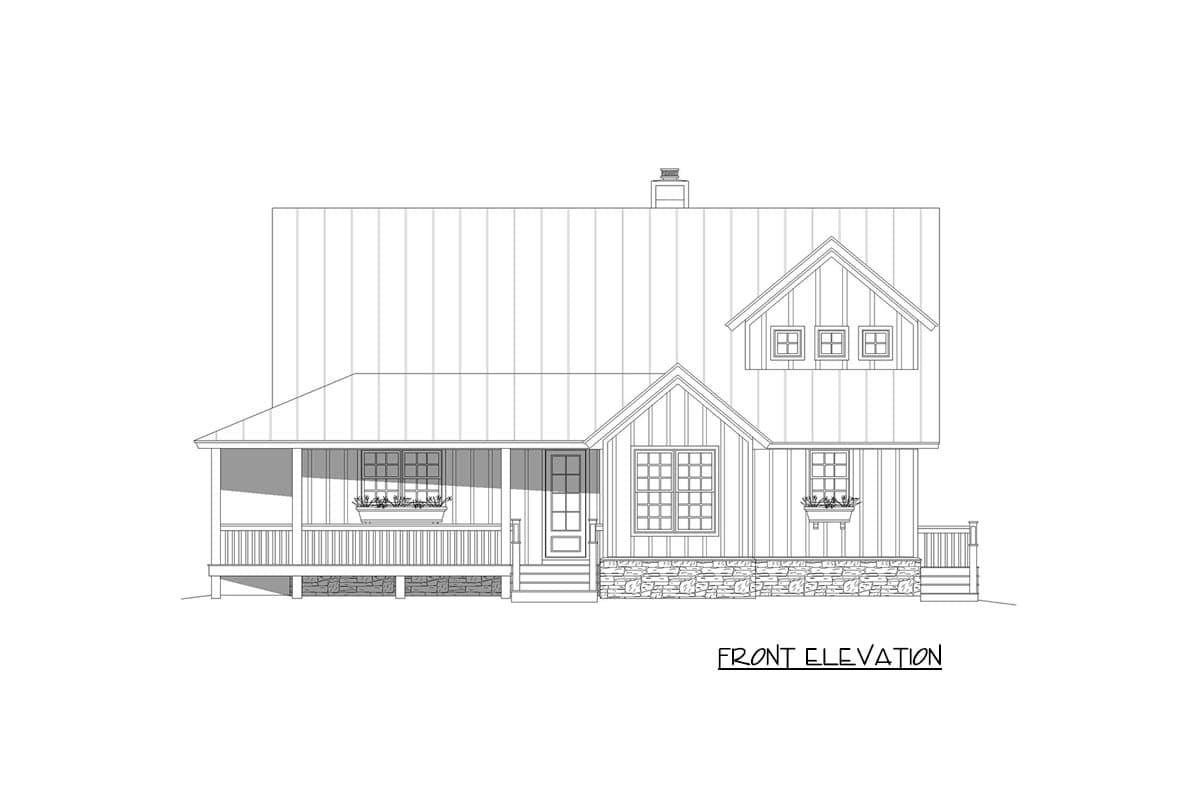

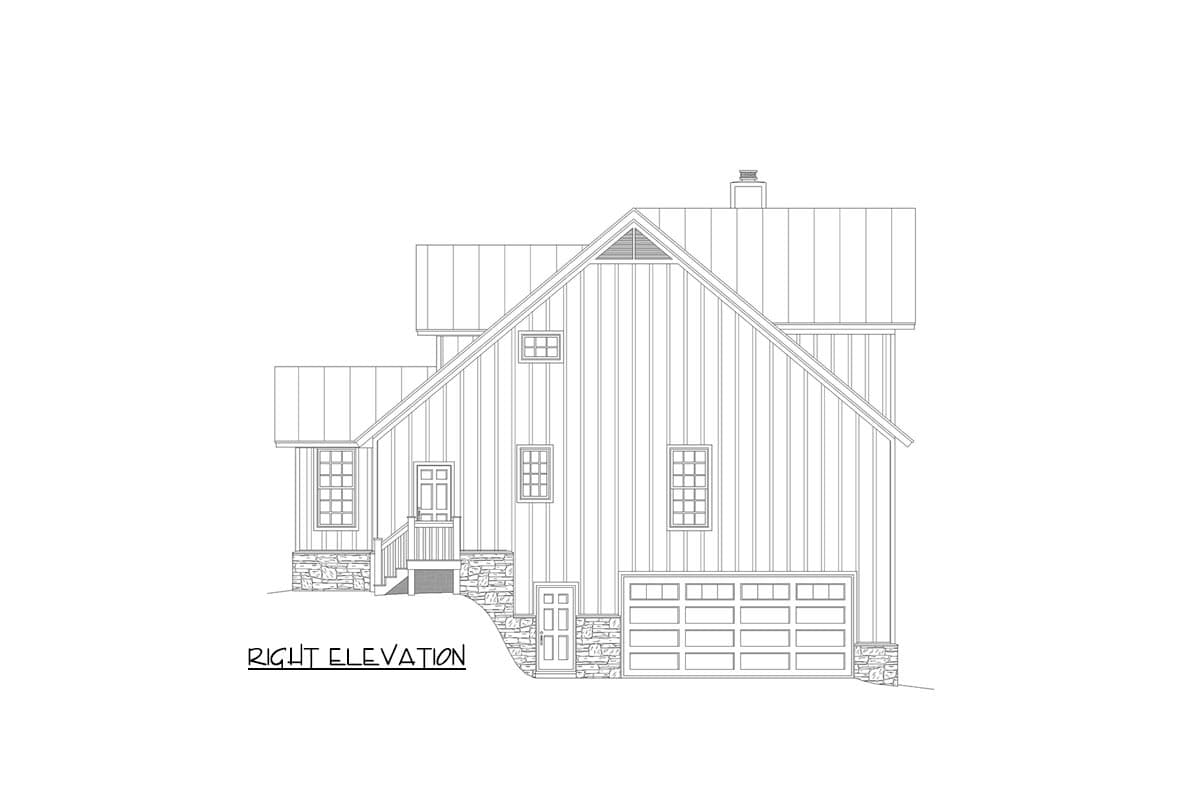

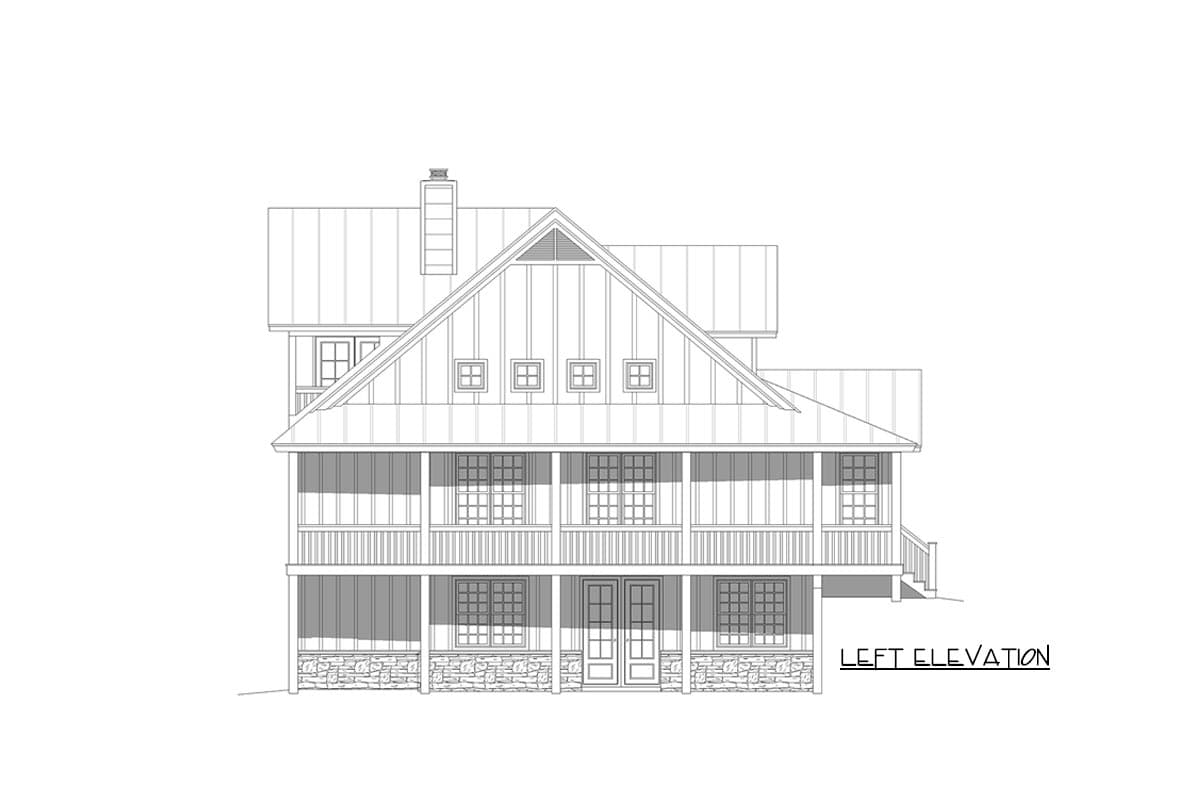

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

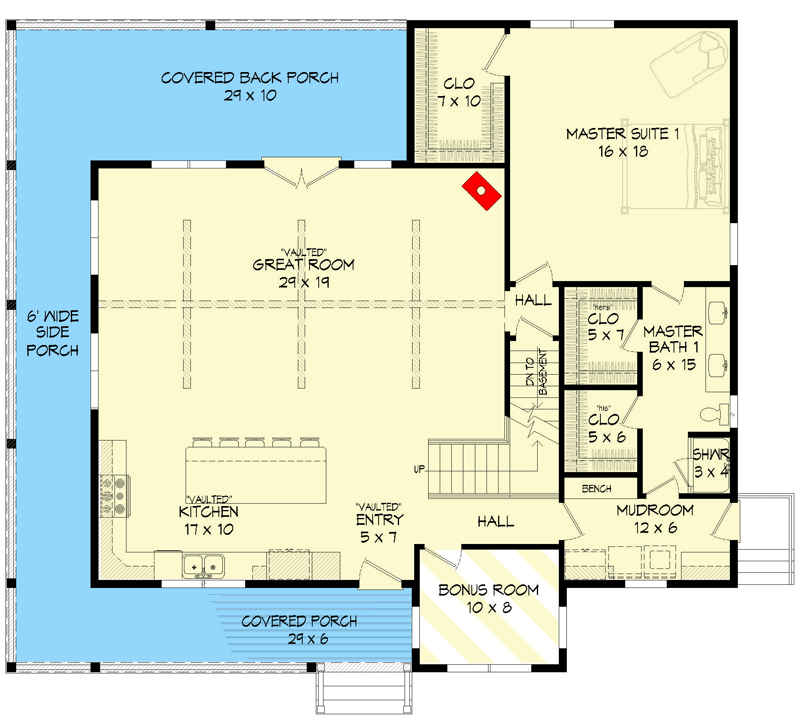

Back Woods House Plan with Wraparound Porch and a Drive-Under Garage - 68878VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

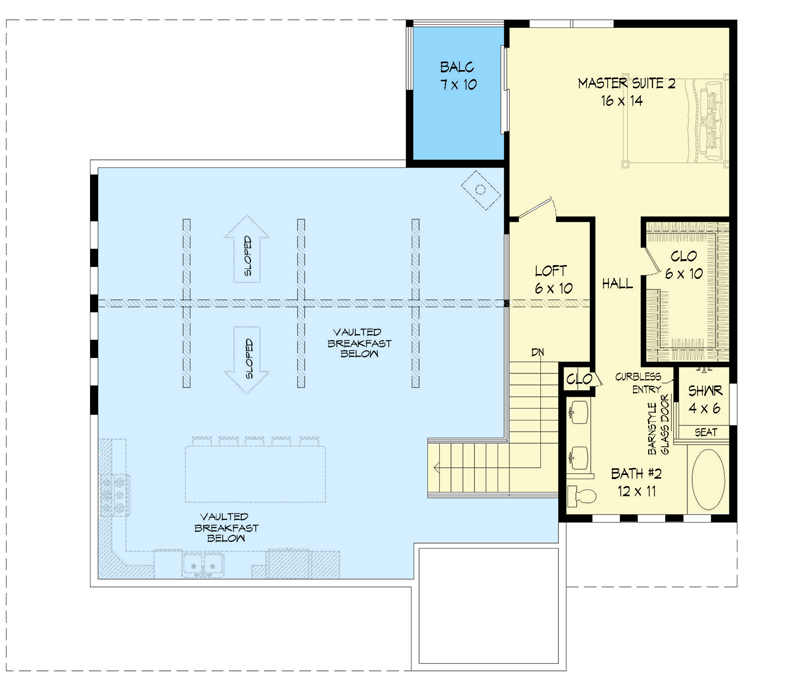

Back Woods House Plan with Wraparound Porch and a Drive-Under Garage - 68878VR floor plan - 2nd Floor

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

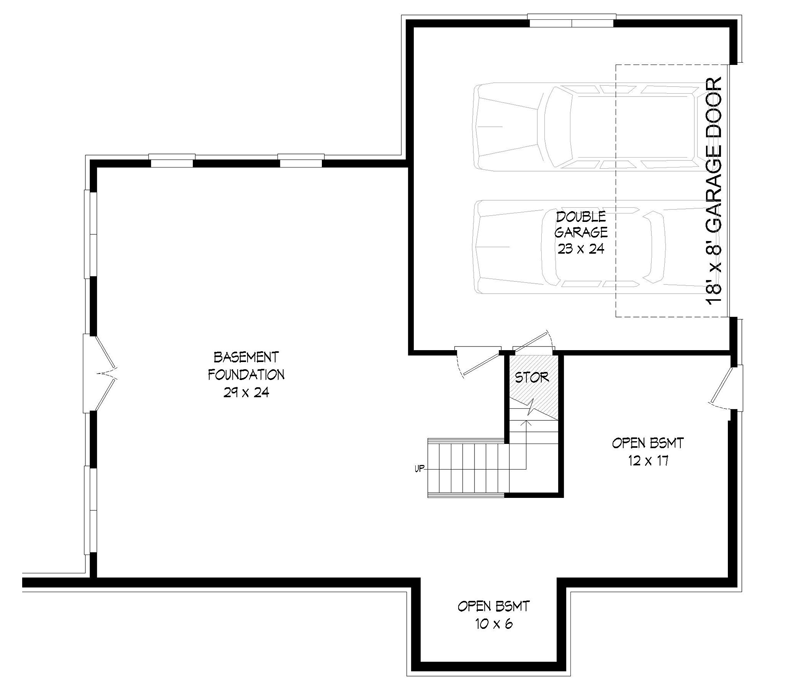

Back Woods House Plan with Wraparound Porch and a Drive-Under Garage - 68878VR floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,483 sq. ft.
  • Lower Level: 2,323 sq. ft.
  • 1st Floor: 1,710 sq. ft.
  • 2nd Floor: 613 sq. ft.
  • Porch, Combined: 716 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 52' 2"
  • Depth: 46' 6"
  • Max ridge height: 25' 10"

Garage

  • Type: Drive Under, Attached
  • Area: 550 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick

Architectural Style

Special features

Back Woods House Plan with Wraparound Porch and a Drive-Under Garage

  • 3,483

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,375
  • 5 Sets $1,460
  • 5 Sets + PDF $1,598
  • CAD + PDF - Single-Build $1,925
  • View all purchase option online

About This Plan

  • This 3-bed house plan was designed for a sloping lot and gives you parking on the lower level and lots of storage. The exterior has blend of board and batten siding and stone and has a rugged standing seam metal roof.
  • The main entry is off the wraparound porch and takes you into the open floor plan. The kitchen has unimpeded views across the vaulted great room with corner fireplace and to the covered back porch beyond.
  • The dining room is vaulted and has views on all three walls.
  • The main floor master has back porch access through sliding doors. And the upstairs masters has its own private balcony. Upstairs, a loft area overlooks the vaulted great room below..
  • Related Plans: Get an alternate version with drive-under garage with house plans 68625VR, 68808VR and 680101VR.

Floor Plans

  • Main Level

  • 2nd Floor

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,483 sq. ft.
  • Lower Level: 2,323 sq. ft.
  • 1st Floor: 1,710 sq. ft.
  • 2nd Floor: 613 sq. ft.
  • Porch, Combined: 716 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 52' 2"
  • Depth: 46' 6"
  • Max ridge height: 25' 10"

Garage

  • Type: Drive Under, Attached
  • Area: 550 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick
Plan 68878VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/68878VR
|
