Plan 680216VR
Barndominium-Style House Plan with Balcony and Workshop - 1984 Sq Ft
Heated S.F.
1,984
Beds
2
Baths
2.5+
Stories
2
Cars
4
What's Included
Plan Details
  • This wide and shallow contemporary house plan gives you a workshop on the main floor - and parking for up to four vehicles - and living space above.
  • Matching 16' by 8' garage doors give your vehicles access and a person door gets you in to the workshop from the front and the side as well as from the inside of the garage itself.
  • The upstairs space is bathed in natural light from the large windows in front. The ceiling goes from 8' in back to 14'7" in front.
  • The right half of the upstairs gives you an open floor plan with the kitchen - with a large island - and the dining and living rooms made for entertaining.
  • Two bedrooms share a bathroom on the left. Bed 1 enjoys a large walk-in closet.
  • Related Plans: Get an alternate version with house plans 68818VR (1,565 sq. ft.) and 680221VR (1,878 sq. ft.).
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Barndominium-Style House Plan with Balcony and Workshop - 1984 Sq Ft

  • 1,984

    Heated s.f.

  • 2

    Beds

  • 2.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

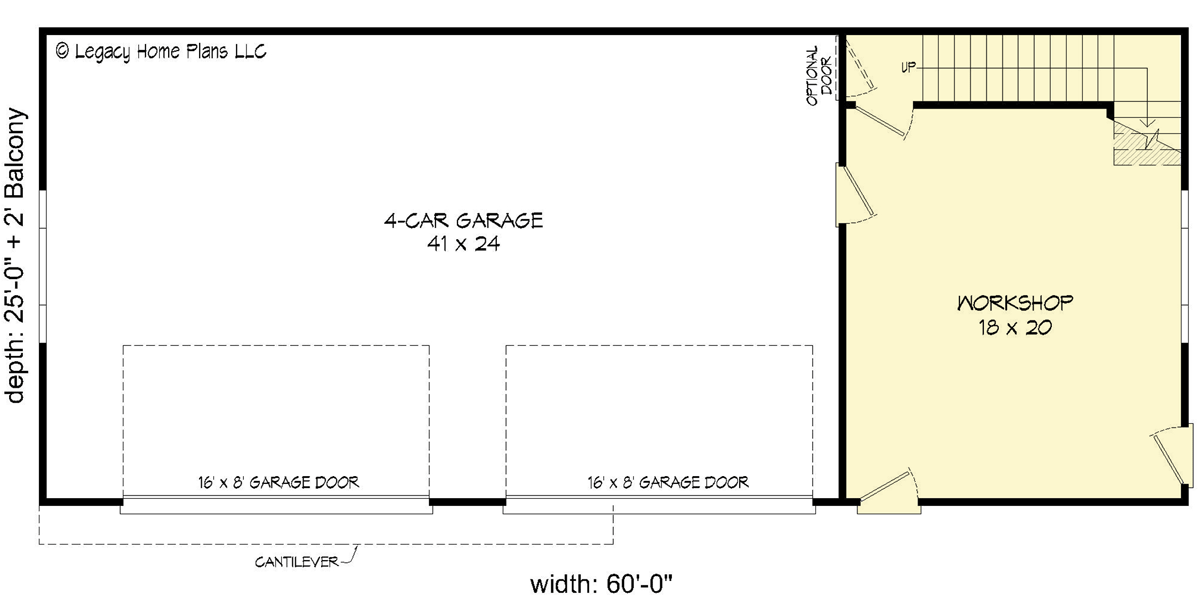

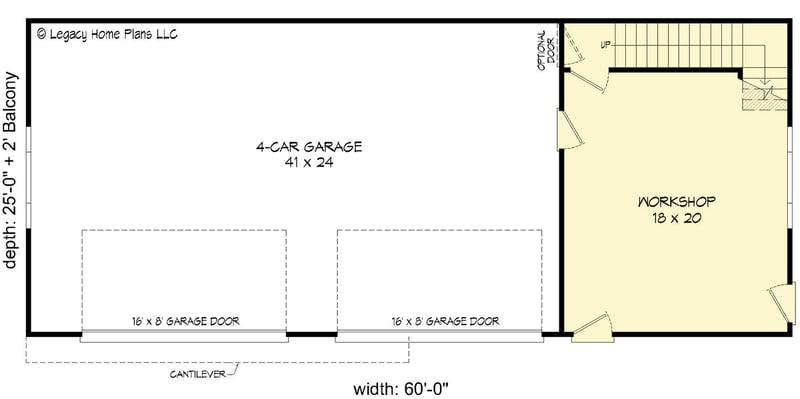

  • Main Level

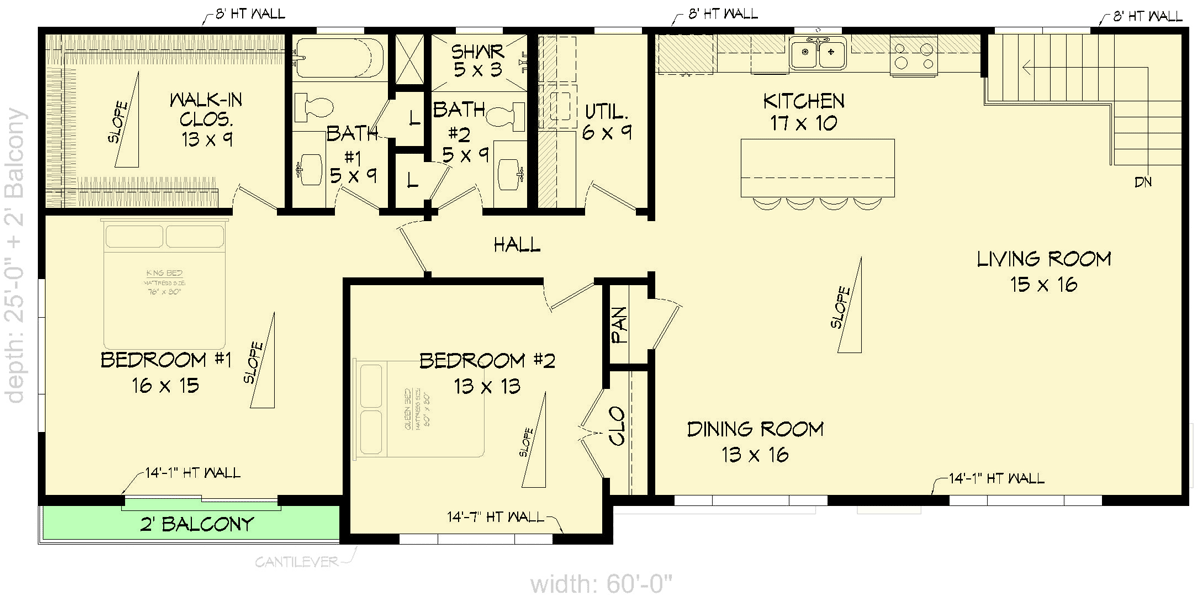

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,984 sq. ft.
  • 1st Floor: 456 sq. ft.
  • 2nd Floor: 1,528 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 27' 0"
  • Max ridge height: 28' 2"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 2

Garage

  • Type: Drive Under, Attached
  • Area: 1044 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 14' 7"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Stick
