Plan 68818VR Contemporary Barndominium House Plan with Room for 4 Cars and a Workshop

Contemporary Barndominium House Plan with Room for 4 Cars and a Workshop

Plan 68818VR

  • 1,565

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Stories

  • 4

    Cars

  • This wide and shallow contemporary house plan gives you a workshop on the main floor - and parking for up to four vehicles - and living space above.
  • Matching 16' by 8' garage doors give your vehicles access and a person door gets you in to the workshop.
  • The upstairs space is bathed in natural light from the large windows in front. The ceiling goes from 7' in back to 11'9" in front.
  • The right half of the upstairs gives you an open floor plan with the kitchen - with a large island - and the dining and living rooms made for entertaining.
  • Two bedrooms share a bathroom on the left. Bed 1 enjoys a large walk-in closet.
  • Related Plan: Keep the upstairs an open loft and finish it later with plan 68544VR.

This plan set has the following details:

Cover Page

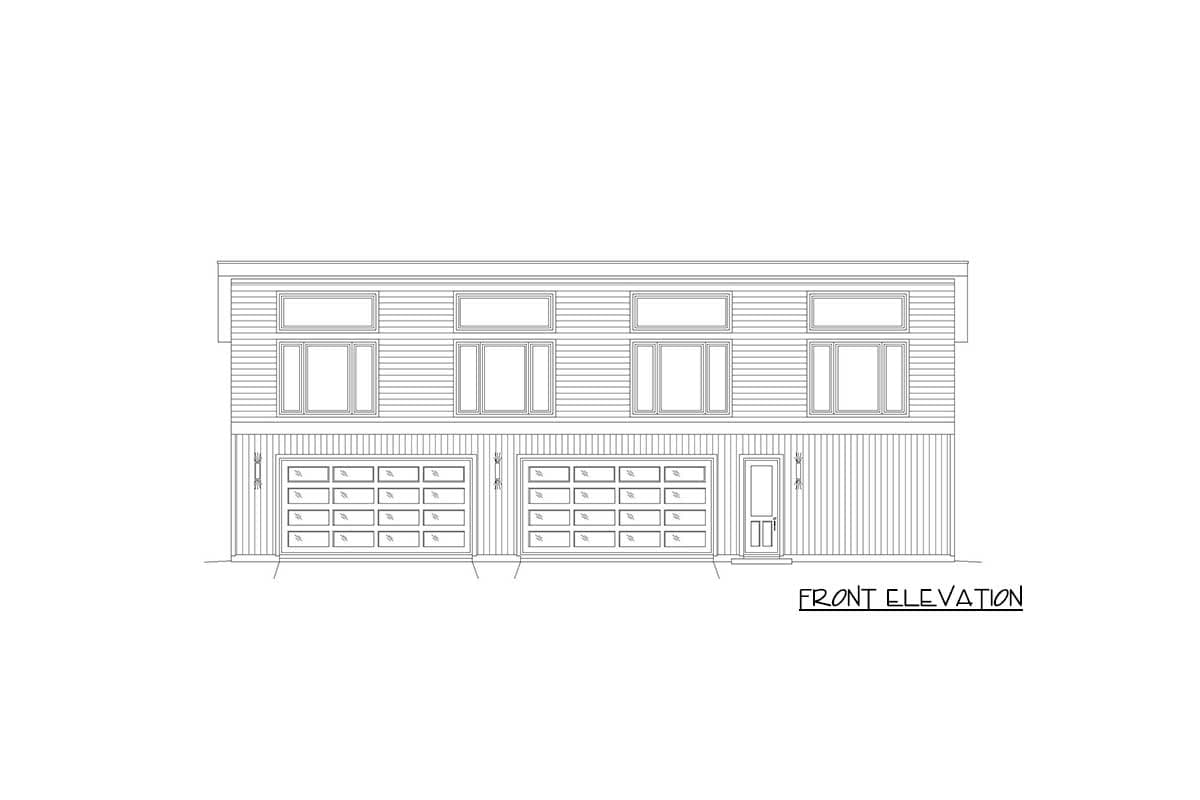

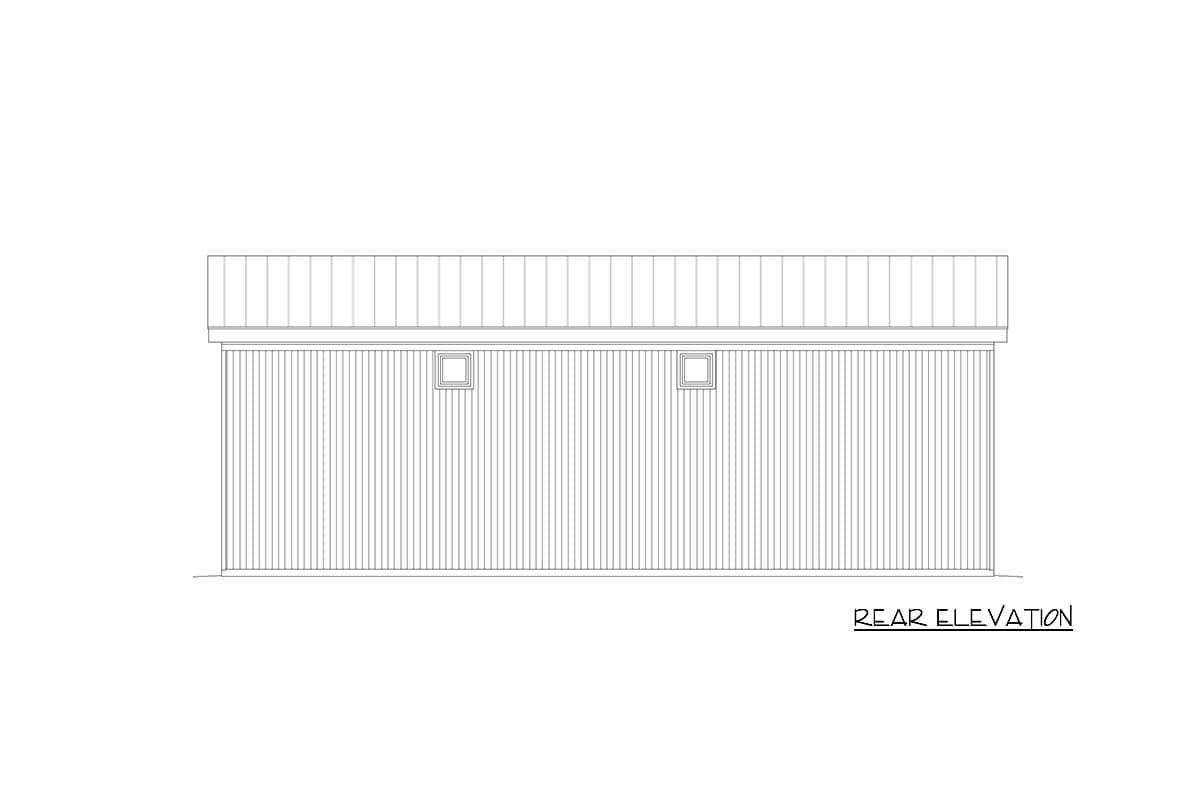

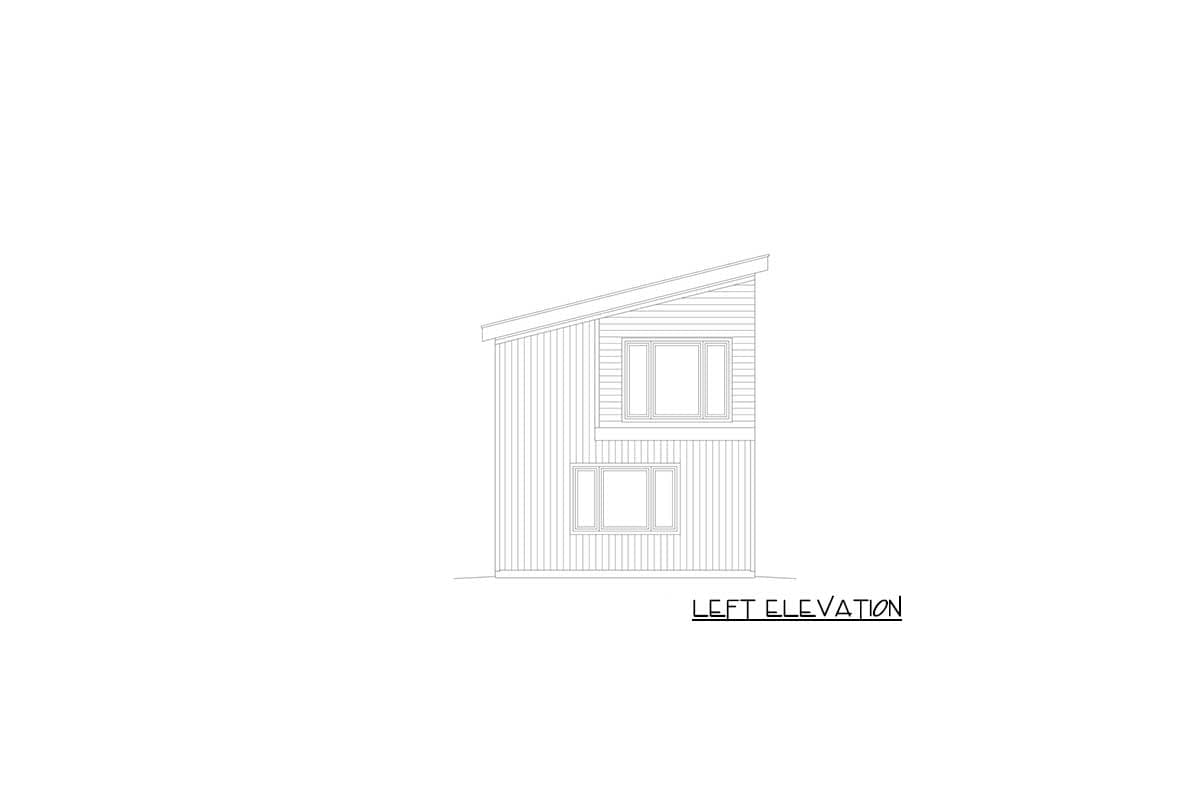

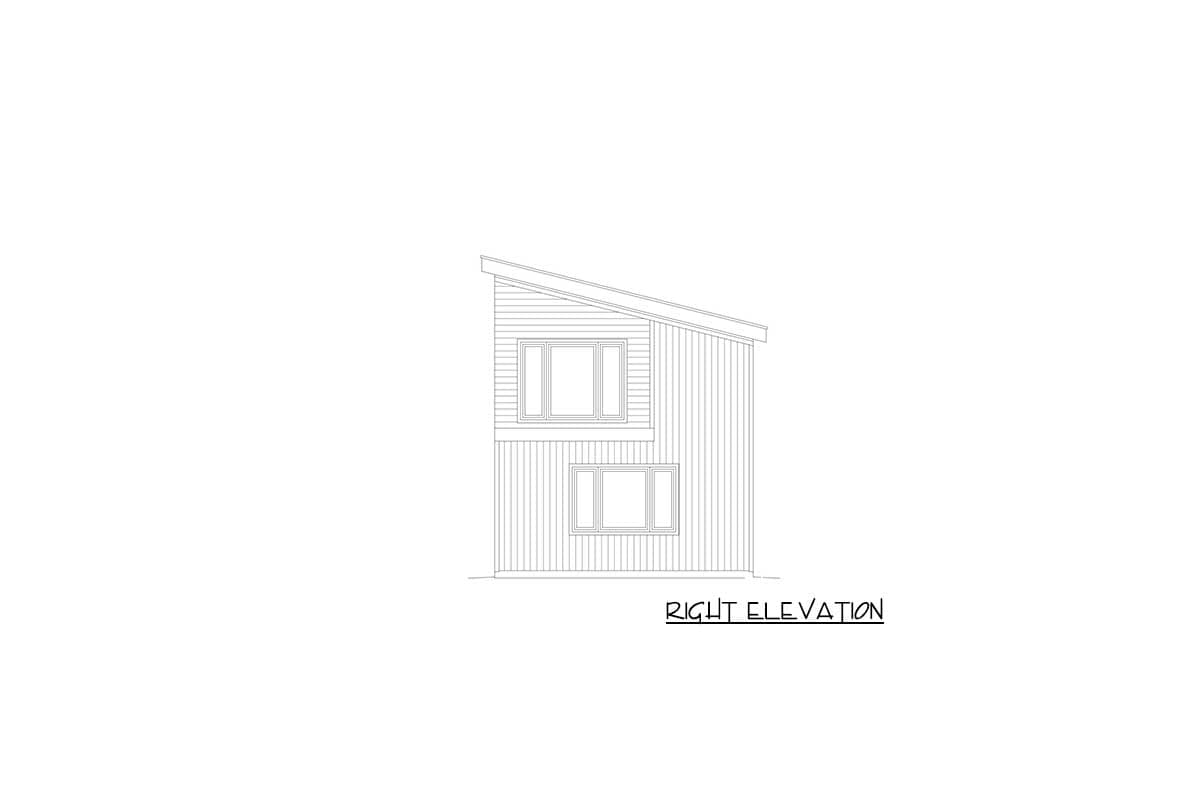

At least 4 exterior elevations

Floor plans

Foundation Plan (with no specifications of structural elements)

Roof Plan (with no specifications of structural elements)

Electrical plans for each floor plan

Typical Wall sections

Floor framing plans (It shows the framing information, regarding size and directions.  There is not a framing diagram)

Cross Sections

‘Some’ interior details/ elevations, such as cabinet elevations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

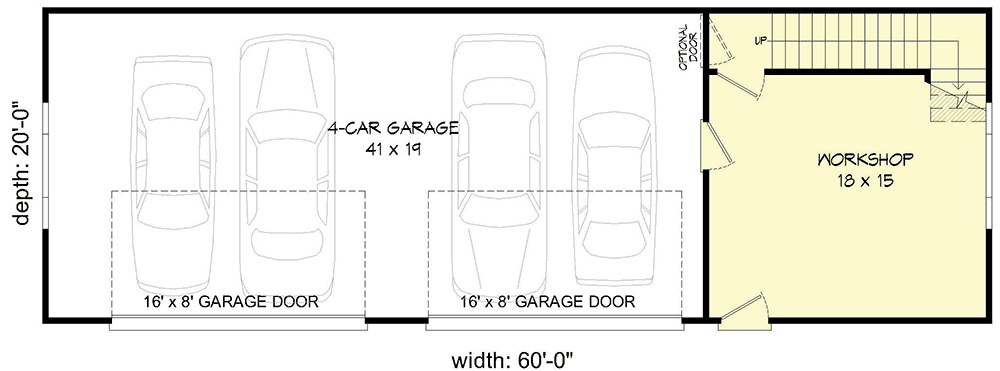

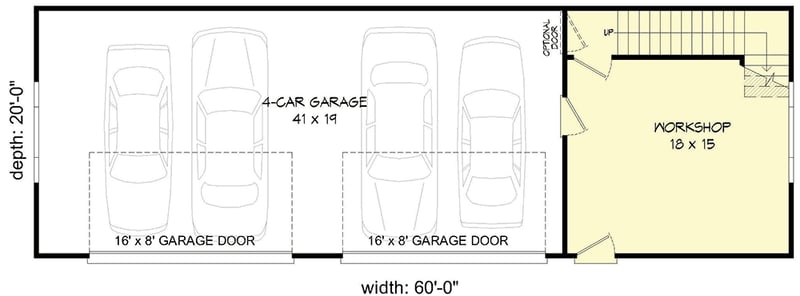

Contemporary Barndominium House Plan with Room for 4 Cars and a Workshop - 68818VR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

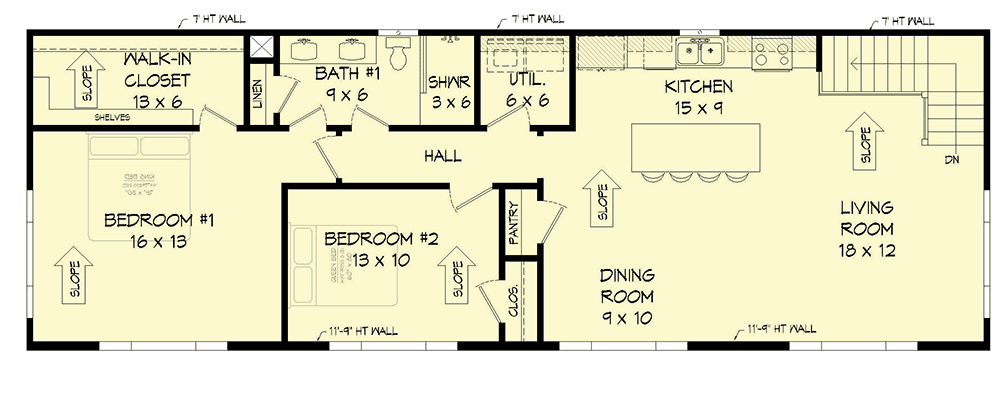

Contemporary Barndominium House Plan with Room for 4 Cars and a Workshop - 68818VR floor plan - 2nd Floor

Plan details

Architectural Style

Plan Collections

Contemporary Barndominium House Plan with Room for 4 Cars and a Workshop

  • 1,565

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • Study Set – Digital $675
  • PDF - Single-Build $895
  • 5 Sets $995
  • 5 Sets + PDF $1,020
  • CAD + PDF - Single-Build $1,395
  • View all purchase option online

About This Plan

  • This wide and shallow contemporary house plan gives you a workshop on the main floor - and parking for up to four vehicles - and living space above.
  • Matching 16' by 8' garage doors give your vehicles access and a person door gets you in to the workshop.
  • The upstairs space is bathed in natural light from the large windows in front. The ceiling goes from 7' in back to 11'9" in front.
  • The right half of the upstairs gives you an open floor plan with the kitchen - with a large island - and the dining and living rooms made for entertaining.
  • Two bedrooms share a bathroom on the left. Bed 1 enjoys a large walk-in closet.
  • Related Plan: Keep the upstairs an open loft and finish it later with plan 68544VR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,565 sq. ft.
  • 1st Floor: 365 sq. ft.
  • 2nd Floor: 1,200 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 20' 0"
  • Max ridge height: 24' 4"

Garage

  • Type: Attached
  • Area: 835 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 11' 9"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Stick
