Plan 680221VR

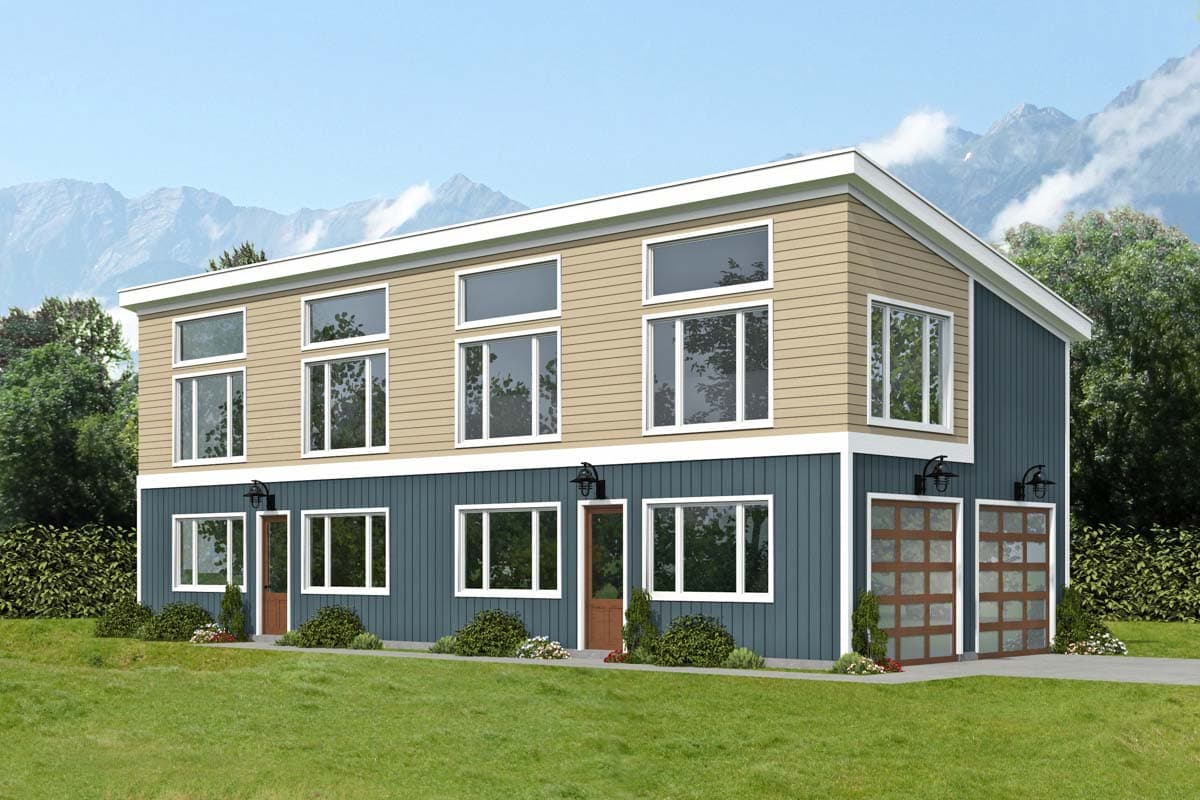

Contemporary Barndominium House Plan with Side-Entry Garage - 1878 Sq Ft
Heated S.F.
1,878
Beds
2
Baths
1
Stories
2
What's Included
Plan Details

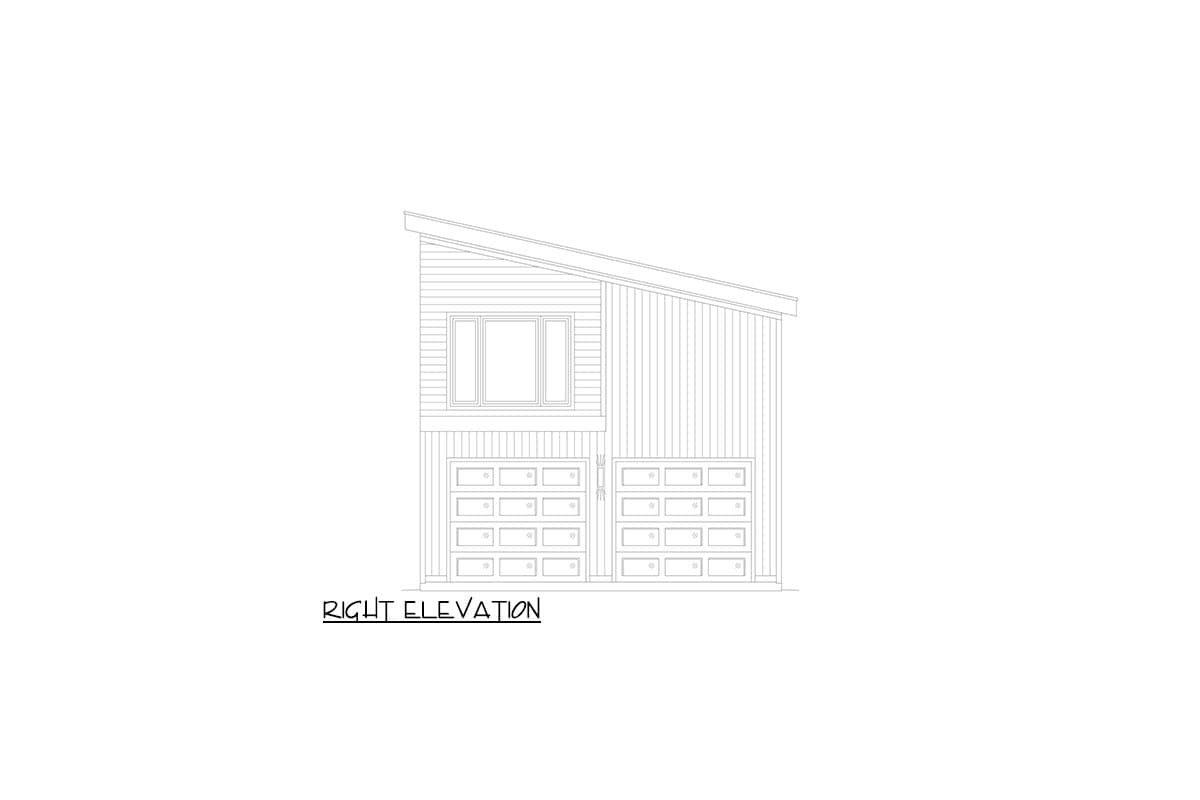

  • This wide and shallow contemporary barndominium-style house plan gives 1002 square feet of parking for 4 cars parked tandem style through two 9' by 8' overhead doors located on the right side. A flex room on the main floor and living space upstairs combined give you 1,878 square feet of heated living space.

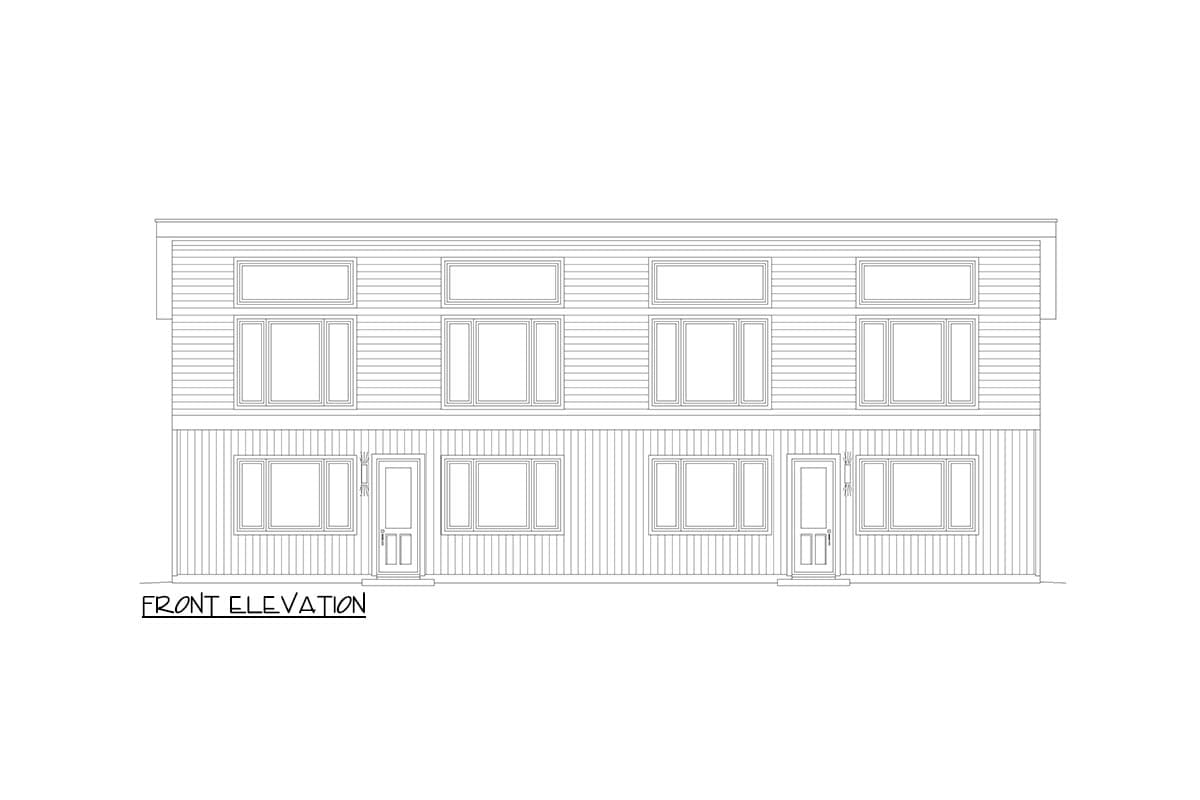

  • The upstairs space is bathed in natural light from the large windows in front. The ceiling goes from 7' in back to 12' in front.
  • The left half of the upstairs gives you an open floor plan with the kitchen - with a large island - and the dining and living rooms made for entertaining.
  • Two bedrooms share a bathroom on the right. Bed 1 enjoys a large walk-in closet.
  • Related Plans: Get alternate versions with front-entry garages with house plans 68544VR (1,200 sq. ft.), 680216VR (1,984 sq. ft.) and 68818VR (1,565 sq. ft.).
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

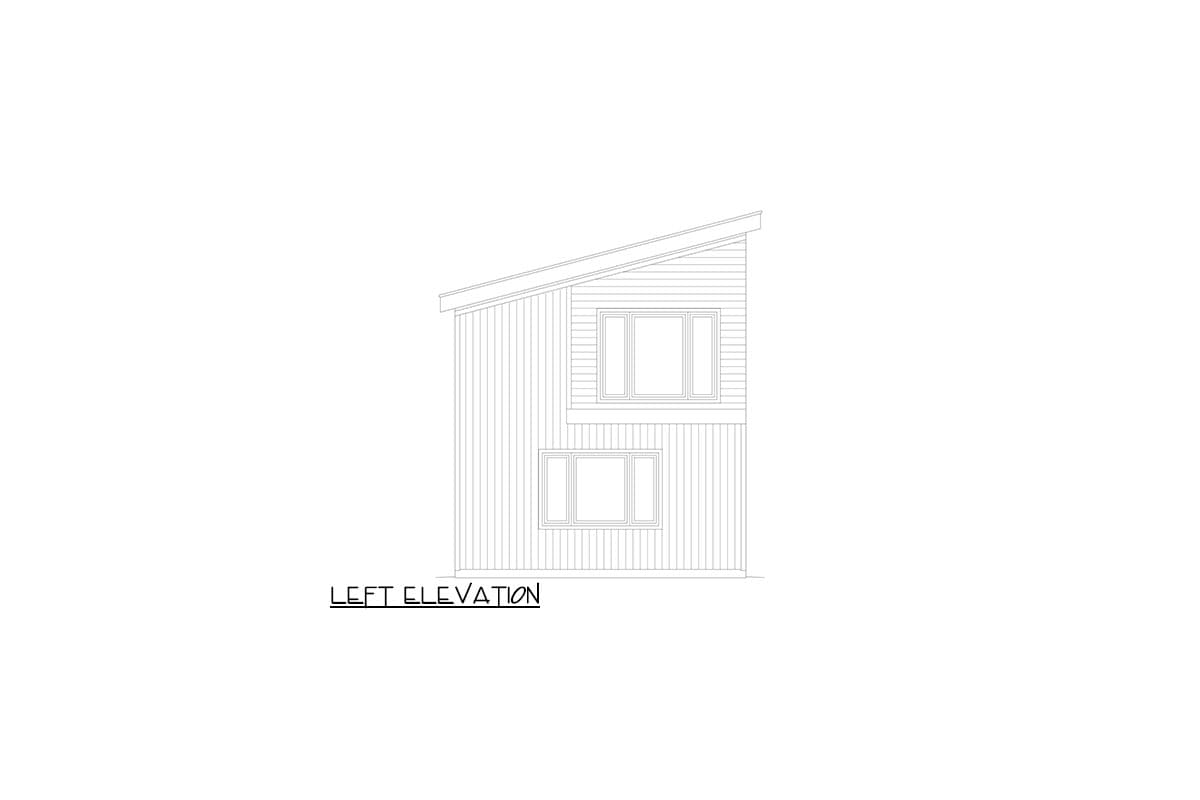

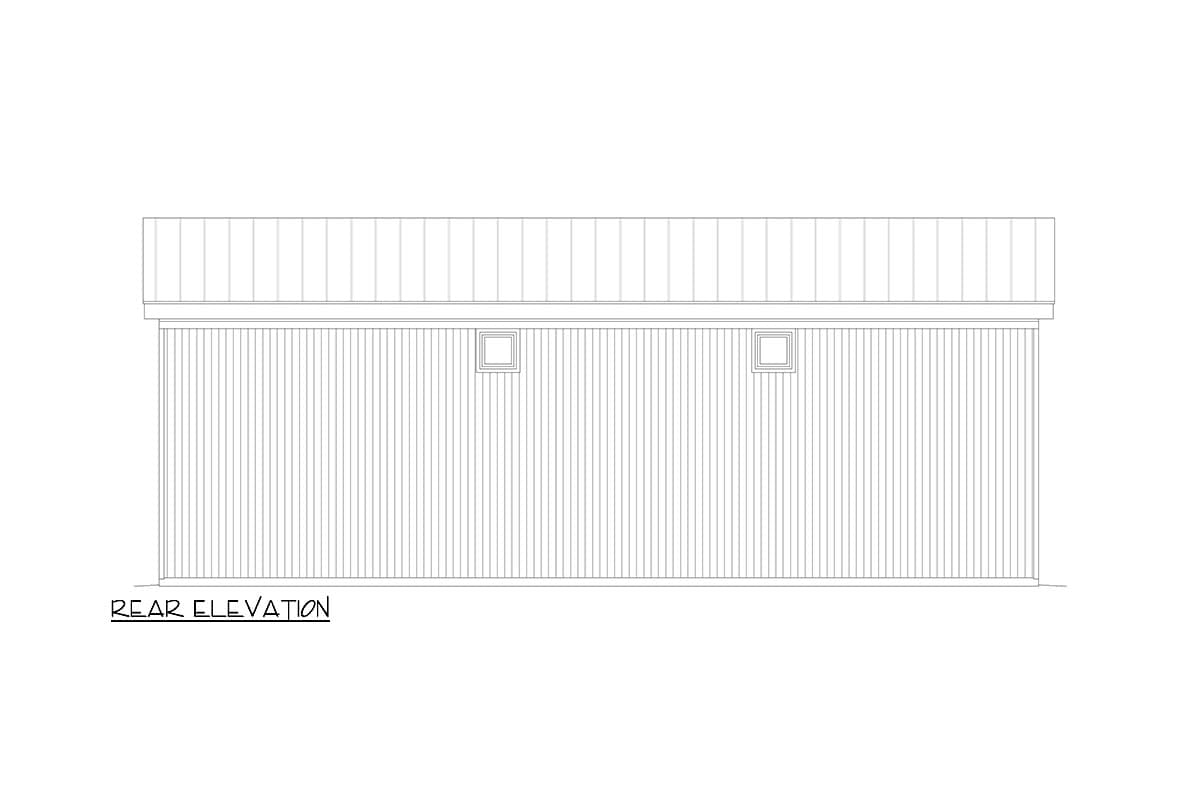

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary Barndominium House Plan with Side-Entry Garage - 1878 Sq Ft

  • 1,878

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

Floor Plan

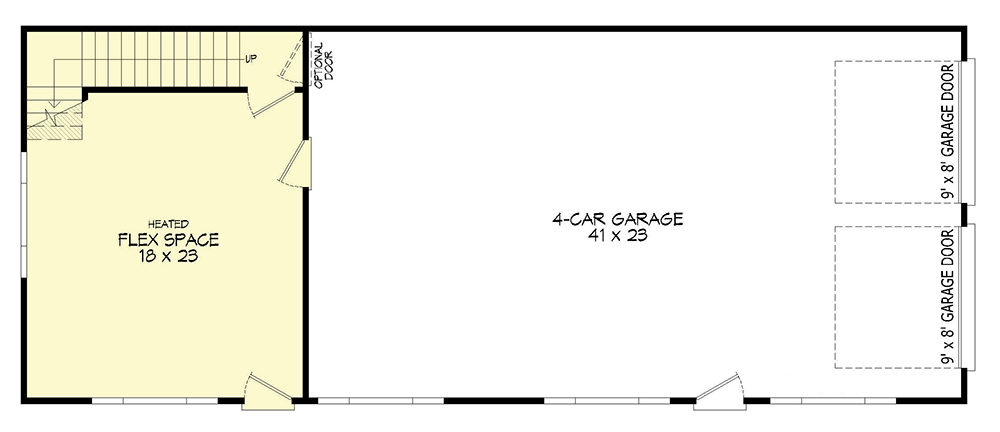

  • Main Level

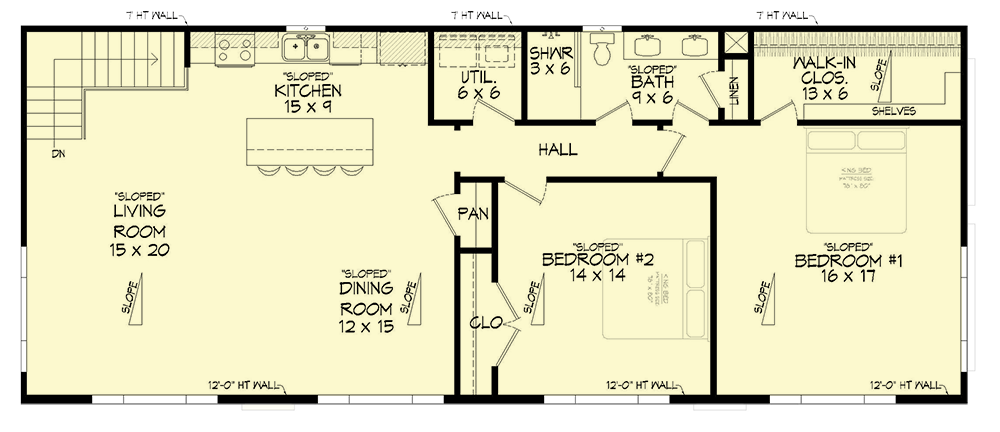

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,878 sq. ft.
  • 1st Floor: 438 sq. ft.
  • 2nd Floor: 1,440 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 24' 0"
  • Max ridge height: 24' 9"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 1002 sq. ft.
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 12' 0"

Roof

  • Primary Pitch: 2.5 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Contemporary Barndominium House Plan with Side-Entry Garage - 1878 Sq Ft

  • 1,878

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

Contemporary Barndominium House Plan with Side-Entry Garage - 1878 Sq Ft

  • 1,878

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

Plan Details

Square Footage Breakdown

  • Total: 1,878 sq. ft.
  • 1st Floor: 438 sq. ft.
  • 2nd Floor: 1,440 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 24' 0"
  • Max ridge height: 24' 9"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 1002 sq. ft.
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 12' 0"

Roof

  • Primary Pitch: 2.5 on 12
  • Framing Type: Stick
