Barndominium with Front-Entry Garage and 2-Story Great Room

Plan 135192GRA

  • 3,686

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

  • This Barndominium-style house plan offers an affordable, low-maintenance home with a perfect mix of living and garage spaces. It pairs a 3,686 square foot home with a 1,942 square foot garage.
  • A 7'-deep porch welcomes you inside to find a great room with tall ceilings flowing into the island kitchen. Just off the dining room, you'll find a covered porch for a grill or dining outdoors.
  • The master bedroom is conveniently located on the main level and enjoys a 4-fixture bathroom, walk-in closet, and access to a 8' by 9'7" safe room.
  • Upstairs, a sizable loft provides a secondary gathering space or media room. Three nearly identical bedrooms sit side by side, across the hall from a compartmentalized bath.
  • Enter from the 1,559 square foot garage to find a mudroom framed by the laundry room and powder bath.
  • The exterior finish is spec'd for corrugated metal siding.
  • Related Plan: Move the garage entry from the front to the side with house plan 135139GRA.

  • All elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

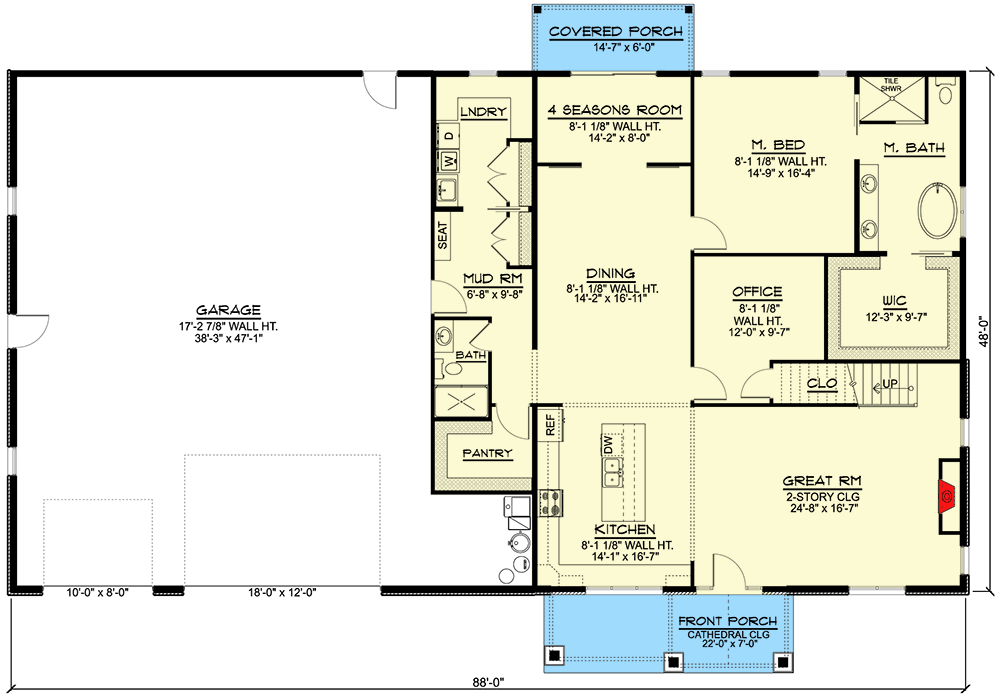

Barndominium with Front-Entry Garage and 2-Story Great Room - 135192GRA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

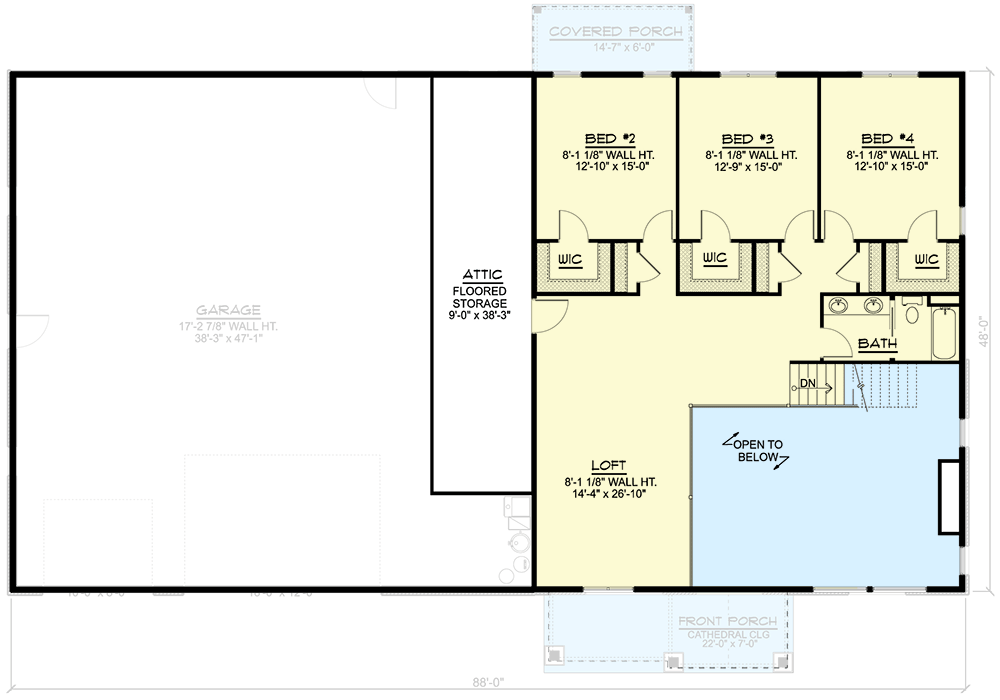

Barndominium with Front-Entry Garage and 2-Story Great Room - 135192GRA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,686 sq. ft.
  • 1st Floor: 2,282 sq. ft.
  • 2nd Floor: 1,404 sq. ft.
  • Attic: 364 sq. ft.
  • Porch, Combined: 271 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 88' 0"
  • Depth: 61' 0"
  • Max ridge height: 25' 9"

Garage

  • Type: RV Garage, Attached
  • Area: 1942 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Barndominium with Front-Entry Garage and 2-Story Great Room

  • 3,686

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,686 sq. ft.
  • 1st Floor: 2,282 sq. ft.
  • 2nd Floor: 1,404 sq. ft.

Dimensions

  • Width: 88' 0"
  • Depth: 61' 0"
  • Max ridge height: 25' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: RV Garage, Attached
  • Area: 1942 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
