Beautiful Tuscan Appeal

Plan 66180WE

  • 4,215

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This two-story Mediterranean house plan with Tuscan appeal features 4 bedrooms and 4 1/2 bathrooms. This home plan is offered as a two story home with the master bedroom on the first floor and a unique radial tub in the master bath adding to the elegance of the front elevation.
  • Enjoy a large family room with built-in entertainment center and 13' coffered ceiling or sit on your covered lanai with outdoor kitchen.
  • A double-coffered ceiling in the living room rising to 24'4' and a fireplace creates a magnificent space for entertaining.
  • Upstairs you'll find a loft with a wet bar, a study and a covered balcony. There are also three bedrooms - one with rear balcony access and one with a private access to a front balcony.
  • Related Plans: Building in reverse? See house plan 66237WE.
  • Two alternate versions are also available. See house plans 66010WE and 66211WE.

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


These items are NOT included:


Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

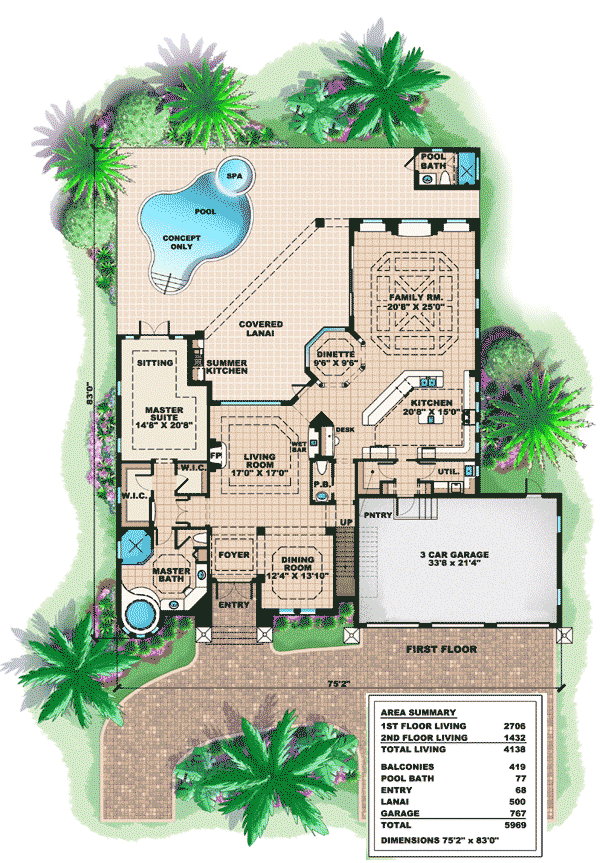

Beautiful Tuscan Appeal - 66180WE floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

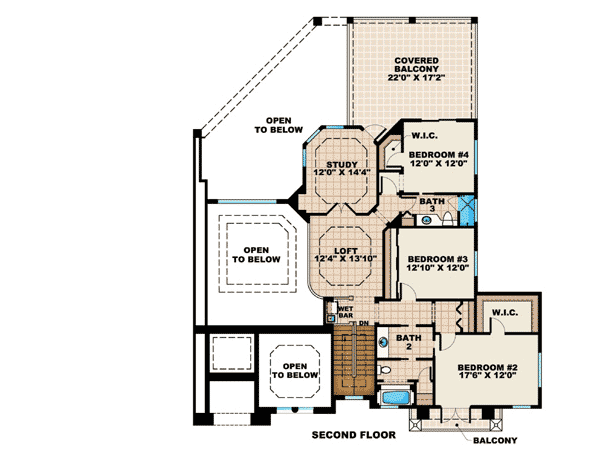

Beautiful Tuscan Appeal - 66180WE floor plan - 2nd Floor

Plan details

Beautiful Tuscan Appeal

  • 4,215

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Reproducible Set $1,650
  • PDF - Single-Build $1,650
  • CAD - Single-Build $1,650
  • View all purchase option online

About This Plan

  • This two-story Mediterranean house plan with Tuscan appeal features 4 bedrooms and 4 1/2 bathrooms. This home plan is offered as a two story home with the master bedroom on the first floor and a unique radial tub in the master bath adding to the elegance of the front elevation.
  • Enjoy a large family room with built-in entertainment center and 13' coffered ceiling or sit on your covered lanai with outdoor kitchen.
  • A double-coffered ceiling in the living room rising to 24'4' and a fireplace creates a magnificent space for entertaining.
  • Upstairs you'll find a loft with a wet bar, a study and a covered balcony. There are also three bedrooms - one with rear balcony access and one with a private access to a front balcony.
  • Related Plans: Building in reverse? See house plan 66237WE.
  • Two alternate versions are also available. See house plans 66010WE and 66211WE.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,215 sq. ft.
  • 1st Floor: 2,783 sq. ft.
  • 2nd Floor: 1,432 sq. ft.
  • Lanai: 500 sq. ft.
  • Balcony / Veranda: 419 sq. ft.
  • Entry: 68 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 75' 2"
  • Depth: 83' 0"
  • Max ridge height: 37' 1"

Garage

  • Type: Attached
  • Area: 767 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
