Plan 33125ZR

Beauty and Energy Efficiency

2,529 3-4 3 1 2
Pageloader

Beauty and Energy Efficiency

Plan 33125ZR

  • 2,529

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • Great care is taken when designing energy efficient features into these Net Zero Energy homes.
  • Deeper overhangs and porches shade the largest windows and for super energy efficiency, we engineer all of the mechanical equipment (AC & Heating) within the homes' conditioned space.
  • Easy to build chases are designed strategically below a vented attic.
  • This planning alone can save 25% in energy costs. How is this possible? Simply put, the homeowner is no longer paying to push cooled or heated air through a hot or cold attic.
  • Coffered and stepped ceilings add visual interest and bay windows extend the nook and master suite.
  • Split bedrooms ensure privacy for the master suite, as the other bedrooms are far away on the other side of the house.
  • Related Plans: Get alternate exteriors with house plans 33123ZR and 33124ZR.

COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.



WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.



EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.



CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)



ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details

Floor Plan

Plan details



Beauty and Energy Efficiency

  • 2,529

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,535
  • 5 Sets $1,635
  • CAD $1,995
  • View all purchase option online

About This Plan

  • Great care is taken when designing energy efficient features into these Net Zero Energy homes.
  • Deeper overhangs and porches shade the largest windows and for super energy efficiency, we engineer all of the mechanical equipment (AC & Heating) within the homes' conditioned space.
  • Easy to build chases are designed strategically below a vented attic.
  • This planning alone can save 25% in energy costs. How is this possible? Simply put, the homeowner is no longer paying to push cooled or heated air through a hot or cold attic.
  • Coffered and stepped ceilings add visual interest and bay windows extend the nook and master suite.
  • Split bedrooms ensure privacy for the master suite, as the other bedrooms are far away on the other side of the house.
  • Related Plans: Get alternate exteriors with house plans 33123ZR and 33124ZR.

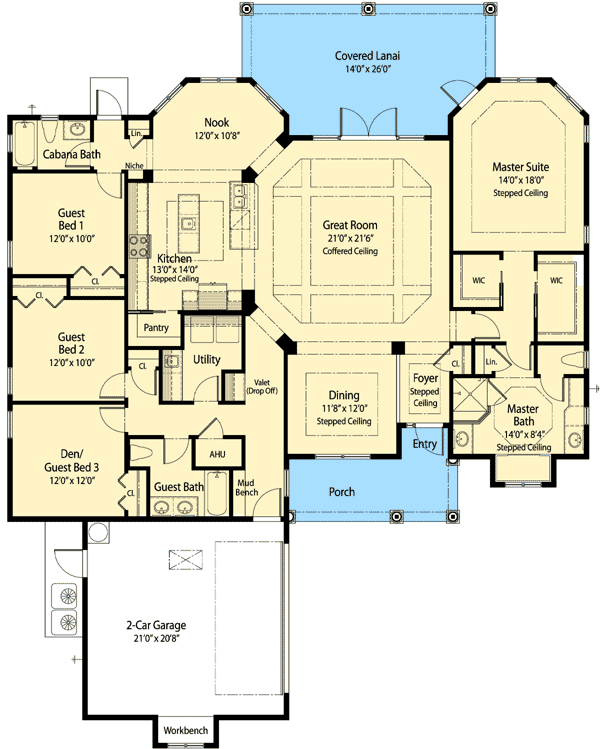

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,529 sq. ft.
  • 1st Floor: 2,529 sq. ft.
  • Porch, Front: 137 sq. ft.
  • Lanai: 333 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Stem Wall

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 62' 0"
  • Depth: 76' 4"
  • Max ridge height: 23' 6"

Garage

  • Type: Attached
  • Area: 487 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Framing Type: Truss
