Plan 90222PD

Central Spiraling Stair

Heated S.F.
2,968
Beds
4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 90222PD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 90222PD

M-F 9am-5pm EST |

1-203-761-8500

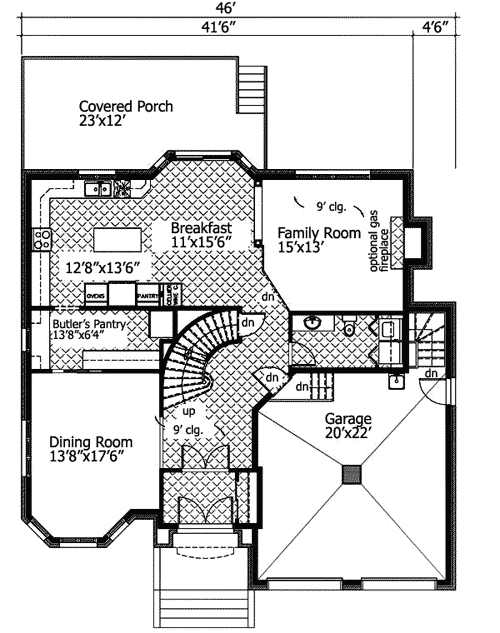

Main Level

Plan 90222PD: Central Spiraling Stair - Floor Plan - Main Level - European

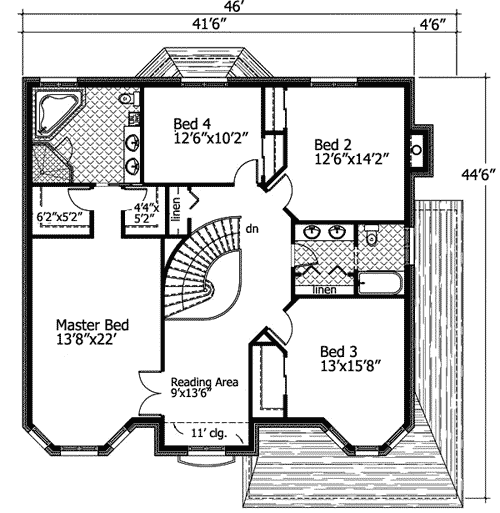

2nd Floor

Plan 90222PD: Central Spiraling Stair - Floor Plan - 2nd Floor - European

Plan Details

  • Two sets of French doors - one to an air lock entry to keep out the cold and the other to the formal entry create a great first impression. So does the spiral staircase with dramatic ceiling.
  • A large butler's pantry makes entertaining guests a breeze.
  • You have full width views from the kitchen to the family room with its fireplace centered on the far wall. And a large porch gives you room for relaxing outdoors.
  • All the bedrooms are upstairs including the master with walk-ins. A reading area in the alcove is a nice added touch.
  • Related Plan: Get a more linear exterior and downsize with house plan 90177PD (2,718 sq. ft.).

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,968 sq. ft.

1st Floor

1,352 sq. ft.

2nd Floor

1,616 sq. ft.

Basement Unfinished

1,352 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

44' 6"

Max Ridge Height

37' 6"

Garage

Type

Attached

Area

515 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

European

Special Features

Loft

Master Suite - Sitting Area

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Canadian House Plans

Metric
