Charming and Compact with Options

Plan 21845DR

  • 1,621

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

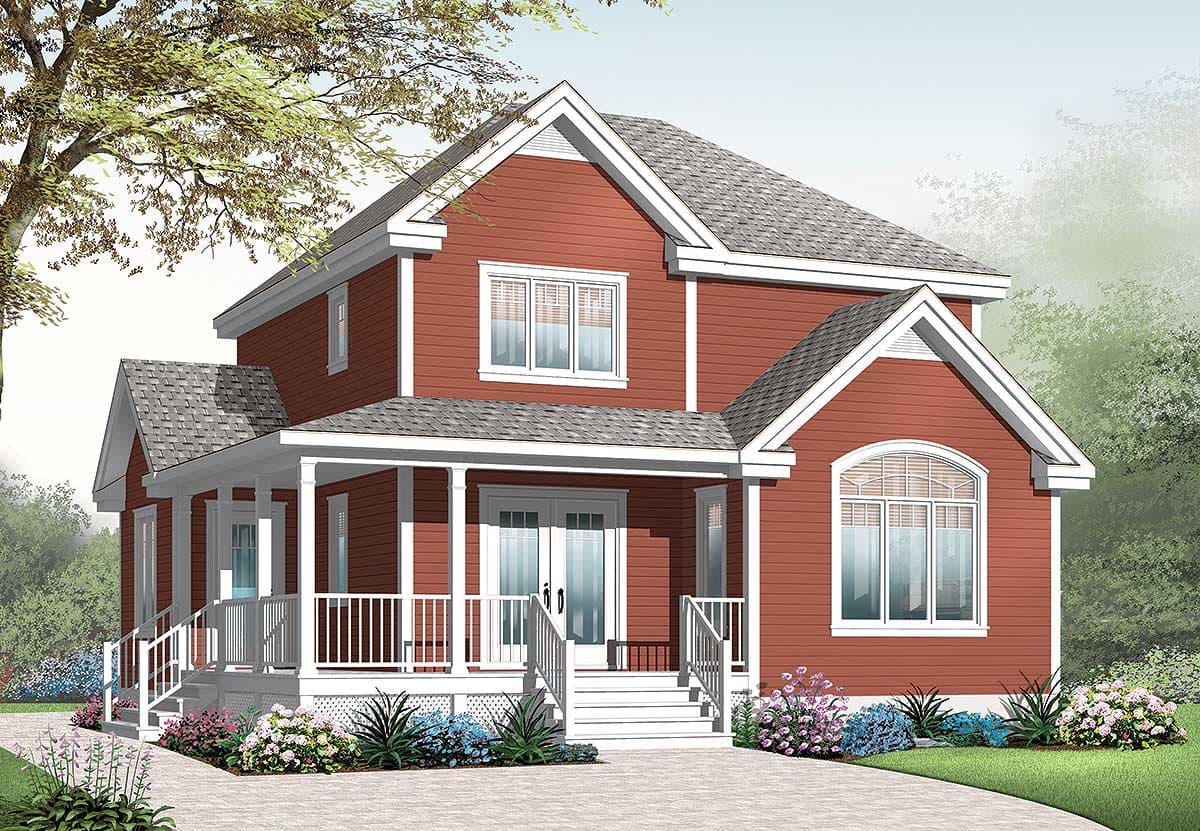

  • Modest in square footage, this country home plan nevertheless provides all the essentials and more in a charming package.

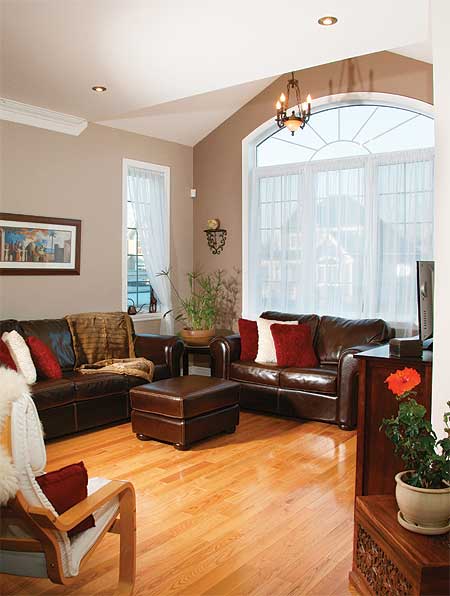

  • Step off the covered porch into the foyer with its coat closet and sitting area. The family room is visible from here and gets lots of natural light from a graceful three-section arched window.

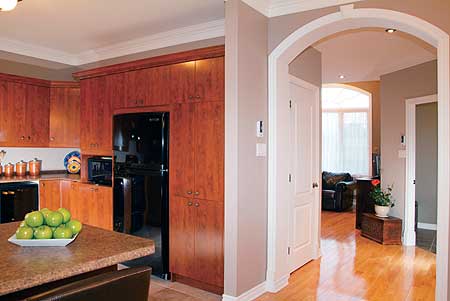

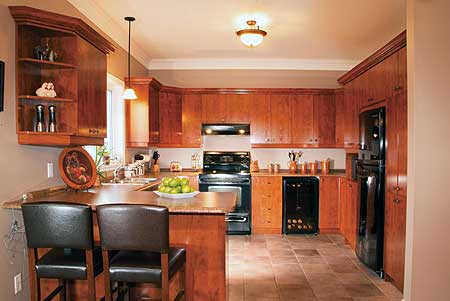

  • In back, the kitchen and dining area share a large space, and a curved breakfast bar provides a spot for snacks and informal meals.
  • A door gives access from the dining area to the backyard. Another goes to the side porch. A bathroom and laundry facilities completes the first floor.

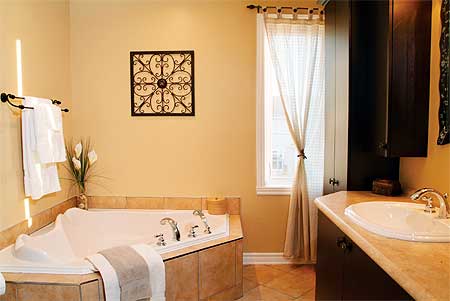

  • Upstairs, the master bedroom and two secondary bedrooms share a full bath with separate tub and shower.
  • Related Plans: Need something smaller? See house plans 2157DR and 21694DR.
  • Need a garage? See these house plans - 21115DR and 21732DR.

Each plan includes the following:

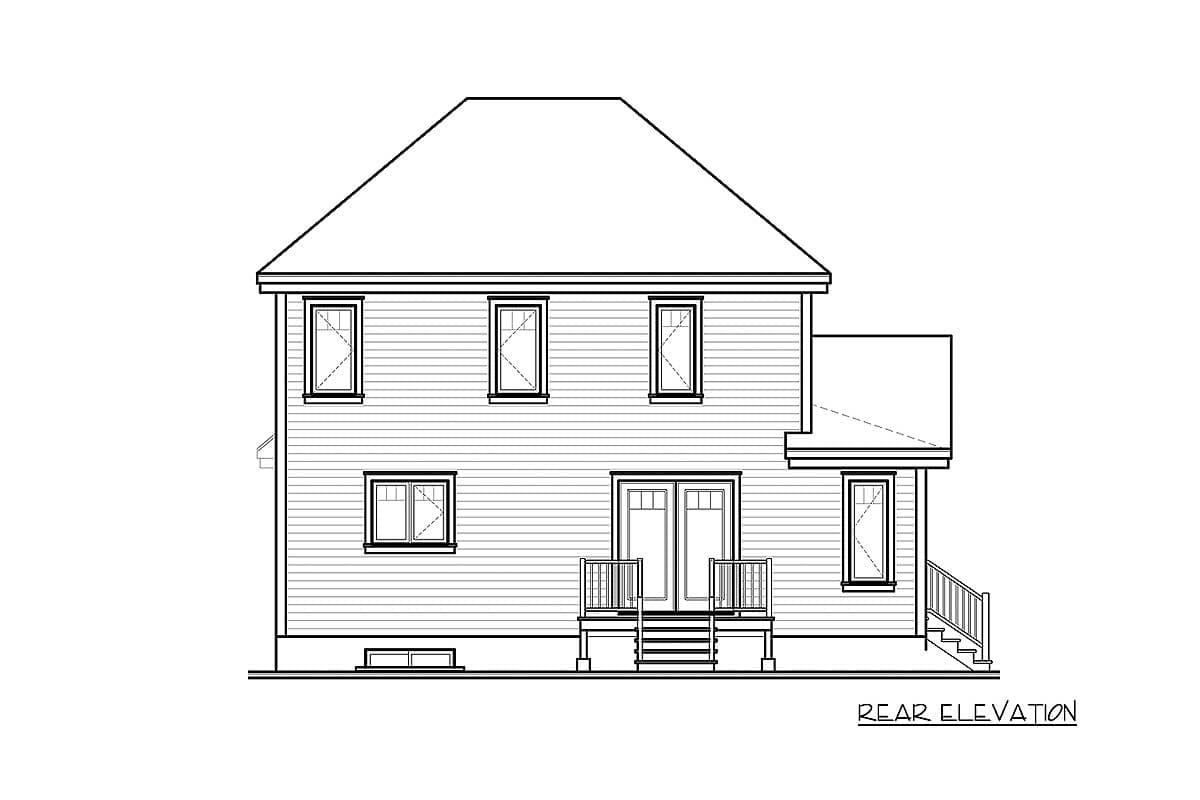

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

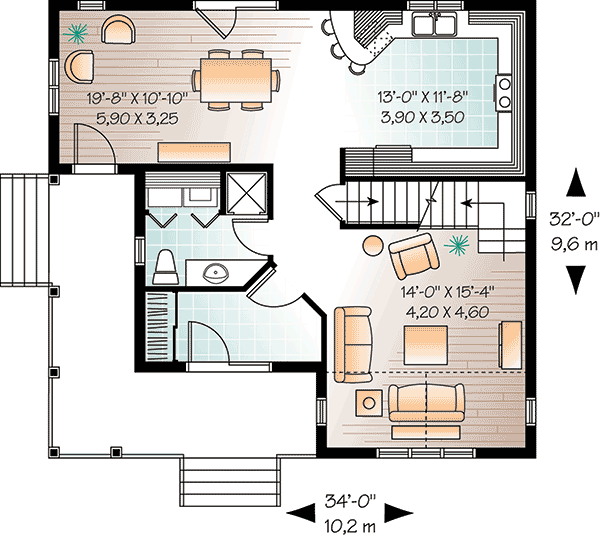

Charming and Compact with Options - 21845DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

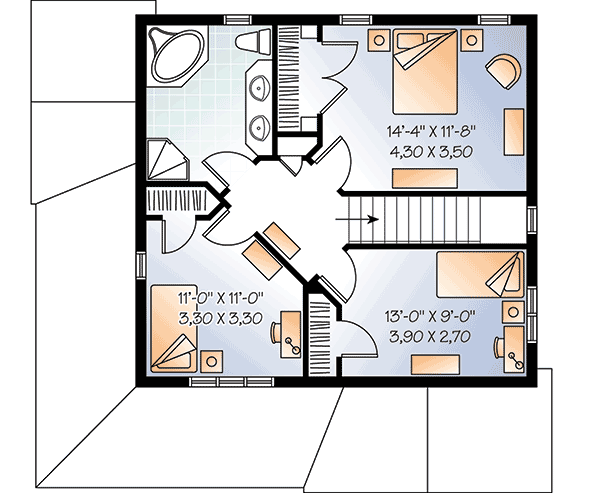

Charming and Compact with Options - 21845DR floor plan - 2nd Floor

Plan details

Architectural Style

Special features

Plan Collections

Charming and Compact with Options

  • 1,621

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,130
  • Reproducible Set $1,130
  • 5 Sets + PDF $1,255
  • CAD - Single-Build $1,730
  • View all purchase option online

About This Plan

  • Modest in square footage, this country home plan nevertheless provides all the essentials and more in a charming package.
  • Step off the covered porch into the foyer with its coat closet and sitting area. The family room is visible from here and gets lots of natural light from a graceful three-section arched window.
  • In back, the kitchen and dining area share a large space, and a curved breakfast bar provides a spot for snacks and informal meals.
  • A door gives access from the dining area to the backyard. Another goes to the side porch. A bathroom and laundry facilities completes the first floor.
  • Upstairs, the master bedroom and two secondary bedrooms share a full bath with separate tub and shower.
  • Related Plans: Need something smaller? See house plans 2157DR and 21694DR.
  • Need a garage? See these house plans - 21115DR and 21732DR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,621 sq. ft.
  • 1st Floor: 893 sq. ft.
  • 2nd Floor: 728 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 32' 0"
  • Max ridge height: 28' 2"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
