Plan 21694DR Compact and Charming

1,517 3 1.5 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Compact and Charming

Plan 21694DR

  • 1,517

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Stories

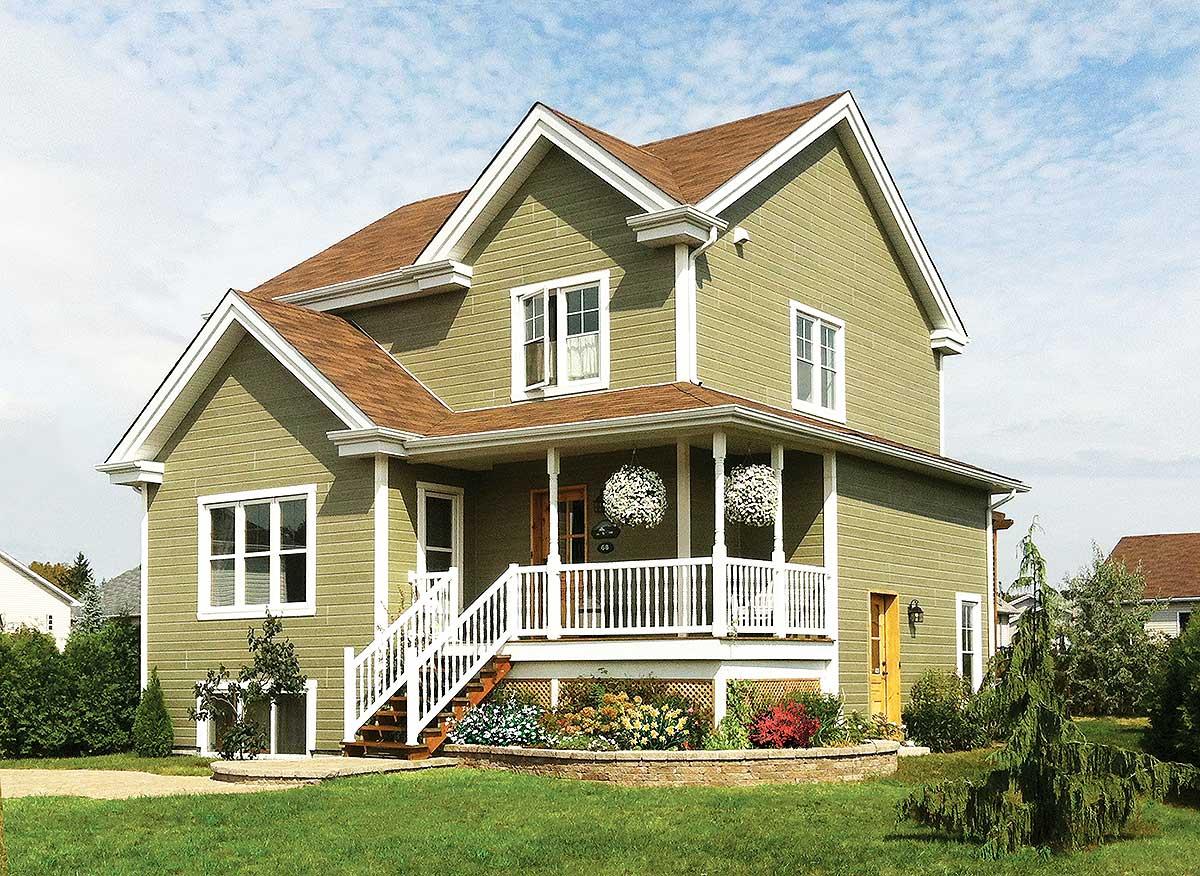

  • Modest in square footage, this country home plan nevertheless provides all the essentials and more in a charming package.
  • Step off the covered porch into the foyer with its coat closet and sitting area. The family room is visible from here and gets lots of natural light.

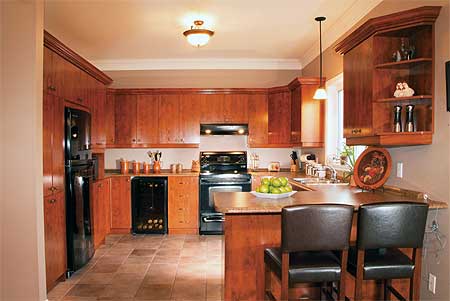

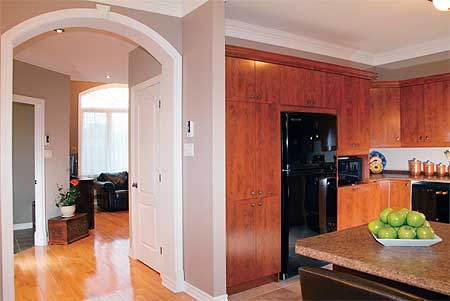

  • In back, the kitchen and dining area share a large space, and a curved breakfast bar provides a spot for snacks and informal meals.
  • Sliders open from the dining area to the backyard. A bathroom and laundry facilities completes the first floor.

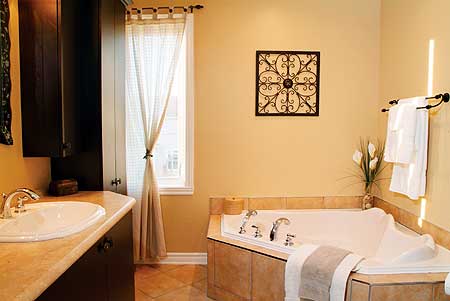

  • Upstairs, the master bedroom and two secondary bedrooms share a full bath with separate tub and shower.
  • Related Plan: Gain a finished lower level with house plan 21893DR. For an alternate version, see house plan 2157DR. Need more room? See house plan 21845DR (1,621 sq. ft.)
  • Need a garage? See these house plans - 21115DR and 21732DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

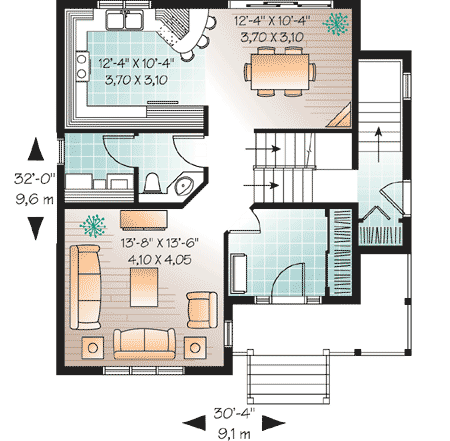

Compact and Charming - 21694DR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

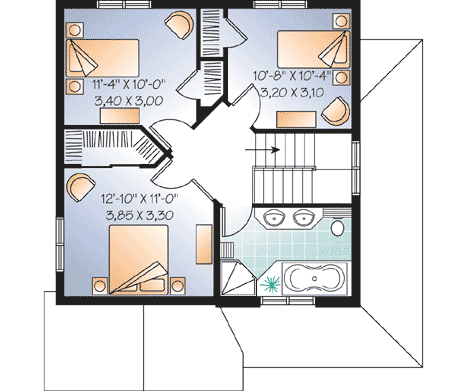

Compact and Charming - 21694DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,517 sq. ft.
  • 1st Floor: 841 sq. ft.
  • 2nd Floor: 676 sq. ft.
  • Basement Unfinished: 764 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 4"
  • Depth: 32' 0"
  • Max ridge height: 31' 6"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Compact and Charming

  • 1,517

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,300
  • 3 Sets + PDF $1,425
  • CAD + PDF - Single-Build $1,900
  • View all purchase option online

About This Plan

  • Modest in square footage, this country home plan nevertheless provides all the essentials and more in a charming package.
  • Step off the covered porch into the foyer with its coat closet and sitting area. The family room is visible from here and gets lots of natural light.
  • In back, the kitchen and dining area share a large space, and a curved breakfast bar provides a spot for snacks and informal meals.
  • Sliders open from the dining area to the backyard. A bathroom and laundry facilities completes the first floor.
  • Upstairs, the master bedroom and two secondary bedrooms share a full bath with separate tub and shower.
  • Related Plan: Gain a finished lower level with house plan 21893DR. For an alternate version, see house plan 2157DR. Need more room? See house plan 21845DR (1,621 sq. ft.)
  • Need a garage? See these house plans - 21115DR and 21732DR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,517 sq. ft.
  • 1st Floor: 841 sq. ft.
  • 2nd Floor: 676 sq. ft.
  • Basement Unfinished: 764 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 4"
  • Depth: 32' 0"
  • Max ridge height: 31' 6"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
Plan 21694DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/21694DR
|
