Plan 51122MM

Charming Craftsman House Plan

Heated S.F.
1,853
Beds
3
Baths
2
Stories
1
Cars
2

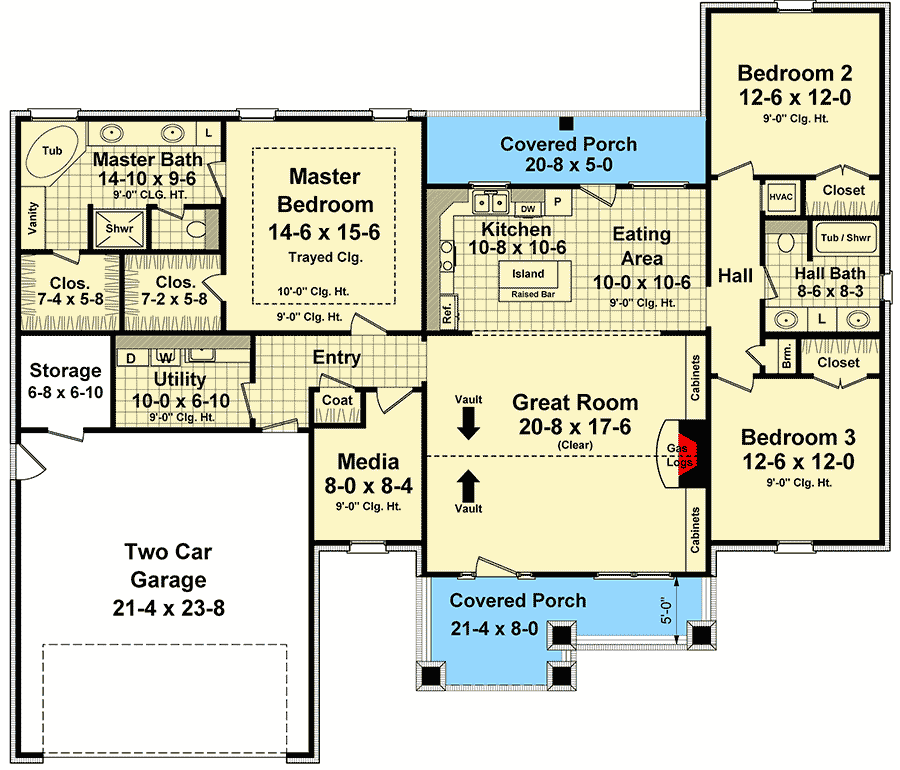

Floor Plan

Plan 51122MM

Main Level
Main Level

Plan 51122MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 51122MM: Charming Craftsman House Plan - Floor Plan - Main Level - Craftsman, Northwest

Plan Details

  • This Craftsman house plan features a beautiful classic traditional style with a Craftsman touch.
  • The expansive master suite includes large his and her walk-in closets, an oversized jet tub, separate shower, compartmentalized toilet and dual vanities.
  • The vaulted ceiling in the great room makes the home feel larger than it actually is.
  • The open floorplan of this home includes a split-bedroom layout, and features the much-requested gas logs or conventional fireplace.
  • Enjoy the rear porch, perfect for those family bar-b-ques.
  • The large kitchen features popular raised bar for meals and conversations with family.
  • The basement foundation option makes for a great value with a wide variety of innovative features.
  • Related Plans: Downsize with house plans 51040MM (1,509 s.f.) and 51131MM (1,604 sq. ft.).
  • Build in reverse with house plans 51041MM (1,800 s.f.) and 51043MM (2,067 s.f.).
  • Get a basement with house plan 51143MM (1,876 sq. ft.) and 51159MM (1,627 sq. ft.).

What's Included

This plan set has pages as 9 follows:
  1. Cover sheet
  2. Foundation page
  3. Details
  4. Floor plan

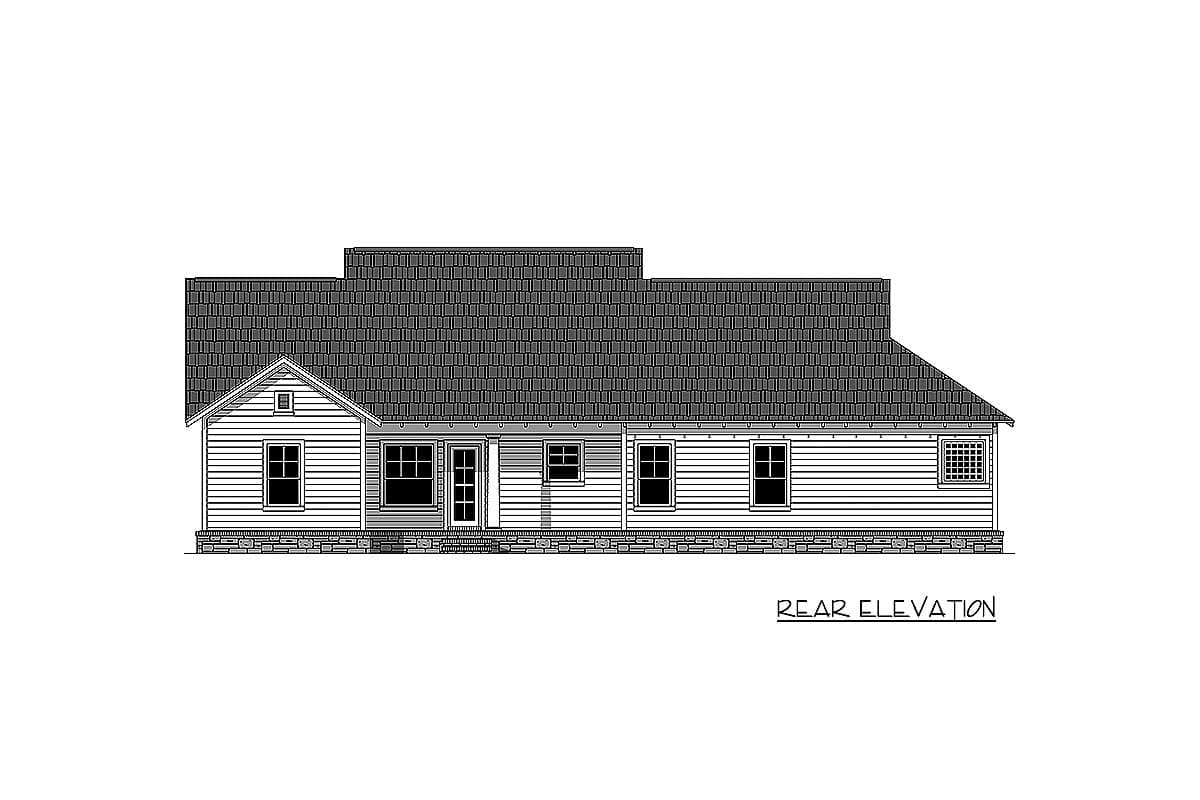

  5. Front and right elevations
  6. Rear and left elevations; typical wall section
  7. Cross section, cabinet elevations
  8. Rafter framing layout, roof drainage layout, typical trayed ceiling detail
  9. Electrical plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,853 sq. ft.

1st Floor

1,853 sq. ft.

Porch, Rear

103 sq. ft.

Storage

46 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 2"

Depth

55' 4"

Max Ridge Height

22' 5"

Garage

Type

Attached

Area

575 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

USDA Approved

Square Footage Breakdown

Total Heated Area

1,853 sq. ft.

1st Floor

1,853 sq. ft.

Porch, Rear

103 sq. ft.

Storage

46 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 2"

Depth

55' 4"

Max Ridge Height

22' 5"

Garage

Type

Attached

Area

575 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

USDA Approved
