Plan 51131MM

Creative Craftsman with Options

Heated S.F.
1,604
Beds
3
Baths
2
Stories
1
Cars
2
Client Photos

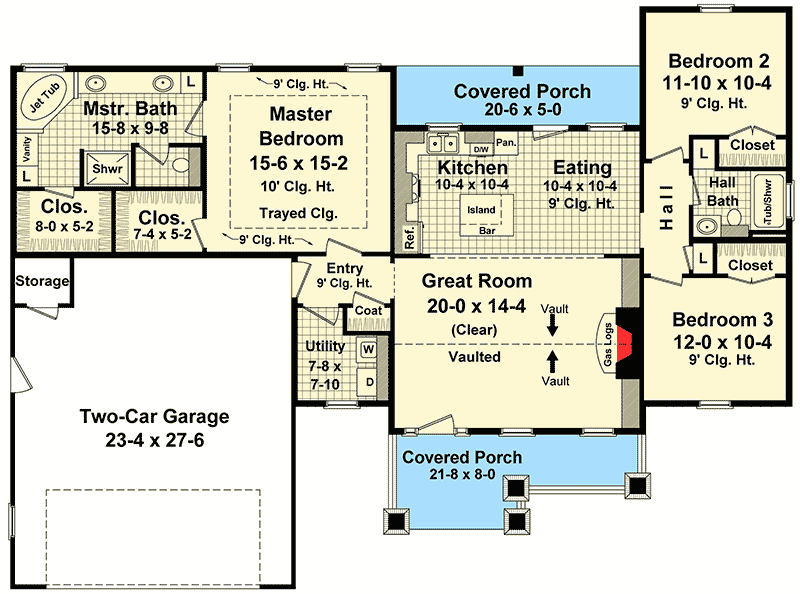

Floor Plan

Plan 51131MM

Main Level
Main Level

Plan 51131MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 51131MM: Creative Craftsman with Options - Floor Plan - Main Level - Cottage, Country, Craftsman, Farmhouse, Modern Farmhouse, Northwest, Ranch, Traditional

Plan Details

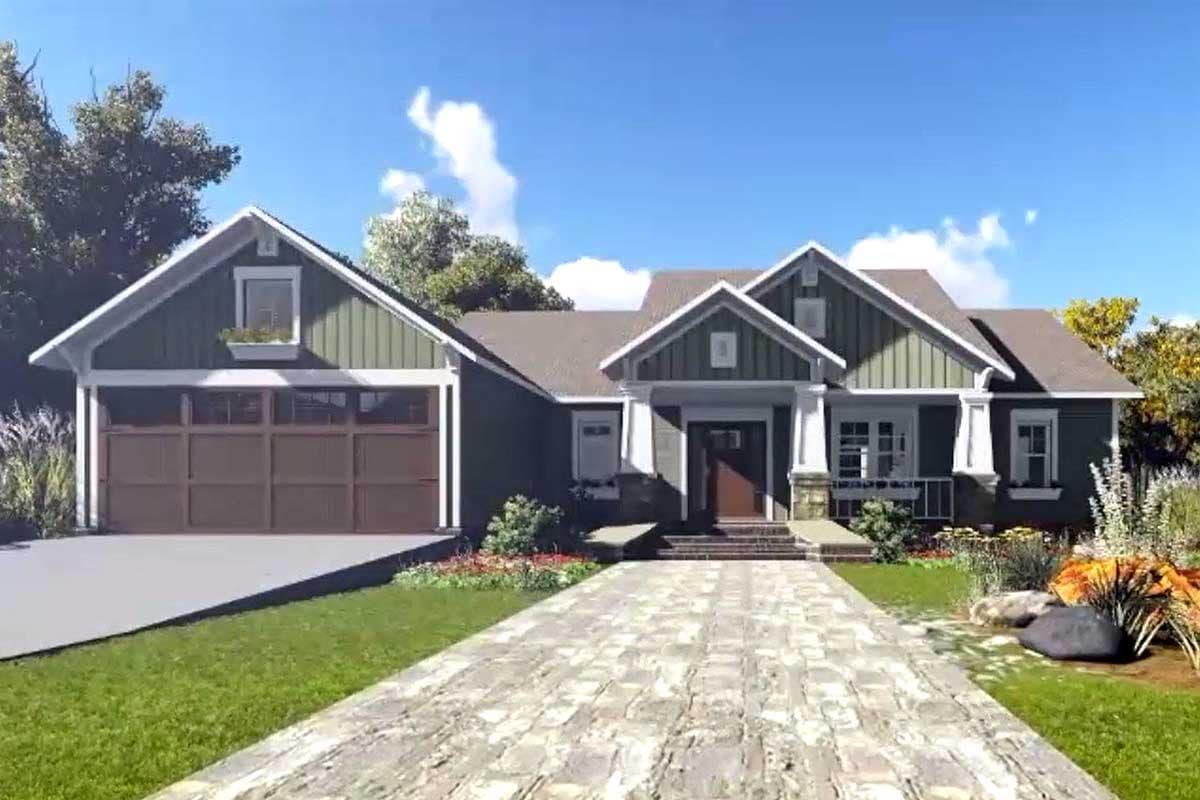

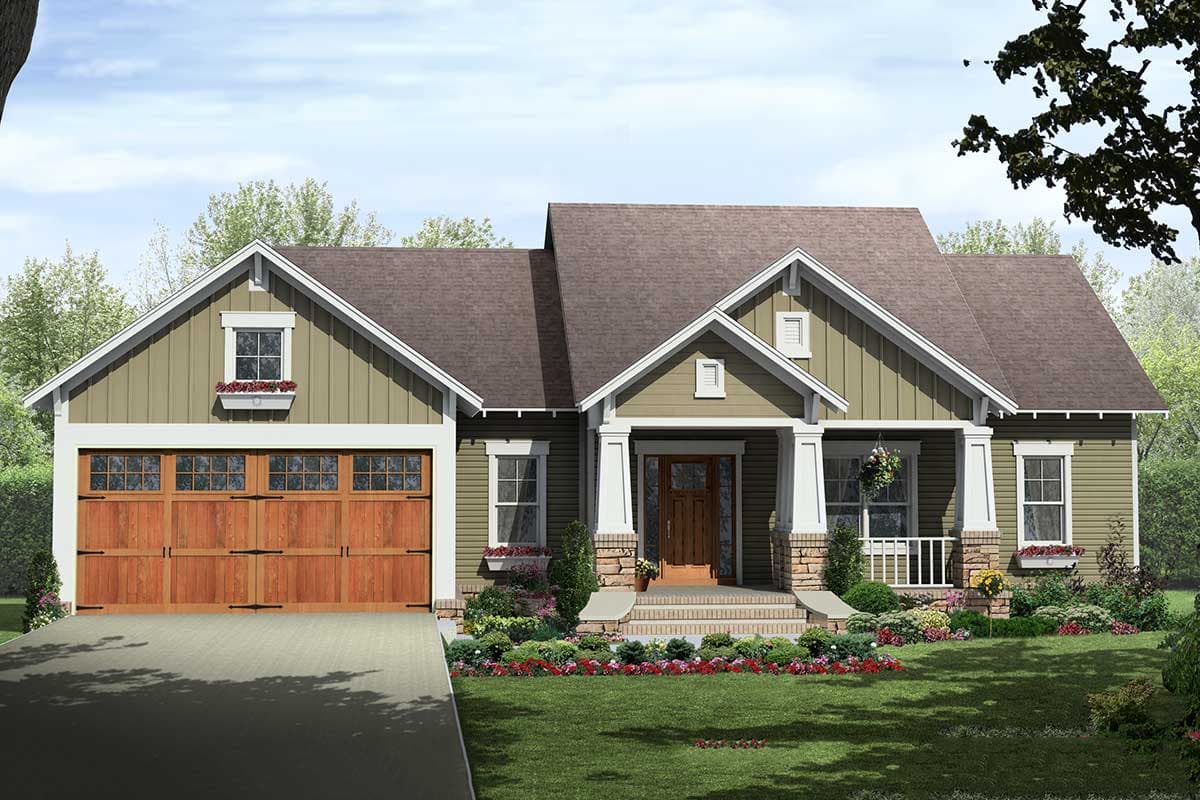

  • This 3 bedroom house plan greets you with its nested gable covered front porch with stout columns for that great Craftsman touch.
  • The expansive master suite includes large his and her walk-in closets, an oversized jet tub, separate shower, compartmentalized toilet and dual vanities.

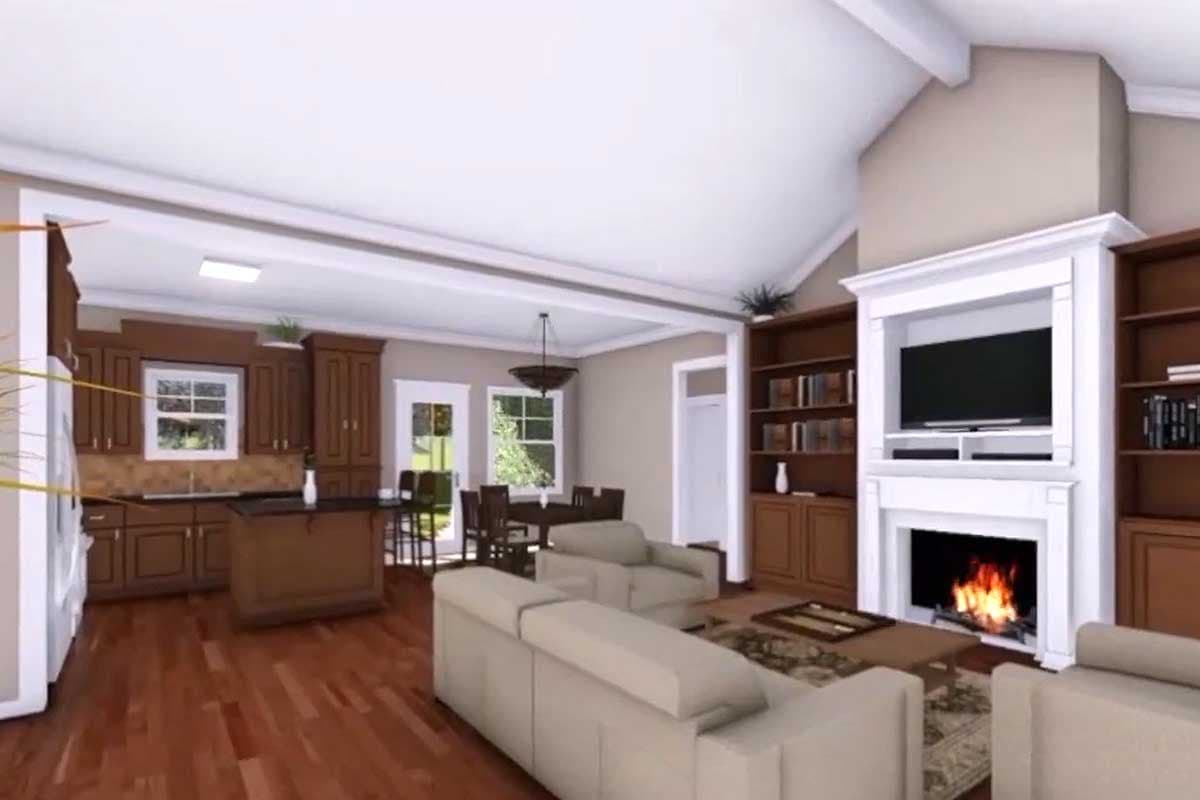

  • The vaulted ceiling in the great room makes the home feel larger than its footprint.

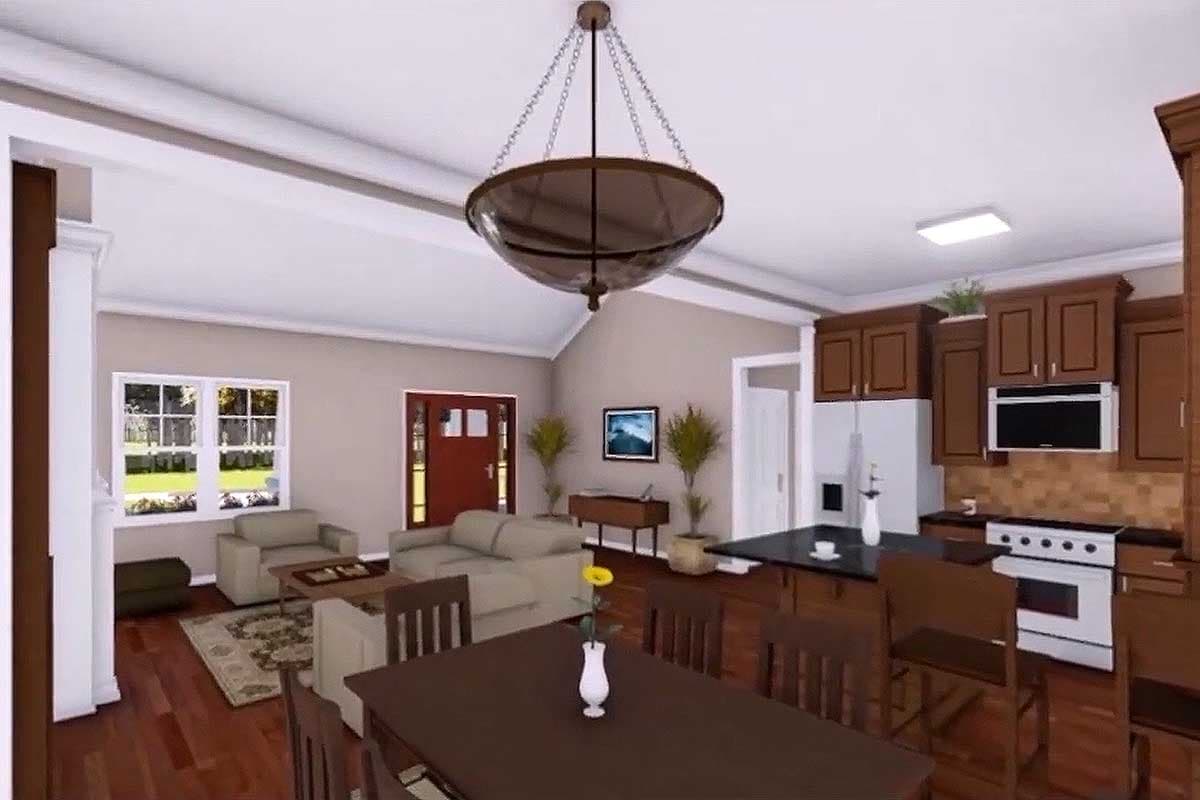

  • The open floorplan of this home includes a split-bedroom layout, and features the much-requested gas log or conventional fireplace.

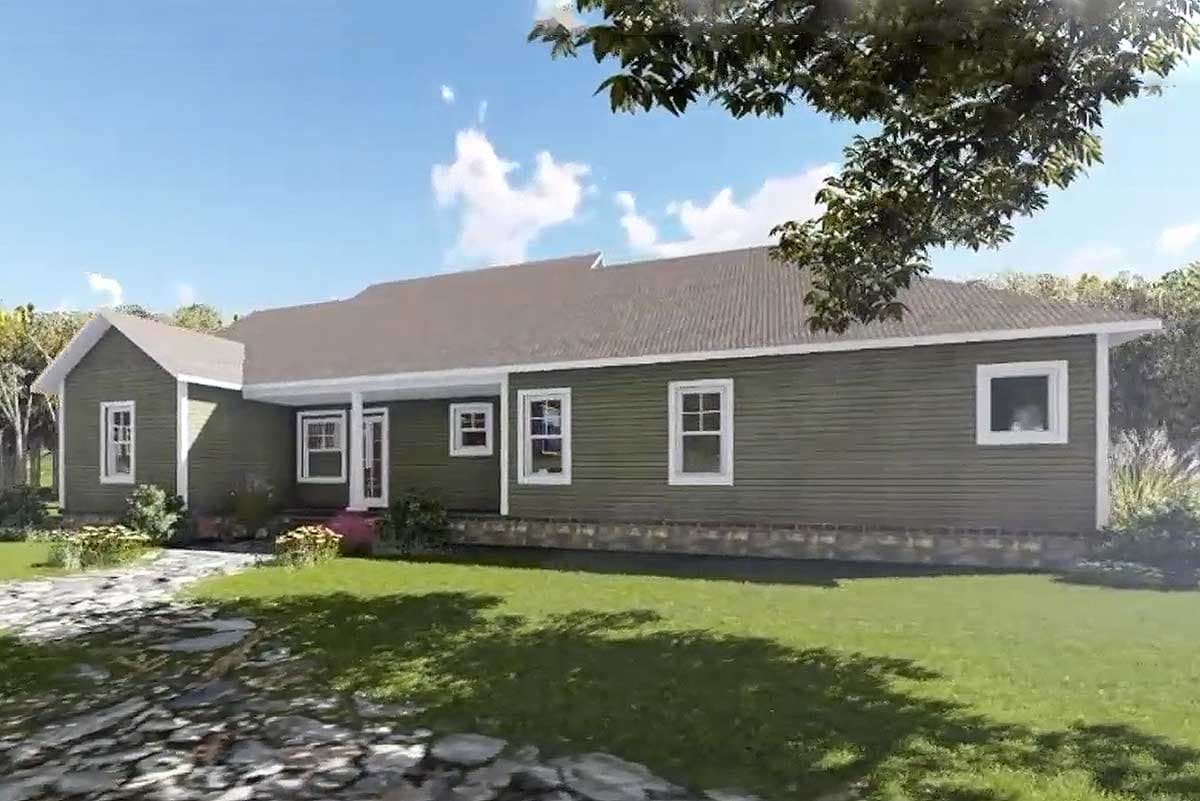

  • Enjoy the rear porch, perfect for those family bar-b-ques.

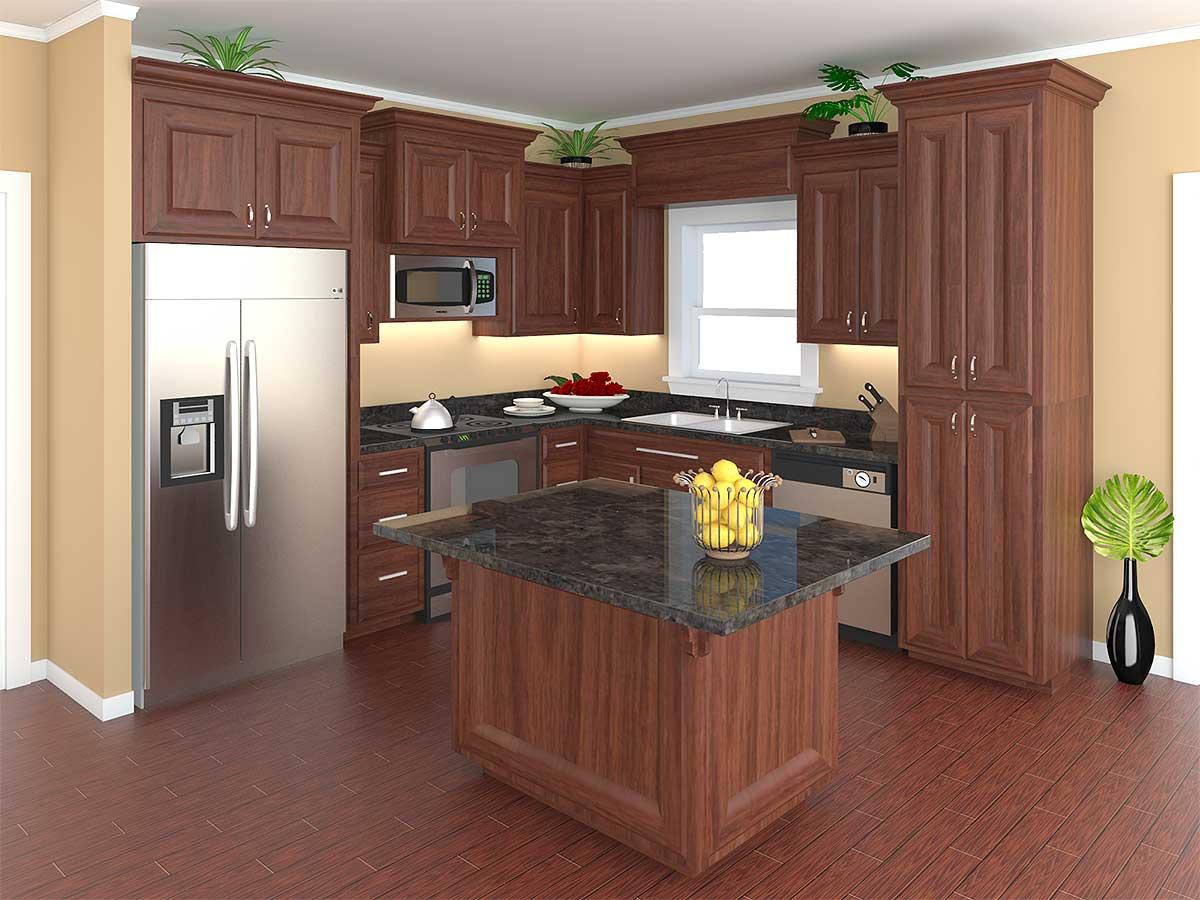

  • The large kitchen features a raised bar for meals and conversations with family.
  • Related Plans: Get a basement with house plans 51159MM (1,627 sq. ft.) and 51143MM (1,876 sq. ft.). Downsize with house plan 51040MM (1,509 s.f.) and get more room with house plans 51122MM (1,853 s.f.) and 51173MM (1,801 sq. ft.). Build in reverse with home plans: 51041MM (1,800 s.f.) and 51043MM (2,067 s.f.).
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

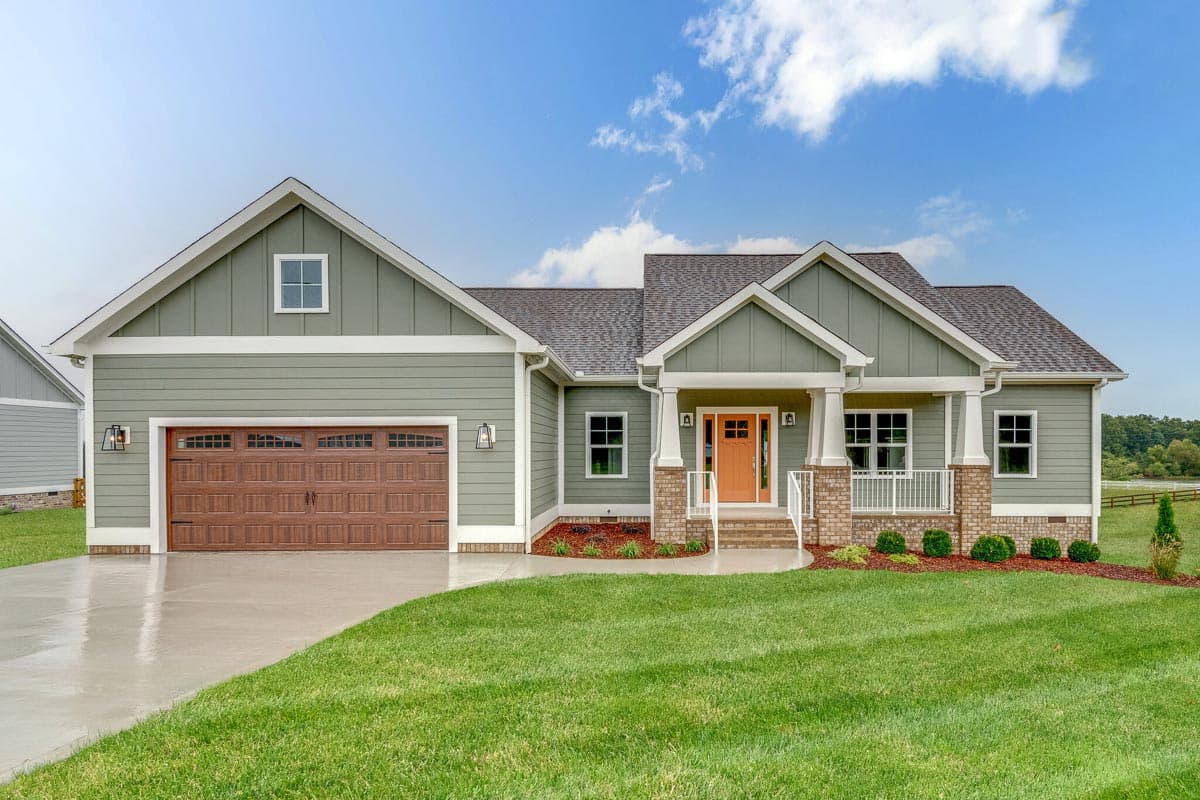

build gallery item - Craftsman House Plan 51131MM Comes to Life in Tennessee

Craftsman House Plan 51131MM Comes to Life in Tennessee

26

Photos

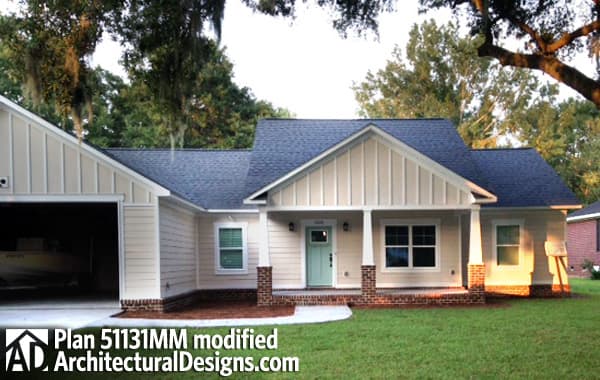

build gallery item - House Plan 51131MM comes to life in South Carolina

House Plan 51131MM comes to life in South Carolina

3

Photos

What's Included

This plan set consists of seven pages as follows:
  1. Cover sheet
  2. Foundation sheet with notes and details
  3. Main floor plan

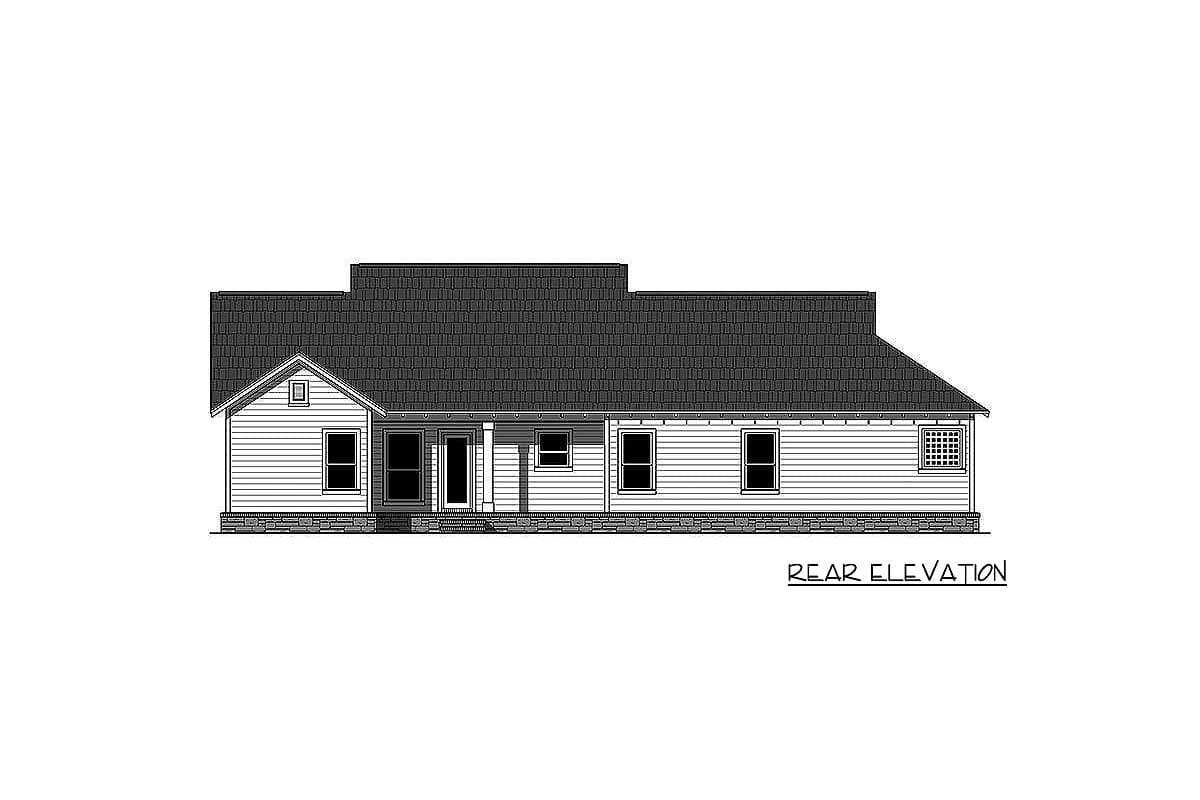

  4. Elevations and wall section
  5. Cabinet elevations and cross section
  6. Rafter layout, roof drainage, garage section, door and window framing details, column detail, typical trayed ceiling detail
  7. Electrical plans
  8. Optional carport foundation, elevations, cross section, floor plan, roof framing and drainage plans

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,604 sq. ft.

1st Floor

1,604 sq. ft.

Porch, Front

143 sq. ft.

Porch, Rear

108 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 10"

Depth

50' 0"

Max Ridge Height

21' 5"

Garage

Type

Attached

Area

664 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Craftsman

Farmhouse

Modern Farmhouse

Northwest

Ranch

Traditional

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Plan Collections

Photo Gallery

USDA Approved

Square Footage Breakdown

Total Heated Area

1,604 sq. ft.

1st Floor

1,604 sq. ft.

Porch, Front

143 sq. ft.

Porch, Rear

108 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 10"

Depth

50' 0"

Max Ridge Height

21' 5"

Garage

Type

Attached

Area

664 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Craftsman

Farmhouse

Modern Farmhouse

Northwest

Ranch

Traditional

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Plan Collections

Photo Gallery

USDA Approved
