Plan 23511JD

Clean, Straight Lines

3,105 4 3 + 2 3
Pageloader

Clean, Straight Lines

Plan 23511JD

  • 3,105

    Heated s.f.

  • 4

    Beds

  • 3 +

    Baths

  • 2

    Stories

  • 3

    Cars

  • MORE PHOTOS: See photos of the red home in our Facebook photo album and pictures of another home in our Google+ photo album.

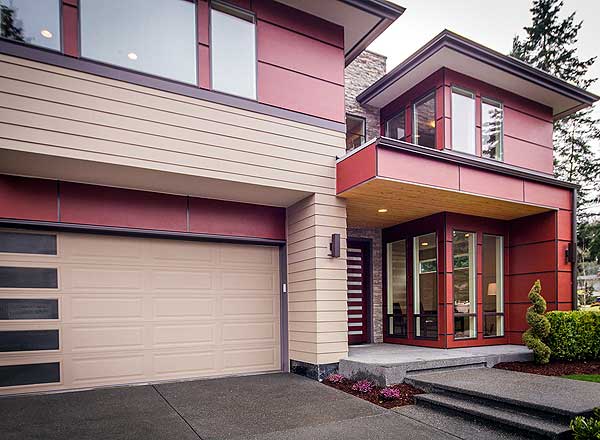

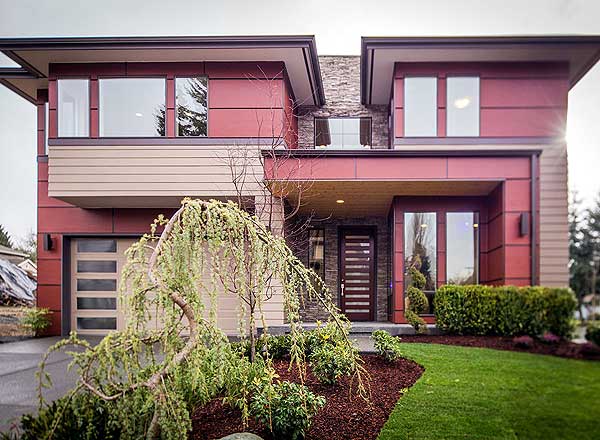

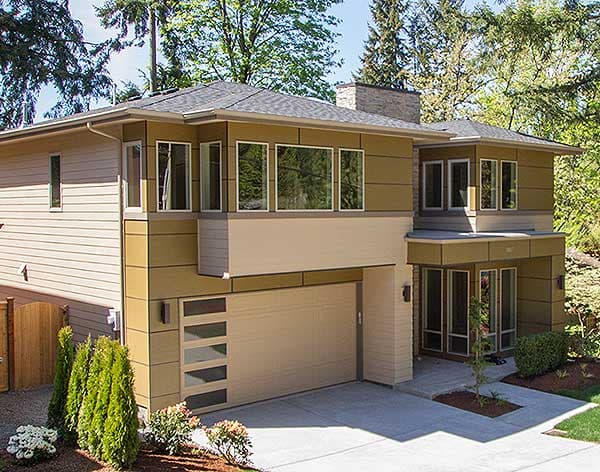

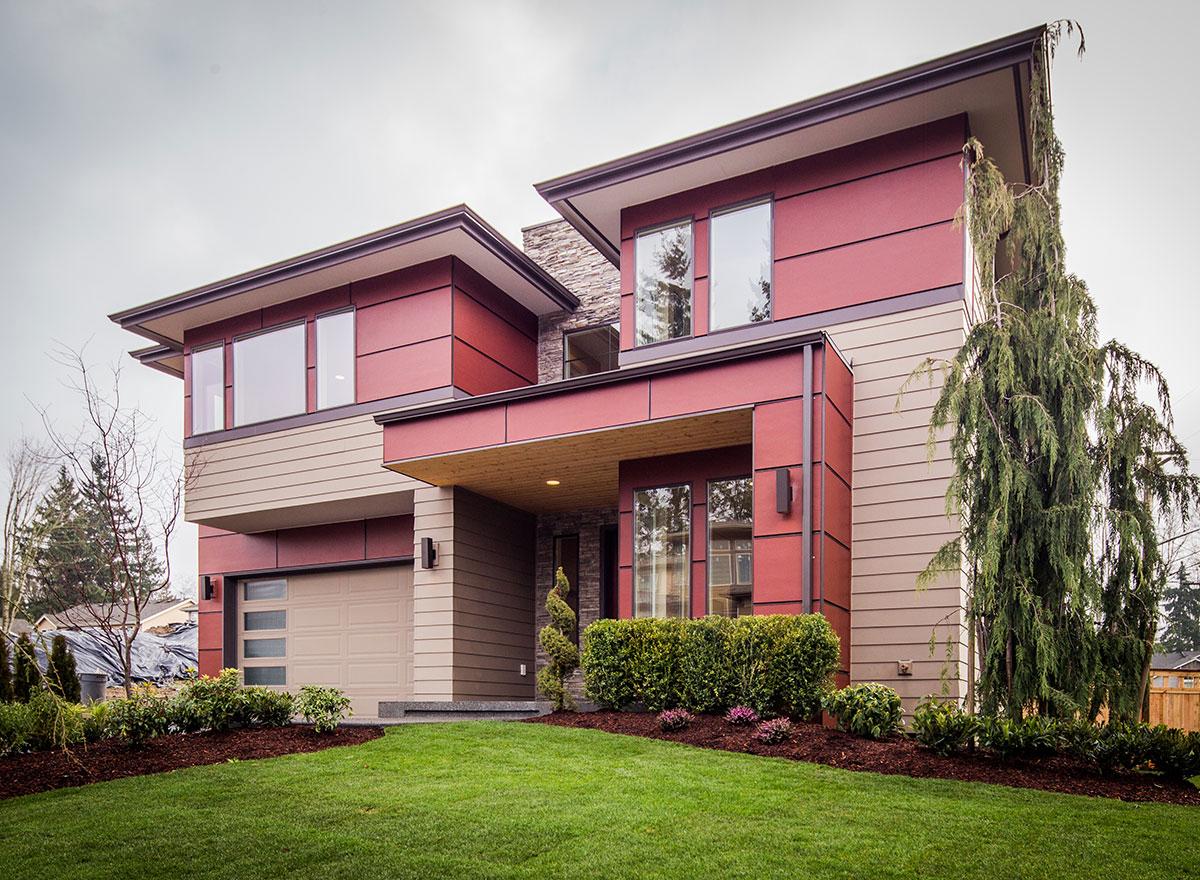

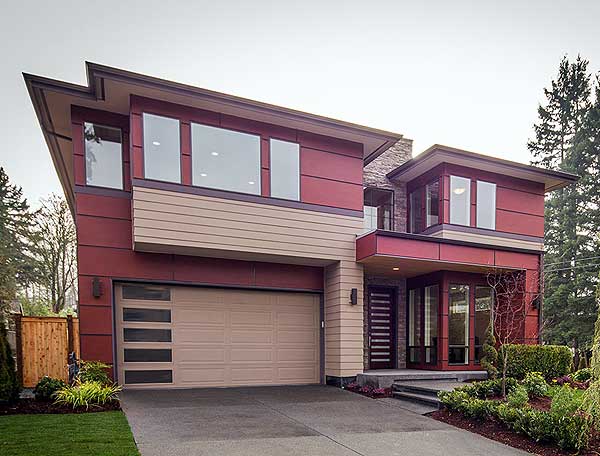

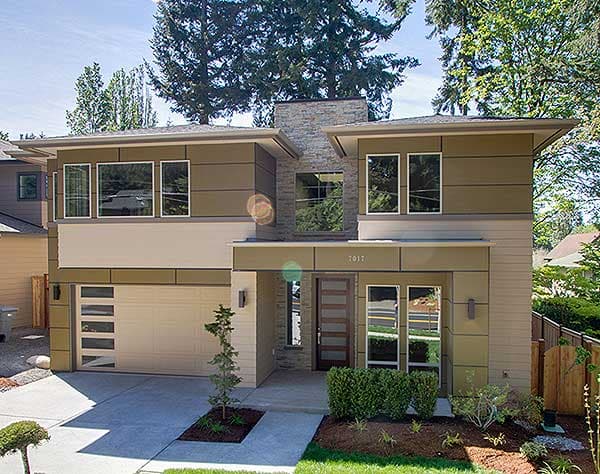

  • Clean, straight lines heighten the curb appeal of this Contemporary home plan.

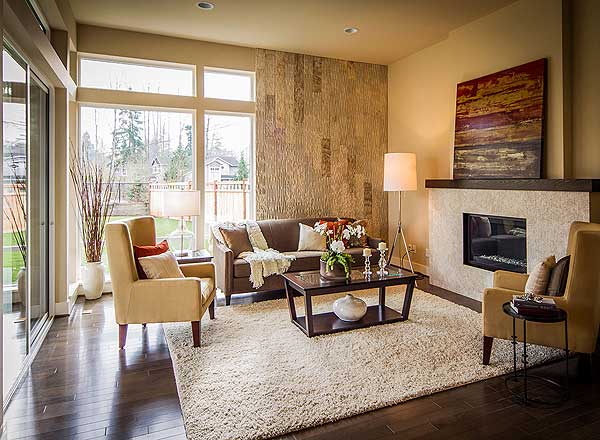

  • On the inside, the great room ceiling rises up to 11' feet, expanding the space.
  • Guests enter in the front foyer while a family foyer off the garage is pleasantly large.
  • Sliding doors close off the den that can also be used as an extra bedroom due to the closet and nearby bathroom.
  • An enormous island in the kitchen has seating for 5 people and the views flow right into the dining room and vaulted great room.
  • The upstairs is even larger with four bedrooms and a huge bonus room that is included in the total living area of the home.
  • The roof has main pitch of 4:12 and a secondary pitch of 2:12.
  • Related Plan: Get an alternate exterior with house plan 23510JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
  •

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

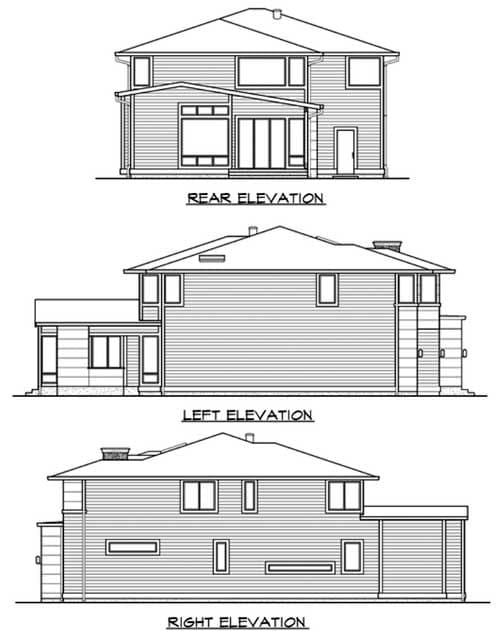

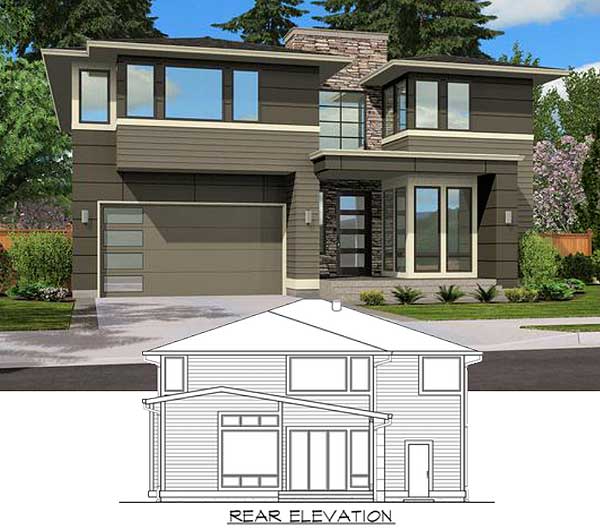

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Floor Plan

Plan details



Clean, Straight Lines

  • 3,105

    Heated s.f.

  • 4

    Beds

  • 3 +

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,500
  • 5 Sets PLUS $1,600
  • CAD - multi-use $2,500
  • View all purchase option online

About This Plan

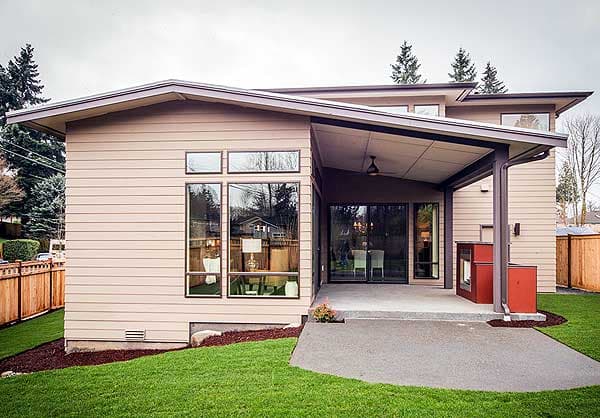

  • MORE PHOTOS: See photos of the red home in our Facebook photo album and pictures of another home in our Google+ photo album.
  • Clean, straight lines heighten the curb appeal of this Contemporary home plan.
  • On the inside, the great room ceiling rises up to 11' feet, expanding the space.
  • Guests enter in the front foyer while a family foyer off the garage is pleasantly large.
  • Sliding doors close off the den that can also be used as an extra bedroom due to the closet and nearby bathroom.
  • An enormous island in the kitchen has seating for 5 people and the views flow right into the dining room and vaulted great room.
  • The upstairs is even larger with four bedrooms and a huge bonus room that is included in the total living area of the home.
  • The roof has main pitch of 4:12 and a secondary pitch of 2:12.
  • Related Plan: Get an alternate exterior with house plan 23510JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
  •

Floor Plans

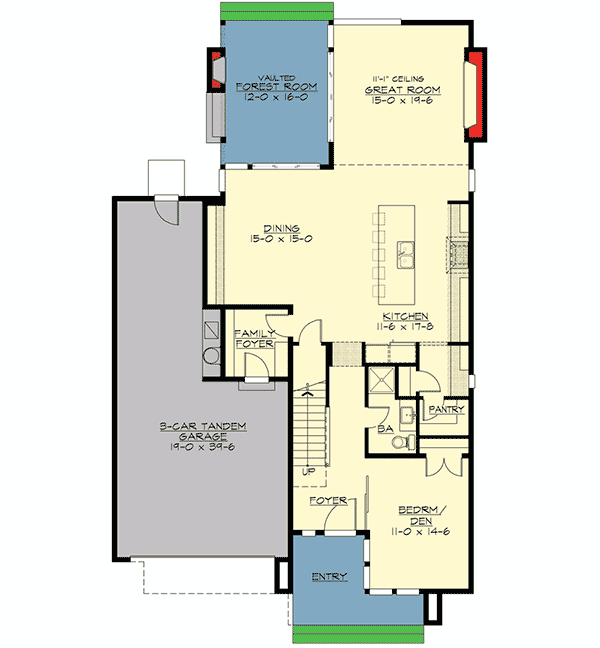

  • Main Level

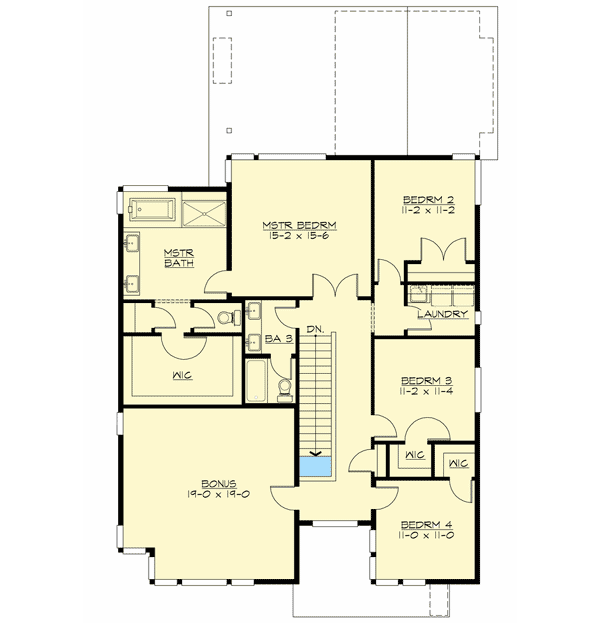

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,105 sq. ft.
  • 1st Floor: 1,370 sq. ft.
  • 2nd Floor: 1,735 sq. ft.
  • Porch, Rear: 192 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3 or 4

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 49' 0"
  • Depth: 67' 0"
  • Max ridge height: 25' 6"

Garage

  • Type: Attached
  • Area: 622 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
